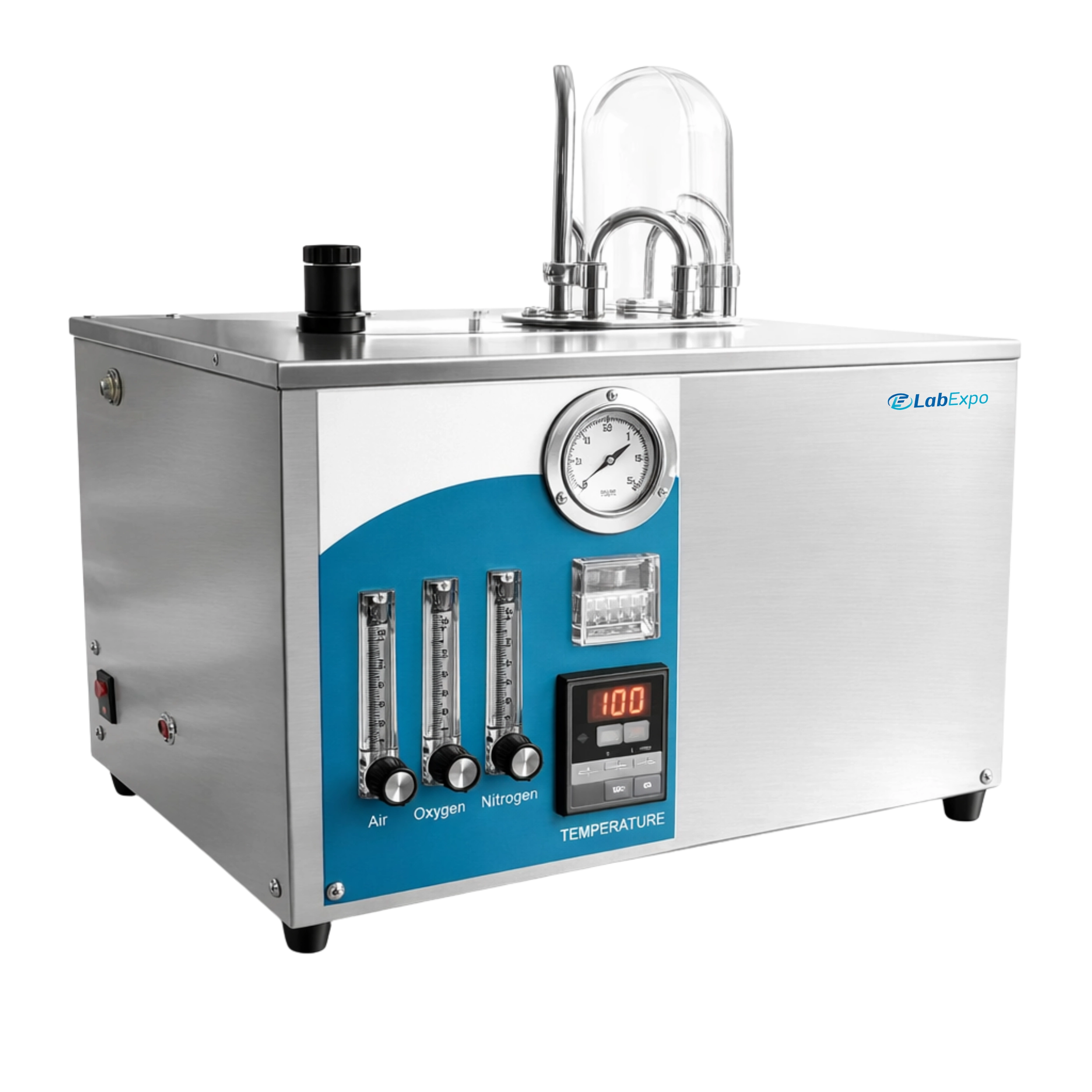

Existent Gum Tester 52-EGT101 is fabricated with heating bath and air compressor to be more accurate and meet the industrial requirements. The instrument is designed and made as per ASTM D381-12 “Test Methods for Existent Gum of Vehicle Gasoline and Aviation Fuels (Jet Evaporation Methods)”.
Price: $6144
| Evaporation bath type and size | Aluminum block bath, φ260 × 130 mm |
| Holes for testing | 3 pieces |
| Size of holes for testing cylinder | φ51 × 70 mm |
| Flow rate display | Flow meter |
| Working temperature | 60 ℃ to 165 ℃ |
| Temperature controlling methods | Automatic temperature controlling |
| Temperature display | Digitally displayed |
| Working pressure for decompression valve | 0.035 MPa |
| Gas source | Compressed air > 110 L/min |
| Dimension | 550 x 370 x 335 mm |
| Power supply | AC 220 V ± 10 %, 50 Hz; 2.5 kW |
Independent flow meter use to adjust jet flows
Designed heating bath and gas circuit
Evaporation rate is good
Determination of three sample can be done simultaneously
It is widely used in petroleum, chemical, automobile and development industry. It is also suitable for determining the existent gum content of aviation gasoline and motor gasoline.
