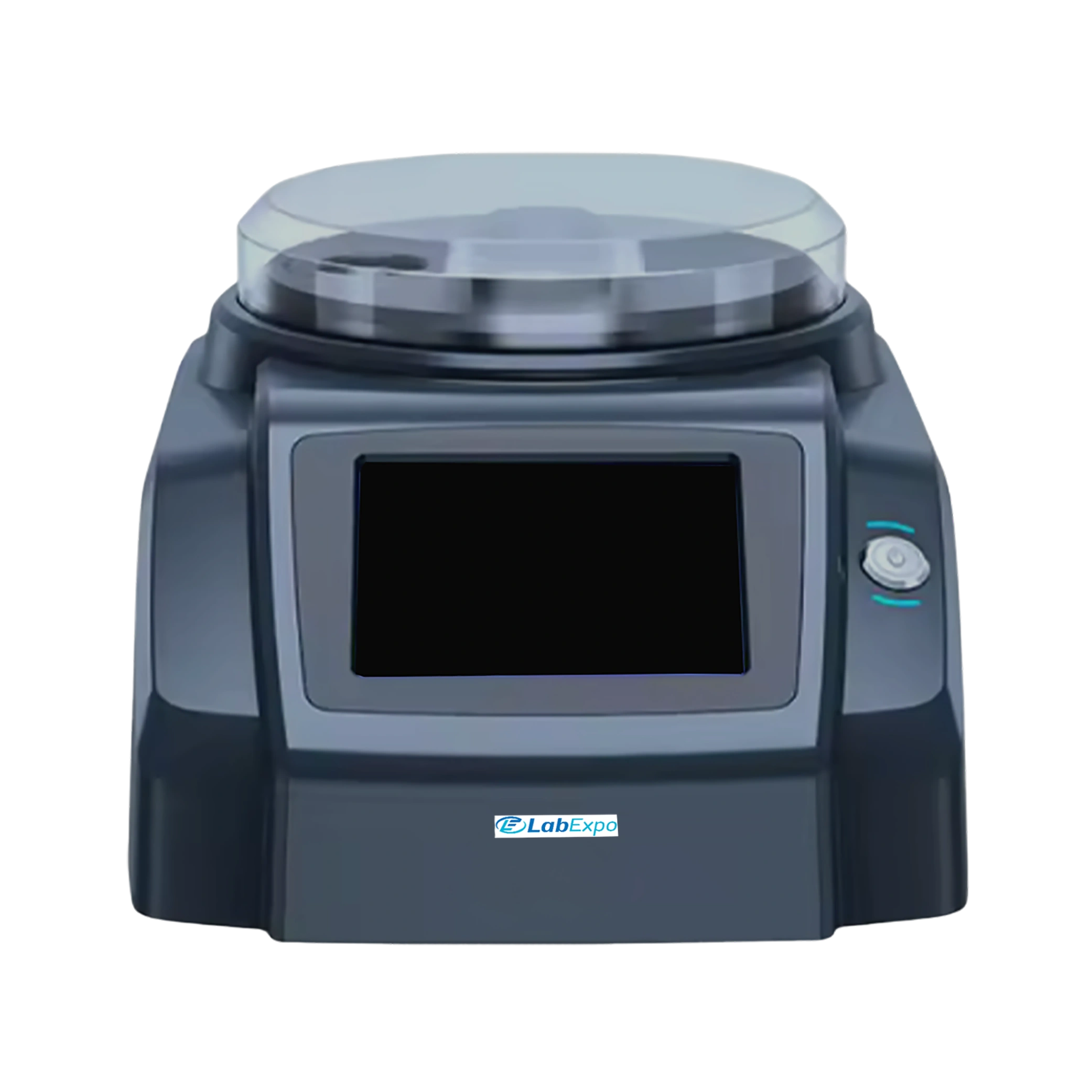

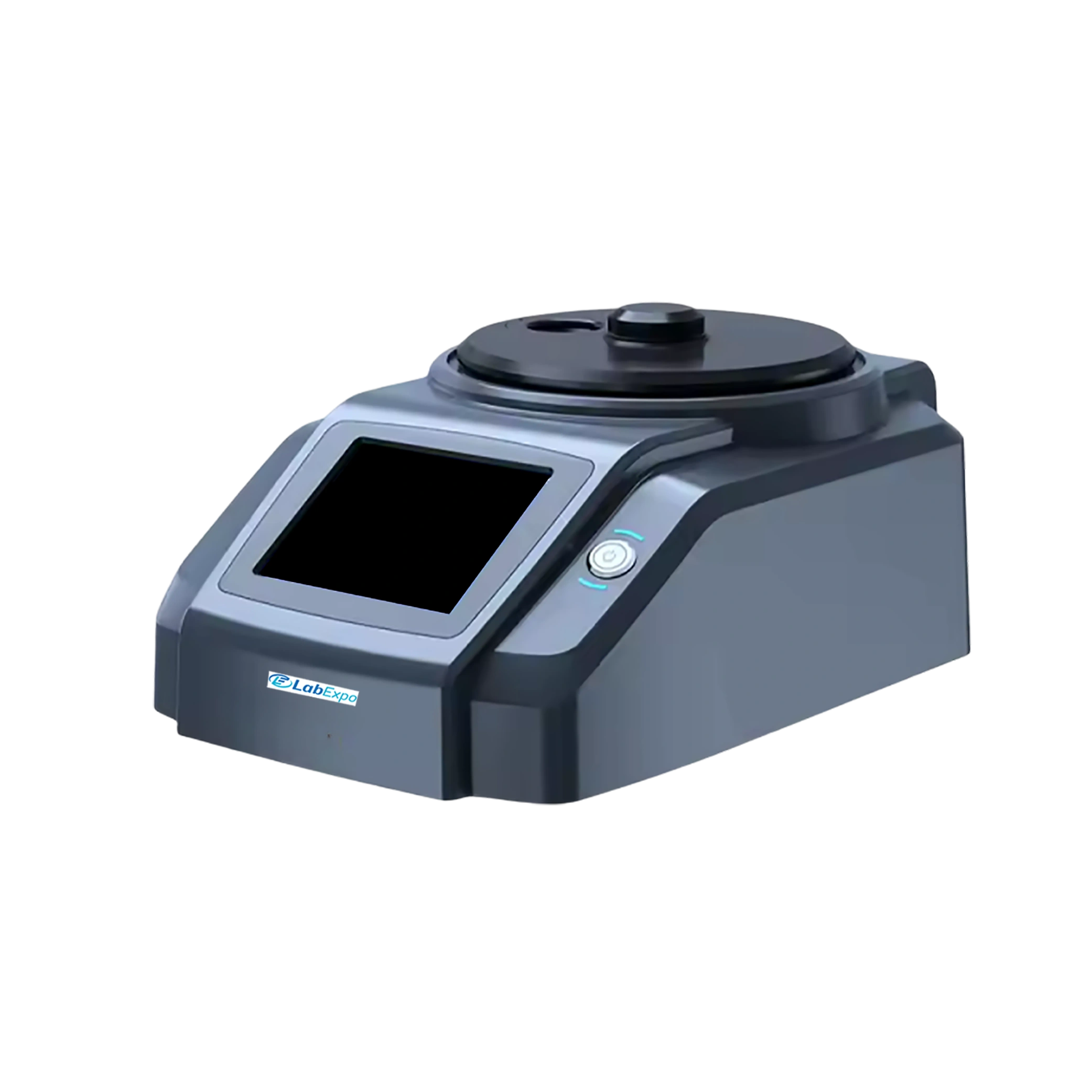

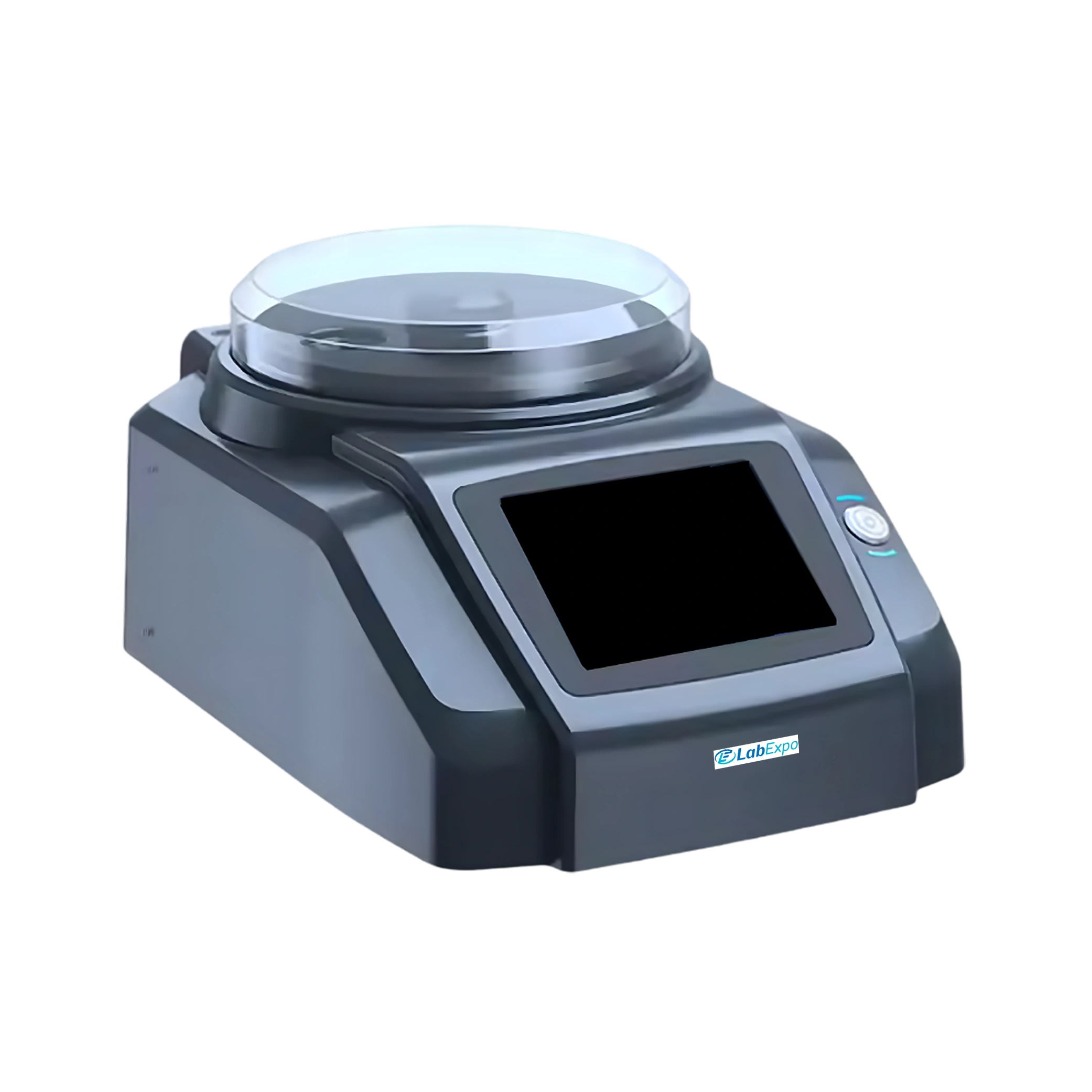

Ferrous Debris Monitor LE-FM101

Lab Expo Ferrous Debris Monitor LE-FM101 detects large ferromagnetic wear particles using a PQ index measurement system. It is equipped with a quantitative analysis function for accurate debris evaluation. Integrated human-computer interaction interface simplifies operational control. Built-in display shows each operation on screen for user convenience and monitoring. Our Ferrous Debris Monitor is ideal for machinery maintenance, and oil analysis applications.

$16,099.00 $ 13416

Ferrous Debris Monitor LE-FM101 - Specifications

Detection Range 0 to 15000 PQ
Capture Ferromagnetic Wear Particle Range Greater Than 1µm
Turntable Speed 11S/ Turn
Measurement Resolution 1PQ (Average Resolution 0.1PQ)
Repeatability ±0.5% or ±3PQ.
Ambient Temperature 15℃ to 30℃
Working Environment Humidity 30% to 80%RH
Operation Input Method Capacitive Touch Screen on Display
USB Connection Type-A2.0 (Only for Connecting USB Flash Disk)
Data Communication RS232 Serial Communication Port
Display 5.6 inches TFT color LCD display ( 640 × 480 )
Power Connection IEC 6A 3PIN Power Cord
Power Consumption Less Than 15 W
Power Supply AC 100V to 240V 50Hz/60Hz
Dimensions 402 × 266 × 186 mm
Package Dimension 48 × 47 × 26 cm
Weight Less Than 5 kg
Package Gross Weight 9 kg

Ferrous Debris Monitor LE-FM101 - Key Features

  • 11 seconds per turntable speed for rapid analysis
  • AC 100V to 240V power supply with 50Hz/60Hz frequency
  • Capacitive touch screen interface for operational control
  • Data communication via RS232 serial port connectivity
  • Detection range from 0 to 15000 PQ index measurement
  • Greater than 1µm ferromagnetic wear particle capture capability

Ferrous Debris Monitor LE-FM101 - Applications

FunctionImplementation
Machinery maintenance labs0 to 15000 PQ enables precise debris quantification
Oil analysis facilitiesGreater Than 1µm captures ferromagnetic wear particles
Quality control stations±0.5% or ±3PQ ensures repeatable measurements
Industrial monitoring sitesLess Than 15 W supports continuous operation
Research and development unitsAC 100V to 240V adapts to global power standards

Ferrous Debris Monitor LE-FM101 - Standard Accessories

  • Standard Oil Samples – 100 pcs
  • Oil Box
  • Power Adapter

Ferrous Debris Monitor LE-FM101 - Catalog

Ferrous Debris Monitor LE-FM101 Catalog

Ferrous Debris Monitor LE-FM101

Ferrous Debris Monitor LE-FM101

Ferrous Debris Monitor

Lab Expo Ferrous Debris Monitor units are used for detection and evaluation of ferromagnetic wear particles in lubricants and machinery fluids. Systems support measurement up to 15000 PQ while capturing particles greater than 1 µm for wear condition assessment. Configurations incorporate controlled turntable rotation and particle monitoring functions to assist in equipment condition analysis. Suitable for predictive maintenance, oil analysis, and industrial monitoring workflows requiring early identification of component wear and contamination.
