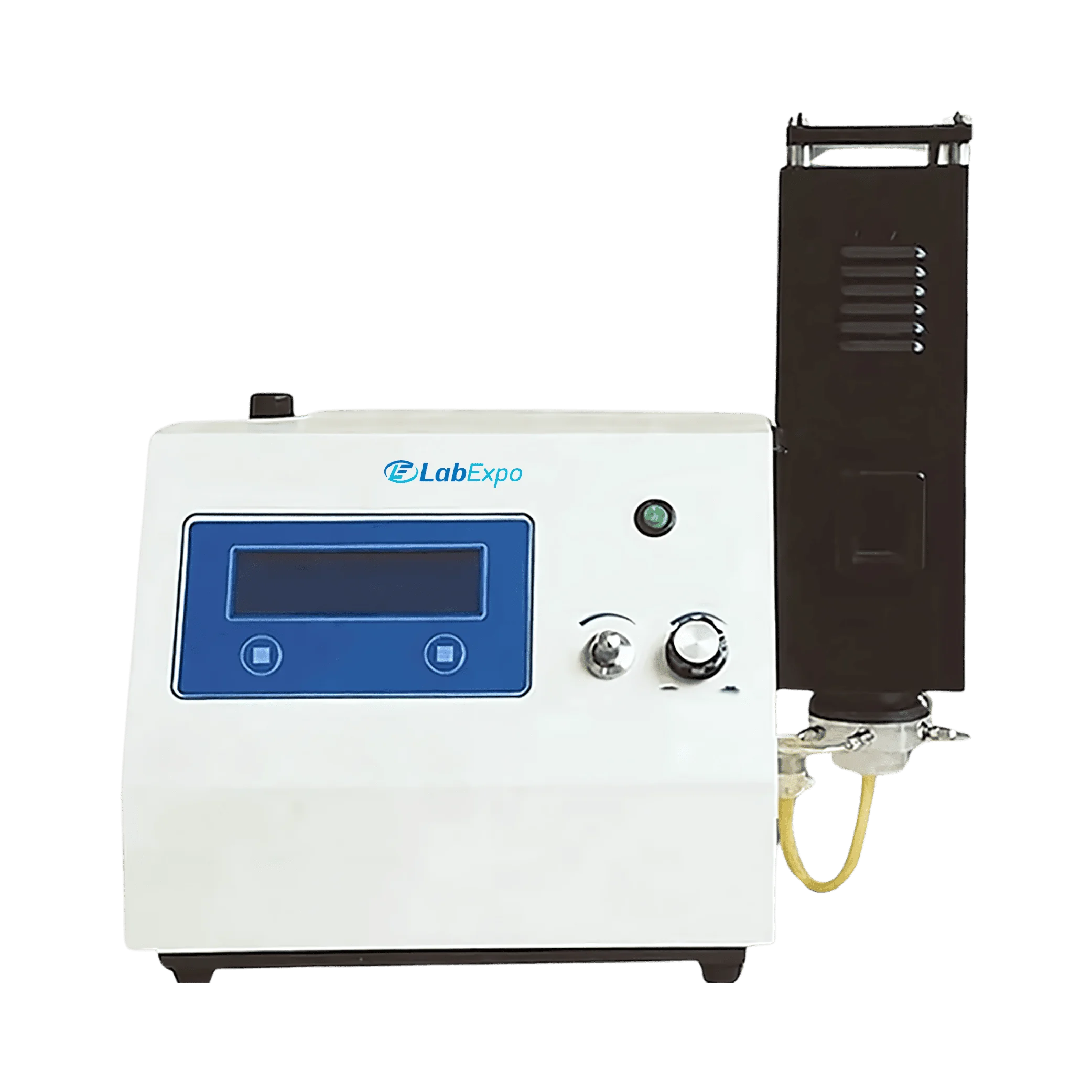

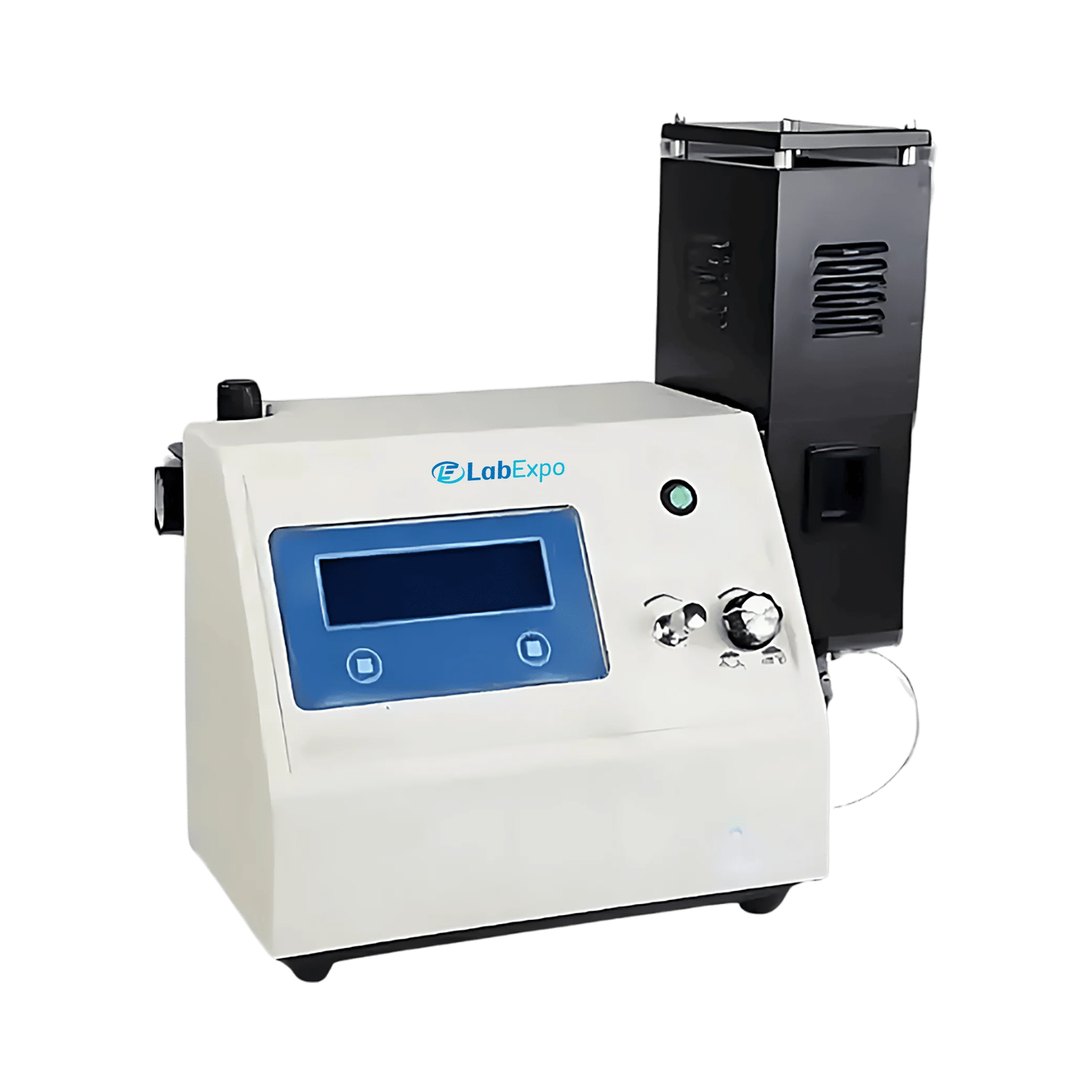

Lab Expo Flame Photometer 34-FPM104 is economical and ideal, designed to cover a varied measurement range of Potassium from 0 to 156 ug / mL and Sodium from 0 to 184 ug / mL. Pre-selection of flame size is an added-on advantage. It has a wide range of applications in industrial, clinical experiments, and pathology research.
$6,878.00 $ 5732
| Elements Detected | K, Na, Ba |
| Aspiration Rate | 2 to 6 mL / min |
| Air Supply | 6 L / min at 11 psi ( Oil and moisture free ) |
| Response Time | < 8 s |
| Repeatability | 1 % CV for 20 consecutive samples |
| Sensitivity | K: 0.156 ppm Na: 0.184 ppm Li: 6 ppm |
| Range | K: 0 to 100 ppm Na: 0 to 160 ppm Li: 0 to 3000 ppm |
| Linearity | K: 0.195 ppm (0.39 to 3.12 ppm) Na: 0.69 ppm (1.15 to 9.2 ppm) Li: 9 ppm |
| Dimension | 770 x 560 x 390 mm |
| Power supply voltage | ( 220 ± 22 ) V |
| Frequency | ( 50 ± 1 ) Hz |
| Gross weight | 22 kg |
Function Implementation Clinical labs 2 to 6 mL/min aspiration rate supports serum analysis Quality control <8 s response time enables rapid batch testing Research facilities K: 0.156 ppm sensitivity detects trace elements Industrial testing Na: 0 to 160 ppm range monitors process streams Pathology research Repeatability: 1% CV ensures consistent results
Lab Expo Flame Photometer units are configured for quantitative determination of alkali and alkaline earth elements in analytical testing workflows. Systems support detection of Na, K, Li, Ca, and Ba with 2 to 5 channel configurations, aspiration rates from 2 to 6 mL/min, and measurement ranges extending to 1000 ppm for selected elements. Integrated concentration display and controlled flame analysis enable routine elemental assessment in clinical, agricultural, water testing, and industrial laboratory applications.
