Flame Photometer 34-FPM105
Product1
Product2

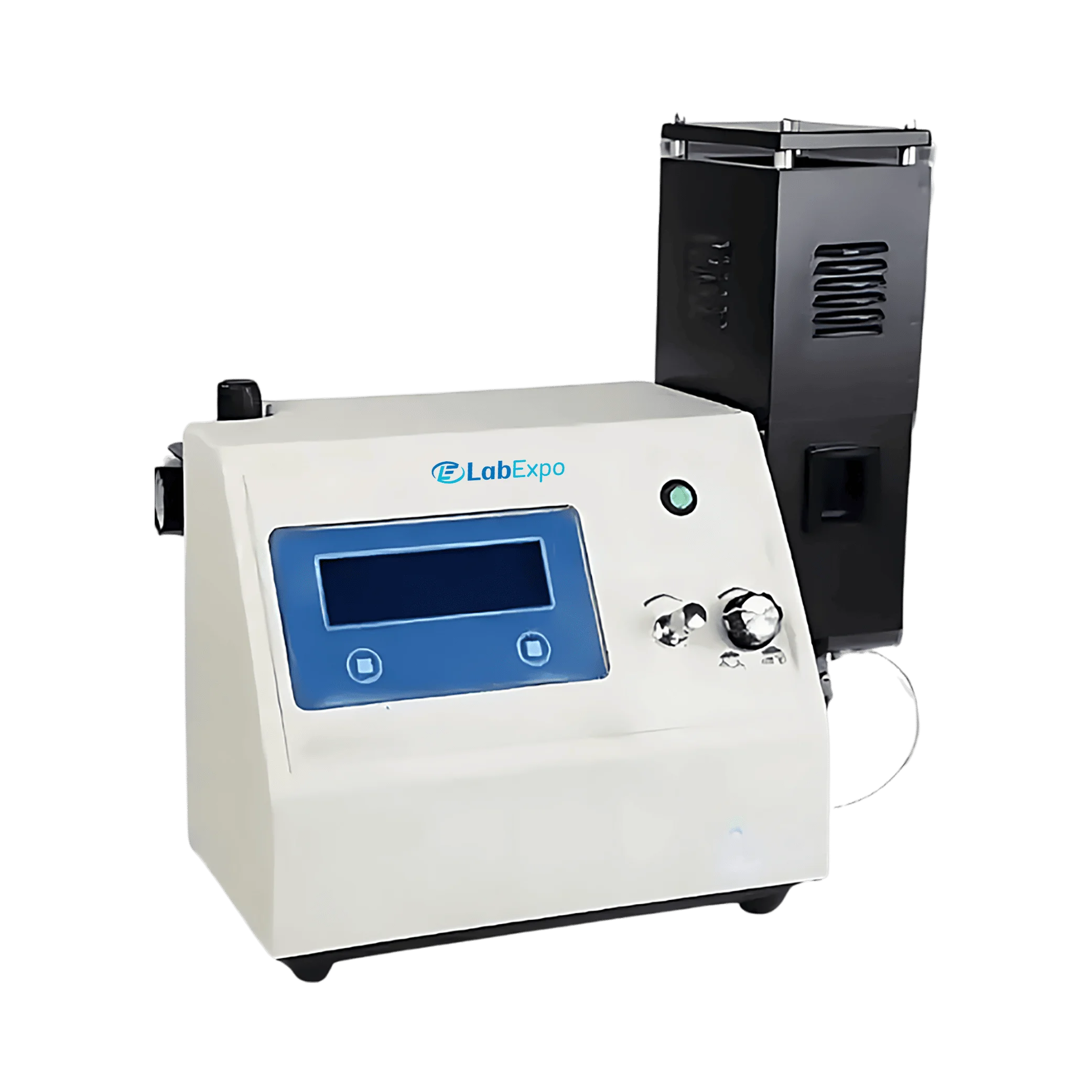

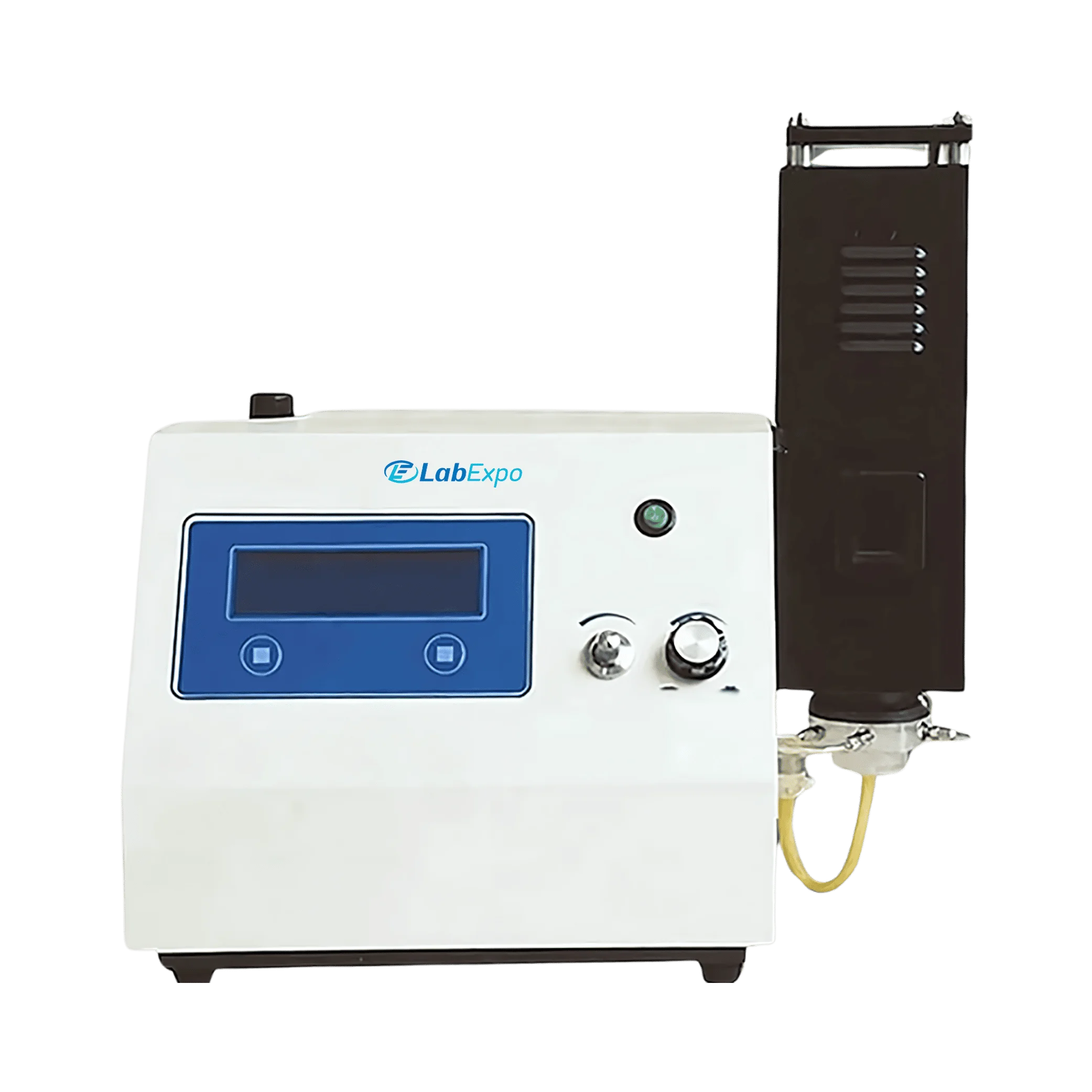

Flame Photometer 34-FPM105

Lab Expo Flame Photometer 34-FPM105 is economical and ideal, designed to cover a varied measurement range of Potassium from 0 to 156 ug / mL and Sodium from 0 to 184 ug / mL. Pre-selection of flame size is an added-on advantage. It has a wide range of applications in industrial, clinical experiments, and pathology research.

$8,146.00 $ 6788

Flame Photometer 34-FPM105 - Specifications

Elements Detected K, Na, Li, Ca
Aspiration Rate 2 to 6 mL / min
Air Supply 6 L / min at 11 psi ( Oil and moisture free )
Response Time < 8 s
Repeatability 1 % CV for 20 consecutive samples
Sensitivity K: 0.156 ppm Na: 0.184 ppm Li: 0.1 ppm Ca: 2 ppm
Range K: 0 to 100 ppm Na: 0 to 160 ppm Li: 0 to 100 ppm Ca: 0 to 1000ppm
Linearity K: 0.195 ppm (0.39 to 3.12 ppm) Na: 0.69 ppm (1.15 to 9.2 ppm) Li: 0.15 ppm (0.25 to 5 ppm) Ca: 3 ppm (5 to 100 ppm)
Dimension 770 x 560 x 390 mm
Power supply voltage ( 220 ± 22 ) V
Frequency ( 50 ± 1 ) Hz
Gross weight 22 kg

Flame Photometer 34-FPM105 - Key Features

  • Small sample volume requirement under 1 mL
  • Dual channel detection for simultaneous K and Na analysis
  • Pre-selection of flame sizes for optimal sensitivity
  • Flameout protection with automatic cutoff
  • Operating temperature range 10C to 35C
  • Relative humidity tolerance up to 85% non-condensing

Flame Photometer 34-FPM105 - Applications

FunctionImplementation
Quality control labs1% CV repeatability ensures consistent batch analysis
Clinical diagnostics0.184 ppm Na sensitivity supports serum electrolyte testing
Research laboratories<8 s response time enables rapid sample throughput
Industrial process monitoring0 to 1000 ppm Ca range covers cement and metal analysis
Pathology research settingsAspiration rate of 2-6 mL/min handles viscous biological fluids

Flame Photometer 34-FPM105 - Catalog

Flame Photometer 34-FPM105 Catalog

Related Flame Photometer

Lab Expo Flame Photometer units are configured for quantitative determination of alkali and alkaline earth elements in analytical testing workflows. Systems support detection of Na, K, Li, Ca, and Ba with 2 to 5 channel configurations, aspiration rates from 2 to 6 mL/min, and measurement ranges extending to 1000 ppm for selected elements. Integrated concentration display and controlled flame analysis enable routine elemental assessment in clinical, agricultural, water testing, and industrial laboratory applications.
