Flame Photometer 34-FPM106
Product1
Product2

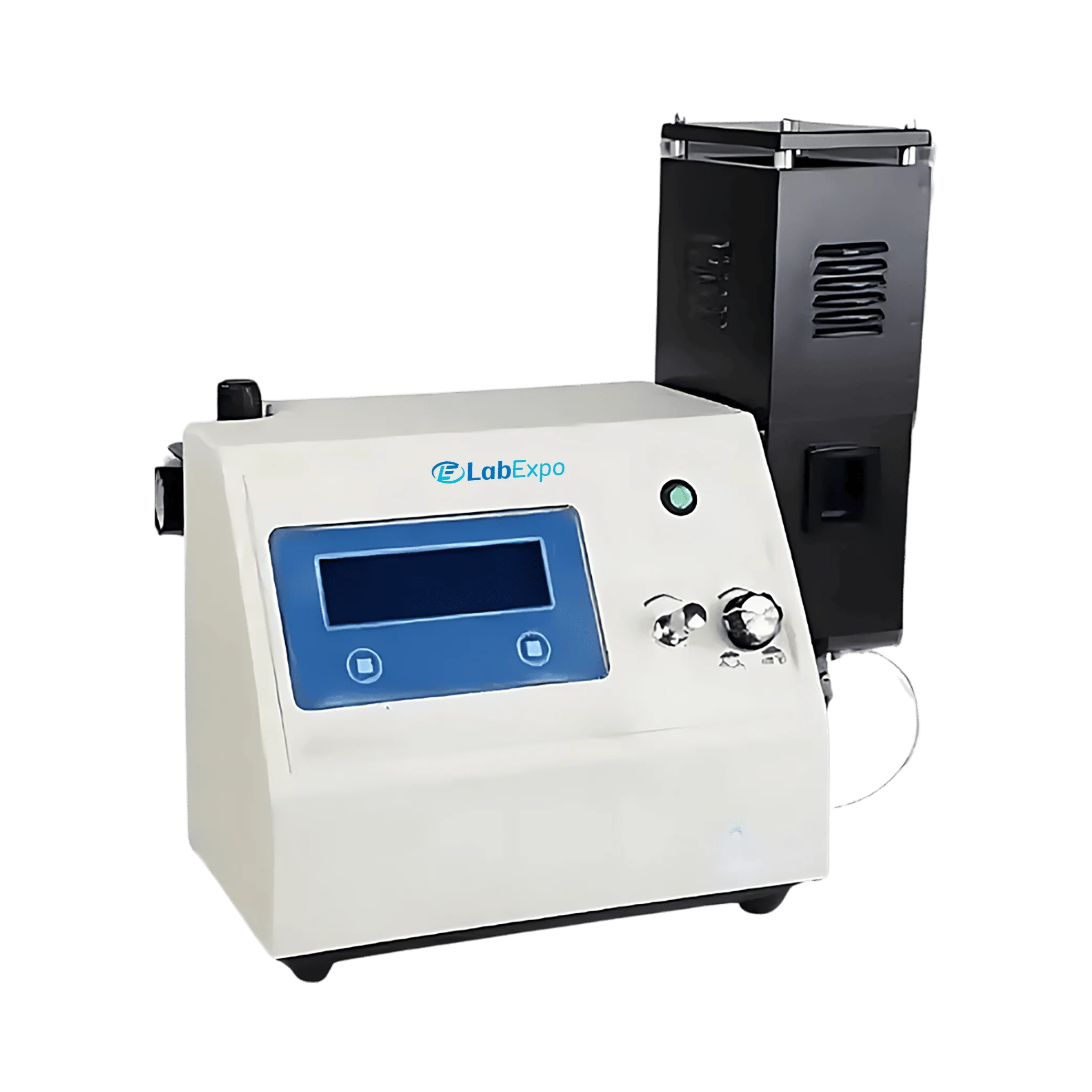

Flame Photometer 34-FPM106

Lab Expo Flame Photometer 34-FPM106 is economical and ideal, designed to cover a varied measurement range of Potassium from 0 to 156 ug / mL and Sodium from 0 to 184 ug / mL. Pre-selection of flame size is an added-on advantage. It has a wide range of applications in industrial, clinical experiments, and pathology research.

$9,067.00 $ 7556

Flame Photometer 34-FPM106 - Specifications

Elements Detected K, Na, Li, Ca, Ba
Aspiration Rate 2 to 6 mL / min
Air Supply 6 L / min at 11 psi ( Oil and moisture free )
Response Time < 8 s
Repeatability 1 % CV for 20 consecutive samples
Sensitivity K: 0.156 ppm
Na: 0.184 ppm
Li: 0.1 ppm
Ca: 2 ppm
Ba: 6 ppm
Range K: 0 to 100 ppm
Na: 0 to 160 ppm
Li: 0 to 100 ppm
Ca: 0 to 1000ppm
Ba: 0 to 3000 ppm
Linearity K: 0.195 ppm (0.39 to 3.12 ppm)
Na: 0.69 ppm (1.15 to 9.2 ppm)
Li: 0.15 ppm (0.25 to 5 ppm)
Ca: 3 ppm (5 to 100 ppm))
Ba: 9 ppm
Dimension 770 x 560 x 390 mm
Power supply voltage ( 220 ± 22 ) V
Frequency ( 50 ± 1 ) Hz
Gross weight 22 kg

Flame Photometer 34-FPM106 - Key Features

  • Flameout protection system with automatic gas cutoff
  • Small sample volume requirement of 2 to 6 mL/min aspiration rate
  • Dual channel detection for simultaneous K and Na analysis
  • Pre-selection of flame size adjustment capability
  • Operating temperature range from 10C to 35C ambient conditions
  • Relative humidity tolerance up to 85% non-condensing environment

Flame Photometer 34-FPM106 - Applications

FunctionImplementation
Clinical sample analysisSensitivity: K: 0.156 ppm enables precise potassium detection
Industrial quality controlRange: Na: 0 to 160 ppm supports broad sodium monitoring
Research laboratory testingRepeatability: 1 % CV for 20 consecutive samples ensures consistent results
Pathology specimen screeningAspiration Rate: 2 to 6 mL / min allows flexible sample throughput
Environmental water testingAir Supply: 6 L / min at 11 psi maintains stable flame operation

Flame Photometer 34-FPM106 - Catalog

Flame Photometer 34-FPM106 Catalog

Related Flame Photometer

Lab Expo Flame Photometer units are configured for quantitative determination of alkali and alkaline earth elements in analytical testing workflows. Systems support detection of Na, K, Li, Ca, and Ba with 2 to 5 channel configurations, aspiration rates from 2 to 6 mL/min, and measurement ranges extending to 1000 ppm for selected elements. Integrated concentration display and controlled flame analysis enable routine elemental assessment in clinical, agricultural, water testing, and industrial laboratory applications.
