Flame Photometer LE-FPM102

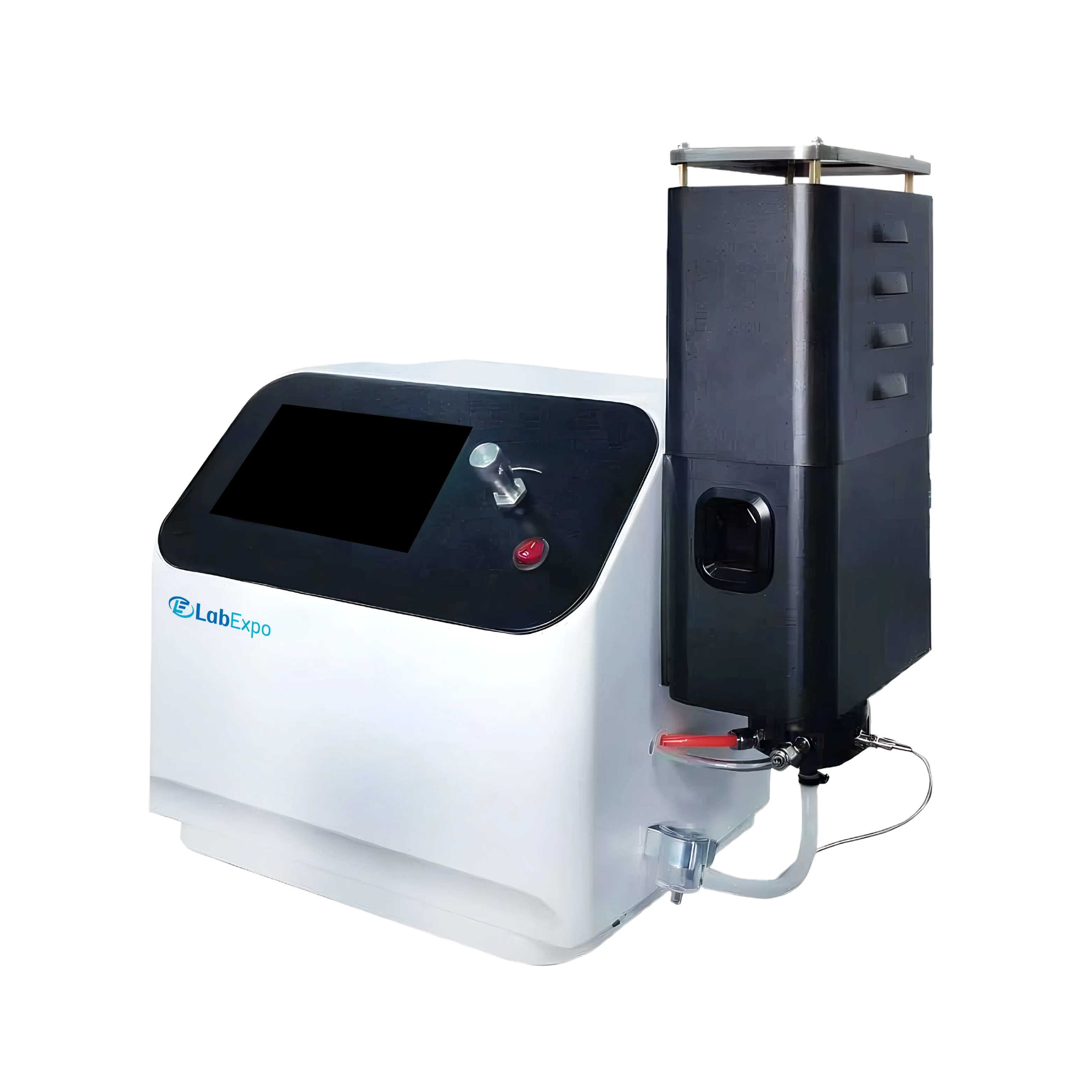

Lab Expo Flame Photometer LE-FPM102 is designed to measure lithium concentrations while supporting simultaneous detection of three elements. It offers a rapid response time, streamlining elemental testing for routine tasks. Equipped with stability control, it minimizes drift during measurements to ensure reliable results. Designed with LPG burner and a built-in air filter, it maintains consistent flame quality and safe operation. Our Flame Photometer is ideal for analytical applications in environmental, industrial, and agricultural laboratories.

$7,195.00 $ 5996

Flame Photometer LE-FPM102 - Specifications

Testing Elements K, Na, Li
Channels 3
Display Value Concentration value / Energy
Measuring Range K: 0 to 100 ppm Na: 0 to 160 ppm Li: 0 to 100 ppm
Detection Limit K: ≤ 0.004 mmol/L Na: ≤ 0.008 mmol/L Li: ≤ 0.015 mmol/L
Linearity Error K: ≤ 0.005 mmol/L Na: ≤ 0.003 mmol/L Li: ≤ 0.021 mmol/L
Display 7-inch capacitive touchscreen
Response Time ≤ 8 s
Aspiration Rate ≤ 6 ml/min
Stability ≤ 3% drift within 15 s
Reproducibility ≤ 3%
Calibration Curve Yes
Printer Yes
Fuel Supply LPG
Output USB port
Power Supply AC 220V/50Hz or AC 110V/60Hz
Dimensions 710 × 380 × 520 mm
Net Weight 20 kg

Flame Photometer LE-FPM102 - Key Features

  • Supports standard air compressor with LPG fuel supply
  • Precision flame control maintaining ≤3% reproducibility
  • Calibration curve support for K Na Li elements
  • Auto correlation calculation via 7-inch capacitive touchscreen
  • Smart touchscreen with USB port and thermal printer output

Flame Photometer LE-FPM102 - Applications

FunctionImplementation
Quality control labs0.004 mmol/L detection limit supports trace potassium analysis
Clinical diagnostics≤ 8 s response time enables rapid serum electrolyte screening
Industrial testingLPG fuel supply ensures consistent flame for continuous operation
Research laboratoriesThree-channel capability allows simultaneous K, Na, Li determination
Environmental monitoring≤ 3% reproducibility maintains accuracy in field sample validation

Flame Photometer LE-FPM102 - Catalog

Flame Photometer LE-FPM102 Catalog

Related Flame Photometer

Lab Expo Flame Photometer units are configured for quantitative determination of alkali and alkaline earth elements in analytical testing workflows. Systems support detection of Na, K, Li, Ca, and Ba with 2 to 5 channel configurations, aspiration rates from 2 to 6 mL/min, and measurement ranges extending to 1000 ppm for selected elements. Integrated concentration display and controlled flame analysis enable routine elemental assessment in clinical, agricultural, water testing, and industrial laboratory applications.
