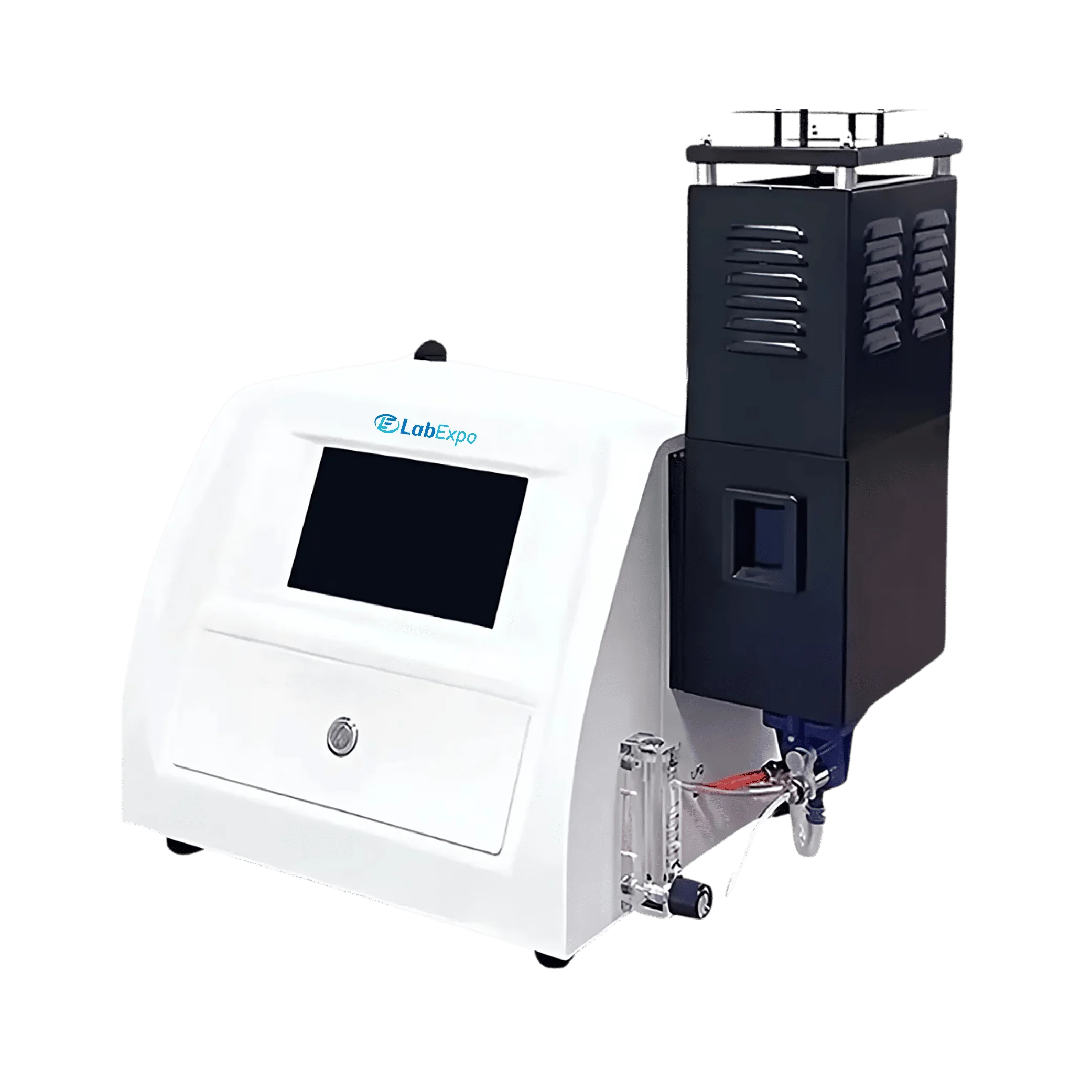

Lab Expo lame Photometer LE-FPM201 offers precise analysis of elements such as K, Na, Li, Ca, and Ba. It features a 7-inch capacitive color touch LCD to simplify user navigation and control. Built-in push-button ignition and element concentration reading functionality enhance ease of use. Incorporated gas leakage alarm ensures user safety during operation. Our Flame Photometer is ideal for scientific research, health, education and industrial settings.
$9,298.00 $ 7748
| Testing Elements | K, Na, Li, Ca, Ba |
| No. of Channels | 5 |
| Display Value | Concentration Value |
| Data Range | 0.000 to 999.9 |
| Test Range | K: 0.15 to 100 ppm Na: 0.18 to 100 ppm Li: 0.1 to 30 ppm Ca: 0.1 to 1000 ppm Ba: 0.1 to 300 ppm |
| LOD | K: ≤0.156 ppm Na: ≤0.184 ppm Li: ≤0.1035 ppm Ca: ≤2 ppm Ba: ≤6.028 ppm |
| Linear Error | K: ≤0.195 ppm Na: ≤0.69 ppm Li: ≤0.1449 ppm Ca: ≤3 ppm Ba: ≤9.402 ppm |
| Response Time | Less Than 8s |
| Sample Uptake | Less Than 3ml/min |
| Stability | ≤3% drift (15S), ≤15% drift (6S) |
| Reproducibility | ≤2% |
| Air Compressor | External |
| Printer | Build-in Thermal Printer (Optional) |
| COM | USB |
| Fuel | LPG |
| Power Consumption | 250 W |
| Power Supply | AC 220V±22V |
| Frequency | 50Hz±1Hz |
| Packing Dimension | 570 × 530 × 400mm |
| Weight | 18 Kg |
Function Implementation Quality control labs ≤2% reproducibility ensures consistent batch verification Clinical diagnostics K: 0.15 to 100 ppm supports serum potassium analysis Research laboratories Less Than 3ml/min sample uptake enables reagent conservation Industrial testing Ba: 0.1 to 300 ppm facilitates wastewater monitoring Educational settings USB communication port allows data logging for student experiments
LPG reducing Valve - 1 Pc
Stainless steel bellows for LPG - 1 Pc
Silica gel tubing for waste liquid - 1 Pc
PU tubing for air - 1 Pc
Air Compressor - 1 Pc
Atomizer
Built-in thermal printer
Software
Lab Expo Flame Photometer units are configured for quantitative determination of alkali and alkaline earth elements in analytical testing workflows. Systems support detection of Na, K, Li, Ca, and Ba with 2 to 5 channel configurations, aspiration rates from 2 to 6 mL/min, and measurement ranges extending to 1000 ppm for selected elements. Integrated concentration display and controlled flame analysis enable routine elemental assessment in clinical, agricultural, water testing, and industrial laboratory applications.
