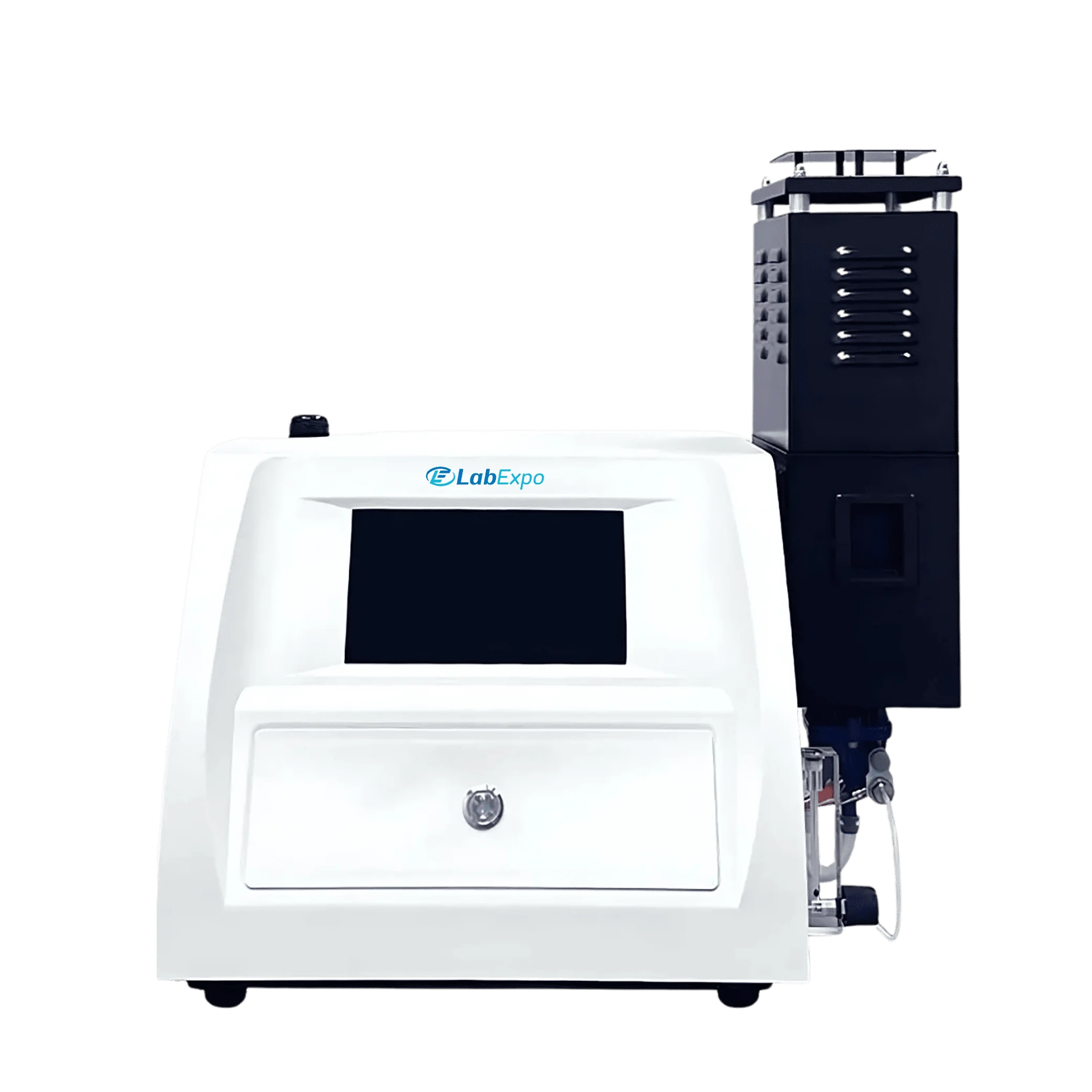

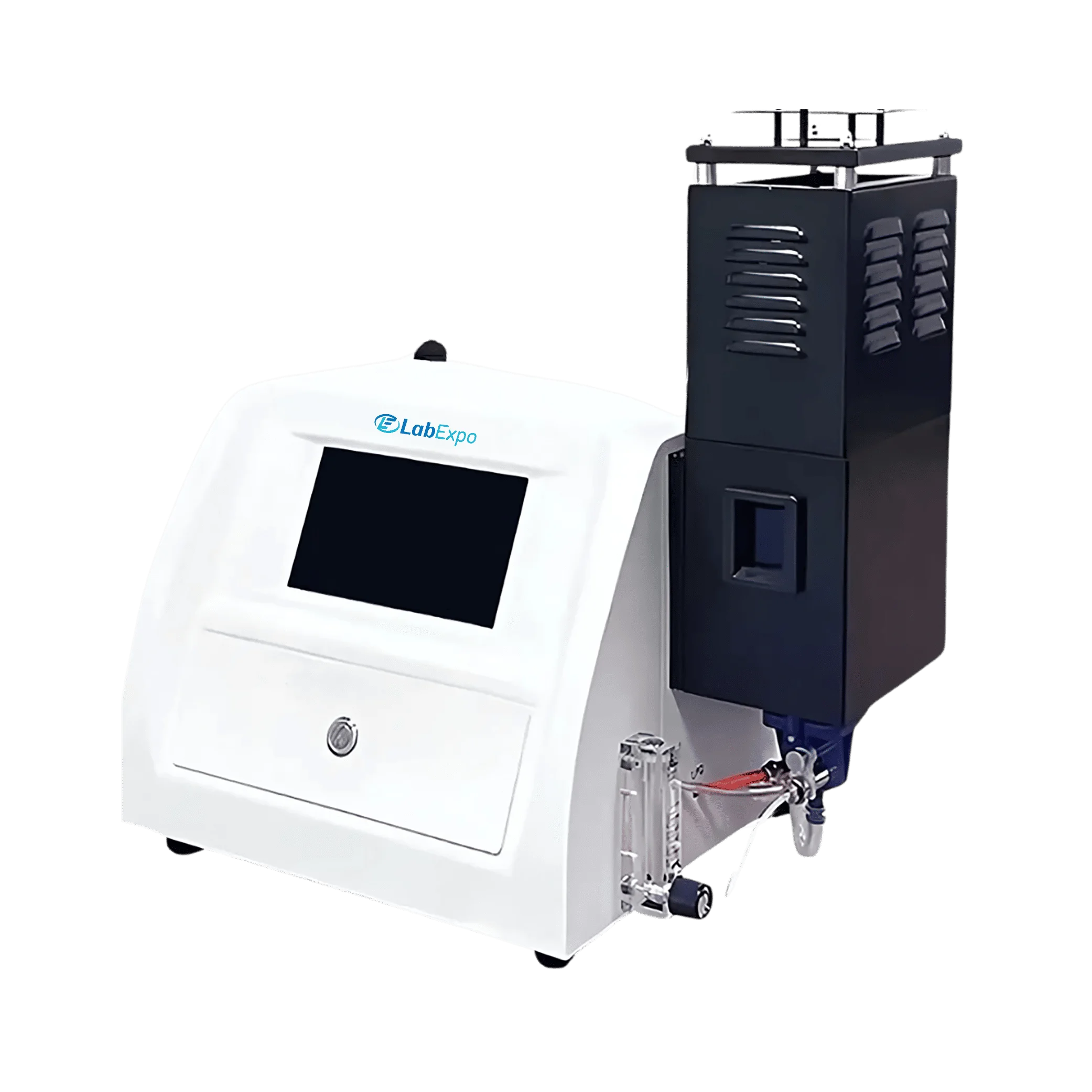

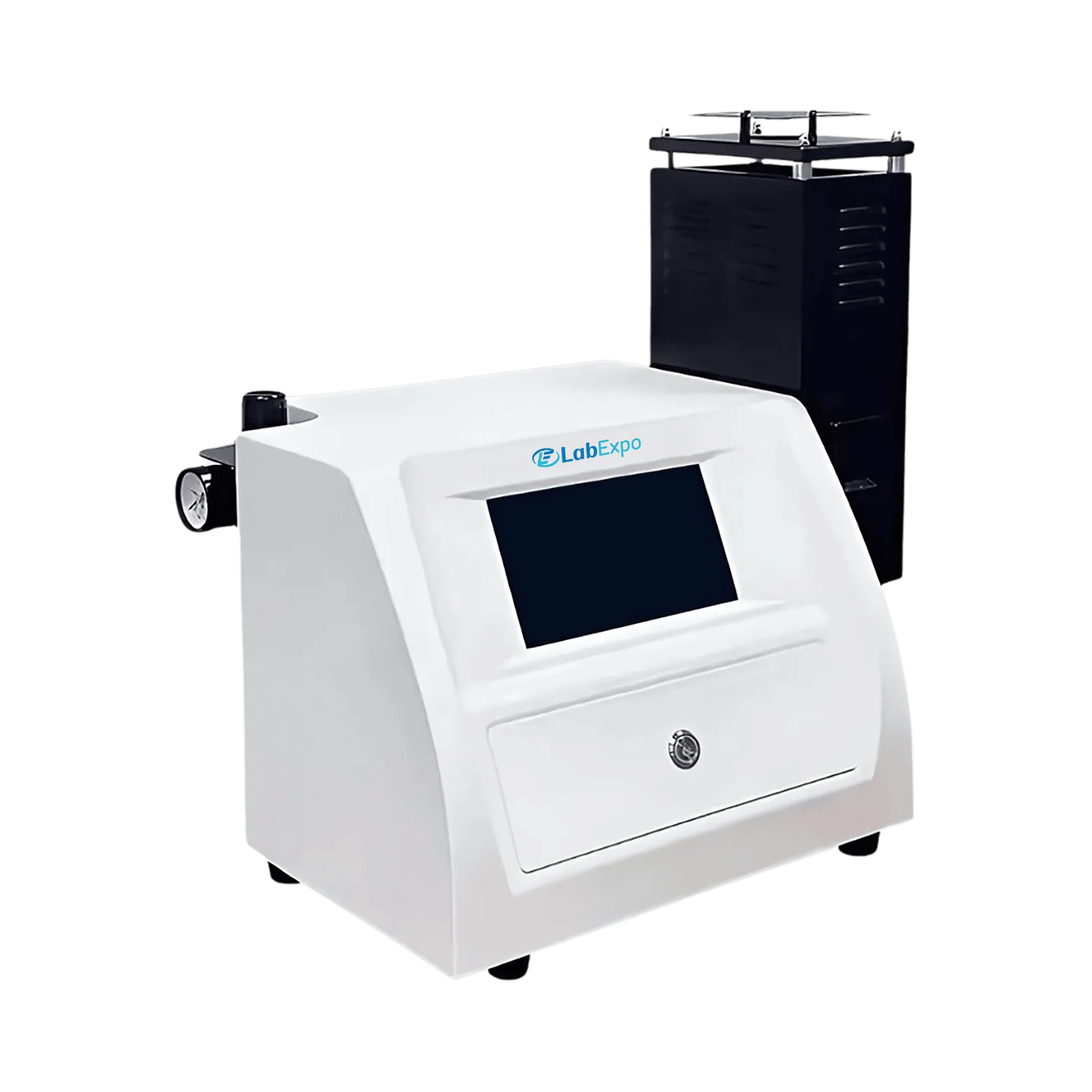

Flame Photometer LE-FPM202

Name: Flame Photometer LE-FPM202
Brand: Labexpo
SKU: LE-FPM202
Rating: 4.5 (662 reviews)

Lab Expo Flame Photometer LE-FPM202 delivers precise multi-element detection of K, Na, Li, and Ca through a four-channel system. It features an automatic gas cut-off function that prevents gas leakage during operation. Intgrated with push-button ignition and element concentration reading functionality. Built-in gas leakage alarm enhances operational safety for the user. Our Flame Photometer is well-suited for application in scientific research, health, education and other fields.

$8,131.00 $ 6776

Flame Photometer LE-FPM202 - Specifications

Testing Elements	K, Na, Li, Ca
No. of Channels	4
Test Range	K: 0.15 to 100 ppm Na: 0.18 to 100 ppm Li: 0.1 to 30 ppm Ca: 0.1 to 1000 ppm
LOD	K: ≤0.156 ppm Na: ≤0.184 ppm Li: ≤0.1035 ppm Ca: ≤2 ppm
Linear Error	K: ≤0.195 ppm Na: ≤0.69 ppm Li: ≤0.1449 ppm Ca: ≤3 ppm
Response Time	Less Than 8s
Sample Uptake	Less Than 3ml/min
Stability	≤3% drift (15S), ≤15% drift (6S)
Reproducibility	≤2%
Air Compressor	External
Printer	Build-in Thermal Printer (Optional)
COM	USB
Fuel	LPG
Power Consumption	250 W
Power Supply	AC 220V±22V
Frequency	50Hz±1Hz
Packing Dimension	570 × 530 × 400mm
Weight	18 Kg

Flame Photometer LE-FPM202 - Key Features

Automatic flame-out shut down with safety cutoff function
Automatic correlation coefficient calculation for accuracy assessment
Gas leakage alarm system with external air compressor support
Multiple language support interface for global user accessibility
USB communication port enabling data transfer and device control
Detection range screen switching function for element selection

Flame Photometer LE-FPM202 - Applications

Function	Implementation
Clinical diagnostics labs	≤0.156 ppm K LOD enables precise potassium analysis
Research laboratories	4-channel system supports simultaneous multi-element testing
Quality control facilities	≤3% drift (15S) stability ensures consistent measurement reliability
Educational institutions	Less Than 8s response time allows rapid sample throughput
Industrial process monitoring	0.1 to 1000 ppm Ca test range accommodates wide concentration levels

Flame Photometer LE-FPM202 - Standard Accessories

LPG reducing Valve - 1 Pc

Stainless steel bellows for LPG - 1 Pc

Silica gel tubing for waste liquid - 1 Pc

PU tubing for air - 1 Pc

Air Compressor - 1 Pc

Flame Photometer LE-FPM202 - Optional Accessories

Atomizer

Built-in thermal printer

Software

Flame Photometer LE-FPM202 - Catalog

Flame Photometer LE-FPM202 Catalog
