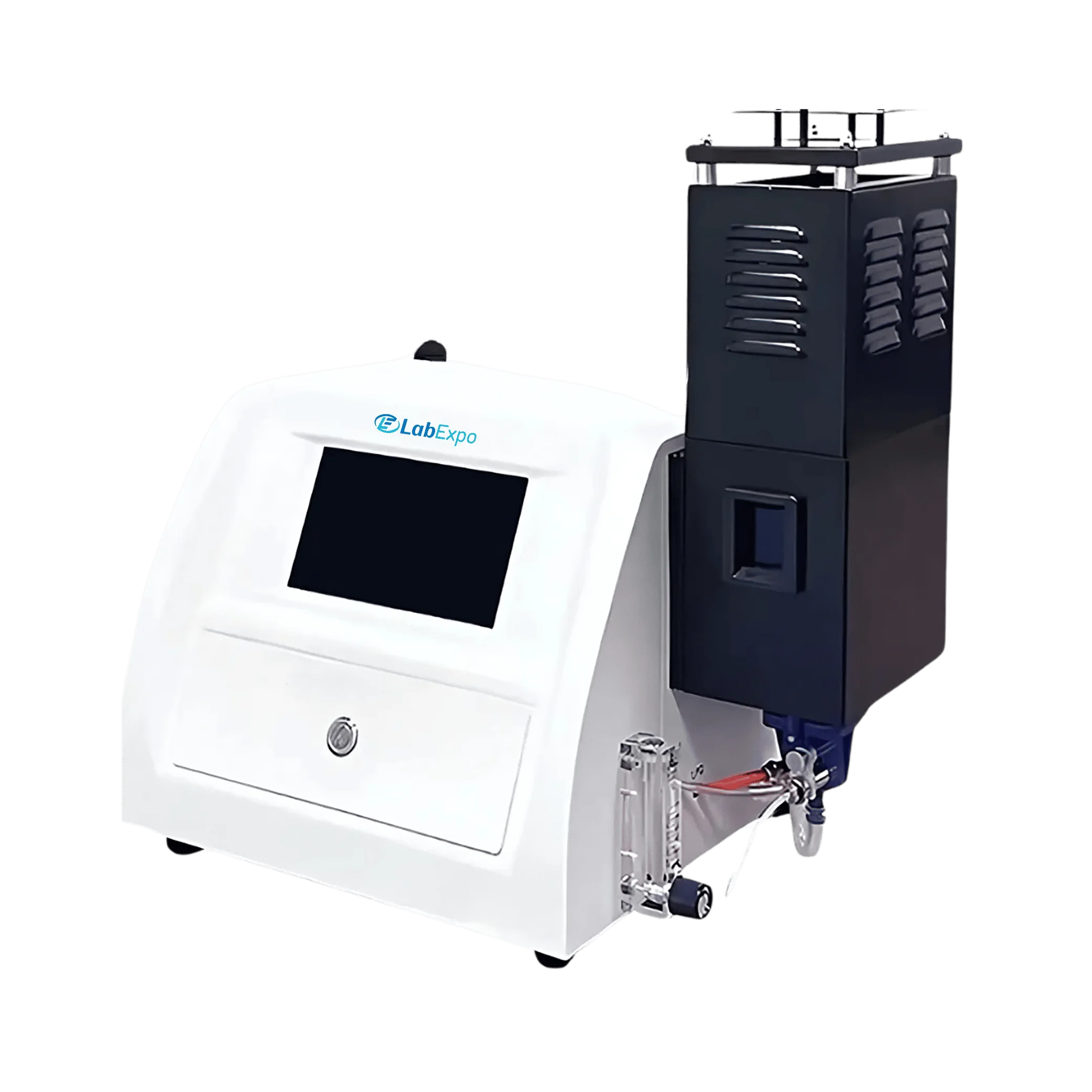

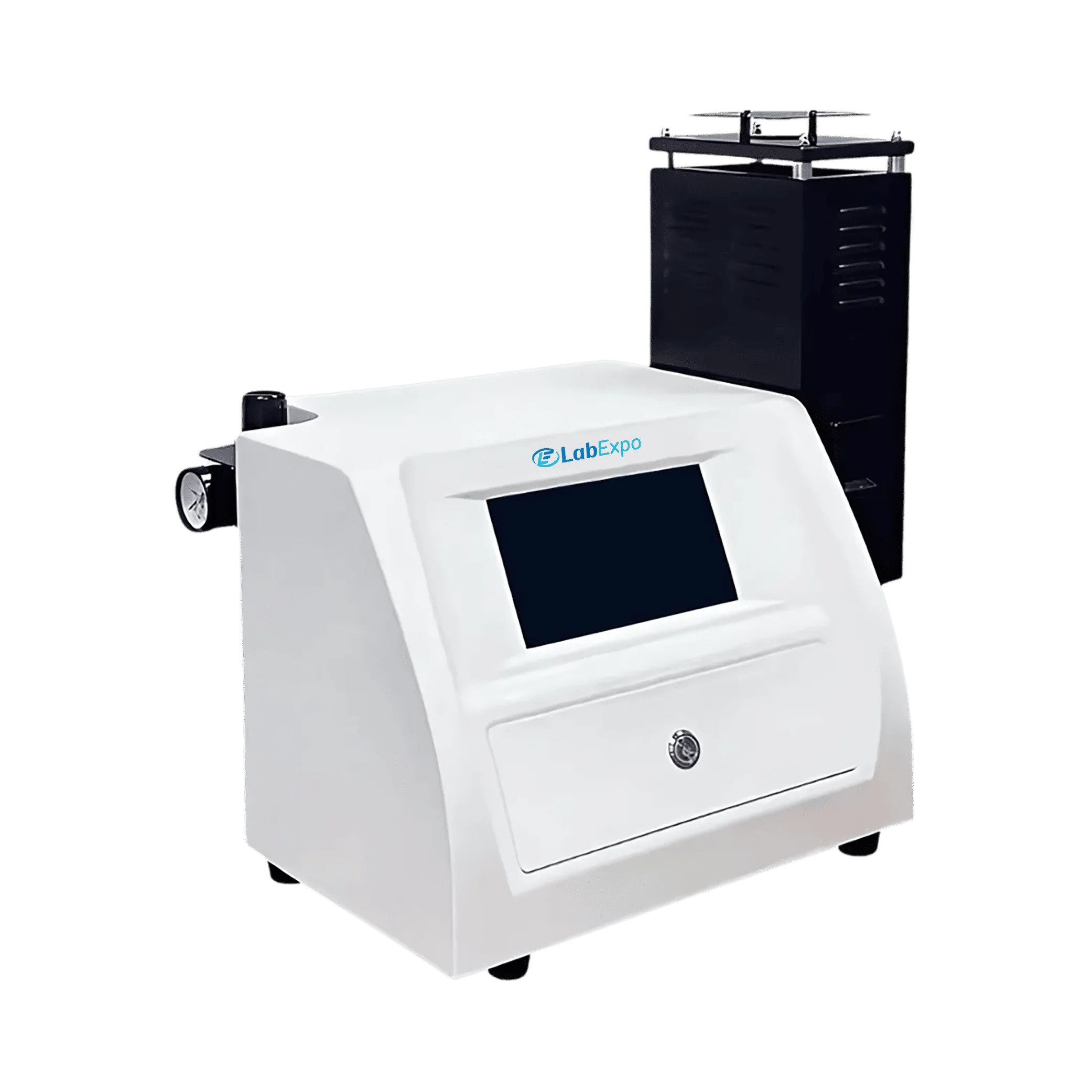

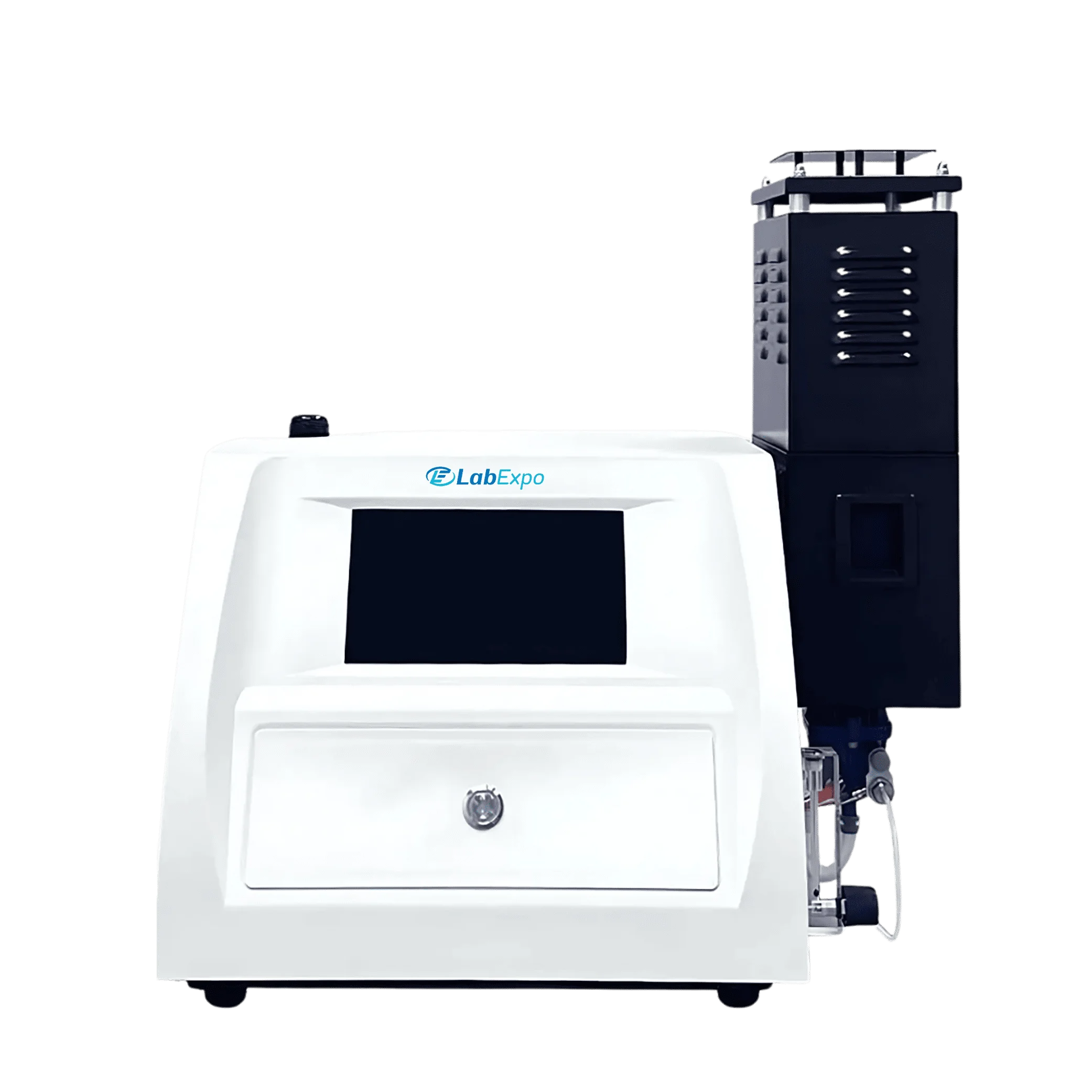

Flame Photometer LE-FPM203

Name: Flame Photometer LE-FPM203
Brand: Labexpo
SKU: LE-FPM203
Rating: 4.4 (687 reviews)

Lab Expo Flame Photometer LE-FPM203 is designed with three-channel detection for accurate analysis of elements such as K, Na, and Ca. It features an automatic flame-out shut down to enhance safety during operation. Equipped with element concentration reading function for precise analysis. Incorporated automatic correlation coefficient calculation enhances measurement accuracy. Our Flame Photometer is perfect for application in scientific research, health, education and other fields.

$8,102.00 $ 6752

Flame Photometer LE-FPM203 - Specifications

Testing Elements	K, Na, Li, Ca
No. of Channels	4
Test Range	K: 0.15 to 100 ppm Na: 0.18 to 100 ppm Li: 0.1 to 30 ppm Ca: 0.1 to 1000 ppm
LOD	K: ≤0.156 ppm Na: ≤0.184 ppm Li: ≤0.1035 ppm Ca: ≤2 ppm
Linear Error	K: ≤0.195 ppm Na: ≤0.69 ppm Li: ≤0.1449 ppm Ca: ≤3 ppm
Response Time	Less Than 8s
Sample Uptake	Less Than 3ml/min
Stability	≤3% drift (15S), ≤15% drift (6S)
Reproducibility	≤2%
Air Compressor	External
Printer	Build-in Thermal Printer (Optional)
COM	USB
Fuel	LPG
Power Consumption	250 W
Power Supply	AC220V±22V
Frequency	50Hz±1Hz
Packing Dimension	570 × 530 × 400mm
Weight	18 Kg

Flame Photometer LE-FPM203 - Key Features

Multiple language support with 4-channel detection capability
USB communication port for data transfer at 50Hz frequency
Optional built-in thermal printer for hardcopy output
Detection range screen switching function with ppm resolution display
Automatic flame-out shut down safety mechanism activated within 8s response time

Flame Photometer LE-FPM203 - Applications

Function	Implementation
Clinical labs	Less Than 3ml/min sample uptake supports efficient reagent use
Research facilities	0.1 to 1000 ppm Ca test range enables wide concentration analysis
Quality control settings	≤2% reproducibility ensures consistent measurement results
Educational institutions	USB COM allows easy data transfer for student experiments
Industrial testing sites	External air compressor integration accommodates facility gas systems

Flame Photometer LE-FPM203 - Standard Accessories

LPG reducing Valve - 1 Pc

Stainless steel bellows for LPG - 1 Pc

Silica gel tubing for waste liquid - 1 Pc

PU tubing for air - 1 Pc

Air Compressor - 1 Pc

Flame Photometer LE-FPM203 - Optional Accessories

Atomizer

Built-in thermal printer

Software
