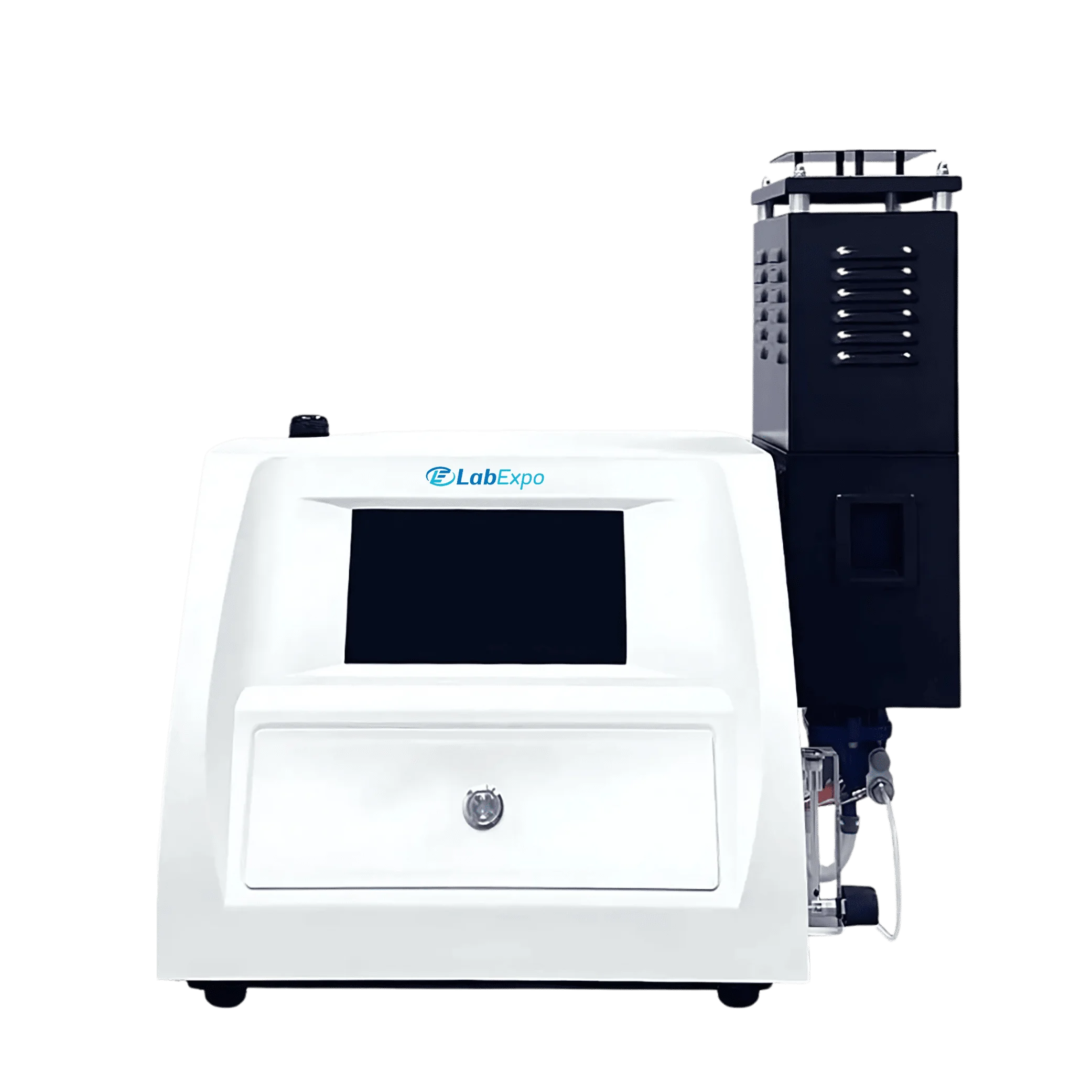

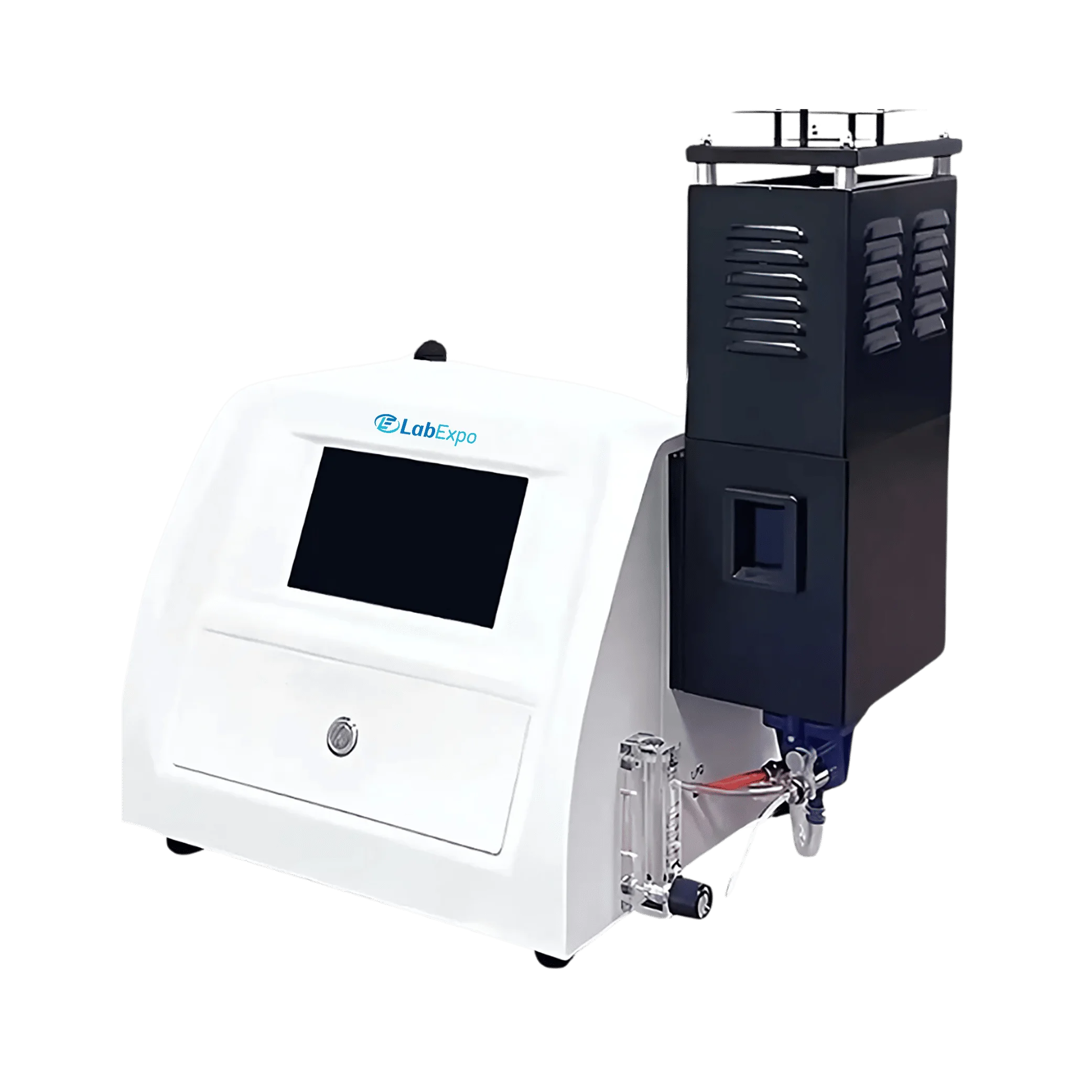

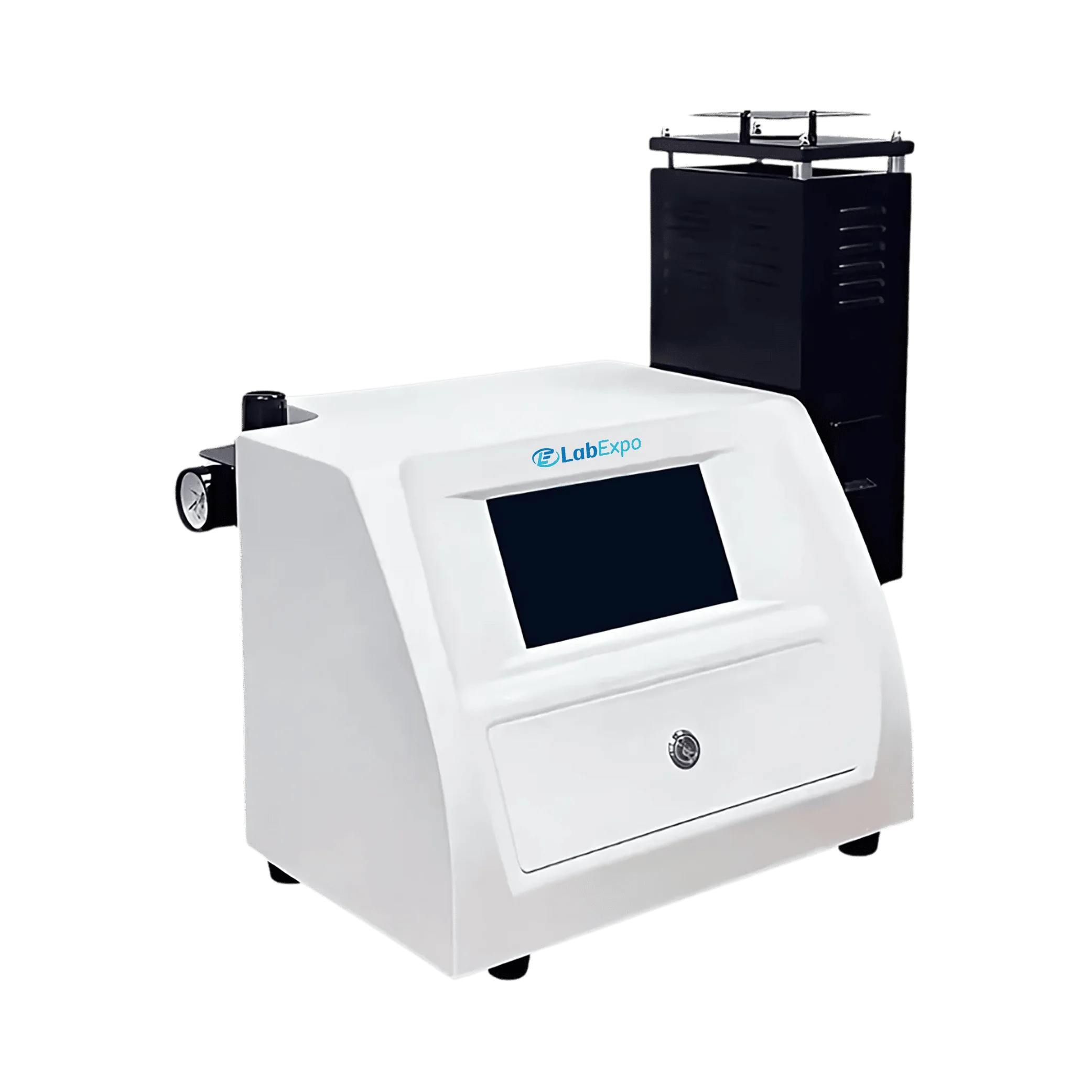

Lab Expo Flame Photometer LE-FPM206 offers efficient measurement of potassium and sodium. It features a 7-inch capacitive color touch LCD to simplify user navigation and control. Built-in push-button ignition allows for quick and convenient operation. Equipped with a USB communication port, the system supports direct PC connectivity and seamless data analysis. Our Flame Photometer is perfect for application in scientific research, health, education and other fields.
$6,302.00 $ 5252
| Testing Elements | K, Na |
| No. of Channels | 2 |
| Test Range | K: 0.15 to 100; ppm Na: 0.18 to 100 ppm |
| LOD | K: ≤0.156 ppm Na: ≤0.184 ppm |
| Linear Error | K: ≤0.195 ppm Na: ≤0.69 ppm |
| Response Time | Less Than 8s |
| Sample Uptake | Less Than 3ml/min |
| Stability | ≤3% drift (15S), ≤15% drift (6S) |
| Reproducibility | ≤2% |
| Air Compressor | External |
| Fuel | LPG |
| Power Consumption | 250 W |
| Power Supply | AC220V±22V |
| Frequency | 50Hz±1Hz |
| Packing Dimension | 570 × 530 × 400mm |
| Weight | 18 Kg |
Function Implementation Quality control labs ≤2% reproducibility ensures consistent analytical results Clinical testing facilities K: 0.15 to 100 ppm enables precise serum analysis Research laboratories ≤3% drift (15S) supports stable long-term measurements Educational institutions Less Than 8s response time facilitates rapid student demonstrations Industrial process monitoring Sample Uptake less than 3ml/min allows continuous reagent conservation
LPG reducing Valve - 1 Pc
Stainless steel bellows for LPG - 1 Pc
Silica gel tubing for waste liquid - 1 Pc
PU tubing for air - 1 Pc
Air Compressor - 1 Pc
Atomizer
Software
Lab Expo Flame Photometer units are configured for quantitative determination of alkali and alkaline earth elements in analytical testing workflows. Systems support detection of Na, K, Li, Ca, and Ba with 2 to 5 channel configurations, aspiration rates from 2 to 6 mL/min, and measurement ranges extending to 1000 ppm for selected elements. Integrated concentration display and controlled flame analysis enable routine elemental assessment in clinical, agricultural, water testing, and industrial laboratory applications.
