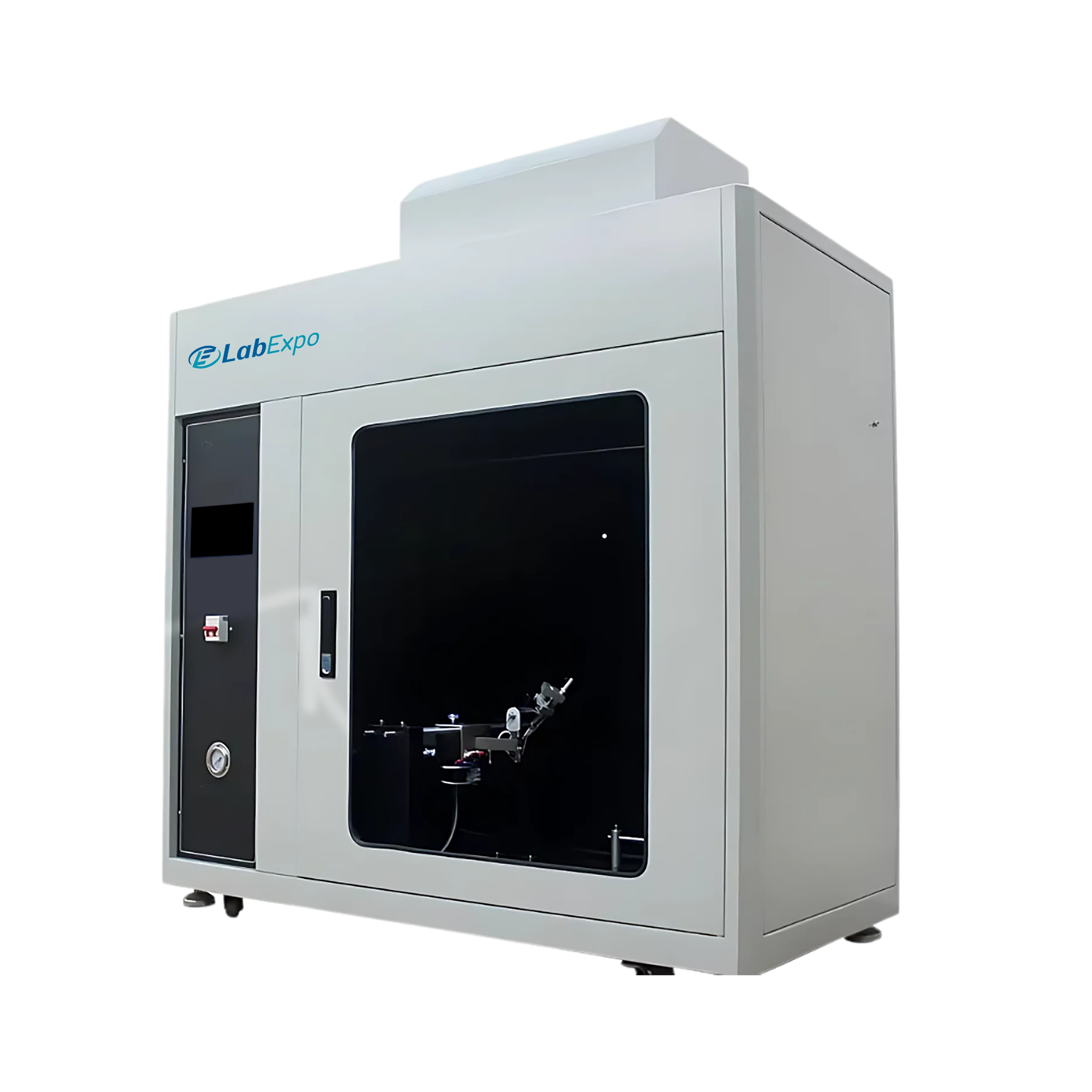

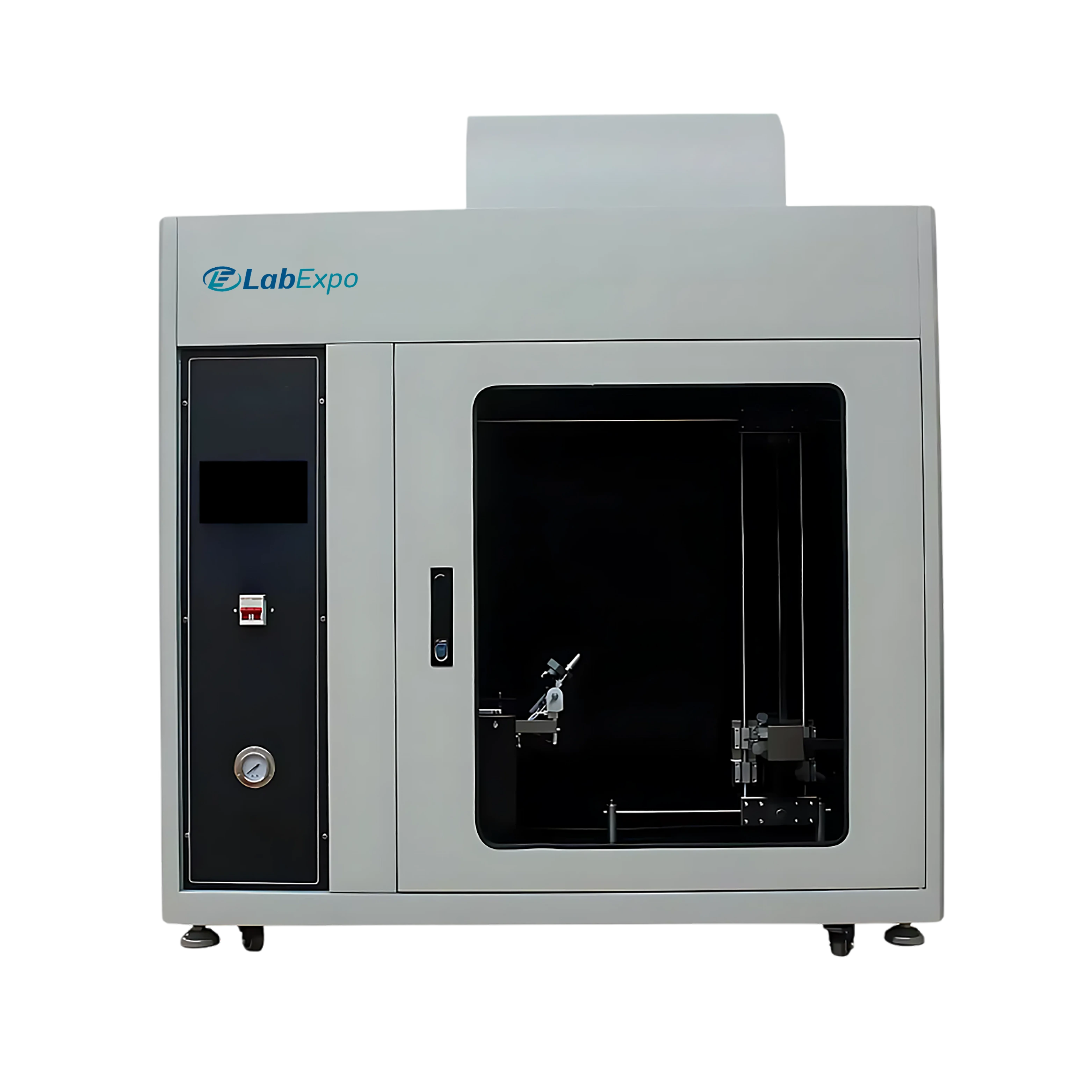

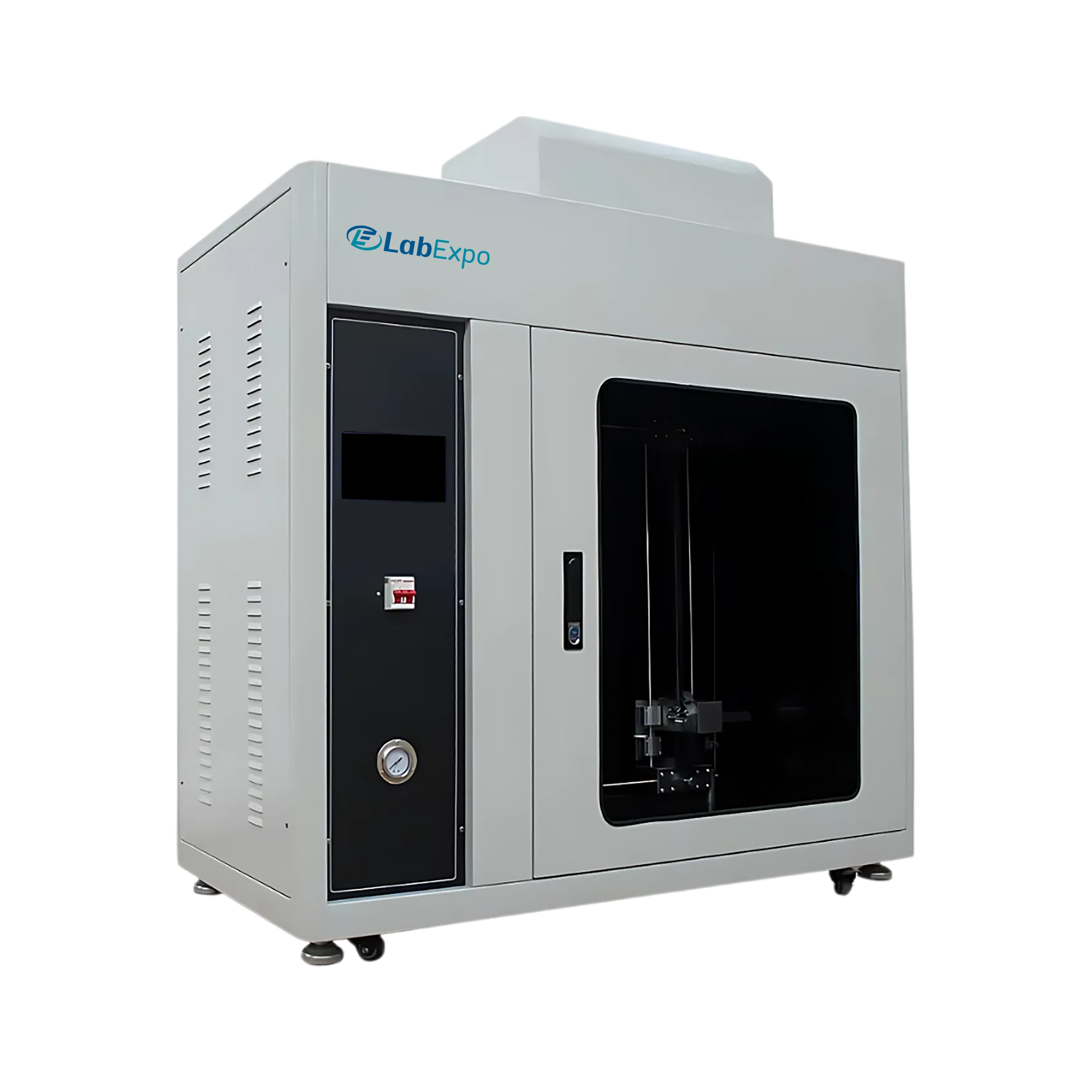

Lab Expo Flammability Tester LE-FTT101 provides chamber volume of 1 m³ for optimal airflow and flame stability. It uses high-purity methane gas as the fuel source to ensure stable performance. Equipped with a sensitive Type K thermocouple for reliable monitoring of flame temperature. Supports horizontal and vertical flame testing to enable comprehensive evaluation. Our Flammability Tester combines precision, reliability, and compliance with international standards.
$9,931.00 $ 8276
| Chamber Volume | 1 m³ |
| Flame Height | Adjustable 20 ± 2 mm to 180 ± 10 mm |
| Gas Supply | Methane, minimum 98% purity |
| Gas Flow | 965 ± 32 ml/min |
| Burner Tube | Internal diameter: 9.5 ± 0.3 mm |
| Burning Angles | 0°, 20°, 45° Adjustable |
| Temperature Range | 0 to 1000 °C |
| Temperature Rise Time | 100°C ± 5°C → 700°C ± 3°C |
| Thermocouple | Type K (Ni/Cr and Ni/Al), 0.5 mm diameter |
| Standard Copper Block | Ø9 mm ± 0.01 mm, 10 g ± 0.05 g |
| Timer | 0 to 999.9 s ± 0.1 s (Adjustable) |
| Flame Height Indicator | 40 ± 1 mm |
| Water Column Pressure | 125 ± 5 mm |
| Power Consumption | 500W |
| External Dimension | 1100 × 700 × 1300 mm |
| Weight | 128 kg |
Function Implementation Quality control labs 1 m³ chamber volume ensures consistent flame stability for material evaluation Research facilities 0 to 999.9 s ± 0.1 s timer enables precise burn duration measurement Industrial testing units Gas flow of 965 ± 32 ml/min supports sustained flame operation during tests Clinical material assessment Flame height adjustable from 20 ± 2 mm to 180 ± 10 mm allows varied test conditions Educational laboratories Burner tube internal diameter of 9.5 ± 0.3 mm maintains standardized flame geometry
Lab Expo Flammability Tester enables standardized fire-resistance evaluation with controlled flame exposure and precise timing for reproducible results. Designed for flammability testing equipment applications, it supports vertical and horizontal specimen configurations within a heat-resistant chamber. Intuitive controls and accurate monitoring facilitate compliant testing for materials assessment in laboratory, research, and industrial quality control workflows.
