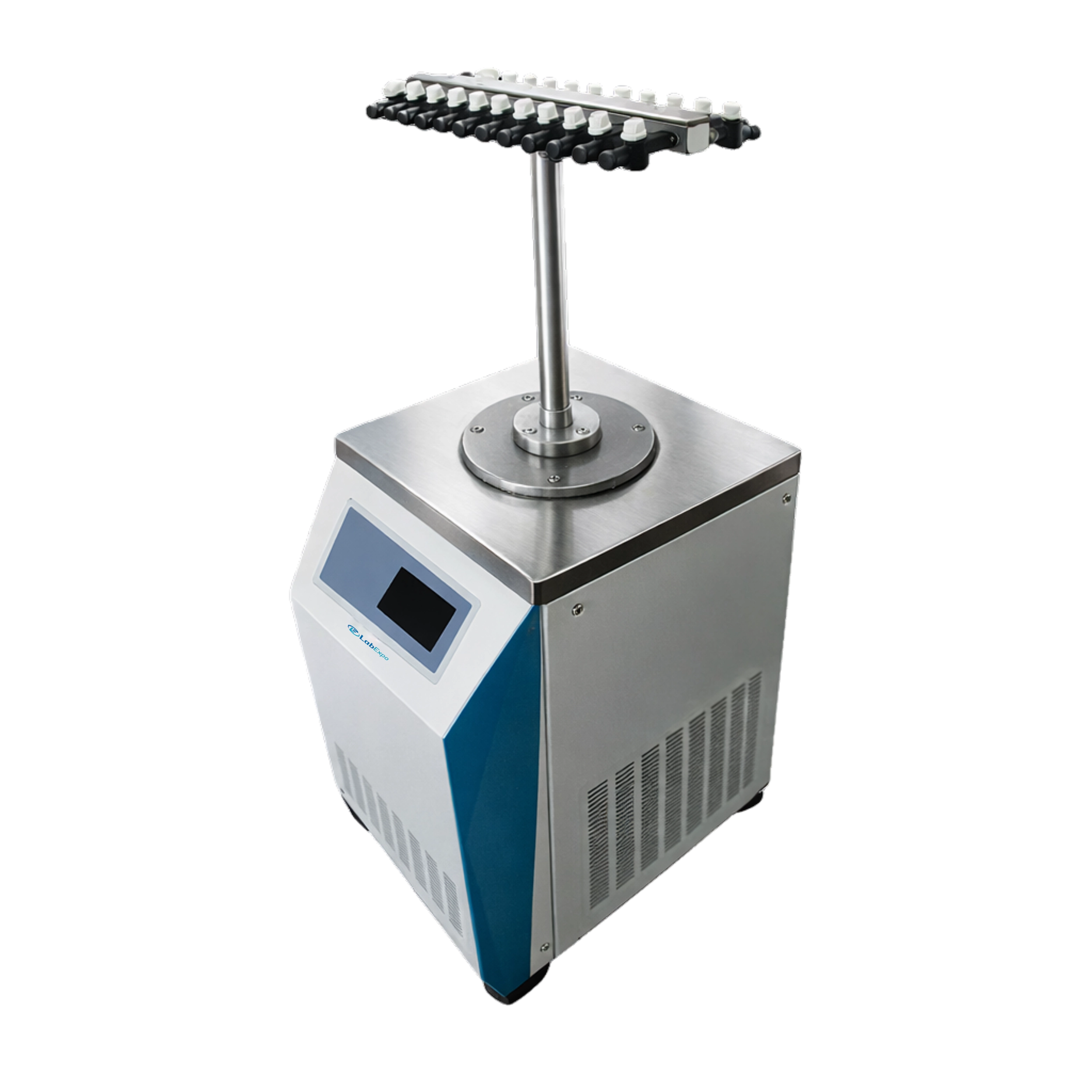

T-type Freeze Dryer is a floor standing unit with 3 kg condenser capacity and condenser temperature of - 50 °C used for drying aqueous specimens. The T-type manifold accommodates 24 ampoules via the rubber adaptors. Built in oil mist filtration system and vacuum pump oil return device helps in maintenance of vacuum pressure and prevention of oil leakage.
$7,224.00 $ 6020
| Condenser temperature | - 50 °C |
| Condenser capacity | 6 kg / 24 h |
| Cold trap depth | 140 mm |
| Dimensions | 560 x 460 x ( 710 + 430 ) mm |
| Pumping rate | 2 L / second |
| T-frame size ( H x L ) | 430 x 480 mm |
| Display | LCD touch screen |
| Number of sealed valves | 24 pieces for 24 ampoules |
| Cold trap diameter | Φ 215 mm |
| Final Vacuum | < 5 Pa |
| Voltage | 220 V / 50 Hz |
| Weight | 120 kg |
Function Implementation Low-temperature labs -50°C condenser temperature enables efficient freeze drying High-throughput freeze drying 6 kg / 24 h condenser capacity supports continuous operation Vacuum-dependent processes < 5 Pa final vacuum ensures precise control Ampoule-based drying 24 sealed valves accommodate 24 ampoules via rubber adaptors Research sample preservation 2 L / second pumping rate helps prevent sample degradation
Lab Expo Floor Stand Freeze Dryer supports large-capacity lyophilization where scalable processing, stable vacuum control, and consistent low-temperature condensation are required for production and advanced laboratory use. The system operates with regulated refrigeration and precision vacuum management to maintain controlled sublimation across extended cycles. Corrosion-resistant cold traps, transparent access panels, and durable worktables support continuous operation, while integrated filtration and oil-return systems ensure repeatable, high-throughput freeze-drying performance.
