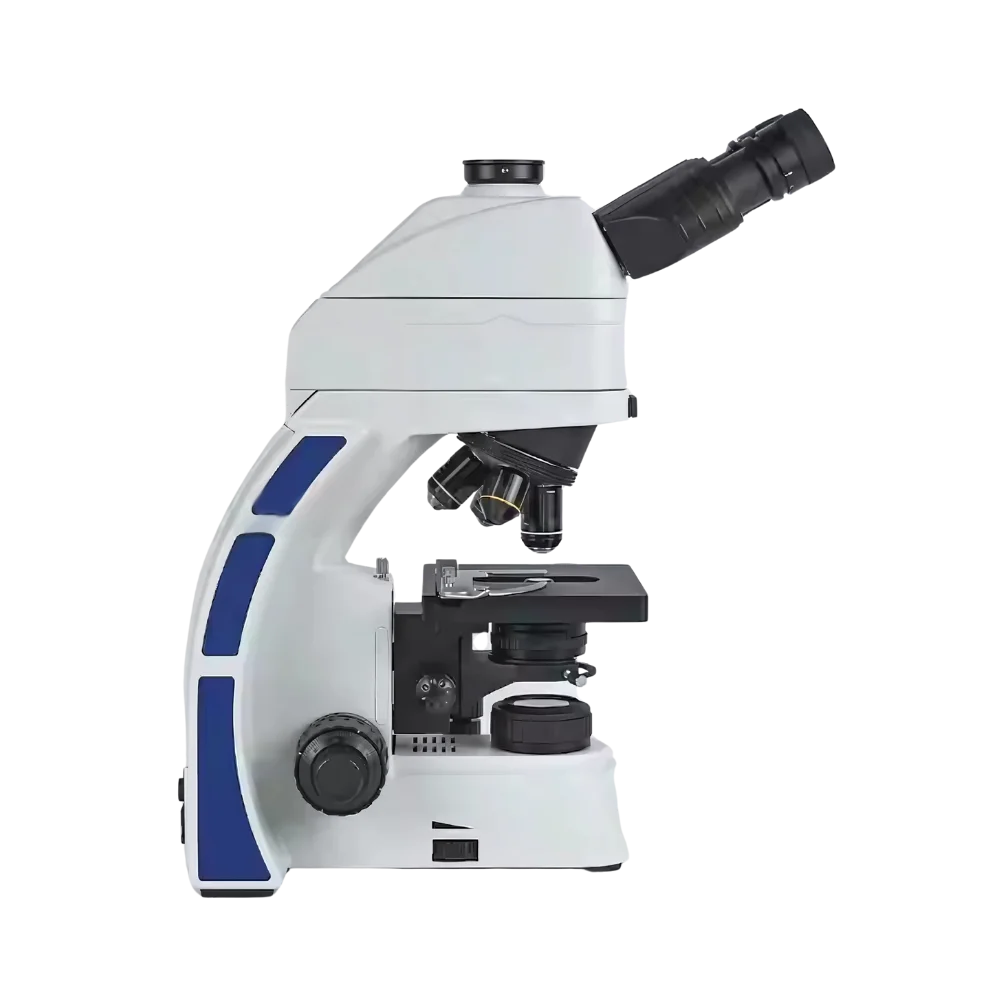

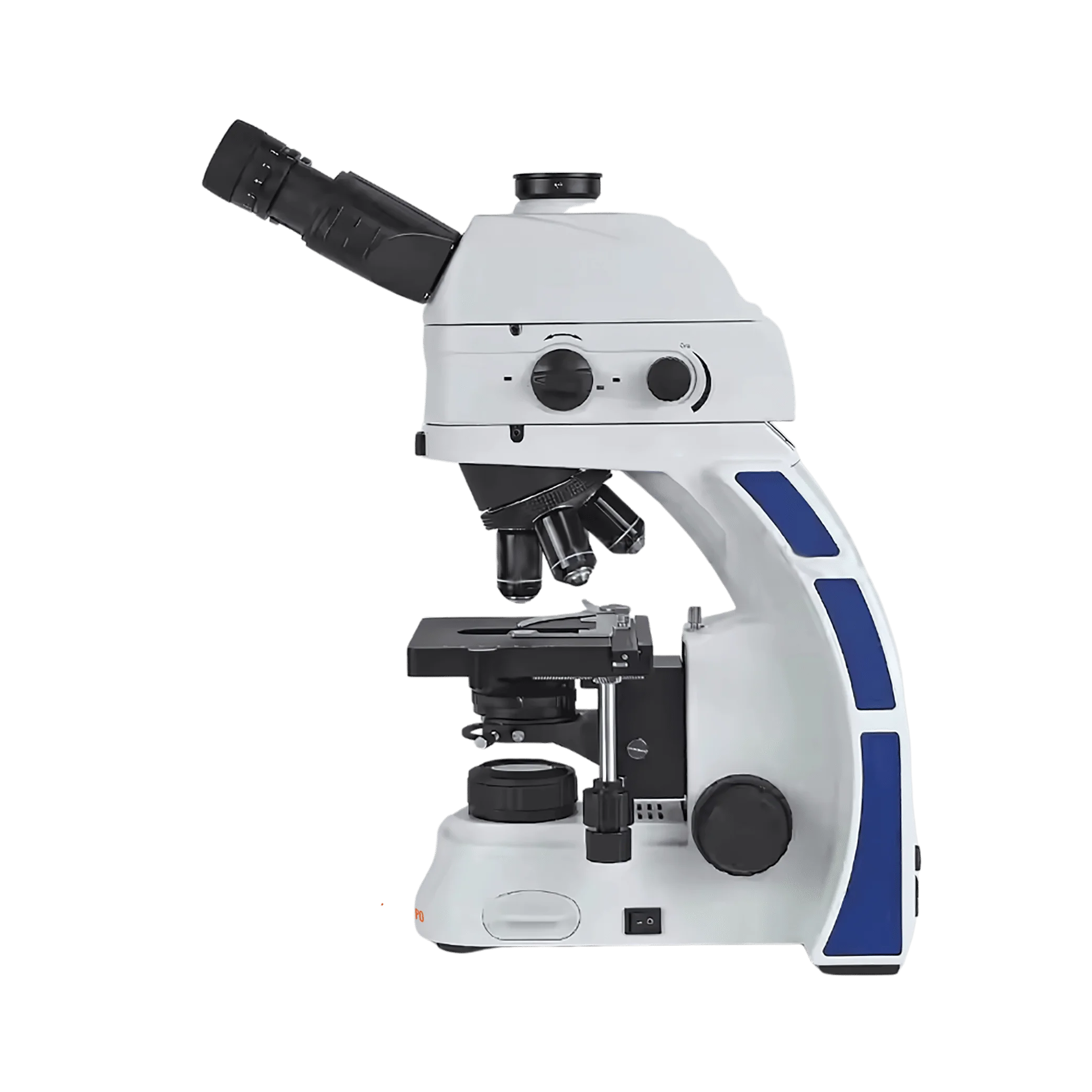

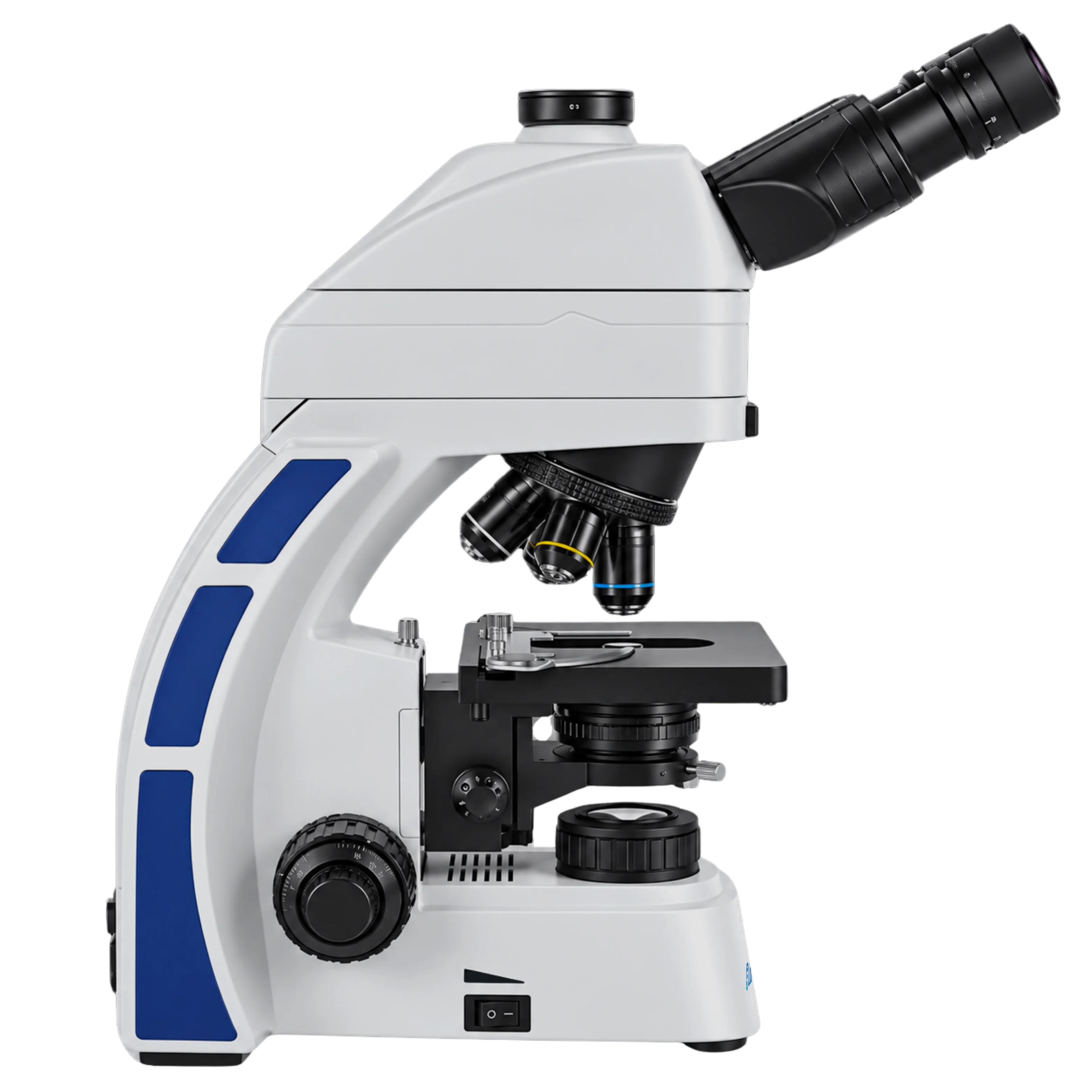

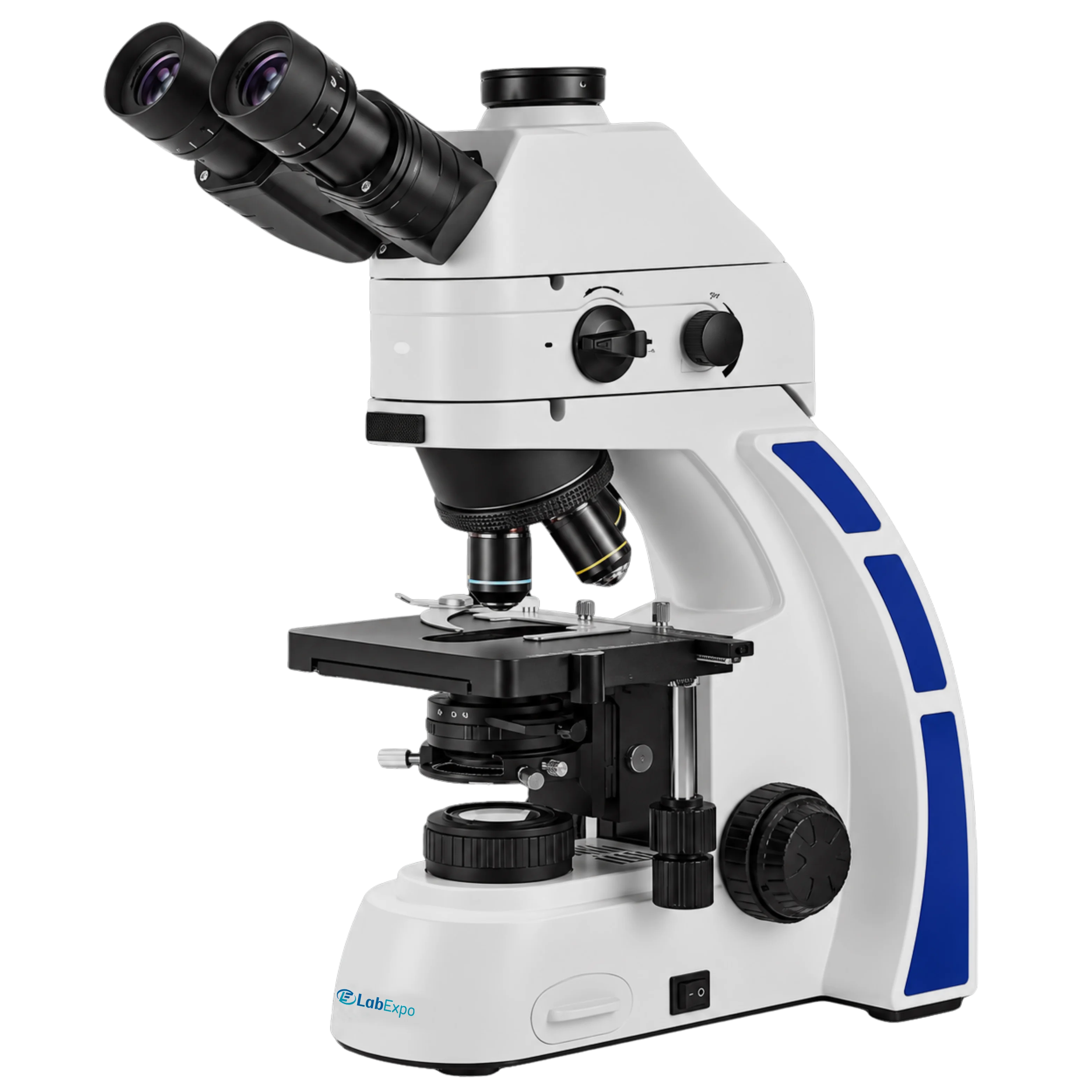

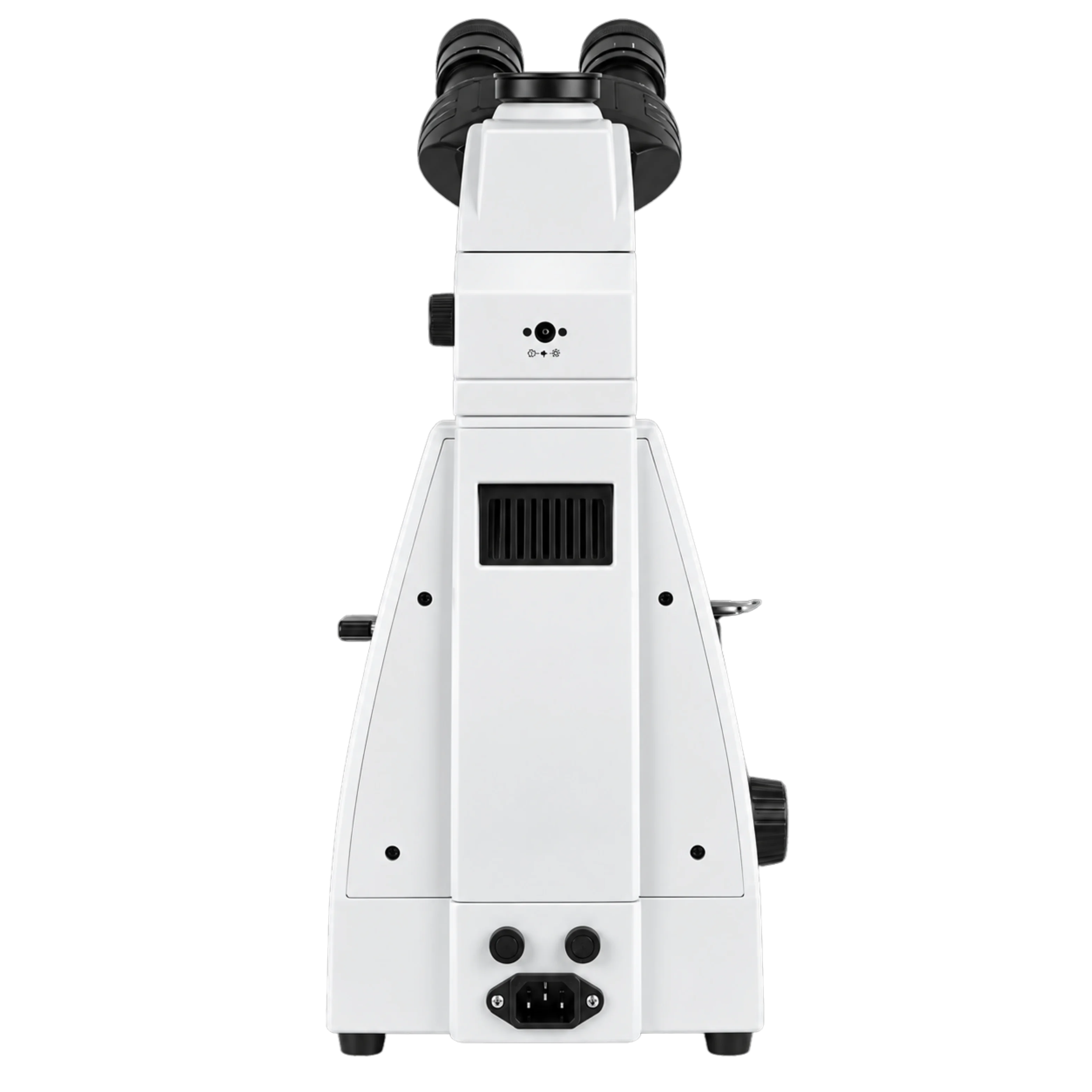

Lab Expo Fluorescence Microscope 43-FMS100 is an advanced microscopes that uses single band LED excitation. This fluorescence microscope with wide voltage range uses 3W LED as a light source for transmitted illumination. It has comfortable 30° inclined gemel trinocular head and correction free interpupillary adjustment. The microscope has integrated all metal high pressure die casting (HPDC) body with rack and pinion mechanism for coarse and fine focus adjustment.
$6,058.00 $ 5048
| Optical System | Infinity corrected achromatic optical system |
| Viewing Head | 30° gemel trinocular viewing head with 360° rotable eyepiece tube Interpupillary distance (IPD) 50-75 mm Fixed spectroscopical ratio R:T=80%:20% |
| Eyepiece | PL10X/22 High eye-point wild field plane eyepiece Field of view 20 mm Effective exit pupil distance: 19mm Diopter ± 5 adjustable |
| Nosepiece | Backward quadruple nosepiece |
| Focusing adjustment | Integrated all metal high pressure die casting (HPDC) body Precision transmission mechanism with rack and pinion Coarse focusing scope: 30mm with tightness adjustment and place limit set Fine adjustable precision 0.002 mm |
| Objective | Infinity plan achromatic objectives: 4x, 10x, 40x(s), 100x (s,oil) |
| Stage | Mechanical stage with underhand: 150×140 mm Moving range: 76×50 mmPrecision: 0.1mm, with damping clips |
| Condenser | Kohler N.A. 1.25 condenser(with socket for phase contrast & dark field sliders) |
| Illumination | 100V-240V_AC50/60Hz wide range voltage 3W LED (predetermine filament center) |
| LED fluorescent reflected illumination | B1band-pass type fluorescence module with intensity adjusting knob & switch knob for bright field and fluorescence module, central wavelength 470 nm |
| Dimension | 570×550×280 mm |
| Net weight | 11 kg |
| Gross weight | 13 kg |
Function Implementation Clinical diagnostics labs Fine adjustable precision 0.002 mm supports accurate specimen focusing Research laboratories Field of view 20 mm enables detailed sample visualization Quality control facilities Mechanical stage with underhand 150×140 mm allows precise sample positioning Industrial inspection sites Moving range 76×50 mm accommodates varied specimen dimensions Educational training centers Interpupillary distance (IPD) 50-75 mm ensures comfortable viewing for multiple users
LED fluorescent reflected illumination Optional Outfit:
G1 band-pass type LED fluorescence module with intensity adjusting knob & switch knob for bright field and fluorescence module, central wavelength 560 nm
B4 LED fluorescence module dedicated for TB with intensity adjusting knob & switch knob for bright field and fluorescence module, central wavelength 455 nm
UV2 long pass type LED module with intensity adjusting knob & switch knob for bright field and fluorescence module, central wavelength 365 nm
Lab Expo Fluorescence Microscopes are structured around epifluorescence optical paths to enable controlled excitation and emission capture for fluorescence analysis. This fluorescence microscopes platform supports multiple filter sets with adjustable illumination for varied fluorophores. Trinocular viewing, precision focus mechanics, and stable all-metal build ensure accurate imaging, documentation, and repeatable observation for research, diagnostic, and educational laboratory workflows.
