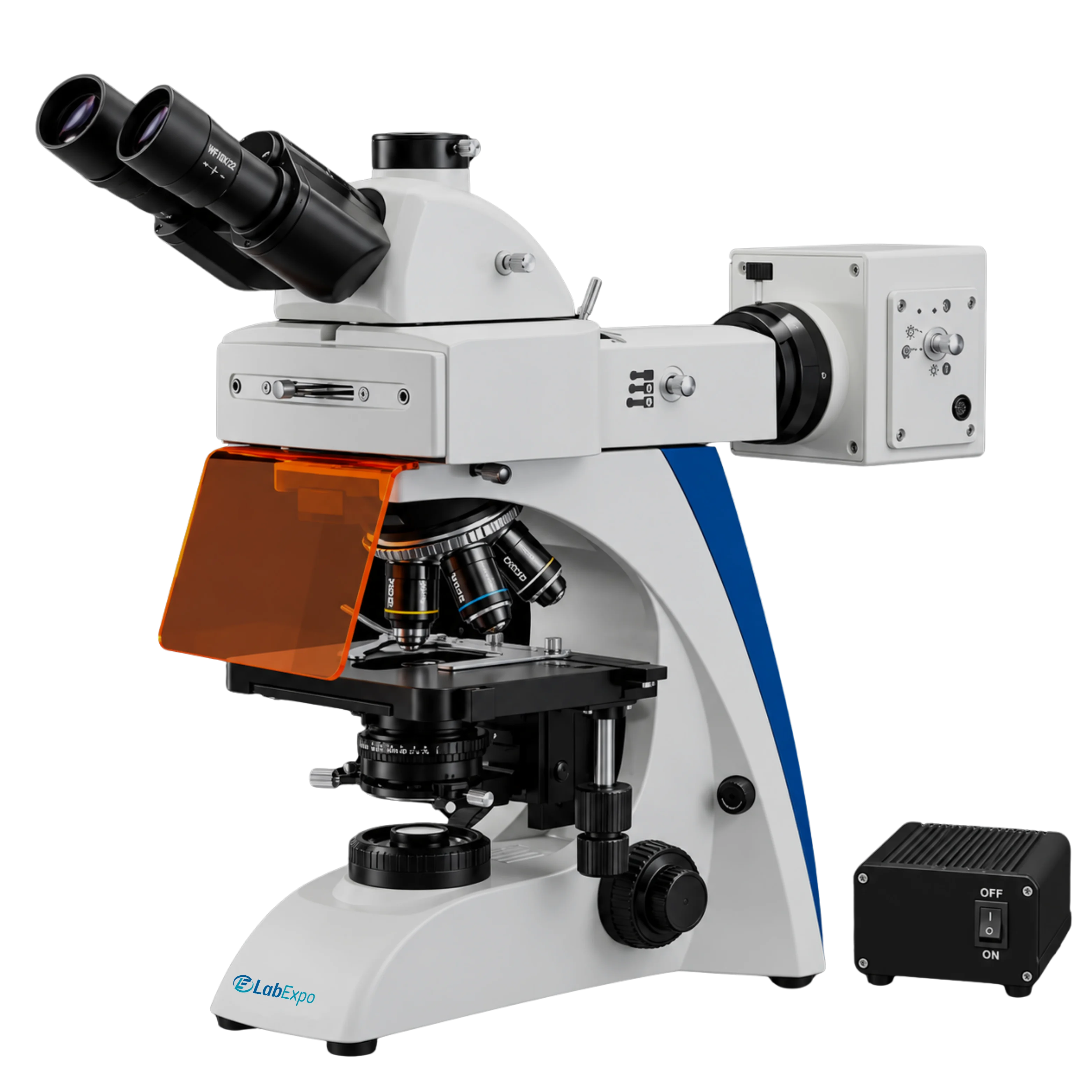

Lab Expo Fluorescence Microscope 43-FMS200 is equipped with epi-fluorescence system, comes in binocular and trinocular head design. This fluorescence microscope offers high quality performance. It gives detailed fluorescent images of the specimen studied. It has digital camera attachment for capturing still images and stream live videos.
$6,302.00 $ 5252
| Viewing head | Siedentopf type trinocular head inclined at 30°, 360° rotation Interpupillary adjustable distance 50-75 mm Antifungal system |
| Eyepiece | WF10X/20 mm |
| Objective | Infinite plan objectives (5pcs) 4x, 10x, 40x(s), 100x(s,oil) |
| Stage | Double layer mechanical stage with removable slide holder: 180×145 mmTravel stage: 76(X)×52(Y) mm with right hand stage handle |
| Focusing | Coaxial coarse & fine adjustment knobs |
| Condenser | Abbe N.A. 1.25 condenser with iris diaphragm |
| Nosepiece | Quintuple quick stop, revolving mechanism with multiple ball bearing |
| Illumination | Build in Kohler illumination system with 3W LED, 6V/20W halogen lamp brightness adjustment, field diaphragm |
| Power supply | 85V~265V universal power supply |
| Epi-fluorescence LED | (B,G) Excitation filter LED power source 3W LED lamphouse (B-LED lamp/ G-LED lamp) Centering objective |
| Dimension | 650×420×490 mm |
| Net weight | 18 kg |
| Gross weight | 21 kg |
Function Implementation Quality control labs 76×52 mm travel stage supports precise sample positioning Clinical diagnostics WF10X/20 mm eyepiece enables clear specimen visualization Research laboratories 3W LED lamphouse provides consistent fluorescence excitation Industrial inspection Quintuple nosepiece allows rapid objective switching Educational training Siedentopf trinocular head facilitates group observation
Eyepiece pointer
Battery pack
Binocular phototube 50%: 50% (vis: doc)
Dark field equipment (DF slider 0.65)
Camera adapters: C mount adapters 2/3
Software with camera driver
Original OMEGA excited filters
Tilting removable mirror (only for fixed kohler stand variable)
Phase contrast equipment: 10x/Ph1, 20x/Ph2, 40x/Ph2, 100x/Ph3
Halogen lamp 6V/30W with phase sliders
Lab Expo Fluorescence Microscopes are structured around epifluorescence optical paths to enable controlled excitation and emission capture for fluorescence analysis. This fluorescence microscopes platform supports multiple filter sets with adjustable illumination for varied fluorophores. Trinocular viewing, precision focus mechanics, and stable all-metal build ensure accurate imaging, documentation, and repeatable observation for research, diagnostic, and educational laboratory workflows.
