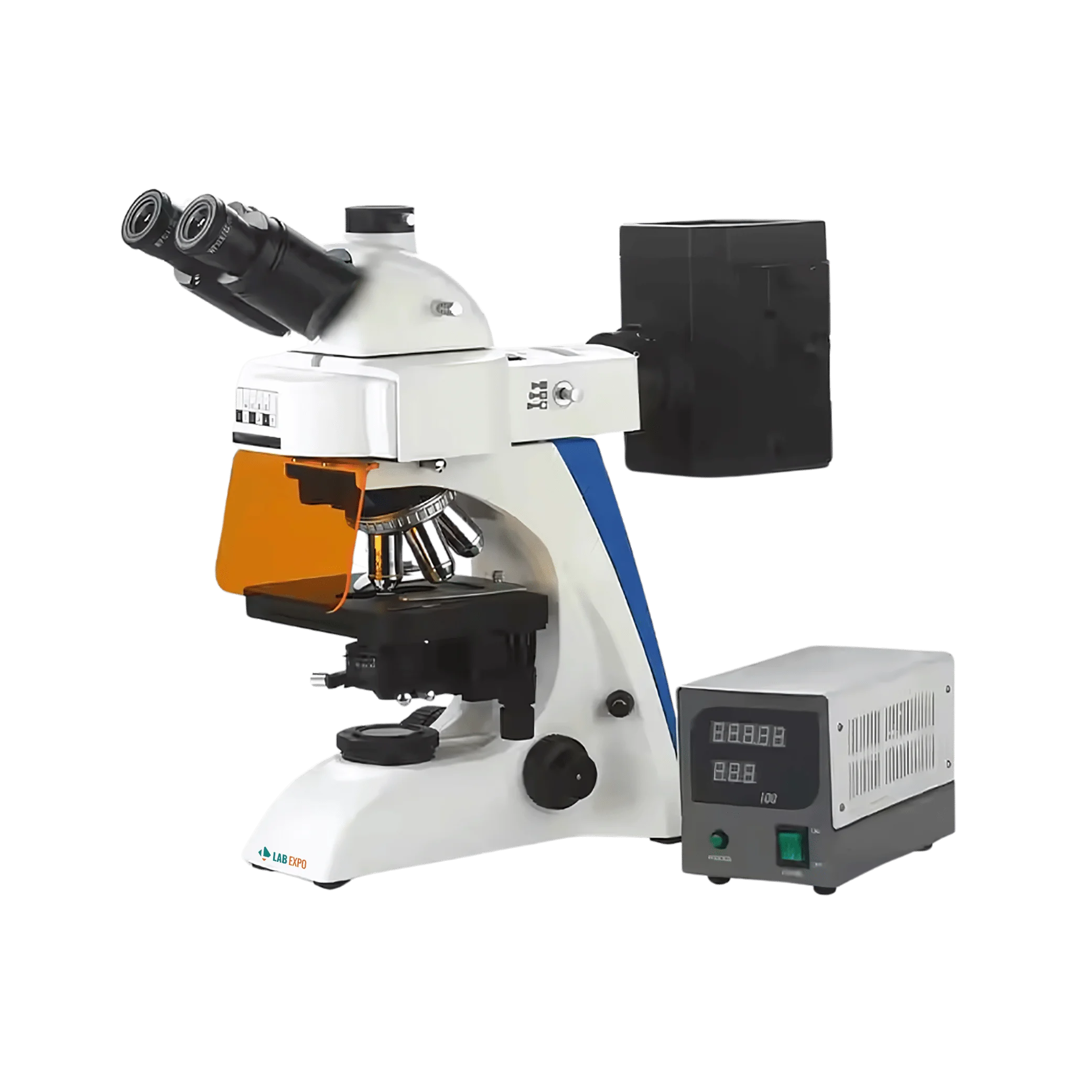

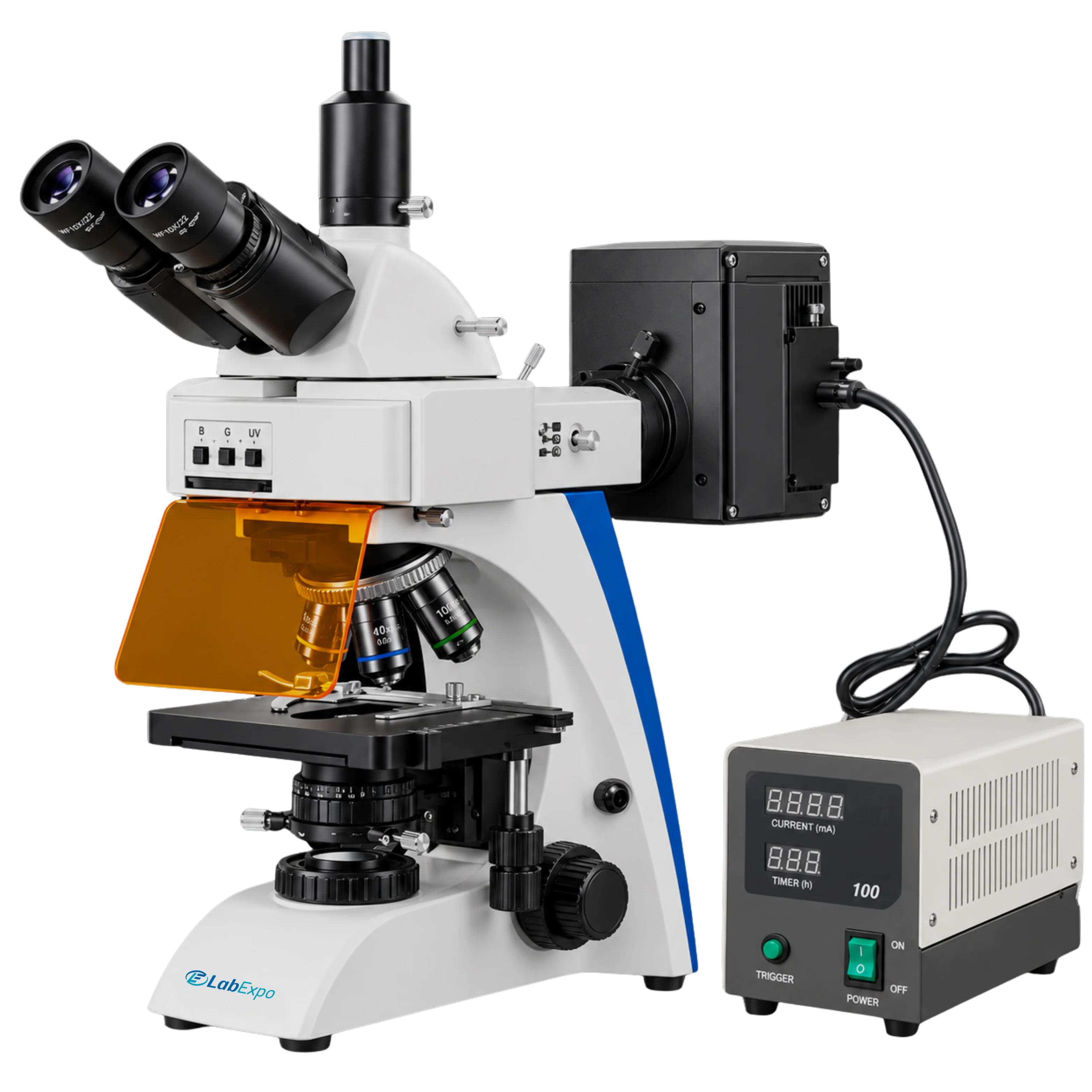

Lab Expo Fluorescence Microscope 43-FMS301 is equipped with epi-fluorescence system, comes in siedentopf binocular head design. Its rack and pinion mechanism, useful in coarse and fine focusing of the specimen. The fluorescence microscope offers high quality performance. They are highly reliable and user-friendly in nature.
$5,827.00 $ 4856
| Viewing head | Siedentopf type binocular head, inclined at 30º, 360ºrotation Interpupillary adjustable distance 50mm-75mm, Anti-fungal system |
| Eyepiece | WF10X/20 mm |
| Objective | Infinite plan objectives: 4x, 10x, 40x(s), 100x(s,oil) |
| Stage | Double layer mechanical stage with removable slide holder: 180mm×145mm Travel stage: 76(X)mm×52(Y)mm with right hand stage handle |
| Focusing | Coaxial coarse & fine adjustment with rack and pinion mechanism fine focusing interval 0.002mm |
| Condenser | Abbe N.A. 1.25 condenser with iris diaphragm |
| Nosepiece | Quadruple quick stop revolving mechanism with multiple ball bearing |
| Illumination | Halogen lamp 6V/20W or 3W LED brightness adjustable |
| Power supply | 85V to 265V universal power supply |
| Fluorescence attachment | Epi-fluorescence unit: B,G, U, V 100W mercury power source (pointer or digital) 100W mercury lamp house Center objective |
| Dimension | 650×420×490 mm |
| Net weight | 18 kg |
| Gross weight | 21 kg |
Function Implementation Clinical diagnostics 100W mercury lamp house enables fluorescence excitation for sample analysis Research laboratories Fine focusing interval 0.002mm supports precise specimen adjustment Quality control labs Travel stage 76mm(X)×52mm(Y) allows accurate slide positioning Educational institutions Siedentopf binocular head with interpupillary distance 50-75mm facilitates shared viewing Industrial inspection Abbe N.A. 1.25 condenser with iris diaphragm enhances resolution for material analysis
1X C-mount, 0.57X C-mount
Infinite Objective: 60(S)
WF16X, WF10X (reticle 0.1mm)
Phase contrast attachment
Lab Expo Fluorescence Microscopes are structured around epifluorescence optical paths to enable controlled excitation and emission capture for fluorescence analysis. This fluorescence microscopes platform supports multiple filter sets with adjustable illumination for varied fluorophores. Trinocular viewing, precision focus mechanics, and stable all-metal build ensure accurate imaging, documentation, and repeatable observation for research, diagnostic, and educational laboratory workflows.
