Gel Documentation System 36-GDS101

Name: Gel Documentation System 36-GDS101
Brand: Labexpo
SKU: 36-GDS101
Rating: 4.8 (661 reviews)

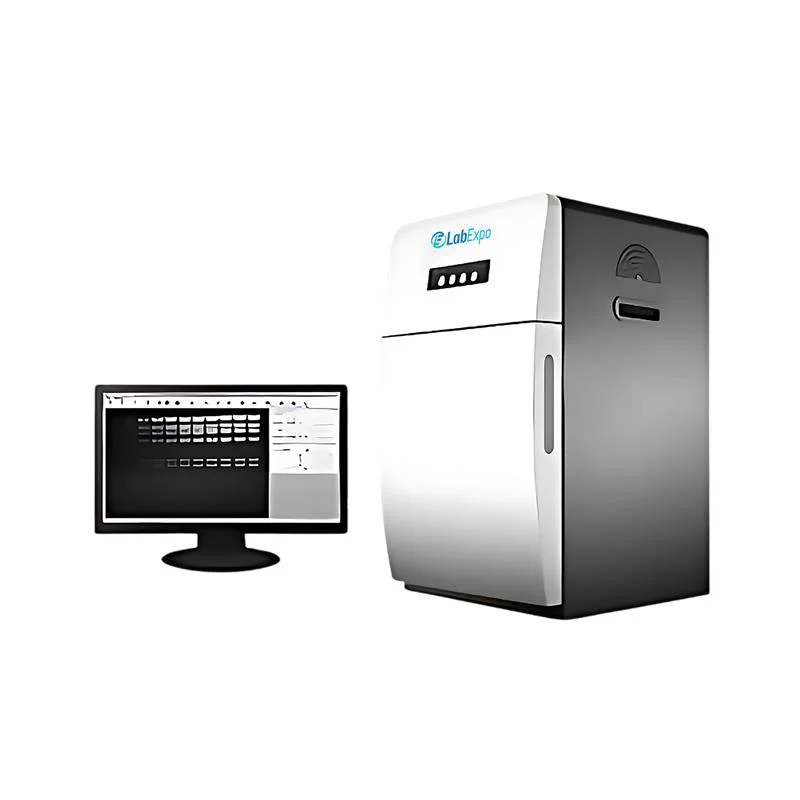

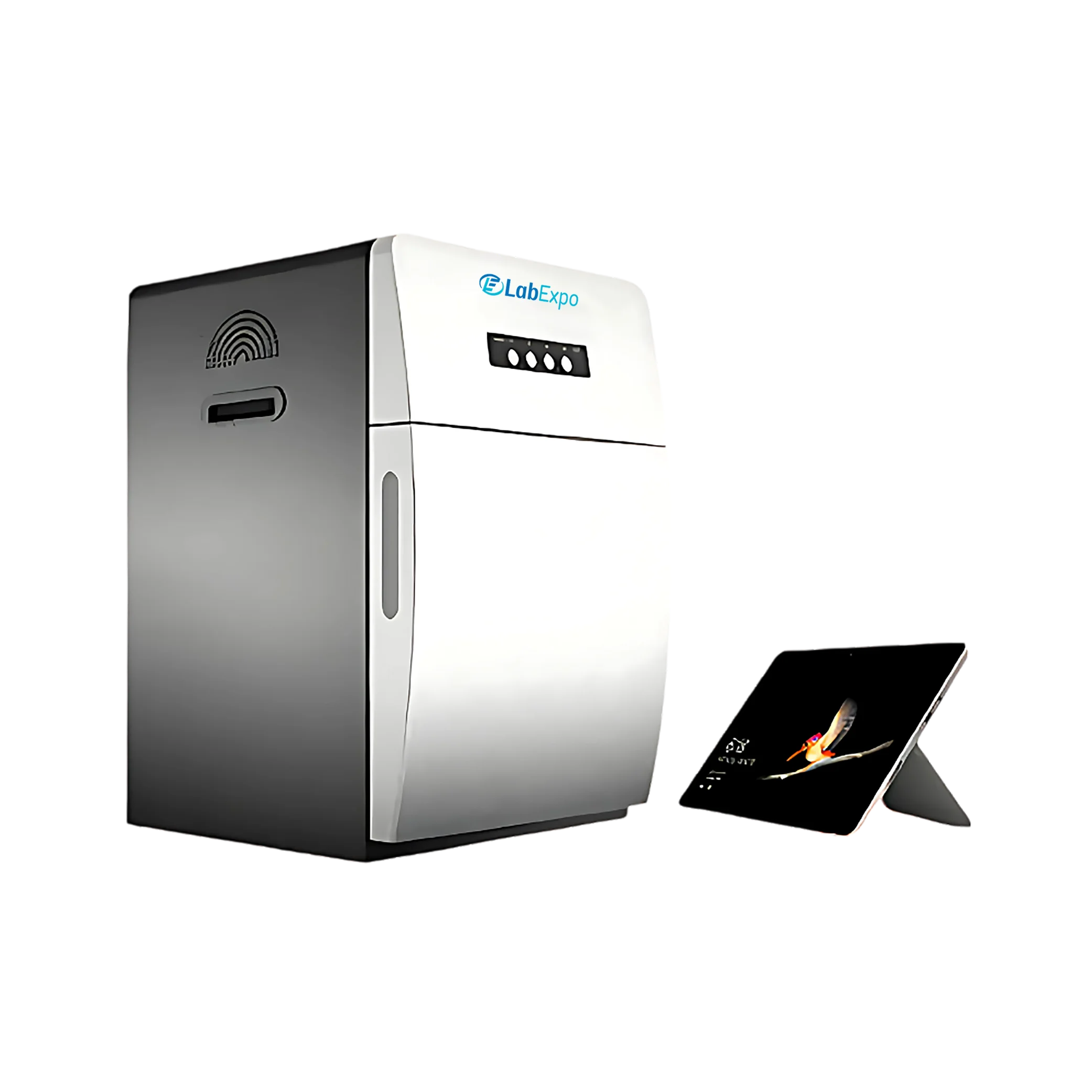

Lab Expo Gel Imaging System 36-GDS101 is provided with low noise, cooled CCD camera. It has anti-UV filter which provides UV protection, helps user to observe and seize the gel bar under UV illumination. This system can detect far weaker signals, offers higher sensitivity and wider linear range. With this gel imaging system, it is possible to capture weak signals under low illumination conditions.

$20,952.00 $ 17460

Gel Documentation System 36-GDS101 - Specifications

QE	0.82
CCD camera	1.45 megapixels, Pixels density 16-bit
A/D	16-bit
Lens	F1.2 (motorized) transparent lens
Trans-white illumination	LED White light transmission plate, Sample area: 23cm x 32cm
Ep white illumination	Dual epi-white LED
UV Transmission	Sample area: 21 cm x 26 cm, Wavelength: 302 nm
Filter	590 nm
Dimension	550 X 460 760 mm
Gross weight	26

Gel Documentation System 36-GDS101 - Key Features

16-bit CCD camera with 1.45 megapixels resolution
Motorized F1.2 lens with adjustable focal length
PC-based automatic control system via USB interface
Intelligent gel analysis software for image capture
Numerical adjustment of aperture and focus settings

Gel Documentation System 36-GDS101 - Applications

Function	Implementation
Gel electrophoresis labs	1.45 megapixels CCD camera enables high-resolution gel imaging
UV transillumination applications	302 nm wavelength supports nucleic acid visualization
Low-light detection scenarios	0.82 QE enhances sensitivity for weak signal capture
Sample preparation areas	23cm x 32cm transmission plate accommodates standard gels
Data analysis workstations	16-bit A/D provides wide linear range for quantitative analysis

Gel Documentation System 36-GDS101 - Optional Accessories

Filters: 460 nm, 530 nm, 630 nm, 670 nm
UV transmission : 254 nm, 365 nm

Gel Documentation System 36-GDS101 - Catalog

Gel Documentation System 36-GDS101 Catalog
