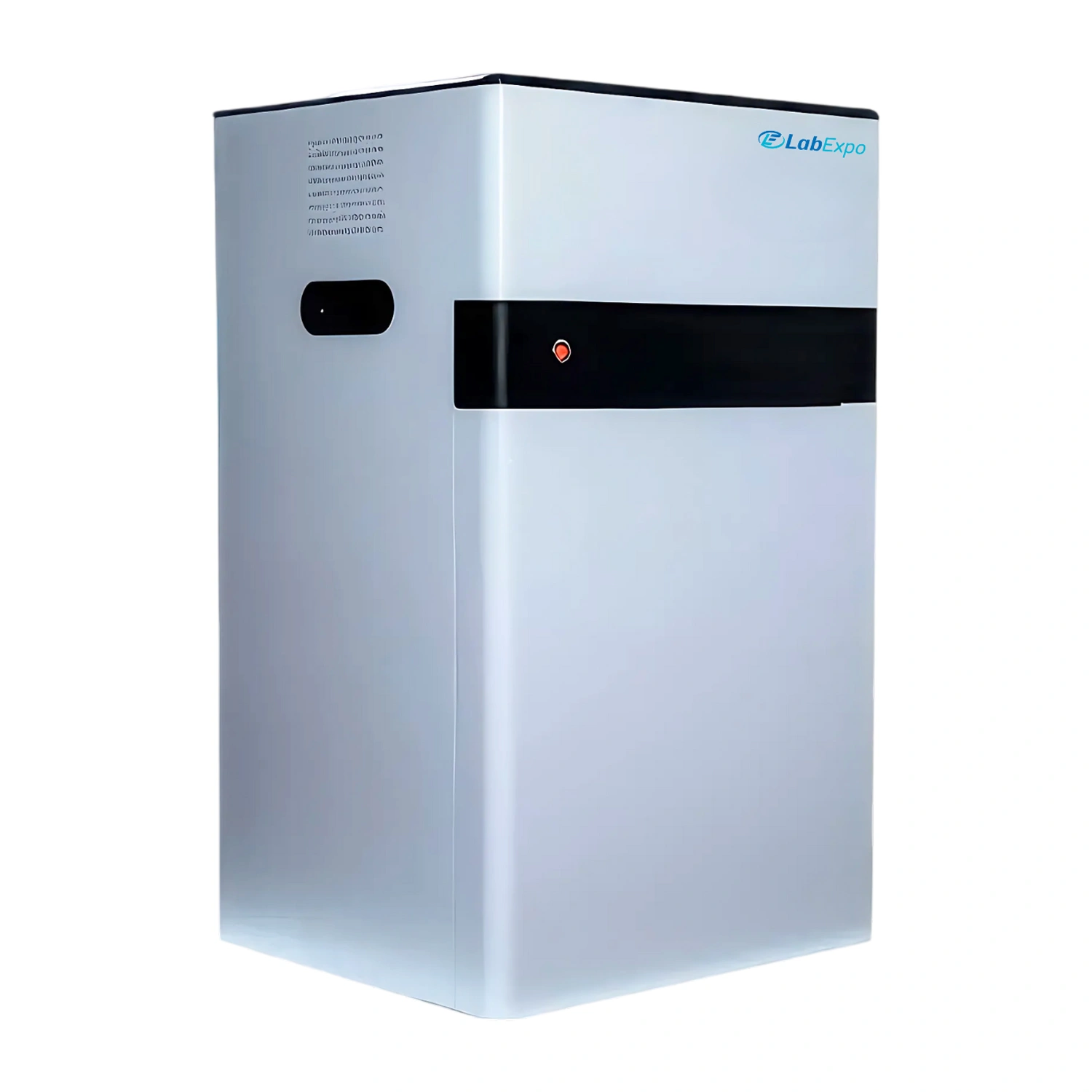

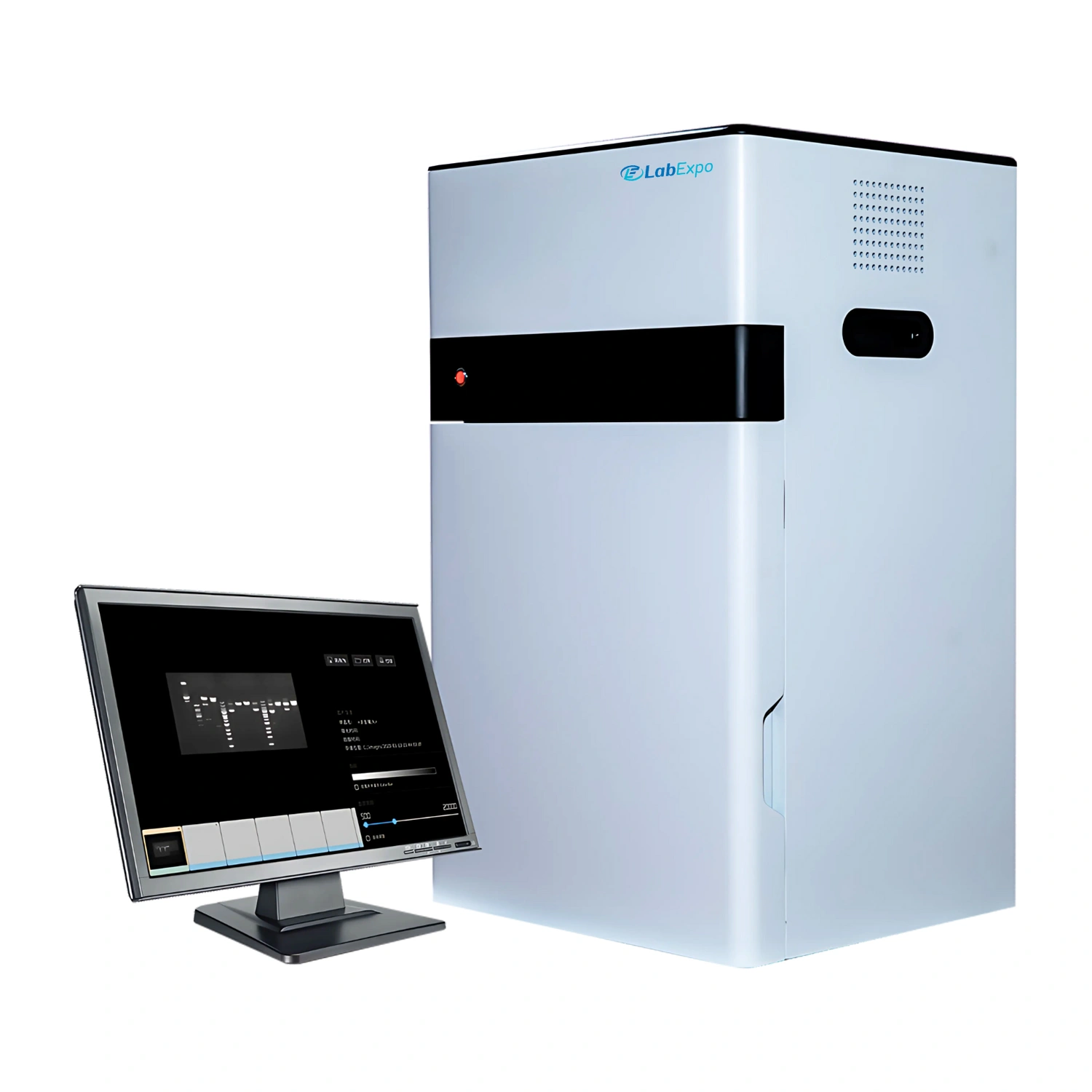

Lab Expo Gel Documentation System LE-GDS201 is equipped with a 5MP monochrome scientific digital camera. Incorporated with autofocus, and real white LED transmission for enhanced clarity and sample illumination. Integrated automatic greyscale adjustment eliminates the need for manual display calibration. Built-in real-time display of the cooled CCD camera ensures stable imaging performance. Our Gel Documentation System is suitable for protein quantitative analysis, molecular weight calculation, and more.
$6,691.00 $ 5576
| Camera Type | Monochrome Scientific Digital Camera |
| Digital Camera Resolution | 5 Megapixels, 2592 × 1944 |
| Dynamic Range | 4.8OD |
| Pixel Density | 16bit（65536 Grey Scales） |
| Motorized Lens | F1.2 Motorized Lens |
| Lens Resolution | 20 Megapixels |
| Control | Numeric Focus Controlled via Software |
| UV Transmission | 302nm as Standard，Image Area：21x26cm （Optional 254nm, 365nm） |
| White LED Transmission | Real White LED Transmission, Image Area:19x26cm |
| Optional Blue LED Transmission | Optional Blue LED Transmission, Image Area:19x26cm |
| Filter | Standard Filter for UV Application Optional for Blue Transmission |
| Sensitivity | ≤10pg EtBr Stained DNA Samples |
| PC or Touch Screen | Standard Connection to PC External Touch Screen is Optional |
| Dimension | 430 × 360 × 700mm |
| Packing Dimension | 500 × 550 × 880mm |
| Net Weight | 19 Kg |
| Gross Weight | 26 Kg |
Function Implementation Protein analysis labs 5 Megapixels enables precise molecular weight calculation Molecular research facilities ≤10pg EtBr sensitivity detects low-concentration DNA samples UV gel documentation stations 302nm UV transmission supports standard nucleic acid imaging Quantitative electrophoresis labs 16bit (65536 Grey Scales) allows detailed band intensity analysis High-throughput imaging workflows Numeric Focus Controlled via Software ensures consistent sample focusing
Our advanced Gel Documentation System features a high-resolution camera for sharp, precise image capture and analysis. They offer UV transillumination for nucleic acid detection and LED illumination for non-UV imaging, ensuring versatility. These have a wide dynamic range, allowing the detection of both faint bands and intense signals for accurate gel analysis. They allow easy integration with computers for quick data transfer and report generation. Our system allows users to adjust settings like brightness, contrast, and exposure for the best image quality.
