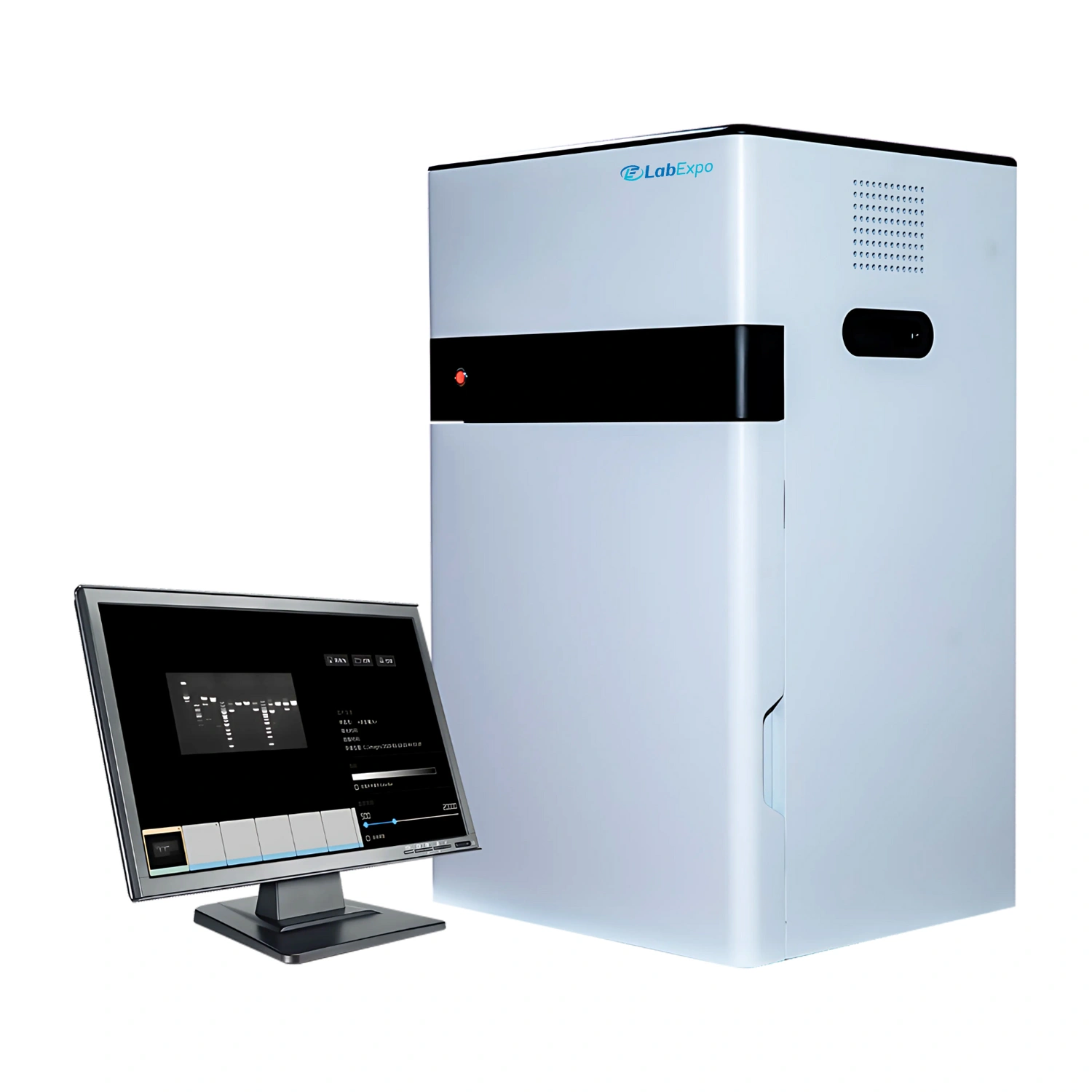

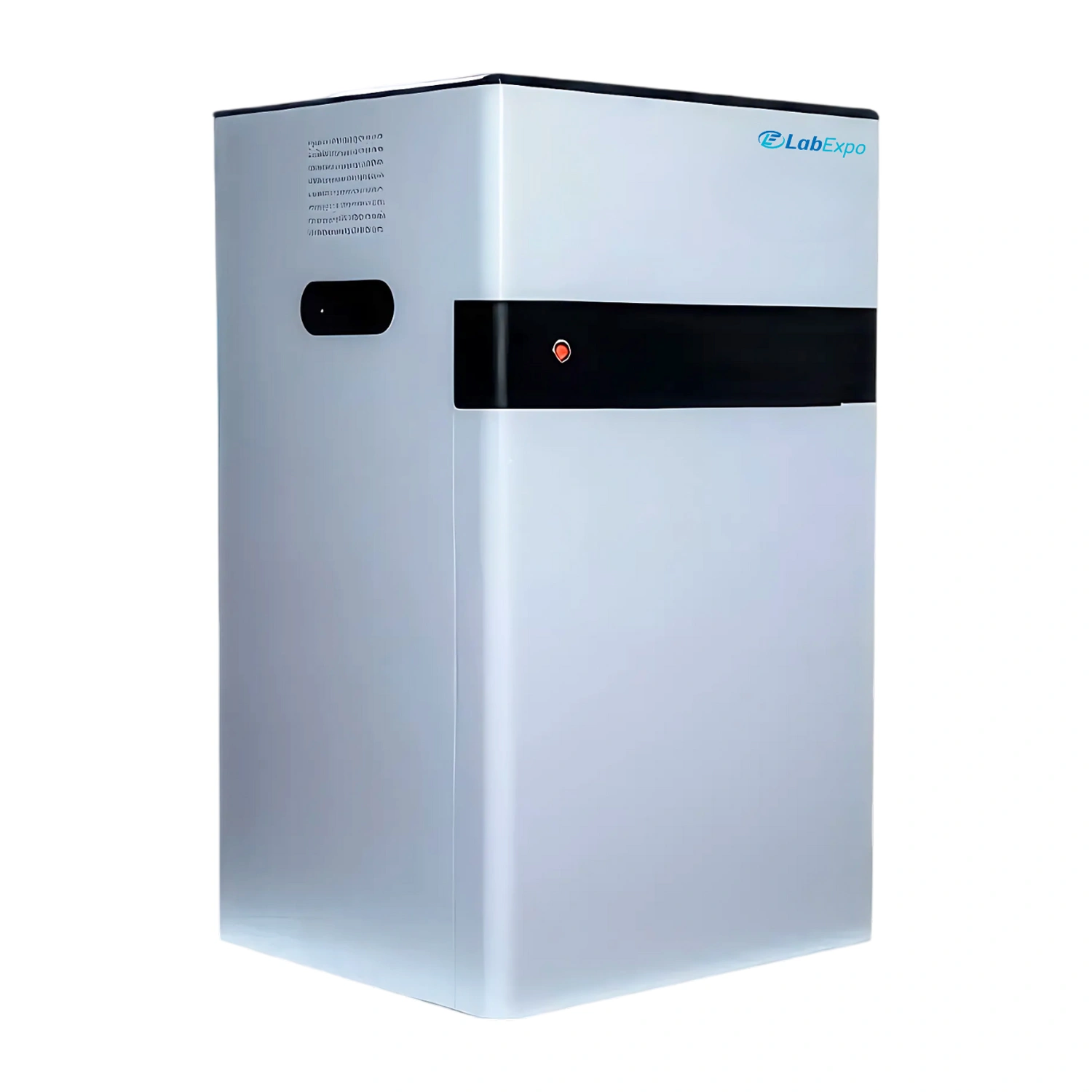

Gel Documentation System LE-GDS202

Lab Expo Gel Documentation System LE-GDS202 is designed with a 20 MP scientific grade digital camera for high-resolution imaging. Integrated real white LED transmission and autofocus ensures optimal sample visibility. Built-in automatic greyscale adjustment and real-time temperature display provide effortless operation. Incorporated with advanced calculation functions for molecular weight, band concentration, and density. Our Gel Documentation System is suitable for protein quantitative analysis and gel electrophoresis documentation.

$7,699.00 $ 6416

Gel Documentation System LE-GDS202 - Specifications

Camera Type Monochrome Scientific Digital Camera
Digital Camera Resolution 20 Megapixels, 4800 × 4440
Dynamic Range 4.8OD
Pixel Density 16bit（65536 Grey Scales）
Motorized Lens F1.2 Motorized Lens
Lens Resolution 20 Megapixels
Control Numeric Focus Controlled via Software
UV Transmission 302nm as Standard，Image Area：21x26cm （Optional 254nm, 365nm）
White LED Transmission Real White LED Transmission, Image Area:19x26cm
Optional Blue LED Transmission Optional Blue LED Transmission, Image Area:19x26cm
Filter Standard Filter for UV Application Optional for Blue Transmission
Sensitivity ≤5pg EtBr Stained DNA Samples
PC or Touch Screen Standard Connection to PC External Touch Screen is Optional
Dimension 430 × 360 × 700mm
Packing Dimension 500 × 550 × 880mm
Net Weight 19 Kg
Gross Weight 26 Kg

Gel Documentation System LE-GDS202 - Key Features

  • Numeric focus control via software with 16bit grayscale resolution
  • Automatic exposure adjustment for consistent imaging performance
  • Multilingual interface supporting multiple language configurations
  • Multi frame function enabling sequential image capture
  • Motorized F1.2 lens with 20 megapixel digital camera integration

Gel Documentation System LE-GDS202 - Applications

FunctionImplementation
UV gel analysis302nm UV transmission enables standard nucleic acid visualization
Protein quantification≤5pg EtBr stained DNA sensitivity supports low-abundance detection
High-resolution imaging20 Megapixels, 4800 × 4440 captures detailed band structures
Molecular weight calculationAdvanced calculation functions process band concentration data
Multiplex sample screeningOptional Blue LED Transmission expands fluorescent dye compatibility

Gel Documentation System LE-GDS202 - Optional Accessories

  • Blue LED Transmission
  • Dual Wavelength UV External UV Transilluminator

Gel Documentation System LE-GDS202 - Catalog

Gel Documentation System LE-GDS202 Catalog

Gel Documentation System LE-GDS202

Gel Documentation System LE-GDS202
