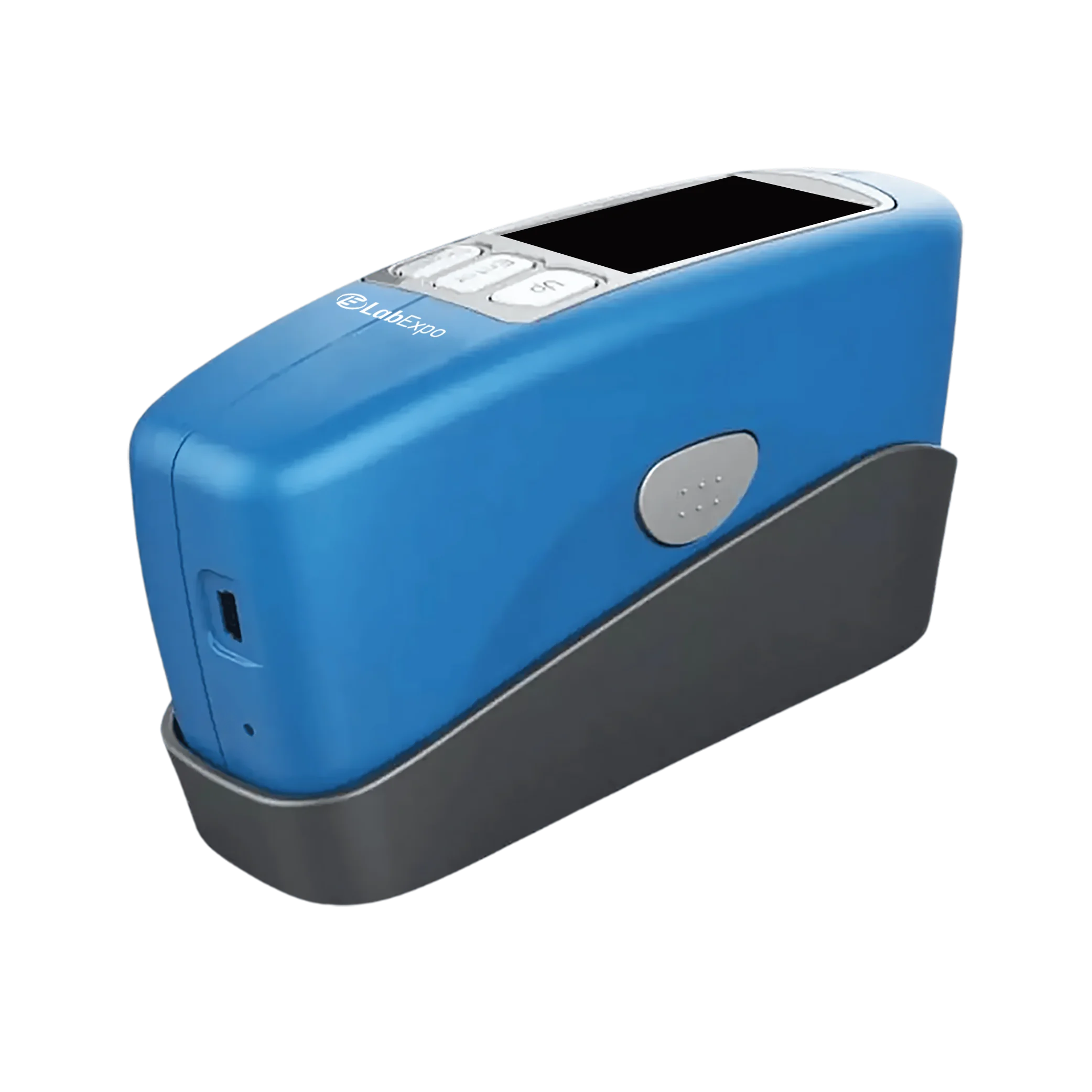

Lab Expo Benchtop Glossmeter 61-OTI101 comes in three different measuring angle 20°, 60°, 85° to measure high gloss area, mid-range gloss area, low gloss surface area. This gloss meter can test the gloss texture of plastics, glass, ceramic coating, packaging material, paper, paint, rubber, wood, leather and flooring parts. Equipped with large lithium battery with 3000 mAh capacity ensures continuous testing for 54300 times. All the tests taken from this gloss meter are confirmed to the international standards.
$2,717.00 $ 2264
| Test angle | 20°, 60°, 85° |
| Test light spot | 20°: 10×10 mm 60°: 9×15 mm 85°: 5×38 mm |
| Measurement range | 20°: 0 to 2000 GU 60°: 0 to 1000 GU 85°: 0 to 160 GU |
| Resolution | 0.1 GU |
| Tet modes | Simple mode, standard mode, sample testing mode |
| Repeatability | 0 to 100 GU: 0.2 GU, 100 to 2000 GU:0.2% GU |
| Test time | Less than 1 S |
| Working temperature | 0 to 40°C |
| Working humidity | < 85%, no condensation |
| Port | USB, Bluetooth (optional) |
| Data storage | 100 standard samples, 1000 test samples |
| Size (L*W*H) | 165 × 51 × 77 mm |
| Weight | About 400 g |
| Battery capacity | 3000 mAh lithium battery |
Function Implementation Quality control labs 0.1 GU resolution enables precise surface finish assessment Plastics manufacturing Test light spot 20°: 10×10 mm supports small-area sample evaluation Coating inspection Measurement range 60°: 0 to 1000 GU covers mid-gloss material verification Paint production lines Test time less than 1 S allows rapid inline process monitoring Material research facilities Data storage 100 standard samples facilitates comparative analysis workflows
Lab Expo Gloss Meter units are used for surface gloss evaluation across coatings, plastics, paper, ceramics, and finished material inspection workflows. Systems support single and multi-angle measurement at 20°, 60°, and 85° with gloss ranges extending up to 2000 GU and defined light spot configurations for varied surface types. Configurations are arranged for consistent reflectance analysis and gloss comparison, supporting quality verification and surface finish assessment in production and testing environments.
