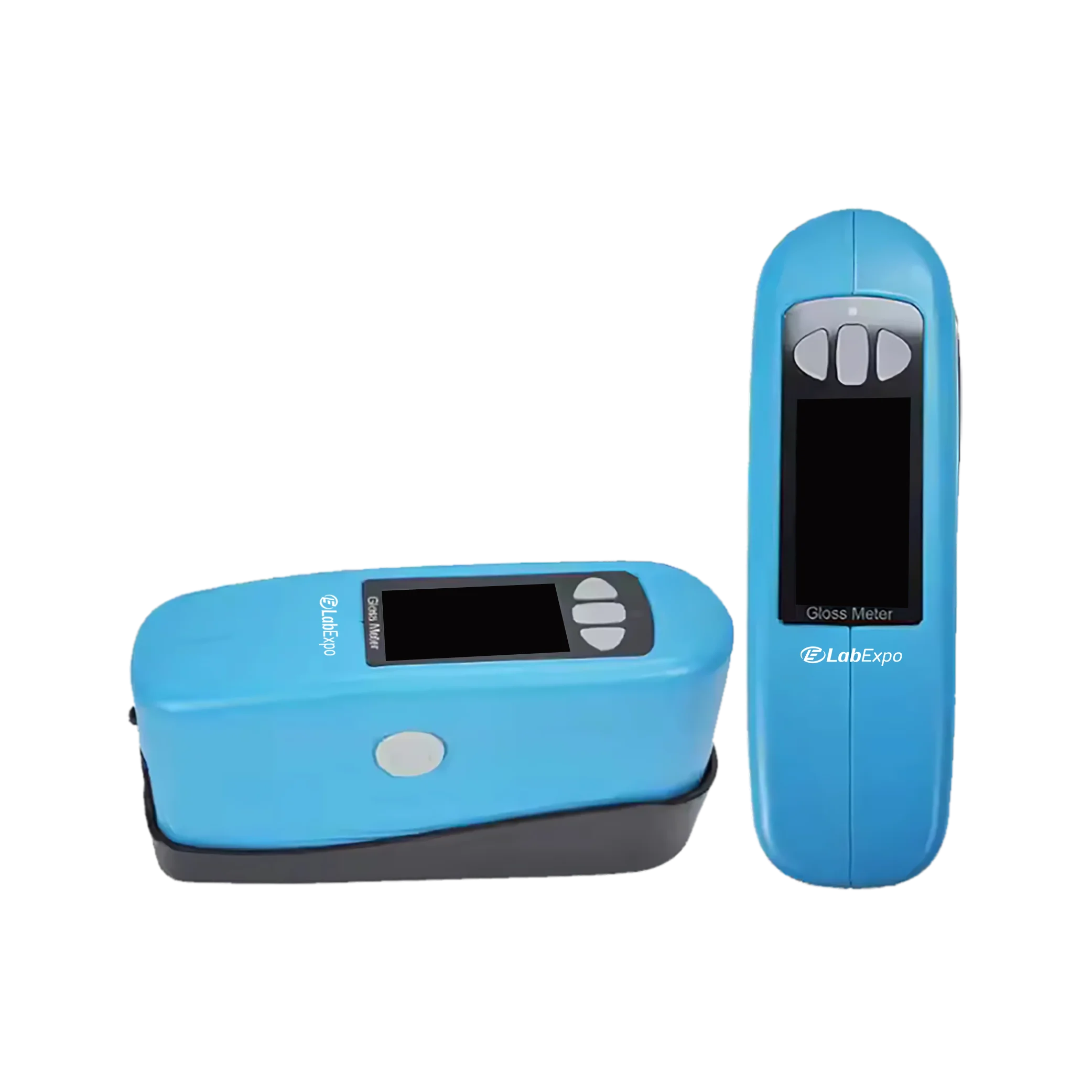

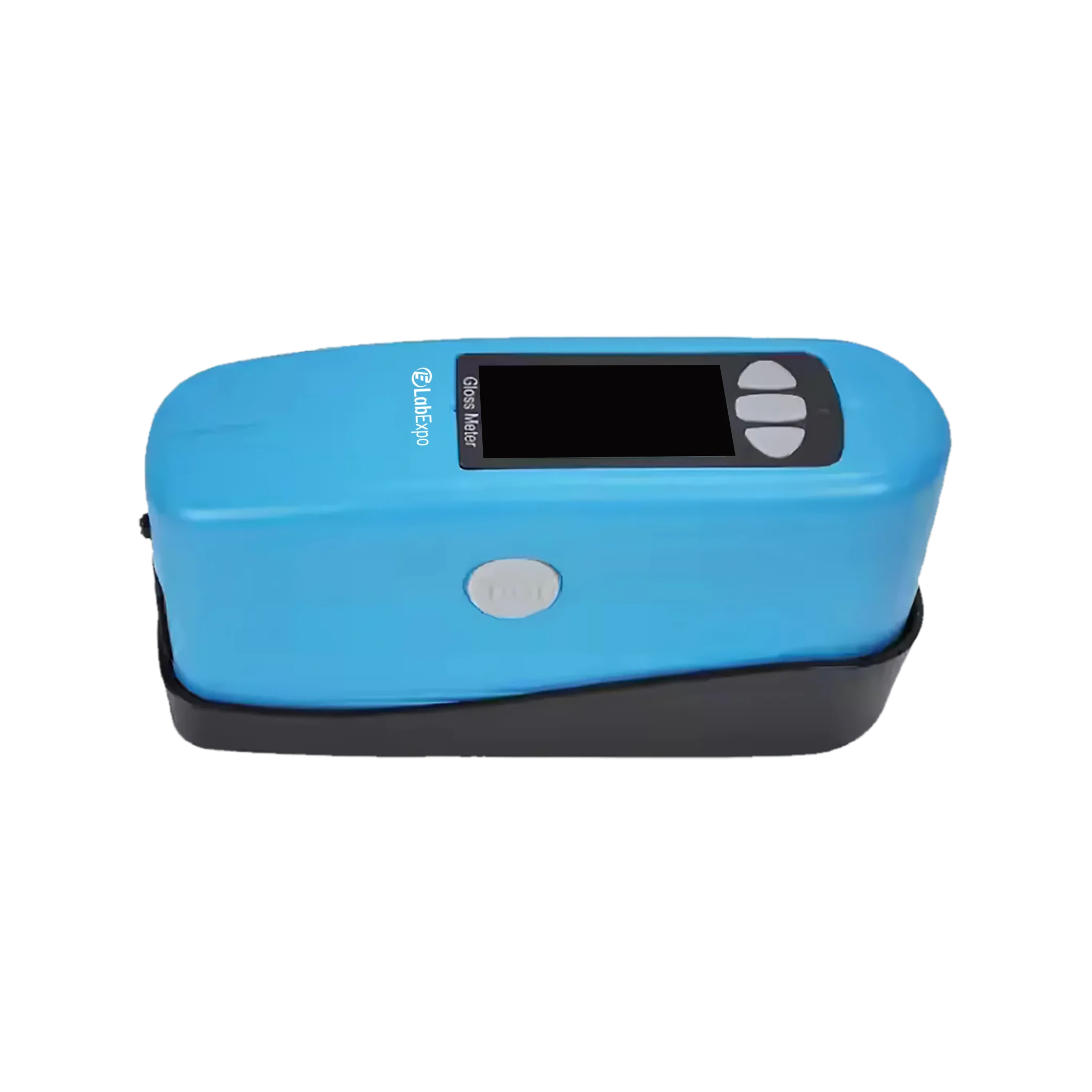

Lab Expo Gloss Meter 61-OTI102 offers a measuring angle of 60°, providing reliable gloss measurements for various surfaces. It offers a measurement range of 0 to 1000 Gloss Units (GU). It features manual data entry allowing input of standard sample gloss data for more personalized testing. Our gloss meter comes with PC software offering expanded functionality and customization to meet advanced user needs.
$3,422.00 $ 2852
| Measuring Angle | 60° |
| Measuring Range | 60°: 0 to 1000 GU |
| Measuring Spot | 60°: 9×15 mm |
| Repeatability | 0 to 100 GU: 0.2 GU>100 GU: 0.2% GU |
| Resolution | 1000 to 2000:1 GU |
| Indication Error | ±1.5 GU |
| Zero Error | 0.2 GU |
| Working Temperature | 10°C to 40°C |
| Storage Temperature | -10°C to 70°C |
| Humidity Range | |
| Power | 5 alkaline batteries/power adapter |
| Dimensions (L×W×H) | 159×49×72 mm |
| Weight | 500 g |
Function Implementation Surface coating evaluation 0 to 1000 GU measures gloss across coating types Paint finish analysis ±1.5 GU ensures accurate paint quality checks Plastic material testing 9×15 mm spot assesses small plastic samples Industrial surface inspection 60° angle evaluates standard industrial finishes Laboratory sample verification Manual data entry supports customized test protocols
Lab Expo Gloss Meter units are used for surface gloss evaluation across coatings, plastics, paper, ceramics, and finished material inspection workflows. Systems support single and multi-angle measurement at 20°, 60°, and 85° with gloss ranges extending up to 2000 GU and defined light spot configurations for varied surface types. Configurations are arranged for consistent reflectance analysis and gloss comparison, supporting quality verification and surface finish assessment in production and testing environments.
