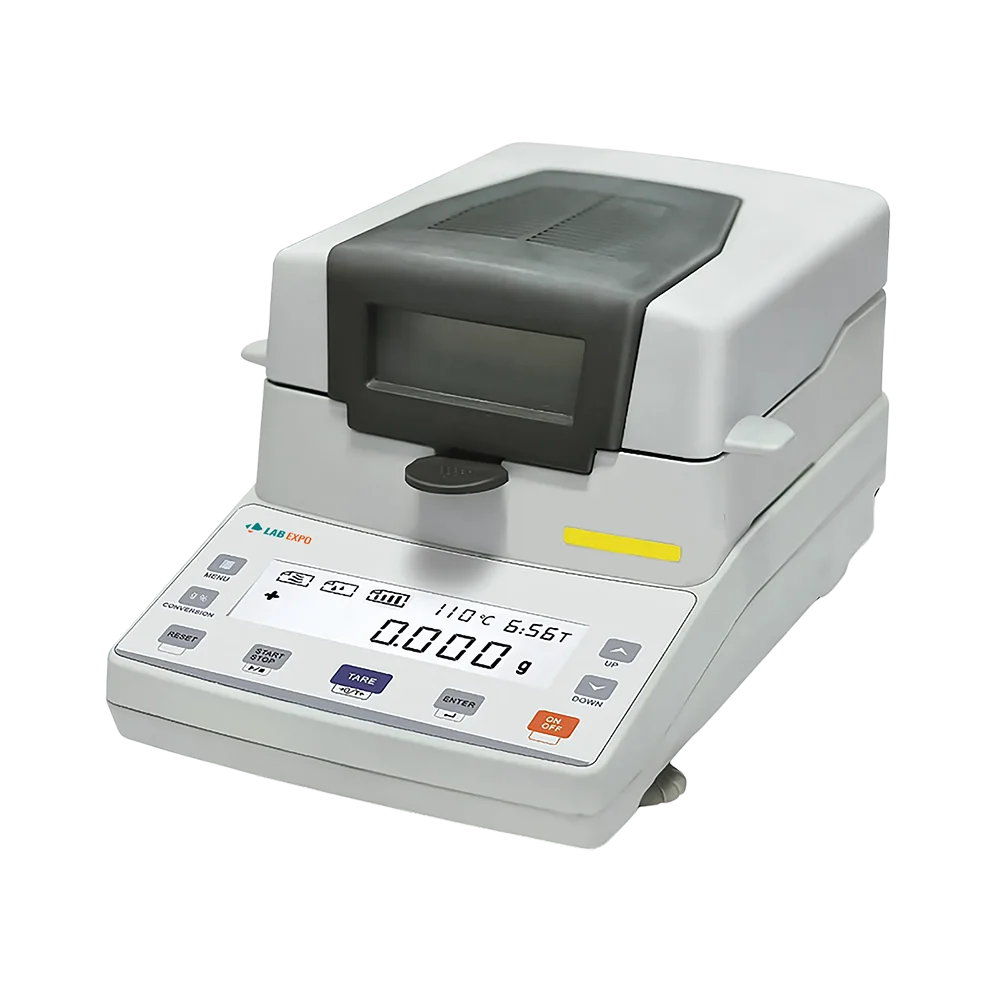

Halogen Moisture Analyzer 46-HMA100

Halogen moisture analyzer with benchtop design, user can manually open the door of heating chamber for analysis. Incorporated with halogen heating lamp for rapid and uniform heating, it determines the moisture content and dry weight of the test sample. It continuously measures and immediately display the loss of moisture and weight on backlight LCD screen during test.

Range 10 to 110 mg
Readability 10 mg
Temperature range 40 to 199°C
Pan size 90 mm diameter
Heat source Halogen lamp-1
Operating temperature range 5 to 35°C
Temperature sensor PT-100
Temperature step 1°C
Temperature setting 40 to 199°C by 1°C step
Time setting 1 to 99 min by 10s step
Auto stop 0.1 to 9.9 % within 1 min
Dry residual range 0 to 100 %
Dry residual readability 0.002
Moisture range 0 to 100 %
Moisture readability 0.002
Number of storage data 15
Number of history data 15
Display 5 inch touch panel
Interface RS232
Machine dimension 490 × 360 × 350 mm
Gross weight 7.5 kg
  • Halogen lamp heating
  • Ergonomically designed pan handle
  • 5 inch touch LCD backlight display
  • Locks final test values on display screen
  • Stainless steel chamber
  • Manual setting for temperature and time
  • Easy cleaning after testing
  • Stores previous test data
  • Connection to PC, printer

Used in biology, food, agriculture, pharmacy, textile, dye and research industries for determination of moisture content in the test sample.
