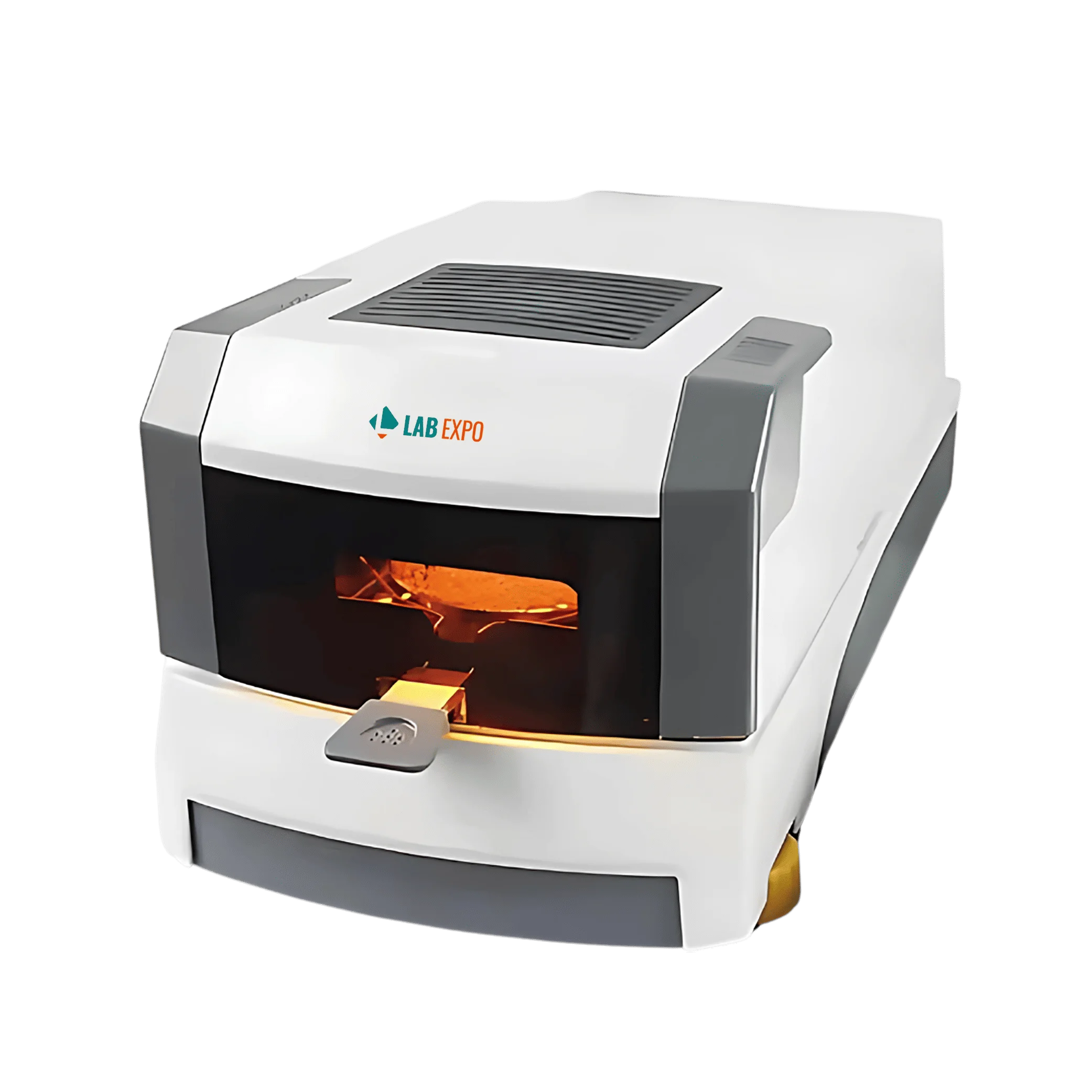

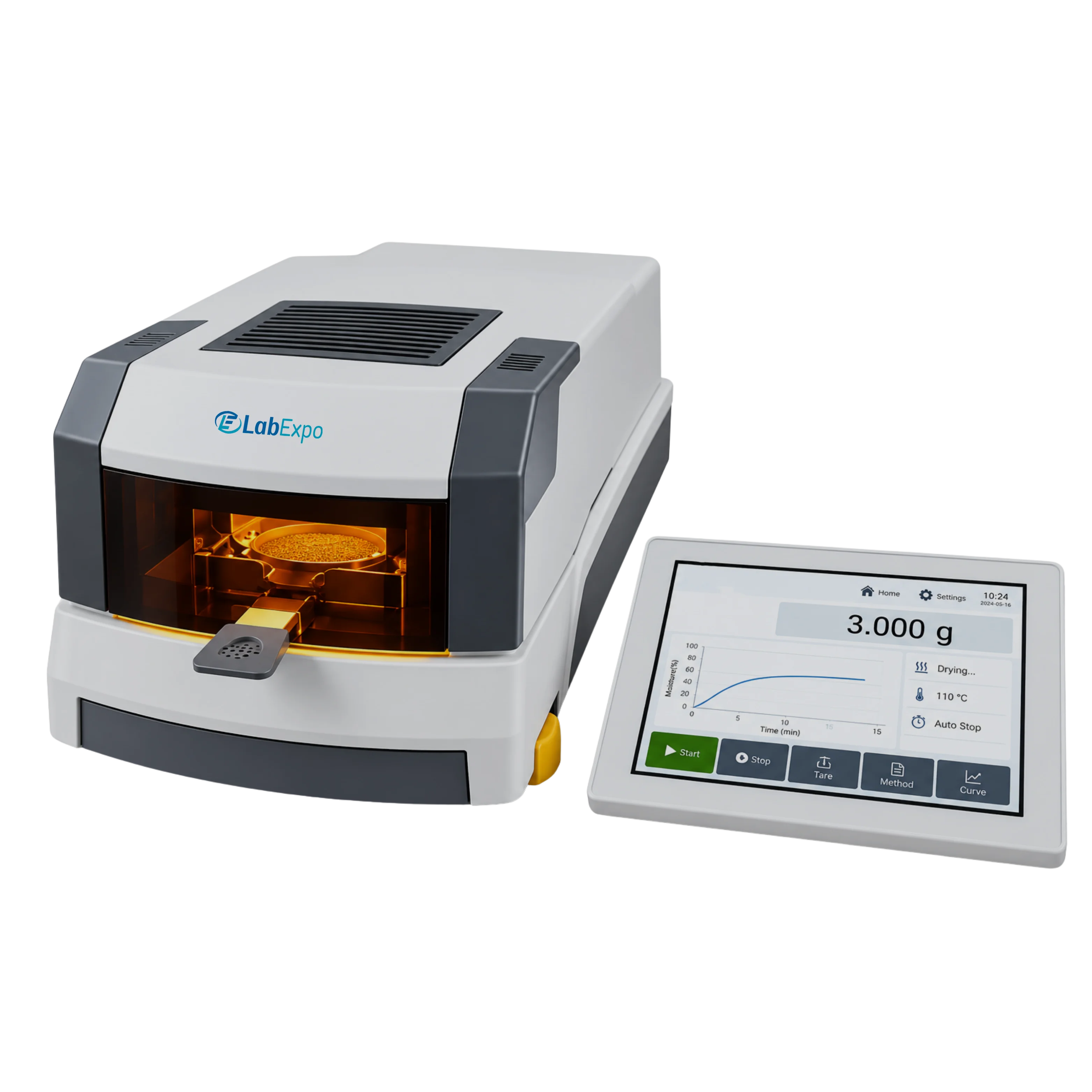

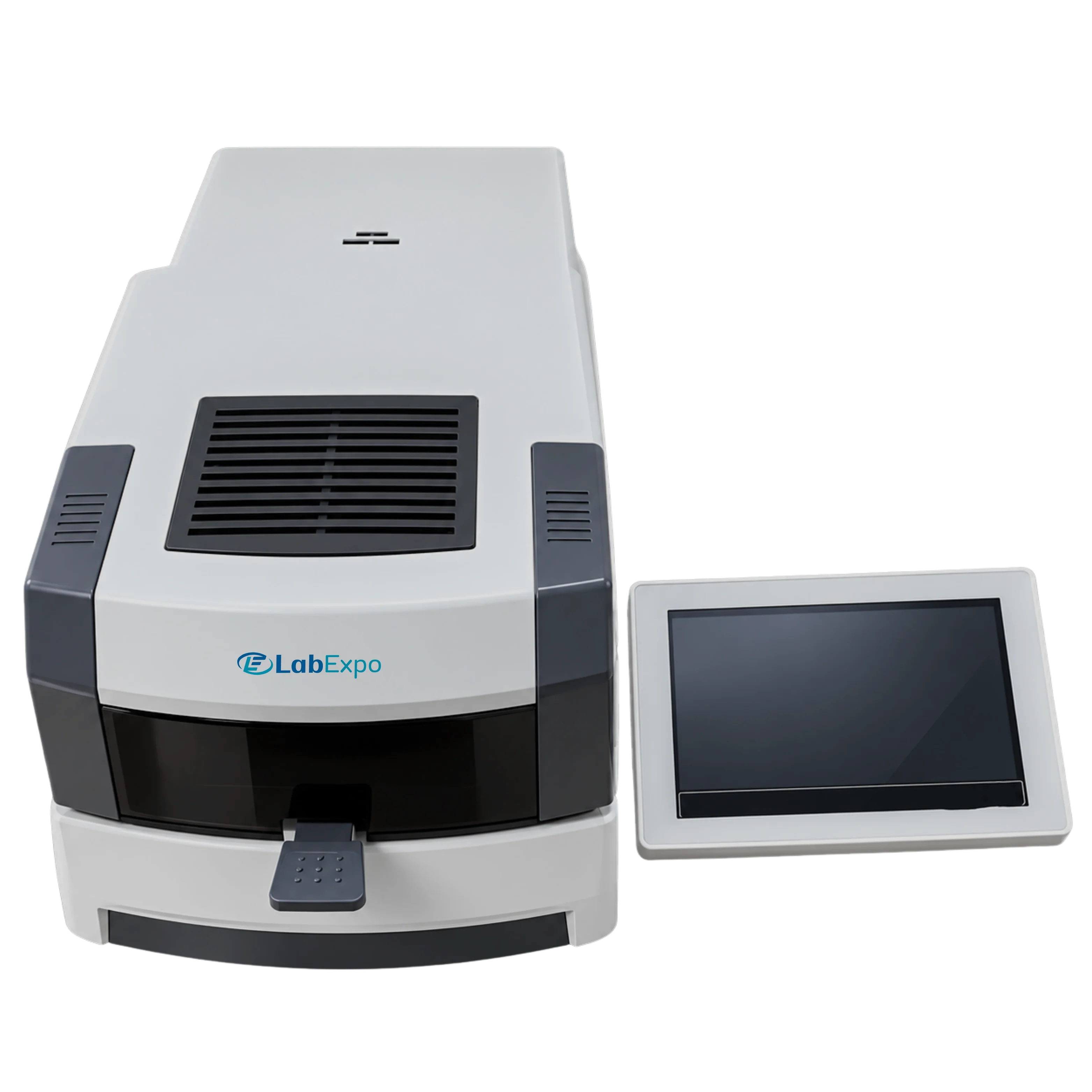

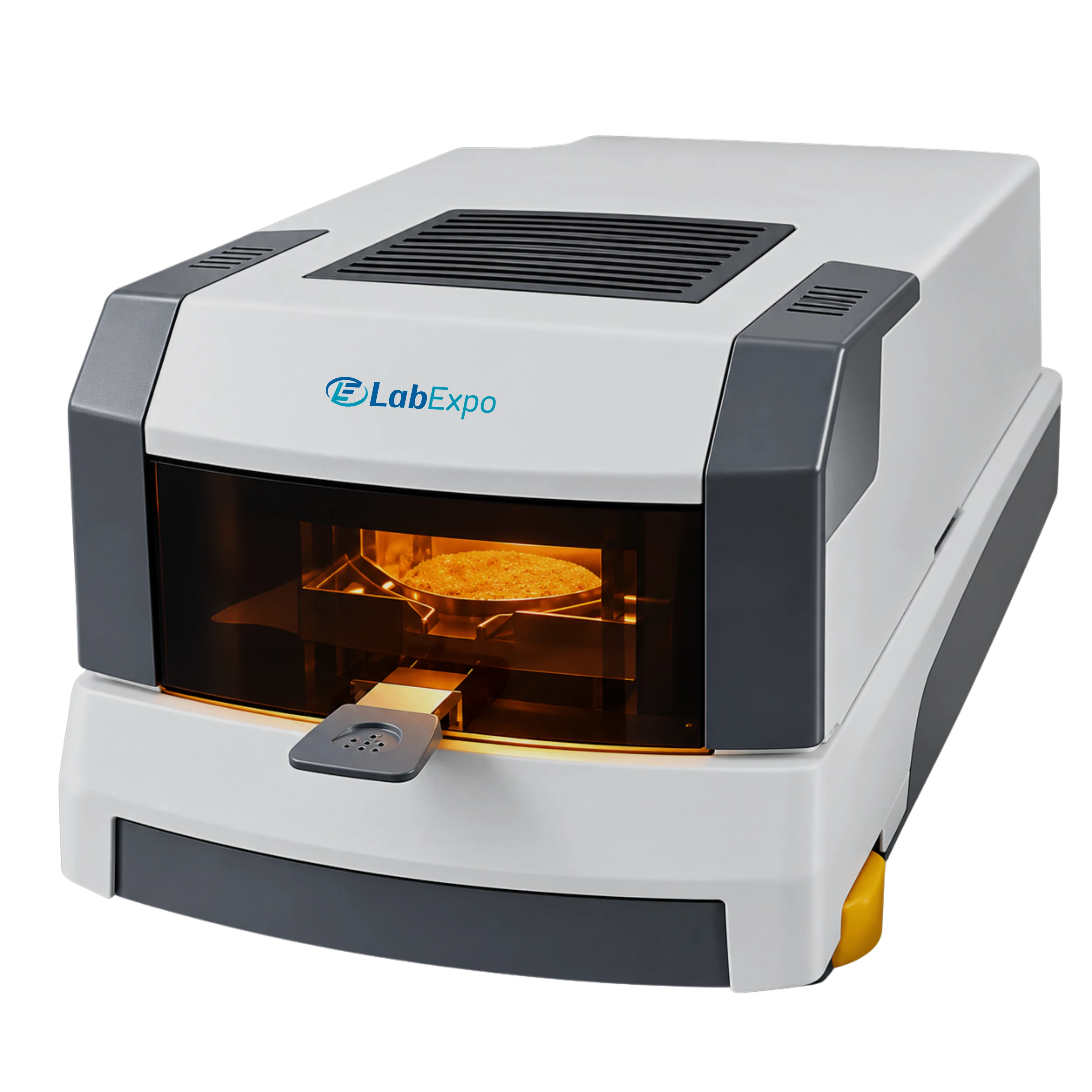

Lab Expo Halogen Moisture Analyzer 46-HMA105 with benchtop design, user can manually open the door of heating chamber for analysis. Incorporated with halogen heating lamp for rapid and uniform heating, it determines the moisture content and dry weight of the test sample. It continuously measures and immediately display the loss of moisture and weight on backlight LCD screen during test.
$4,099.00 $ 3416
| Range | 110 g |
| Readability | 1 mg |
| Temperature range | 40 to 230 °C |
| Pan size | 100 mm diameter |
| Heat source | Halogen lamp |
| Operating temperature range | 5 to 35°C |
| Temperature sensor | PT-100 |
| Temperature step | 1°C |
| Temperature setting | 40 to 230°C by 1°C |
| Time setting | 1 to 99 min by 10s |
| Dry residual range | 0 to 100 % |
| Dry residual readability | 0.0001 |
| Moisture range | 0 to 100 % |
| Moisture readability | 0.0001 |
| Number of storage data | 20 |
| Number of history data | 20 |
| Communication mode | Cable |
| Rechargeable battery | No |
| Heater part power | 220 V ± 15 % 50 Hz, 110 V ± 15 % 60 Hz, 400 W |
| Balance part power | Input: 220 V 50 Hz/ 110 V 60 Hz, Output: 9 V |
| Mechanical part machine | Input: 220 V 50 Hz/ 110 V 60 Hz, Output: 24 V (dual –drive) |
| Display | 7 inch touch panel |
| Interface | RS232/USB |
| Machine dimension | 215 × 195 × 415 mm |
| Indicator dimension | 200 × 75 × 135 mm |
| Operation height | 275 mm |
| Chamber height | 35 mm |
| Gross weight | 10 kg |
Function Implementation Quality control labs 1 mg readability supports precise moisture analysis Clinical sample testing 0 to 100 % moisture range enables diverse specimen evaluation Research facilities 40 to 230 °C temperature setting allows varied thermal protocols Industrial process monitoring 20 storage data capacity retains multiple test results Pharmaceutical development RS232/USB interface connects to data systems for record keeping
Lab Expo Halogen Moisture Analyzer offers multiple measurement modes, making it flexible enough to test different types of samples. These utilize advanced halogen systems to ensure significantly faster drying times for efficient and precise moisture analysis. They allow users to control the temperature, ensuring the best drying conditions for consistent results. These analysers feature a high-resolution display that allows users to monitor moisture content. They feature an automatic taring function simplifying the measurement process. Our analyzer also includes a memory function that stores multiple test results for easy reference and record-keeping.
