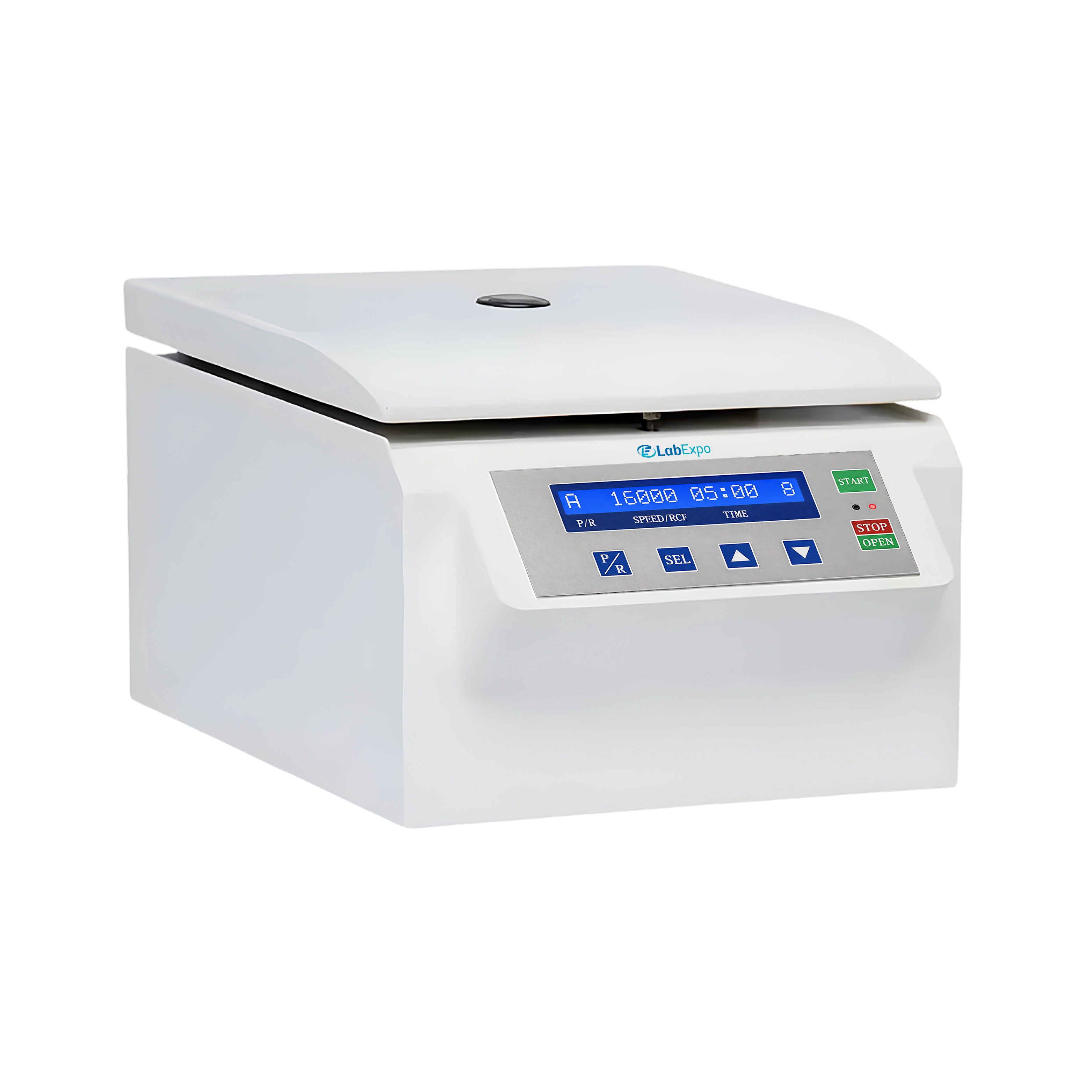

High Speed Centrifuge 02A-HSC100

High Speed Centrifuge is a microprocessor controlled light weight table top type system with an advanced design that enables easy operation. It is well equipped with digital display, auto-electric locking system and brushless DC motor.

Max. speed 12000 rpm
Max. RCF 15800 x g
Max. Capacity 24 pieces capillary vessel
Speed Accuracy ± 20 r/min
Timer range 1 - 99 min
Noise ≤ 55 dB
power supply AC 220 V / 50 Hz / 5 A
Dimension (H x W x D) 355 x 270 x 205 mm
Net Weight 13 kg
Gross Weight 15 kg
  • Microprocessor controlled system
  • Digital display which enables users to monitor the present speed and remaining time
  • Enables easy and fast loading of samples
  • Auto electric locking system provides protection against over speed and temperature and imbalances to ensure the safety of the operation
  • With brushless DC motor, it works in quiet and clean environment and therefore requires low maintenance
  • Environmental friendly

It is used to measure volume fractions of erythrocytes in blood and also for separation of different components of blood.

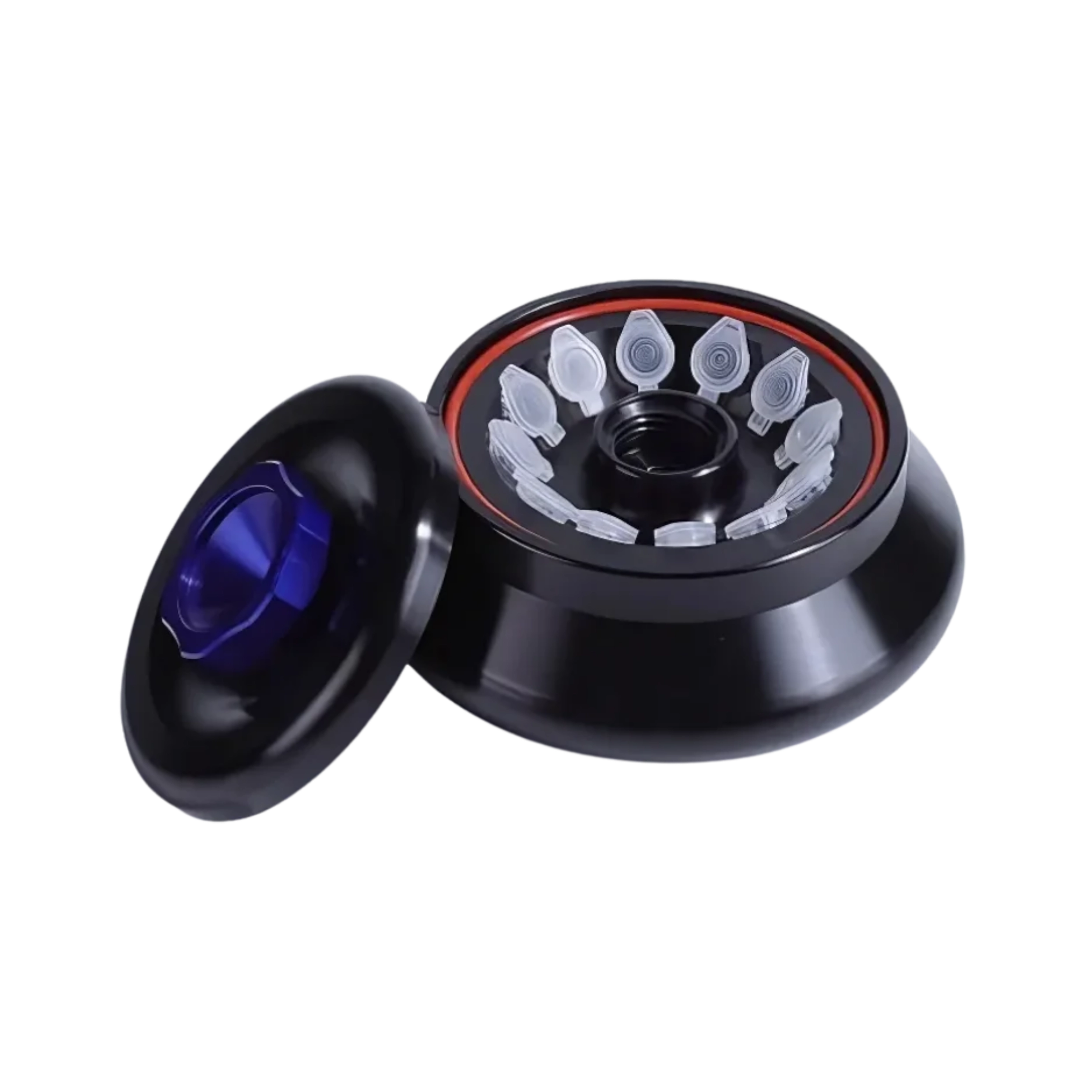

Rotor Name Max speed (rpm) Max capacity (ml) Max RCF (×g)
With 24 capillary rotor 12000 24 capillary 15800
Angle rotor 01 16000 40 x 0.2 19040
Angle rotor 02 16000 24 x 0.5 18480
Angle rotor 03 16000 12 x 1.5/ 2 16260
Angle rotor 04 16000 10 x 5 17880
Angle rotor 05 14000 20 x 1.5 15580
PCR Rotor 01 13000 4 x 8 PCR 10410
