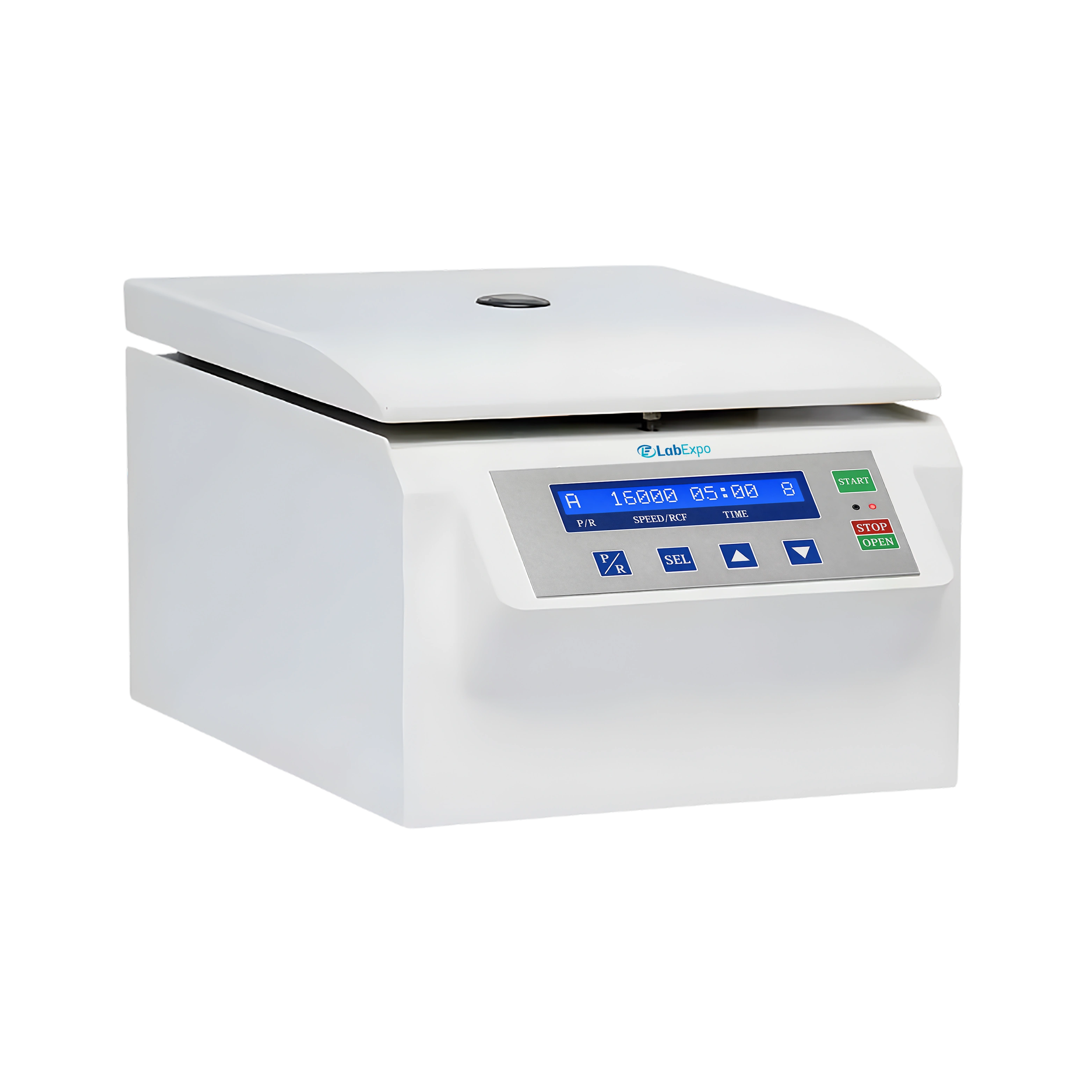

High Speed Centrifuge 02A-HSC103

Name: High Speed Centrifuge 02A-HSC103
Brand: Labexpo
SKU: 02A-HSC103
Rating: 4.5 (901 reviews)

High Speed Centrifuge 02A-HSC103 achieves a maximum speed of 16000 rpm ensuring rapid and precise centrifugation. It features a microprocessor-controlled system that delivers consistent performance and adaptability. Our centrifuge features a digital display that allows users to monitor the current speed and remaining time with ease.

$2,472.00 $ 2060

High Speed Centrifuge 02A-HSC103 - Specifications

Max. speed	16000 rpm
Max. RCF	19040 x g
Max. Capacity	10x5 ml
Speed Accuracy	±20 rpm
Timer range	0 - 99 min
Noise	≤ 58 dB
power supply	AC110/220V/ 50-60Hz/ 10A
Dimension (H x W x D)	306 x 202 x 208mm
Net Weight	16 kg

High Speed Centrifuge 02A-HSC103 - Key Features

Maximum speed 16000 rpm with up to approximately 20,600 × g centrifugal force
Rotor capacity 6 × 100 ml for medium-volume sample runs
Programmable digital timer from 1 min to 99 min
Microprocessor control with automatic electric lid lock
Stainless steel chamber with three-tier protective cover

High Speed Centrifuge 02A-HSC103 - Applications

Function	Implementation
Medium-volume separation	High speed and RCF for denser sample types
Time-controlled runs	User-set timer for repeatable protocols
Safety interlocks	Auto lid lock for imbalance and overspeed prevention
Stable operation	Brushless DC motor ensuring low maintenance
Laboratory workflows	Designed for clinical, research, and preparative centrifugation

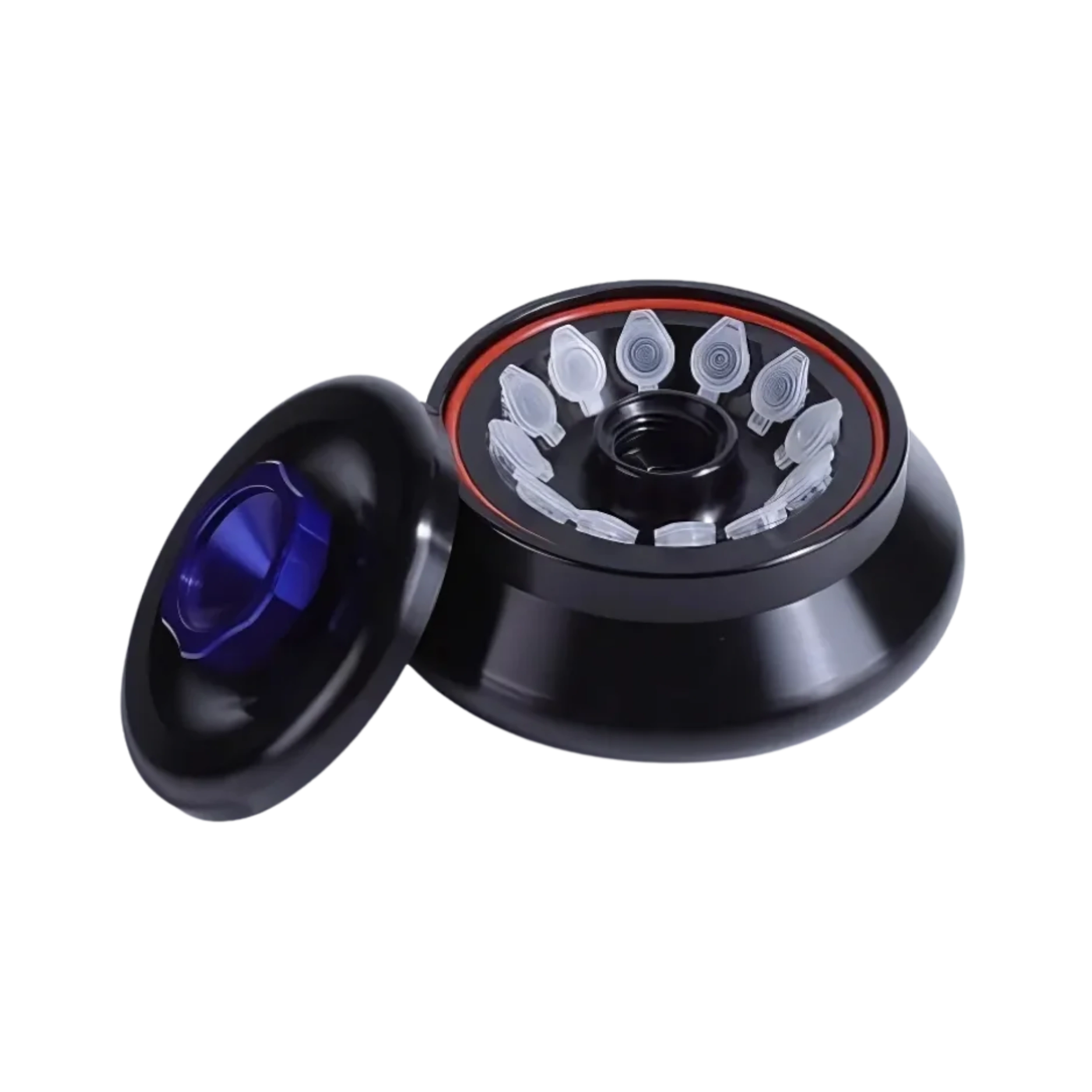

High Speed Centrifuge 02A-HSC103 - Rotor Selection

Rotor	Max speed (rpm)	Max Volume (ml)	Max RCF (g)
Angle Rotor 01	14000	4×8 PCR	12070
Angle Rotor 02	16000	40×0.2 ml	19040
Angle Rotor 03	13000	40×0.5 ml	17210
Angle Rotor 04	16000	12×1.5/2 ml	17940
Angle Rotor 05	14000	24×1.5/2 ml	17950
Angle Rotor 06	14000	20×1.5/2 ml	15580
Angle Rotor 07	16000	10×5 ml	17880
Angle Rotor 08	13000	30×0.5 ml	13900
Angle Rotor 09	16000	24×0.5 ml	18480

High Speed Centrifuge 02A-HSC103 - Catalog

High Speed Centrifuge 02A-HSC103 Catalog
