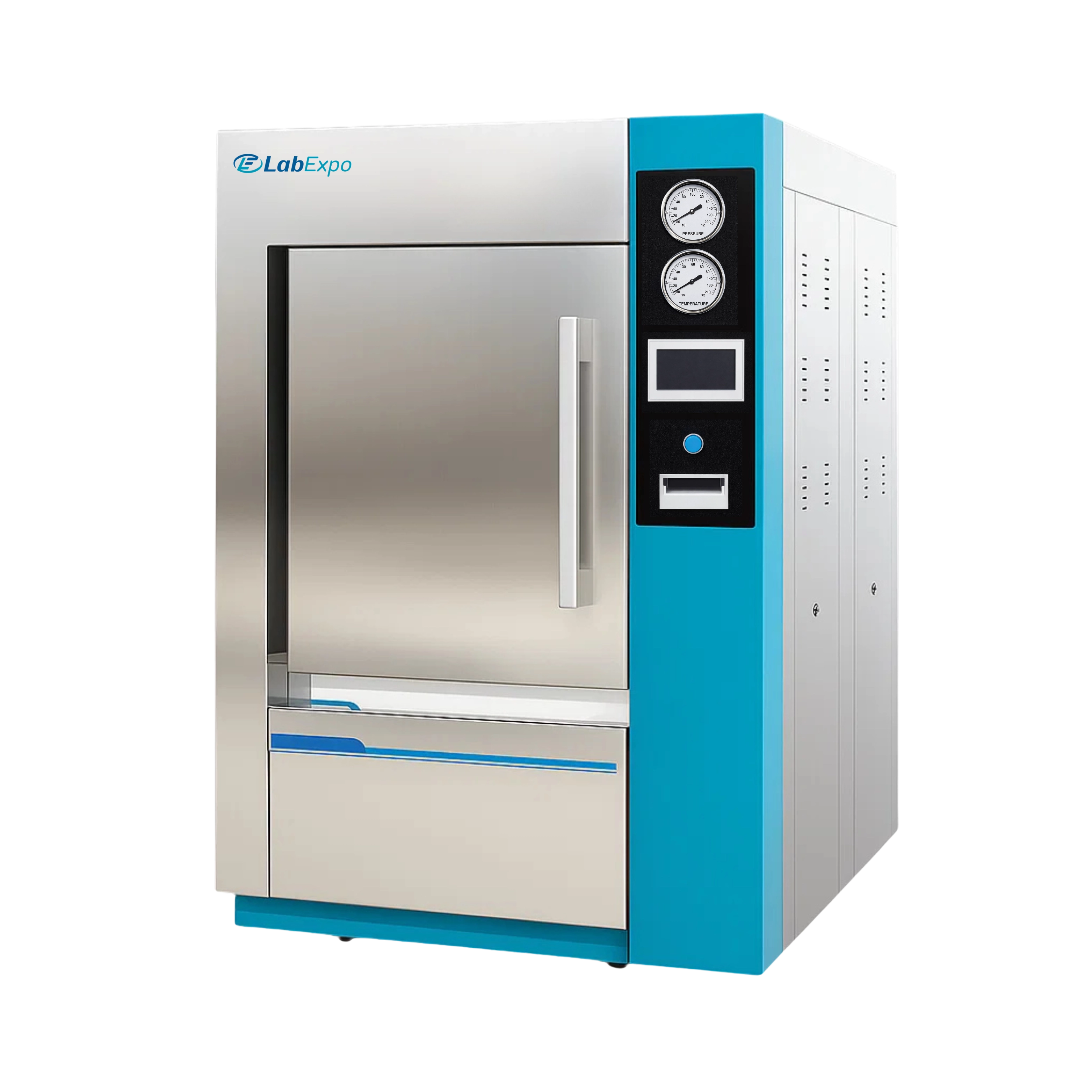

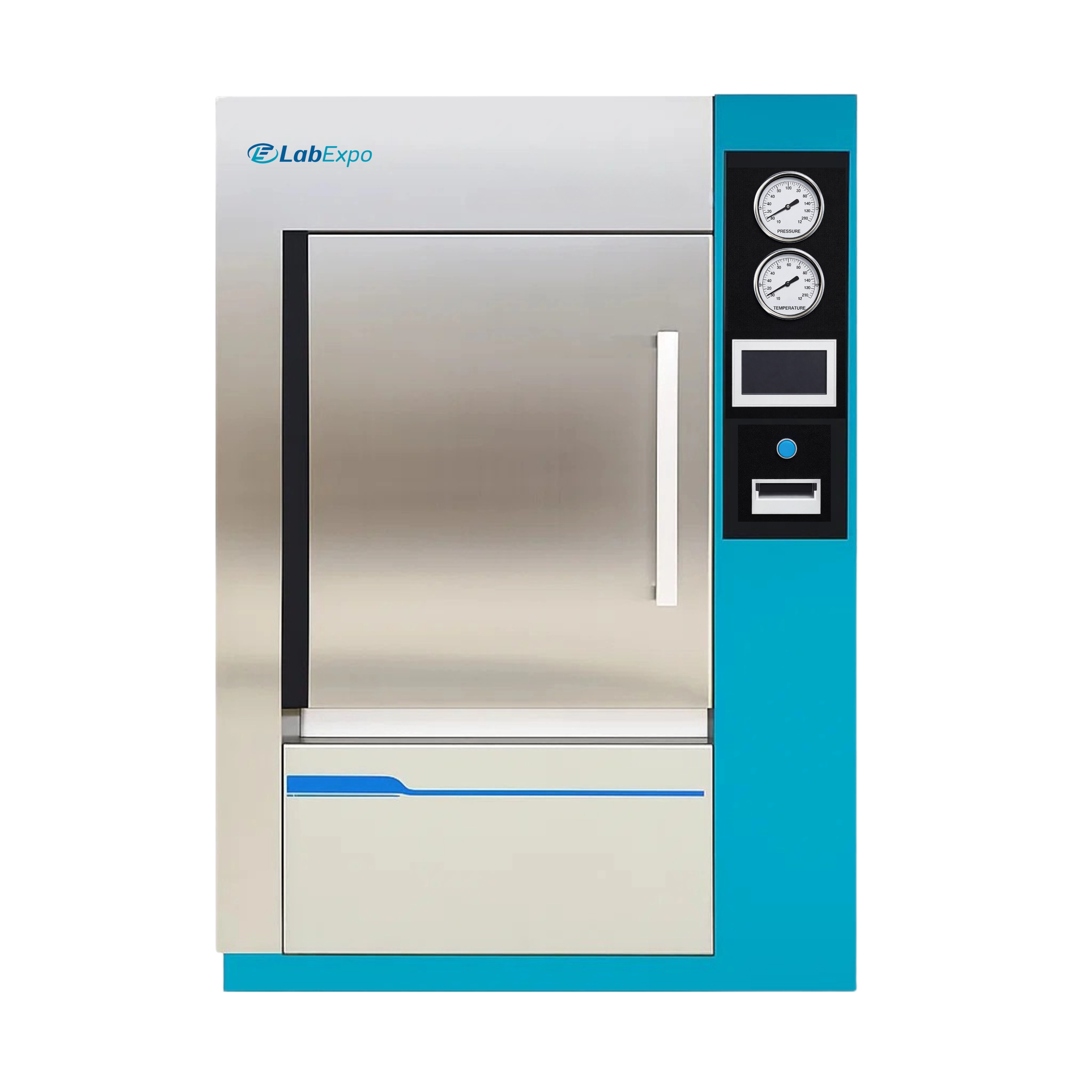

Horizontal Laboratory autoclave is a 250 Liters pulse vacuum single door autoclave. With a maximum working temperature of 134 °C it effectively sterilizes media, liquids and waste to be discarded. High quality insulation and air sealed structure makes it efficient for large scale sterilization. Equipped with safety features like automatic shutoff preventing overload of current, auto protection against raised temperature and pressure making a reliable and user friendly device.
$23,371.00 $ 19476
| Capacity | 250 L |
| Sterilization Temperature | 139 °C |
| Sterilization Pressure | 0.25Mpa |
| Steam Pressure and the Consumption | 0.4 - 0.6 Mpa / 15 kg |
| Water Source Pressure and the Consumption | 0.2- 0.3 Mpa / 150 kg |
| Compressed Air Pressure | 0.6 - 0.8 Mpa |
| Inner Chamber Dimension ( L × W × H ) | 800 × 600 × 600 mm |
| Outer Dimension ( L × W × H ) | 1100 × 1300 × 1700 mm |
| Net Weight | 650 kg |
| Power Supply | 26 kw |
Function Implementation Culture Media Processing Sterilization of growth media used in aseptic preparation Instrument Reprocessing Heat- and pressure-compatible surgical and laboratory instruments Medical Consumable Handling Dressings and intravenous delivery components Glass Component Treatment Rubber stoppers and glass equipment parts Aseptic System Support Sterilization of materials used in controlled sterile procedures
Lab Expo Horizontal Autoclaves are applied in high-capacity sterilization workflows where large instrument loads require uniform steam distribution and controlled cycle execution. Each horizontal steam sterilizer operates using pressurized steam and is constructed from stainless steel to support continuous operation and corrosion resistance. Digital control systems regulate temperature, pressure, and cycle parameters, while integrated safety mechanisms support automated operation and controlled processing of large-volume loads.
