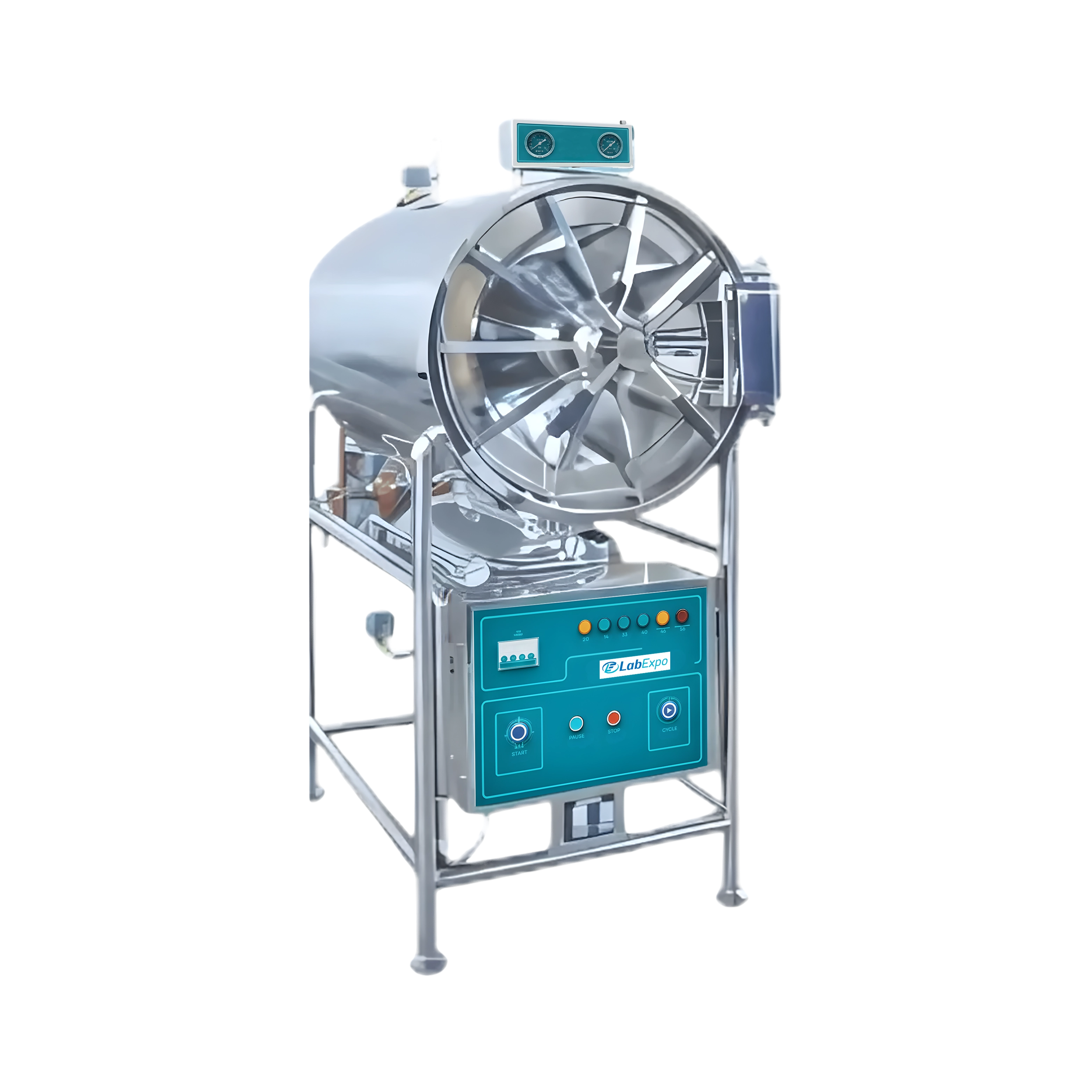

Horizontal Autoclave 26-HAC702

Horizontal Laboratory autoclave is a cylindrical oriented autoclave with a capacity of 280 Liters. Fully automatic computer controlled system with a sterilizing temperature of 134 °C and heat resistant silicon rubber to prevent steam leakage. Automatic open of jacket and chamber valve incase the door is opened during the operation to prevent damage to the unit. Equipped with safety features like automatic shutoff preventing overload of current, auto protection against raised temperature and pressure.

Capacity 280 L
Sterilization Temperature 134 °C
Sterilization Pressure 0.22 Mpa
Timer Range 0-60 minutes
Heat Average ≤ ± 2 ℃
Chamber Dimensions ( Φ × D ) 600 × 1000 mm
Product Dimension ( L × W × H ) 1400×770×1780mm
Net Weight 365 kg
Gross Weight 465 kg
Power Supply 12 kW / 380 V 50 Hz
  • Digital LCD display to monitor working status and parameters
  • Working pressure : 0.22 MPa
  • Working temperature : 134 ℃
  • Automated drying function
  • Door lock feature : Door cannot be opened till the pressure inside the chamber doesn’t fall to 0.027 MPa
  • Self-inflating leak proof chamber
  • Safe door lock system ensuring safety / protection during sterilization
  • Automatic power cut off with alarm with low water levels indication

Used to sterilize culture media, instruments, dressings, intravenous equipments, rubber closure of glass equipments used in aseptic techniques and numerous objects that can withstand high temperature and pressure
