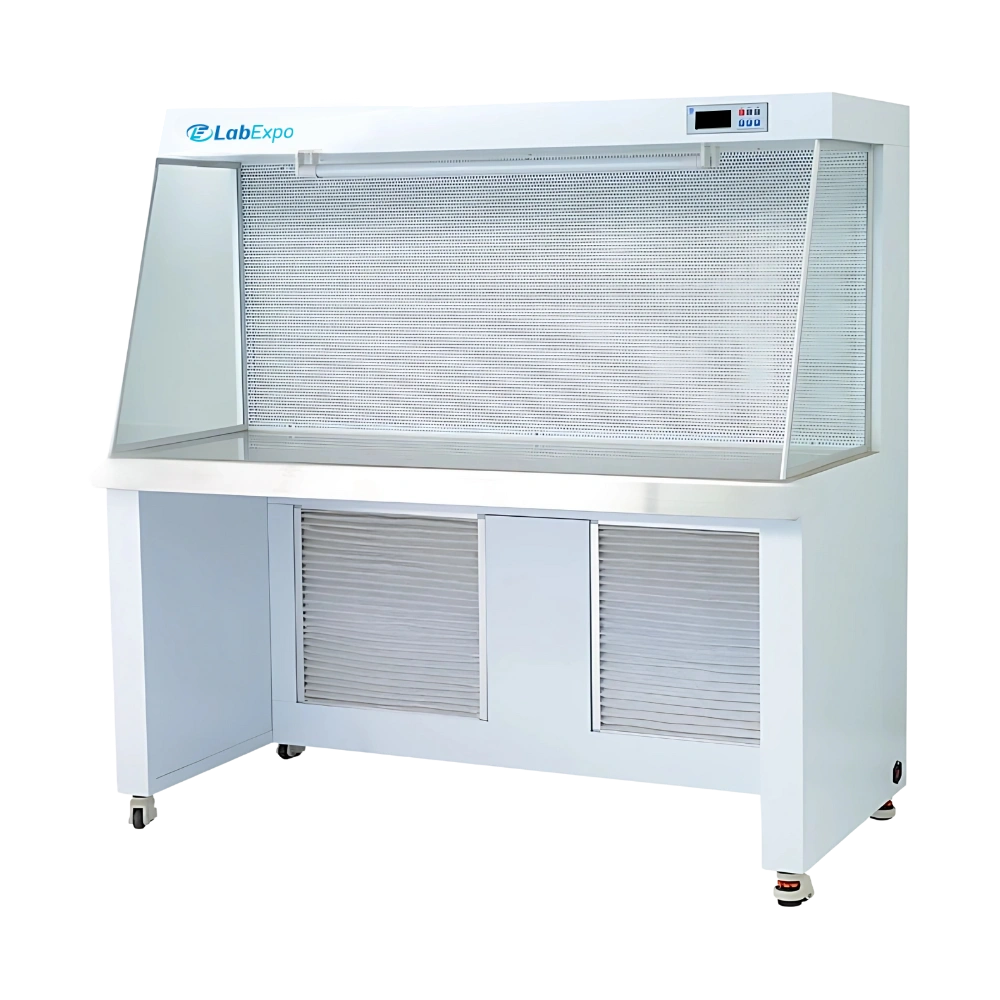

Lab Expo Horizontal Laminar Flow Cabinet LE-HLC101 ensures a particle-free working environment with a high- efficiency HEPA filter. It provides an average air velocity of 0.3 to 0.5 m/s, which can be adjusted based on operational needs. Integrated filtration system achieves 99.995% efficiency for particles larger than 0.3 microns. Built-in stainless-steel working table offers corrosion resistance and is easy to clean. Our Horizontal Laminar Flow Cabinet is ideal for plant tissue culture, culture media preparation, electronic inspection, and medical device assembly.
$2,653.00 $ 2211
| Cleanliness in Work Area | ISO Class 5, Class 100 (Fed 209E) |
| HEPA Filter | Filters Provide More Than 99.99% Typical Efficiency for Particle Size Greater Than 0.3 Microns |
| Average Air Velocity | 0.3 to 0.5m/s (Adjustable) |
| CFU | ≤ 0.5/Dish Hour（ φ 90mm Petri Dish) |
| Sound Emission | ≤65 dB(A) |
| RMS | ≤4μm |
| Power Consumption | ≤0.5Kw |
| Power Supply | AC220±10%,50HZ |
| External Dimensions with Base Stand | 1000 × 750 × 1470mm |
| Internal Work Area Dimensions | 920 × 500 × 600mm |
| Weight | 50 kg |
Function Implementation Microbiological culture work 920 × 500 × 600mm internal area supports standard Petri dish handling Particle-sensitive testing ISO Class 5 cleanliness maintains controlled particulate levels Airflow-controlled processes 0.3 to 0.5 m/s average velocity enables adjustable laminar flow Low-noise laboratory zones ≤65 dB(A) sound emission allows quiet operational settings Energy-conscious facilities ≤0.5 Kw power consumption supports efficient continuous use
Lab Expo Horizontal Laminar Flow Cabinets are structured around front-to-back HEPA-filtered airflow to protect samples from airborne particulate contamination. Uniform horizontal air velocity with low-turbulence distribution maintains a clean working zone across the entire surface. Integrated lighting, spacious chamber layout, and stable blower performance support controlled handling for tissue culture, media preparation, inspection, and pharmaceutical processing workflows.
