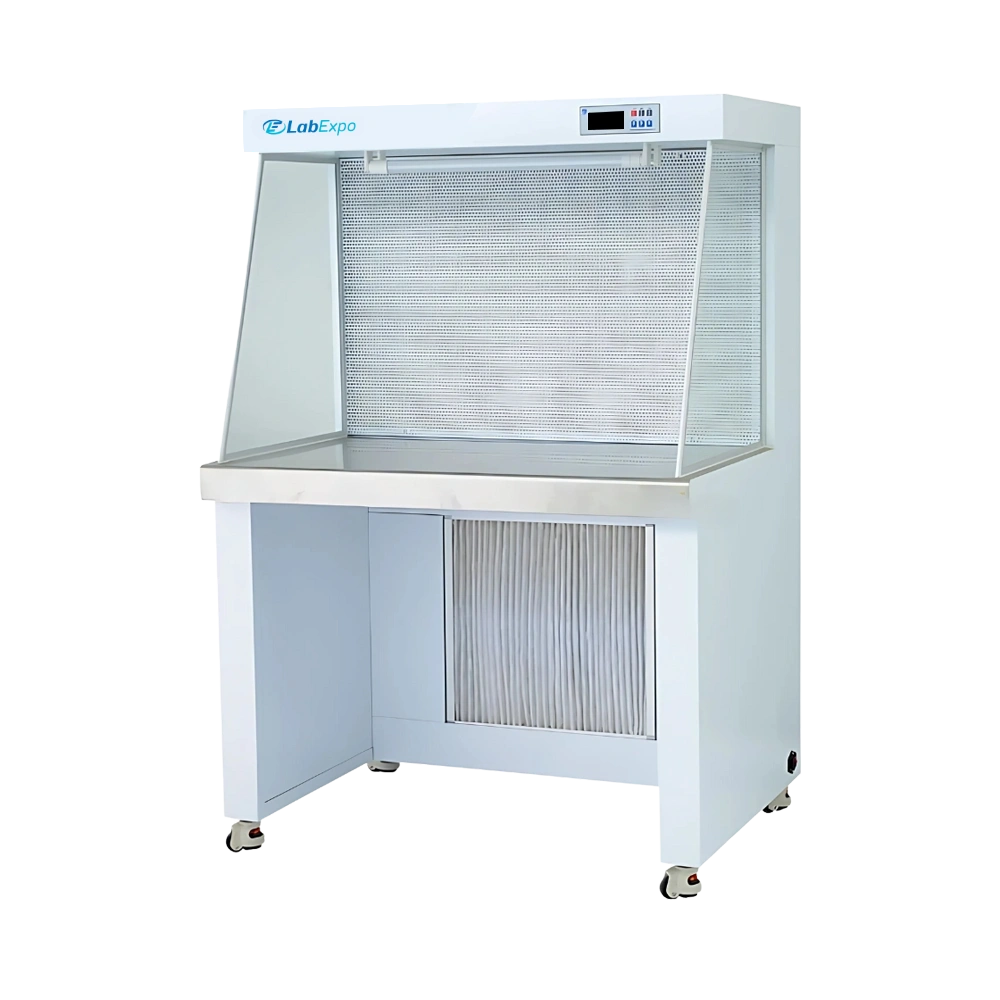

Horizontal Laminar Flow Cabinet LE-HLC102

Horizontal Laminar Flow Cabinet LE-HLC102

Lab Expo Horizontal Laminar Flow Cabinet LE-HLC102 delivers a sterile workspace with horizontal airflow. Equipped with a centrifugal blower that keeps the downflow airflow velocity stable and continuous. Integrated high efficiency HEPA filter offer 99.995% filtration efficiency. Incorporated back or double-side perspective window design enhances lighting and visibility. Our Horizontal Laminar Flow Cabinet is suitable for plant tissue culture, culture media preparation, electronic inspection, and pharmacy drug preparation.

$3,342.00 $ 2785

Horizontal Laminar Flow Cabinet LE-HLC102 - Specifications

Cleanliness in Work Area ISO Class 5, Class 100 (Fed 209E)
HEPA Filter Filters Provide More Than 99.99% Typical Efficiency for Particle Size Greater Than 0.3 Microns
Average Air Velocity 0.3 to 0.5m/s (Adjustable)
CFU ≤ 0.5/Dish Hour（ φ 90mm Petri Dish)
Sound Emission ≤65 dB(A)
RMS ≤4μm
Power Consumption ≤0.8Kw
Power Supply AC220±10%,50HZ
External Dimensions with Base Stand 1500 × 750 × 1470mm
Internal Work Area Dimensions 1420 × 500 × 600mm
Weight 80 kg

Horizontal Laminar Flow Cabinet LE-HLC102 - Key Features

  • HEPA filtration system with ≥ 99.99% efficiency for particles > 0.3 microns
  • Adjustable airflow velocity from 0.3 to 0.5 m per second for stable operation
  • ISO Class 5 clean environment with CFU ≤ 0.5 per dish hour
  • Stainless steel work table with corrosion resistant closed structure
  • Centrifugal blower system ensuring continuous airflow with ≤ 65 dB noise

Horizontal Laminar Flow Cabinet LE-HLC102 - Applications

FunctionImplementation
Plant tissue cultureISO Class 5, Class 100 cleanliness supports aseptic conditions
Culture media preparation≤0.5 CFU/Dish Hour ensures contamination control
Electronic assembly0.3 to 0.5 m/s average air velocity maintains particle-free zone
Sterile testing procedures≥99.99% HEPA filtration efficiency protects sensitive components
Quality control labs≤65 dB(A) sound emission allows quiet operation in shared spaces

Horizontal Laminar Flow Cabinet LE-HLC102 - Optional Accessories

  • UV Lamp
  • Gas Valve
  • Water Valve

Horizontal Laminar Flow Cabinet LE-HLC102 - Catalog

Horizontal Laminar Flow Cabinet LE-HLC102 Catalog

Horizontal Laminar Flow Cabinet LE-HLC102

Horizontal Laminar Flow Cabinet LE-HLC102

Related Horizontal Laminar Flow Cabinet

Lab Expo Horizontal Laminar Flow Cabinets are structured around front-to-back HEPA-filtered airflow to protect samples from airborne particulate contamination. Uniform horizontal air velocity with low-turbulence distribution maintains a clean working zone across the entire surface. Integrated lighting, spacious chamber layout, and stable blower performance support controlled handling for tissue culture, media preparation, inspection, and pharmaceutical processing workflows.
