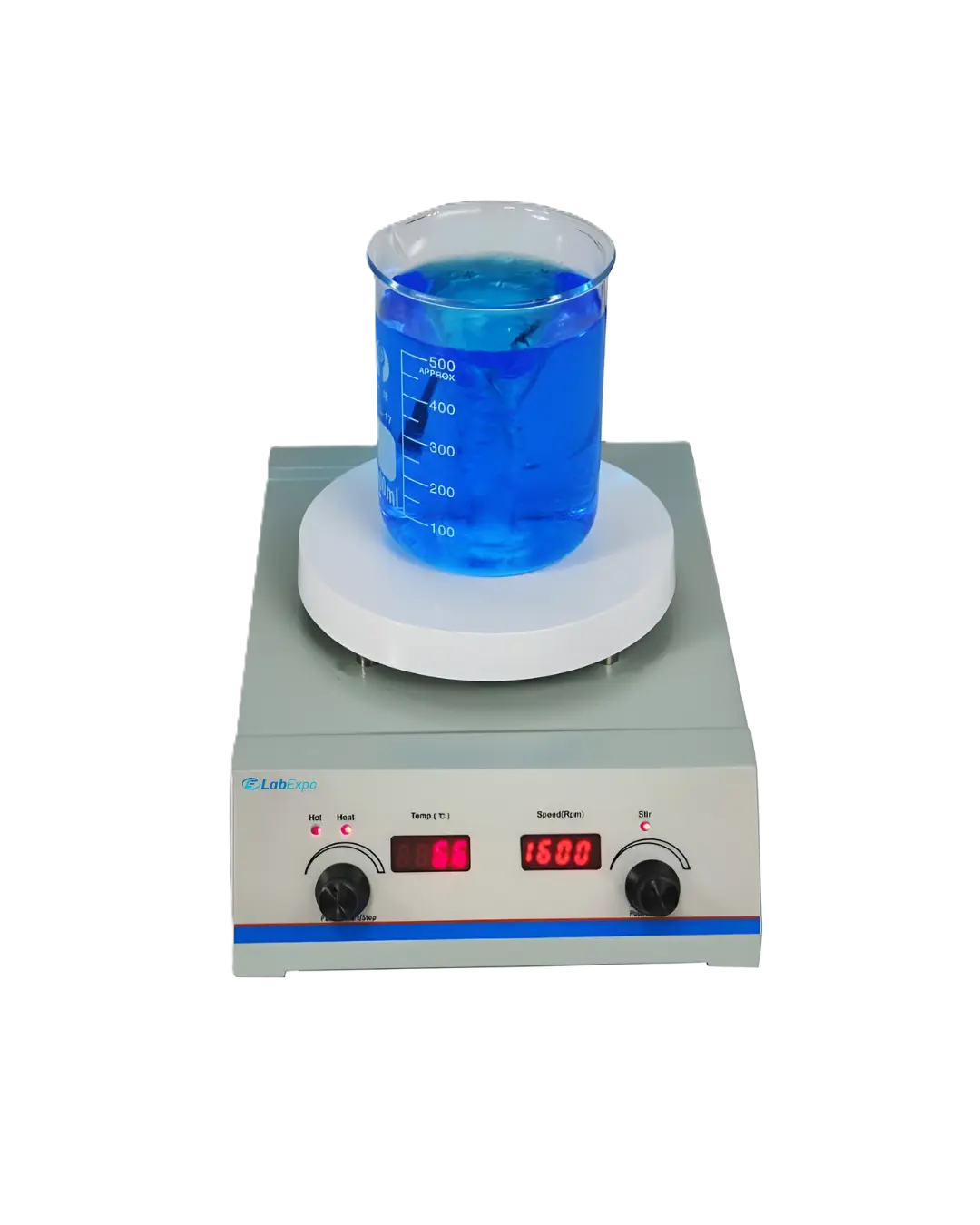

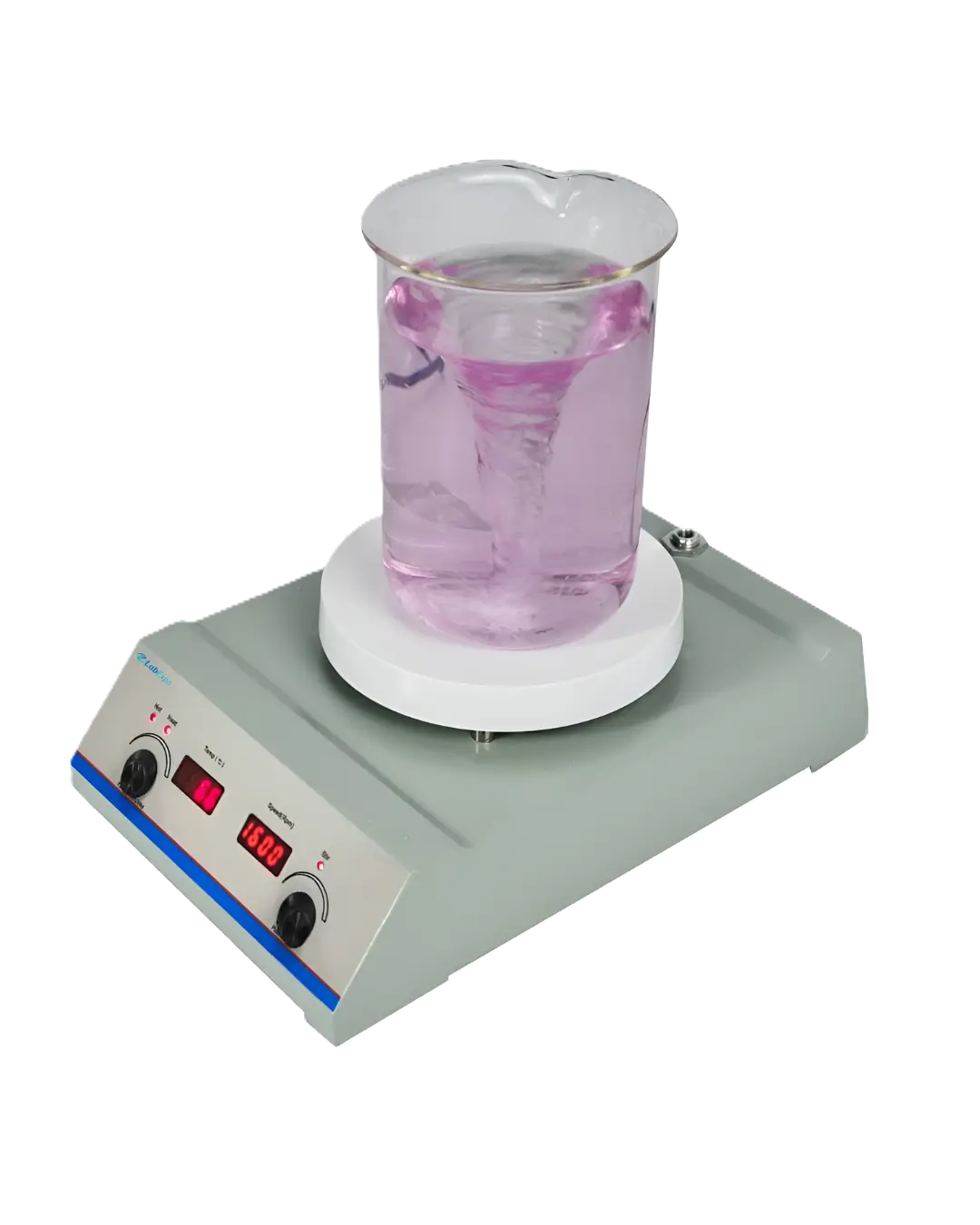

Lab Expo Hot Plate Magnetic Stirrer LE-HPS102 offers a wide plate temperature range of 35 to 300 °C to ensure precise heating. It supports a maximum stirring capacity of 5 liters for medium-volume laboratory applications. Operates in both clockwise and counterclockwise stirring directions for uniform mixing. Built with a ceramic-coated stainless-steel plate for durability. Our Hot Plate Stirrer is designed with overheat warning functions to enhance user safety.
$1,637.00 $ 1364
| Plate Dimensions | Ø 153 mm |
| Plate Temperature Range | 35 to 300 °C |
| Solution Temperature Range | 35 to 200 °C |
| Temperature Stability | ± 1 °C |
| Heat Control Accuracy | ± 0.5 °C |
| Speed Range | 150 to 1600 rpm |
| Max. Stirring Quantity | 5 L |
| Stir Bar Length Range | 25 to 60 mm |
| Motion Direction | CW / CCW |
| Display | LED |
| Plate Material | Ceramic Coated Stainless Steel |
| Hot Warning | Yes |
| Plate Heating Resolution | 1 °C |
| Solution Heating Resolution | 0.1 °C |
| Capable Calibration on External Probe | Yes |
| Timer | 99 h 59 m |
| Overheat Warning & Medium Detection | Yes |
| Operation Ambient Temperature | 5 to 40 °C |
| Operation Relative Humidity | 80% |
| Protection Class | IP21 |
| Frequency | 50/60 Hz |
| Power Consumption | 700 W |
| Power Supply | 110 to 130 V / 200 to 240 V |
| Dimensions | 192 × 293 × 100 mm |
| Packaging Dimensions | 370 × 270 × 180 mm |
| Weight | 2.35 kg |
| Gross Weight | 4 kg |
Function Implementation Clinical sample prep 5 L max stirring quantity supports medium-volume reagent mixing Quality control testing ±0.5 °C heat control accuracy enables precise temperature maintenance Research laboratories 1600 rpm speed range facilitates rapid solution homogenization Industrial settings IP21 protection class allows operation in humid environments up to 80% RH Educational institutions 99 h 59 m timer enables unattended extended experiments
PT1000 External Temperature Sensor
Magnetic stirring bar 35 × 9 mm
Lab Expo offers Hot Plate Magnetic Stirrer combines efficient heating and powerful stirring in a single compact unit. Their variable speed range allows users to adjust stirring from gentle agitation to vigorous mixing. They are compatible with a wide range of stir bar sizes. Their IP21 protection rating ensures safe operation under standard laboratory conditions. Our Magnetic Stirrer provides excellent durability, chemical resistance, and efficient heat transfer.
