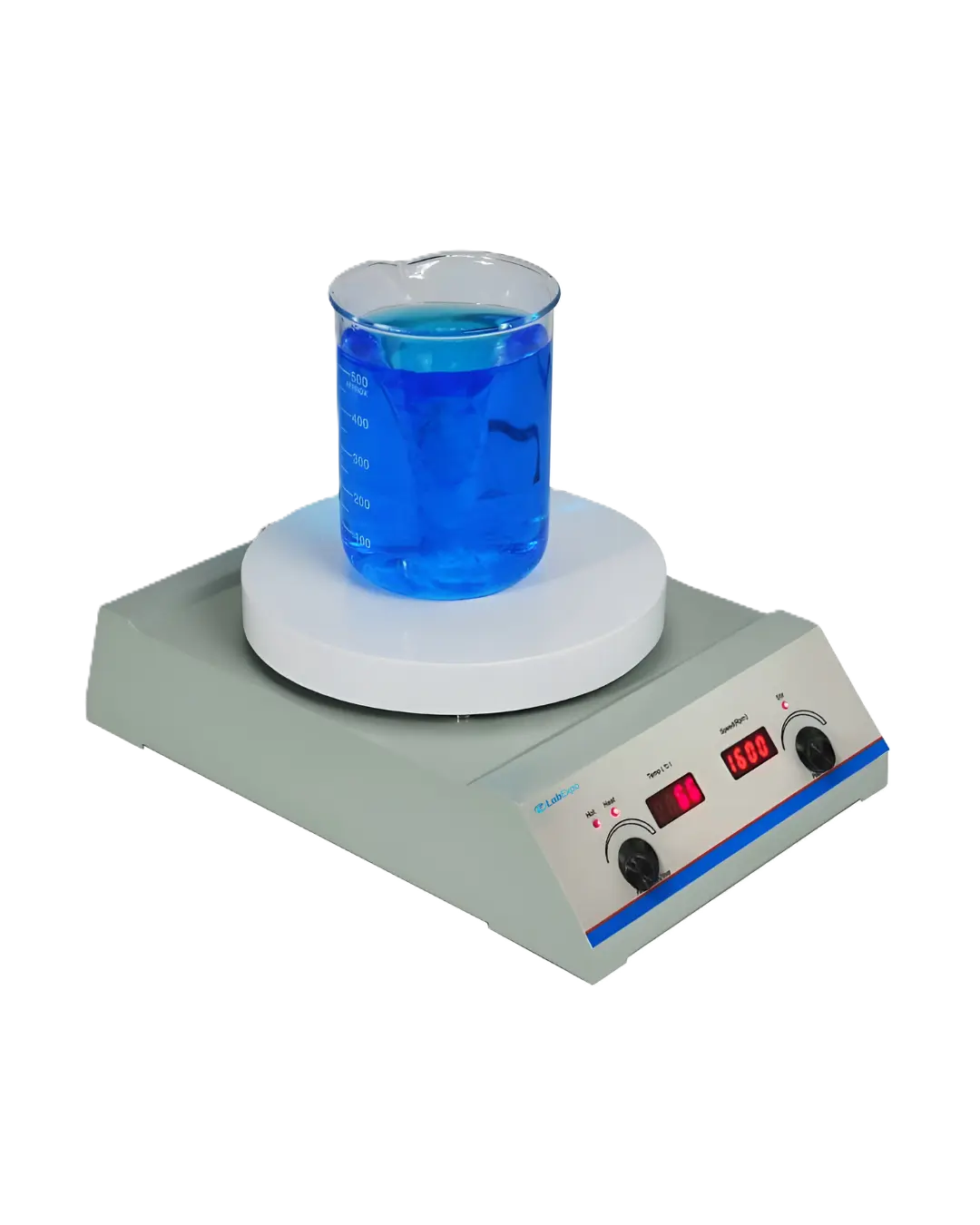

Lab Expo Hot Plate Magnetic Stirrer LE-HPS103 is equipped with a large Ø178 mm ceramic-coated stainless-steel plate. It offers an adjustable stirring speed from 150 to 1600 rpm for both gentle and vigorous mixing. Built to withstand standard lab conditions with IP21 protection standards. Designed with analog dials to allow straightforward adjustment of parameters. Our Hot Plate Stirrer combines powerful performance, precise control, and reliable safety features.
$1,846.00 $ 1538
| Plate Dimensions | Ø 178 mm |
| Plate Temperature Range | 35 to 300 °C |
| Solution Temperature Range | 35 to 200 °C |
| Temperature Stability | ± 1 °C |
| Heat Control Accuracy | ± 0.5 °C |
| Speed Range | 150 to 1600 rpm |
| Max. Stirring Quantity | 10 L |
| Stir Bar Length Range | 25 to 60 mm |
| Motion Direction | CW / CCW |
| Display | LED |
| Plate Material | Ceramic Coated Stainless Steel |
| Hot Warning | Yes |
| Plate Heating Resolution | 1 °C |
| Solution Heating Resolution | 0.1 °C |
| Capable Calibration on External Probe | Yes |
| Timer | 99 h 59 m |
| Overheat Warning & Medium Detection | Yes |
| Operation Ambient Temperature | 5 to 40 °C |
| Operation Relative Humidity | 80% |
| Protection Class | IP21 |
| Frequency | 50/60 Hz |
| Power Consumption | 700 W |
| Power Supply | 110 to 130 V / 200 to 240 V |
| Dimensions | 192 × 193 × 100 mm |
| Packaging Dimensions | 370 × 270 × 180 mm |
| Weight | 2.7 kg |
| Gross Weight | 4 kg |
Function Implementation Quality control labs ±0.5 °C heat control accuracy ensures precise temperature maintenance Clinical sample processing 150 to 1600 rpm speed range accommodates varying viscosity solutions Research applications Solution heating resolution of 0.1 °C enables fine thermal adjustments Industrial testing environments Plate temperature range up to 300 °C supports elevated reaction conditions Educational laboratories Timer function up to 99 h 59 m allows extended unattended operation
PT1000 External Temperature Sensor
Magnetic stirring bar 35 × 9 mm
Lab Expo offers Hot Plate Magnetic Stirrer combines efficient heating and powerful stirring in a single compact unit. Their variable speed range allows users to adjust stirring from gentle agitation to vigorous mixing. They are compatible with a wide range of stir bar sizes. Their IP21 protection rating ensures safe operation under standard laboratory conditions. Our Magnetic Stirrer provides excellent durability, chemical resistance, and efficient heat transfer.
