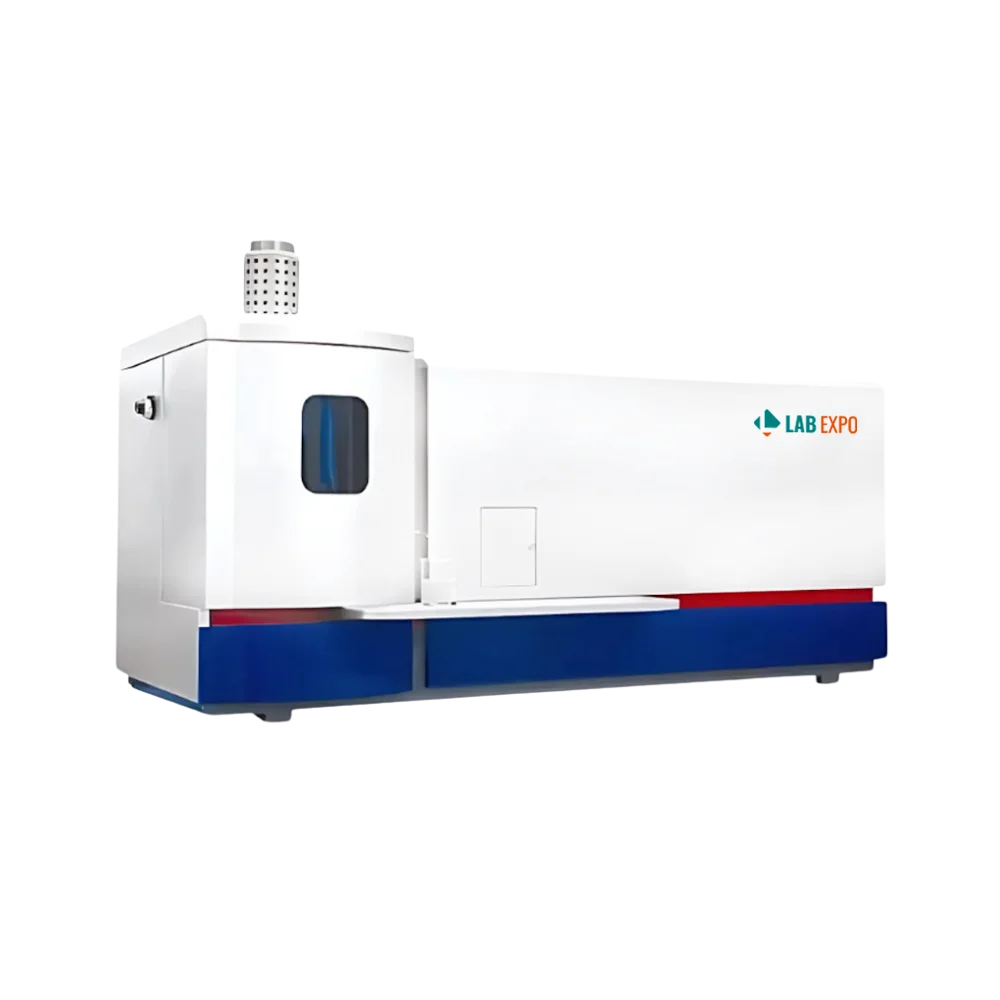

Lab Expo ICP Spectrometer 60-ICP102 detects micro and macro elements using argon plasma with an analyzing rate of 10 elements per minute. Results can be achieved with lower levels of detection for qualitative and quantitative analysis. Detection of liquid flow from the spray chamber by optical drain sensor offers exceptional sensitivity and accuracy. Accurate signal-background ratio is attained by advanced control system.
$62,755.00 $ 52296
| Wavelength range | 195 to 800 mm |
| Elements per minute | 10 elements |
| Temperature range | 32 °C |
| Incident slit | 20 µm |
| Standard deviation | RSD ≤ 2 % |
| Correlation coefficient | ≥ 0.9995 % |
| Gas source | Argon ( 99.99 % ) |
| Plasma gas flow meter | 100 ~ 1000 L / h ( 1.6 - 16 L / min ) |
| Auxillary gas flow meter | 10 ~ 100 L / h ( 0.16 – 1.66 L / min ) |
| Carrier gas flow meter | 0 ~ 5 L / min |
| Cooling water flow rate | 5 L / min |
| Cooling water temperature | 20 ~ 26 °C |
| Water outlet diameter | 10 mm |
| Line dispersion rate | 0.26 nm |
| Resolving power | ≤ 0.008 nm |
| Co-axial sprayer diameter | 6 mm |
| Coil diameter | 25 mm ( 3 turn ) |
| Double room fog diameter | 34 mm |
| Quartz tube torch diameter | 20 mm |
| Mirror dimensions | 78 x 105 x 16 mm |
Function Implementation Quality control labs 10 elements per minute enables rapid multi-element screening Clinical diagnostics ≥0.9995% correlation coefficient supports accurate biomarker quantification Research laboratories 195 to 800 nm wavelength range allows broad elemental detection Industrial testing RSD ≤2% ensures repeatable process monitoring results Water analysis Cooling water flow rate of 5 L/min maintains stable plasma operation
Lab Expo ICP Spectrometer units are designed for elemental analysis in environmental, chemical, and industrial testing. Models support ICP optical emission spectrometer applications with wavelength ranges from 180 to 900 nm and multi-element detection for icp oes spectroscopy and trace element analysis.
