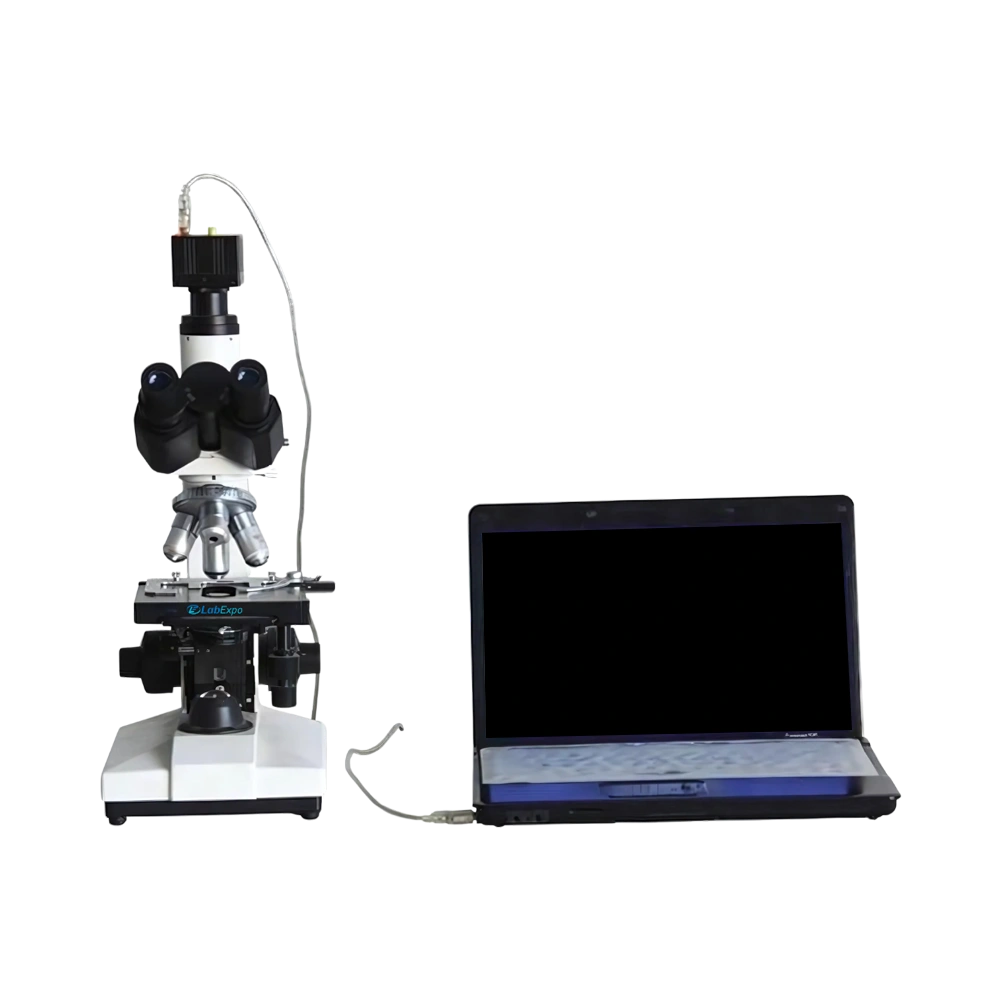

Lab Expo Image Particle Shape and Size Analyzer LE-IPA101 is compact, high-precision tool for accurately analyzing particles ranging from 1 μm to 6000 μm. It offers image analysis to process data from a high-speed CMOS camera and optical microscope. Incorporated to deliver accurate results for particle size and shape. Integrated user-friendly interface ensures quick setup and efficient operation. Our Image Particle Shape and Size Analyzer is ideal for labs needing reliable particle analysis in scientific and industrial applications.
$22,320.00 $ 18600
| Measuring range | 1μm to 6000 μm |
| Technology | Computer image analysis technology |
| Particle properties measured | Morphology & size |
| Particle shape parameters | Aspect ratio, sphericity, surface ratio, specific surface area, circumscribed rectangle parameters, etc. |
| Digital camera | 3 million pixels |
| Pixel size | 3.2 μm x 3.2 μm |
| Output | USB 2.0 |
| Static collection | Take the sample morphology intohigh resolutionJPG image |
| Single particle photo data | Cross-sectional area, volume, aspect ratio, etc. |
| Characteristic parameter | D10, D50, D90, D100 etc. |
| Light source | 6 V/20 W halogen lamp |
| Objective lens | 4X, 10X, 40X, 60X,100X long distanceAchromatic (flat field) lens group |
| Eyepiece lens | 1X,10X,16X wide field camera eyepiece lens |
| Maximumamplification | 1600 |
| Stage dimension | 185 × 140 mm |
| Stage moving range | 50 × 75 mm |
Function Implementation Quality control labs 1μm to 6000 μm measuring range enables precise particle sizing across samples Clinical research facilities 3 million pixel camera captures detailed morphology for accurate analysis Industrial material testing Stage moving range of 50 × 75 mm supports varied sample positioning Pharmaceutical development Aspect ratio and sphericity parameters assess powder flow characteristics Educational laboratories USB 2.0 output allows seamless data transfer to workstations
Lab Expo Image Particle Shape and Size Analyzers are used for particle morphology and particle size distribution analysis in powder and material testing applications. Systems support measuring ranges from 1 μm to 6000 μm with high-speed CCD imaging, ultrasonic dispersion, stirring, and computer image analysis technology. Particle size analyzer instrument configurations enable particle shape characterization, size evaluation, and quality control workflows.
