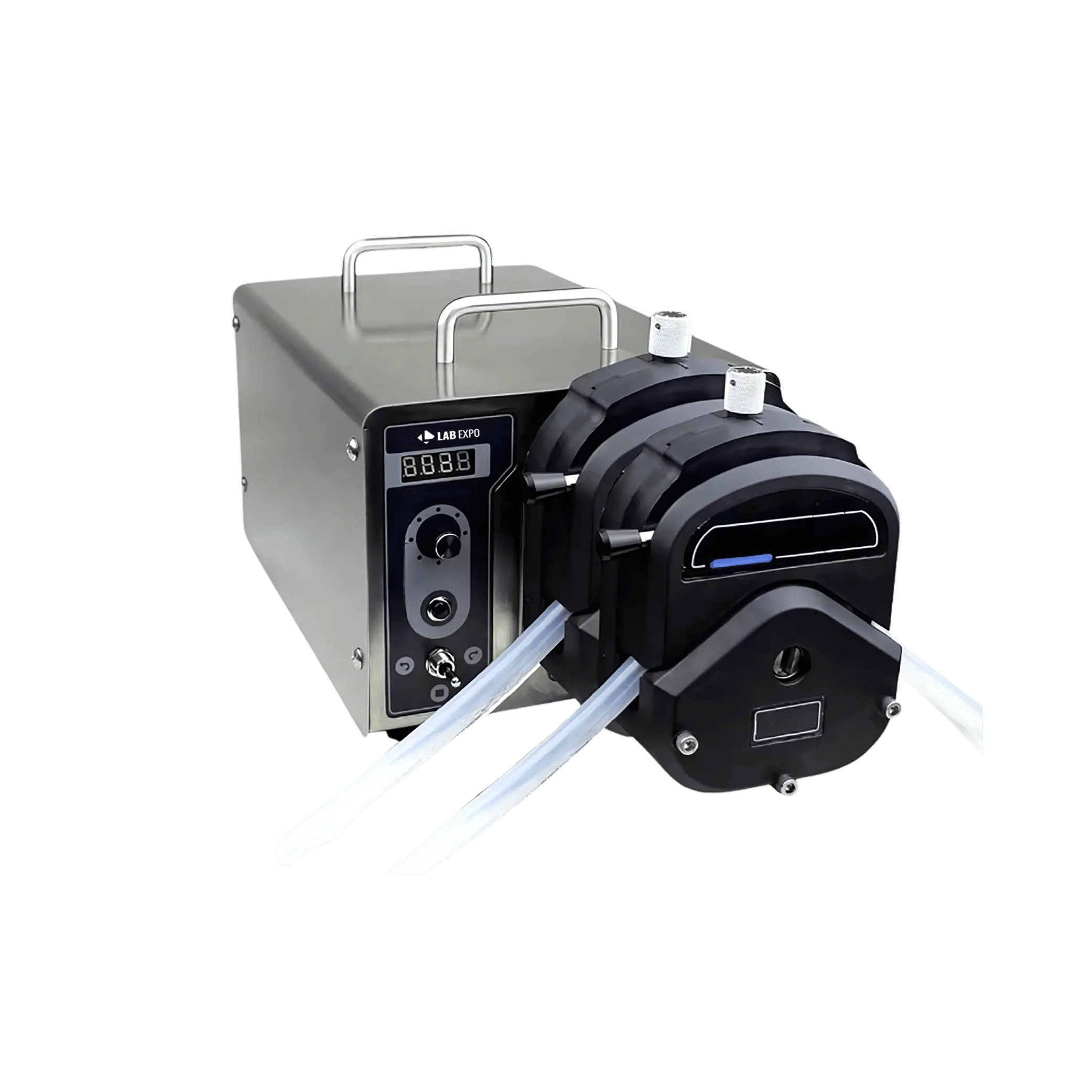

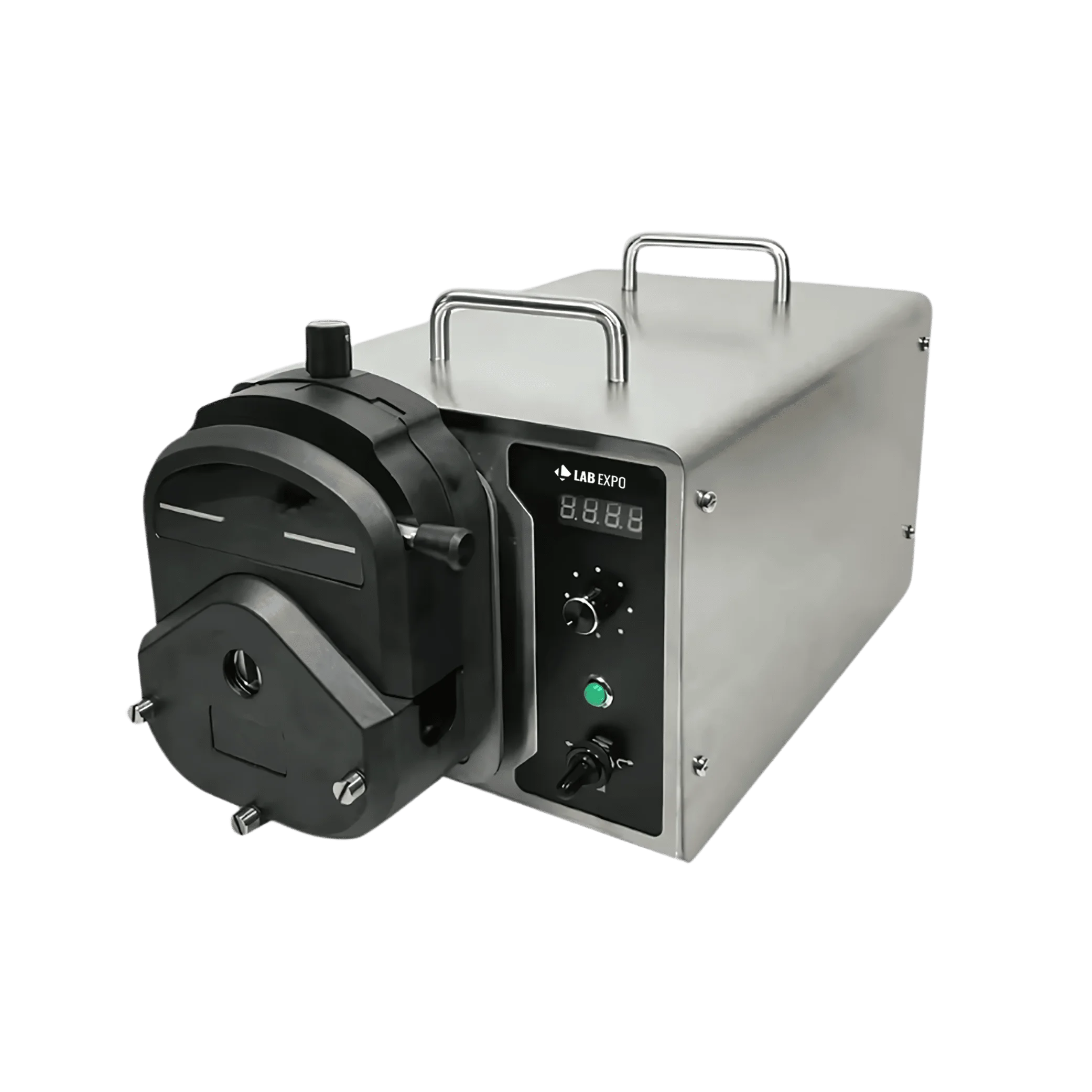

Lab Expo Industrial peristaltic pump 51-IDP100 pump is a dual channel precise dispensing peristaltic pump to transfer large amount of fluid in industry. Equipped with varied flow range and speed accuracy it allows reversible operation to pump in both directions. Provides high levels of volumetric accuracy without contaminating the fluid during the operation. Interchangeable pump heads help in delivering smooth and low pulse flows
$5,712.00 $ 4760
| Flow Range | 0.4 ~ 13 L/min |
| Flow Accuracy | 3 %. |
| Speed Range | 30 ~ 600 rpm |
| No of channel | 2 |
| Speed Resolution | 1 rpm |
| Display | LED |
| Ambient Temperature | 0 ~ 40 °C |
| Relative Humidity | < 80 % |
| IP grade | IP 31 |
| Power supply | AC 220 V ±10 % , 50 Hz / 60 Hz |
| Power Consumption | < 300 W |
| Dimensions ( L x W x H ) | 340 x 235 x 175 mm |
| Weight | 13 kg |
Function Implementation Fluid transfer labs 13 L/min flow range supports high-volume dispensing Industrial processing lines 2-channel design enables simultaneous dual-stream operation Quality control stations ±3% flow accuracy ensures precise volumetric measurement Continuous production areas 30–600 rpm speed range allows adjustable throughput rates Laboratory environments IP31 rating protects against vertical dripping during operation
| Model No | Pump Head Flow rate | Channel | Tubing Size ( mm ) |
|---|---|---|---|
| 51-IDP100A | 0.4 - 13 (mL/min) per channel | 1 | Wall : 3.3mm |
| 51-IDP100B | 0.4 - 13 (mL/min) per channel | 2 | Wall : 3.3mm |
Lab Expo Industrial Peristaltic Pump supports procurement needs from peristaltic pump manufacturers for controlled transfer of high-volume fluids. Designed for adjustable flow accuracy, it enables consistent dosing across chemical processing, pharmaceutical production, food processing, and water treatment operations. Manufactured with corrosion-resistant components, the pump supports reversible flow, LCD-based monitoring, and precise control for continuous industrial workflows within demanding process environments.
