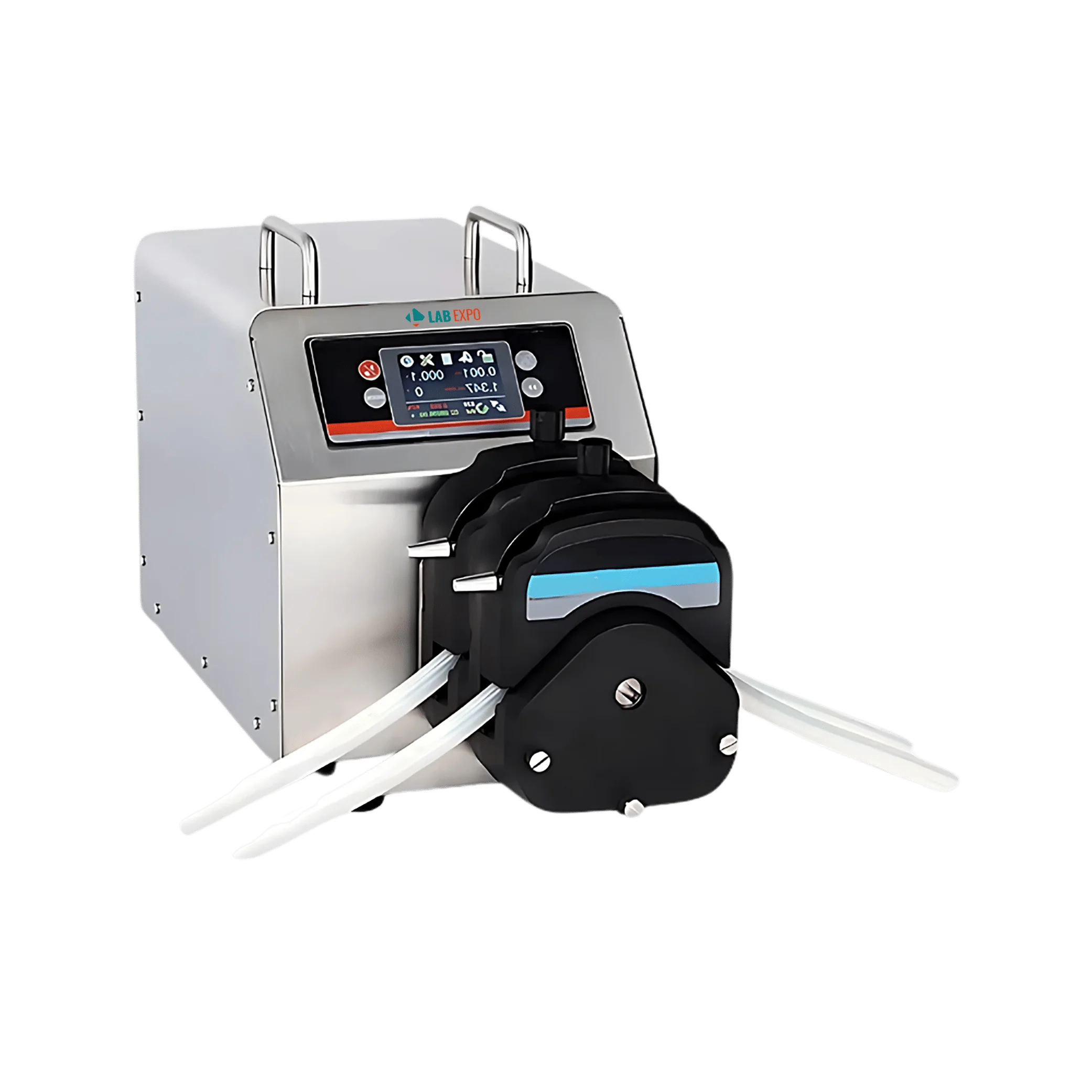

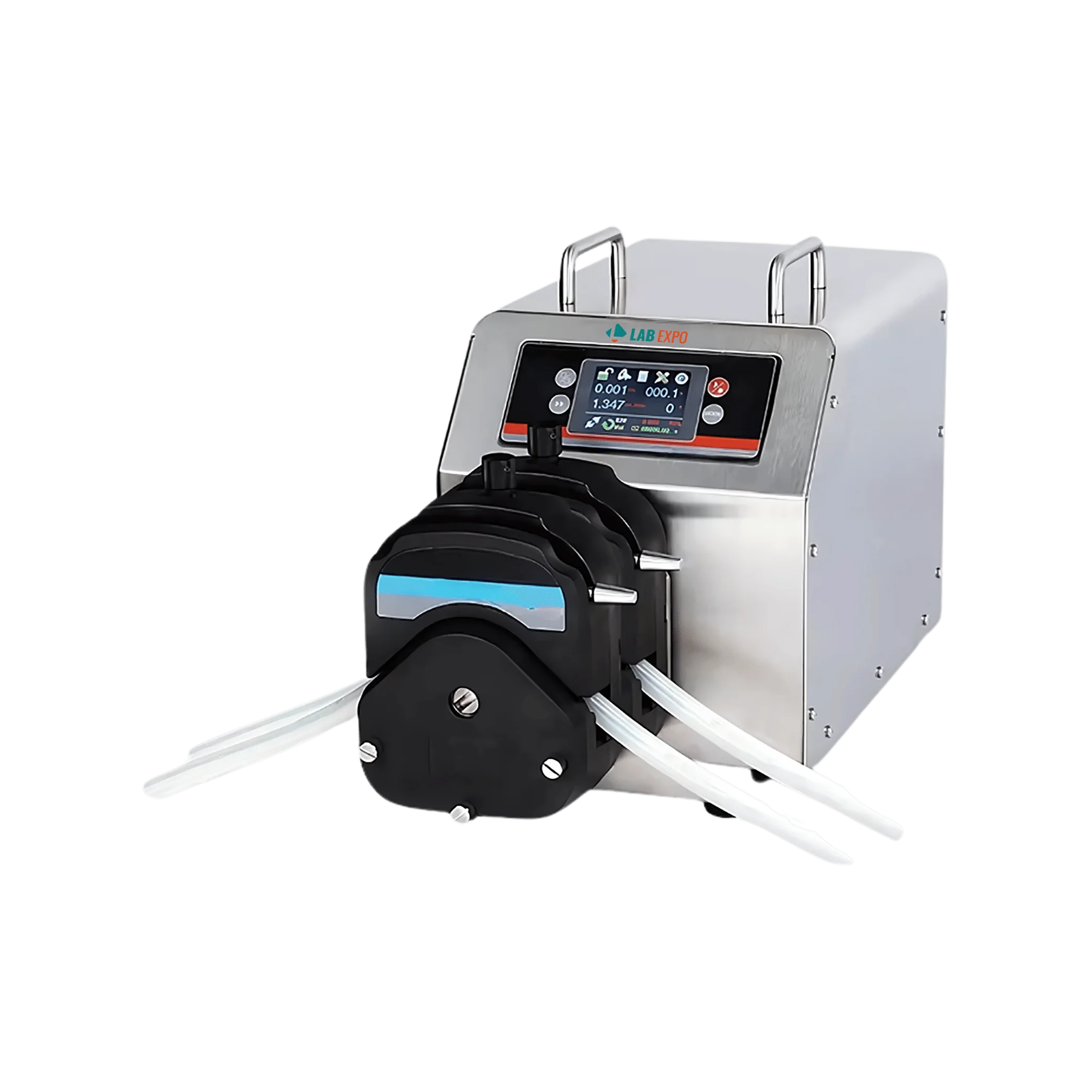

Lab Expo Industrial peristaltic pump 51-IDP101 is a dual channel precise dispensing peristaltic pump to transfer large amount of fluid in industry. Equipped with varied flow range and speed accuracy it allows reversible operation to pump in both directions. Includes time dispensing, volume dispensing and copy dispensing mode to meets all kinds of complex dispensing requirements. Provides high levels of volumetric accuracy without contaminating the fluid during the operation. Interchangeable pump heads help in delivering smooth and low pulse flows
$5,712.00 $ 4760
| Flow Range | 0.01 - 13 L/min |
| Flow Accuracy | 0.5 %. |
| Speed Range | 0.1 ~ 600 rpm |
| No of channel | 2 |
| Speed Resolution | 1 rpm |
| Display | Touch screen display |
| Ambient Temperature | 0 ~ 40 °C |
| Relative Humidity | < 80 % |
| IP grade | IP 31 |
| Power supply | AC 220 V ±10 % , 50 Hz / 60 Hz |
| Power Consumption | < 300 W |
| Dimensions ( L x W x H ) | 350 x 235 x 315 mm |
| Weight | 15 kg |
Function Implementation Laboratory fluid handling 0.5 % Flow Accuracy supports precise reagent dispensing Industrial chemical transfer IP 31 protection enables operation in dusty environments Continuous process lines < 300 W Power Consumption allows extended operational cycles Dual-fluid dispensing systems No of channel: 2 facilitates simultaneous multi-media pumping Temperature-controlled facilities Ambient Temperature: 0 ~ 40 °C ensures stable performance in lab settings
| Model No | Pump Head Flow rate | Channel | Tubing Size ( mm ) |
|---|---|---|---|
| 51-IDP101A | 0.01 - 13 (mL/min) per channel | 1 | Wall : 3.3 mm |
| 51-IDP101B | 0.01 - 13 (mL/min) per channel | 2 | Wall : 3.3 mm |
Lab Expo Industrial Peristaltic Pump supports procurement needs from peristaltic pump manufacturers for controlled transfer of high-volume fluids. Designed for adjustable flow accuracy, it enables consistent dosing across chemical processing, pharmaceutical production, food processing, and water treatment operations. Manufactured with corrosion-resistant components, the pump supports reversible flow, LCD-based monitoring, and precise control for continuous industrial workflows within demanding process environments.
