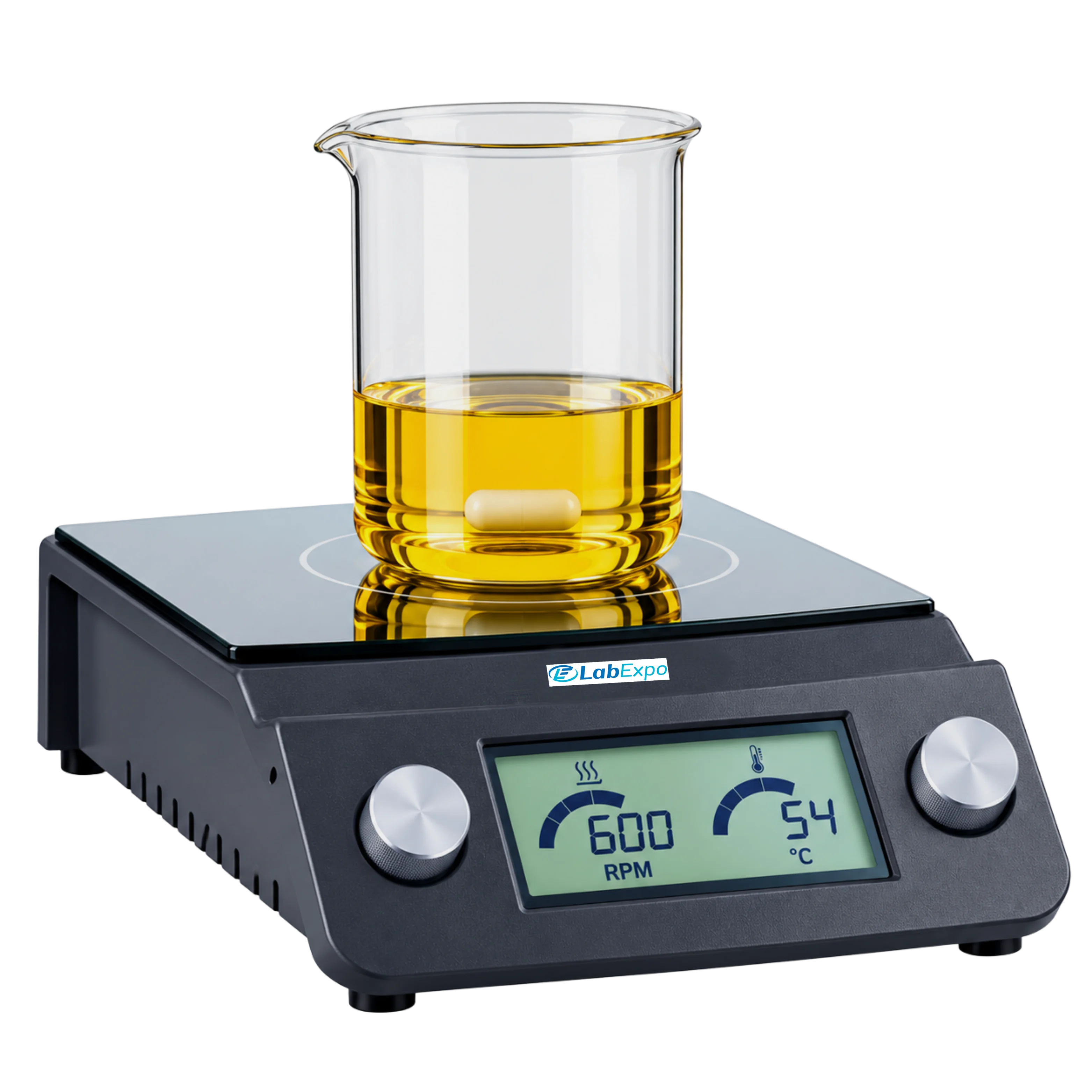

Lab Expo Infrared Hotplate 42-IHP102 is a corrosion resistant ceramic glass plate with transmittance of infrared light for faster and uniform heating of sample. With a resistance of thermal shock upto 700 °C it boils 1 L of water within 10 minutes. Features an LCD screen displaying preset and actual temperature for monitoring of process. High-temperature indicator warns the user preventing burning injuries.
$2,760.00 $ 2300
| Display mode | LCD |
| Heating power | 1.8 kW |
| Time to boil 1 L H20 | 7 mins |
| Heating zone | ᴓ 190 mm |
| Maximum capacity | 25 L |
| Maximum hotplate temperature | 550 °C |
| Top plate area ( W x L ) | 285 x 285 mm |
| Top plate material | Glass ceramic |
| Temperature sensor connector | Yes |
| Admissible ambient temperature | 10 °C to 40 °C |
| Admissible air humidity | 0.85 |
| Protection category | IP20 |
| Protection class | 1 |
| Dimensions | 395 x 295 x 110 mm |
Function Implementation Quality control testing 1.8 kW heats samples to 550 °C for standardized analysis Clinical sample prep Glass ceramic top plate resists thermal shock up to 700 °C Research laboratory use LCD display monitors preset and actual temperature during experiments Industrial process heating 285 x 285 mm top plate area accommodates various vessel sizes Educational demonstrations Time to boil 1 L H₂O in 7 mins enables efficient lab sessions
Lab Expo Infrared Hot Plates are structured around radiant infrared heating architecture to deliver rapid, uniform thermal transfer without direct contact elements. This heating mantle alternative uses a ceramic glass surface to distribute heat evenly with fast heat-up and cool-down response. Digital temperature indication, automatic control logic, and high-temperature safety alerts support precise, energy-efficient heating for chemical reactions and laboratory workflows.
