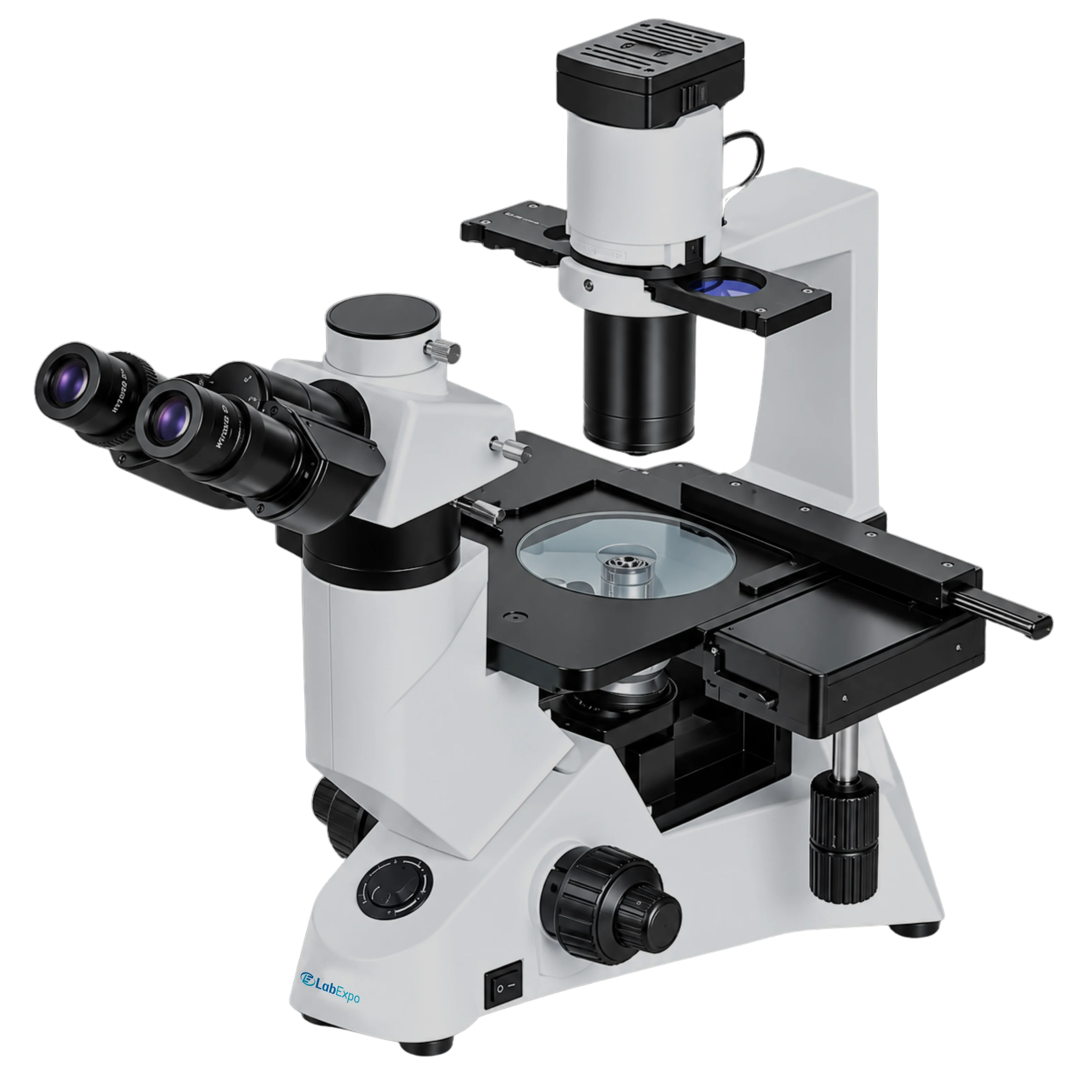

Inverted Biological Microscope 43-IBM101

Inverted Biological Microscope 43-IBM101

Lab Expo Inverted Biological Microscope 43-IBM101 is with compact & sleek design is equipped with stable & reliable ‘T’ type base, phase contrast long working distance objectives. It helps user to configure the cell more clearly thereby provides high quality images of the specimen. This user-friendly inverted microscope is used in many branches of biology.

$4,546.00 $ 3788

Inverted Biological Microscope 43-IBM101 - Specifications

Viewing head Trinocular head inclined at 30°C, interpupillary distance 48 to 75 mm
Eyepiece High-point, Extra wide field eyepiece EW10X/ 22 mm
Objectives Long working distance (LWD) infinite plan objective: 4X/ 0.1, WD 18 mm
Long working distance (LWD) infinite plan objective: 40X/ 0.6, WD 2.6 mm
Infinite plan phase objective: PH10X/ 0.25, WD 10 mm
Infinite plan phase objective: PH20X/ 0.4, WD 5.1 mm
Nosepiece Backward Quintuple nosepiece
Optical system Infinite optical system
Condenser Extreme long work distance condenser (ELWD) N.A. 0.3, LWD 72 mm (without condenser 150 mm)
Centering telescope eyepiece 30 mm
Phase contrast kit 10X, 20X, 40X phase annulus plate
Stage dimensions Plain stage: 160×250 mm, Glass insert, Auxiliary Stage: 70×180 mm
Focusing system Coaxial Coarse & fine adjustment, vertical objective movement, coarse stroke 37.7 mm per rotation, fine stroke 0.2 mm per rotation
Illumination 6 V/30 W, halogen lamp, brightness adjustable
Filter Blue, green, ground glass with diameter 45 mm
Dimension 650 × 430 × 610 mm
Gross weight 14 kg

Inverted Biological Microscope 43-IBM101 - Key Features

  • Trinocular head inclined at 30 degrees interpupillary distance 48 to 75 mm
  • Infinite optical system with long working distance objectives
  • Phase annulus plate set for 10X 20X and 40X magnification
  • Backward quintuple nosepiece for objective turret configuration
  • Plain stage dimensions 160x250 mm glass insert auxiliary stage included
  • Halogen lamp illumination system 6V/30W brightness adjustable control

Inverted Biological Microscope 43-IBM101 - Applications

FunctionImplementation
Cell culture observation160×250 mm stage supports standard tissue culture vessels
Phase contrast imagingPH10X/0.25 objective with WD 10 mm enables detailed live cell analysis
Extended working distance applicationsELWD condenser N.A. 0.3, LWD 72 mm accommodates thick specimens
Multi-specimen processingAuxiliary stage 70×180 mm allows concurrent sample handling
Brightfield illumination control6V/30W halogen lamp with adjustable brightness optimizes contrast settings

Inverted Biological Microscope 43-IBM101 - Optional Accessories

Accessories No.Name
1Attachable mechanical stage, X-Y Coaxial control, Moving range 120×78 mm
2LWD infinite plan objective: 10X/ 0.25, WD 10 mm
3LWD infinite plan objective: 20X/ 0.4, WD 5.1 mm
4Infinite plan phase objective: 40X/ 0.65, WD 0.35 mm
5Centering Telescope 30 mm
6Terasaki holder, 38 mm petri dish holder & 54 mm slide glass holder
710X to 20X, 40X phase annulus plate
8Photo attachment
9Video Adapter with C Mount

Inverted Biological Microscope 43-IBM101 - Catalog

Inverted Biological Microscope 43-IBM101 Catalog

Related Inverted Biological Microscope

Lab Expo Inverted Biological Microscopes are structured around inverted optical geometry to enable direct observation of cells and cultures within vessels. A rigid T-base frame minimizes vibration, while long working-distance phase contrast objectives and matched condenser systems support clear imaging of thick samples. Binocular or trinocular viewing options, precision focus control, and stable illumination ensure accurate, repeatable cell analysis for research, clinical, and academic laboratory workflows.
