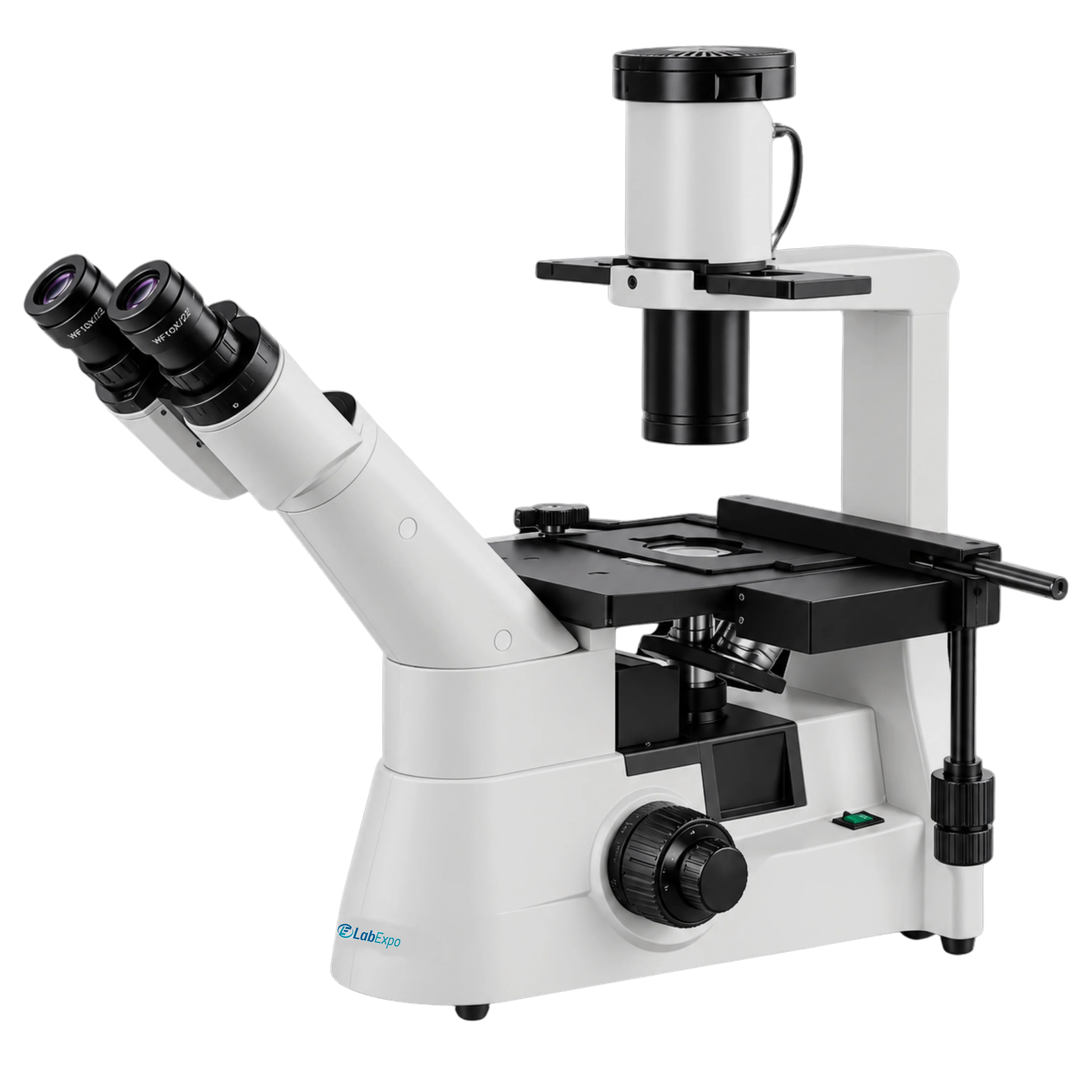

Lab Expo Inverted Biological Microscope 43-IBM300 is with compact & sleek design is equipped with stable & reliable ‘T’ type base, phase contrast long working distance objectives. It helps user to configure the cell more clearly thereby provides high quality images of the specimen. This user-friendly inverted microscope is used in many branches of biology.
$4,344.00 $ 3620
| Viewing head | Compensation free binocular head inclined at 45°C, interpupillary distance 50 to 75 mm |
| Eyepiece | WF10X/ 20 mm |
| Objectives | Long working distance plan objective: LWDPL 4X/ 0.1 W.D. 25 mm LWDPL 10X/0.25 phase contrast W.D. 11 mm LWDPL 20X/ 0.4 phase contrast W.D. 6 mm LWDPL 40X/ 0.6 W.D. 3.8 mm |
| Nosepiece | Quintuple Nosepiece |
| Optical system | Finite optical system |
| Condenser | N.A. 0.3 Abbe condenser W.D. 75 mm |
| Centering telescope eyepiece | 30 mm |
| Stage dimensions | Double layer mechanical stage, stage size: 242×172 mm, central stage : 110 mm, Moving stage: 115×75 mm |
| Focusing system | Coaxial coarse & fine focusing adjustment with rack & pinion mechanism, fine focusing scale value 0.001 mm |
| Phase contrast sliding plate | Adjustable center for phase contrast ring plate |
| Illumination | Halogen bulb 12 V/ 30 W, brightness adjustable |
| Filter | Blue, green, yellow froster glass plate |
| Dimension | 750 × 320 × 475 mm |
| Gross weight | 13 kg |
Function Implementation Cell culture labs 25 mm working distance enables clear observation of adherent cells Clinical diagnostics N.A. 0.3 condenser supports detailed specimen visualization Research laboratories Quintuple nosepiece allows rapid objective switching Quality control labs 0.001 mm fine focusing scale ensures precise sample adjustment Industrial inspection 242×172 mm stage size accommodates varied specimen holders
| Accessories No. | Name |
| 1 | WF10X/ 18 mm with cross graduation of 0.1 mm scale |
| 2 | Long working distance objective LWDPL 10X |
| 3 | Long working distance objective LWDPL 20X |
| 4 | Long working distance phase contrast objective LWDPL 40X |
| 5 | Fluorescence attachment: B, G wave band, 220 V/ 100 W mercury lamp |
| 6 | Photograph attachment: Photograph connecting tube, adapter with MD or PK mount, 4X photograph eyepiece |
| 7 | Electron eyepiece: 1.3 or 3.0 MP, CMOS electronic eyepiece |
Lab Expo Inverted Biological Microscopes are structured around inverted optical geometry to enable direct observation of cells and cultures within vessels. A rigid T-base frame minimizes vibration, while long working-distance phase contrast objectives and matched condenser systems support clear imaging of thick samples. Binocular or trinocular viewing options, precision focus control, and stable illumination ensure accurate, repeatable cell analysis for research, clinical, and academic laboratory workflows.
