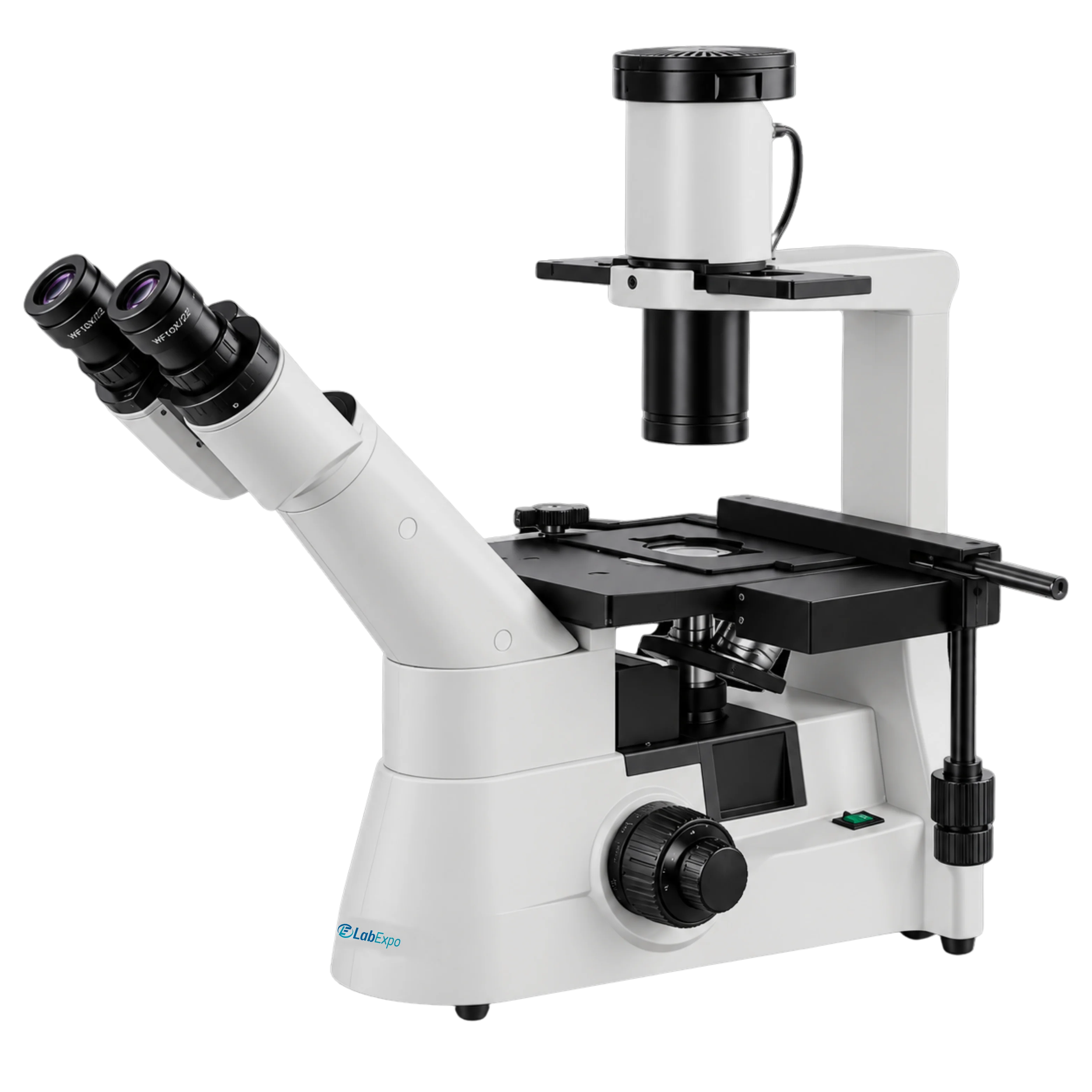

Inverted Biological Microscope 43-IBM301

Inverted Biological Microscope 43-IBM301

Lab Expo Inverted Biological Microscope 43-IBM301 is with compact & sleek design is equipped with stable & reliable ‘T’ type base, phase contrast long working distance objectives. It helps user to configure the cell more clearly thereby provides high quality images of the specimen. This user-friendly inverted microscope is used in many branches of biology.

$4,546.00 $ 3788

Inverted Biological Microscope 43-IBM301 - Specifications

Viewing head Compensation free binocular head inclined at 45°C, interpupillary distance 50 to 75 mm
Eyepiece WF10X/ 22 mm
Objectives Distance infinity plan objective:
LWDPL 4X/ 0.1 W.D. 29.4 mm
LWDPL 10X/0.25 phase contrast W.D. 16 mm
LWDPL 20X/ 0.4 phase contrast W.D. 10.5 mm
LWDPL 40X/ 0.6 W.D. 5.4 mm
Nosepiece Quintuple Nosepiece
Optical system Infinite optical system
Condenser N.A. 0.3 Abbe condenser W.D. 75 mm
Centering telescope eyepiece 30 mm
Stage dimensions Double layer mechanical stage, stage size: 242×172 mm, central stage : 110 mm, Moving stage: 115×75 mm
Focusing system Coaxial coarse & fine focusing adjustment with rack & pinion mechanism, fine focusing scale value 0.001 mm
Phase contrast sliding plate Adjustable center for phase contrast ring plate
Illumination Halogen bulb 12 V/ 30 W, brightness adjustable
Filter Blue, green, yellow froster glass plate
Dimension 750 × 320 × 475 mm
Gross weight 13 kg

Inverted Biological Microscope 43-IBM301 - Key Features

  • Infinite optical system with 0.001mm fine focusing scale value
  • WF10X eyepiece with 22mm field of view and interpupillary adjustment
  • N.A. 0.3 Abbe condenser with 75mm working distance and blue filter
  • Quintuple nosepiece with backward configuration for objective selection
  • Adjustable center phase contrast ring plate for enhanced specimen visualization

Inverted Biological Microscope 43-IBM301 - Applications

FunctionImplementation
Cell culture observation29.4 mm W.D. enables clear viewing of specimens in culture vessels
Phase contrast imagingLWDPL 10X/0.25 phase contrast W.D. 16 mm supports enhanced transparency visualization
High-magnification analysisLWDPL 40X/0.6 W.D. 5.4 mm allows detailed examination of fine cellular structures
Precise focusing adjustmentFine focusing scale value 0.001 mm enables accurate depth-specific specimen positioning
Multi-specimen examinationStage size 242×172 mm accommodates various sample holders and slides

Inverted Biological Microscope 43-IBM301 - Optional Accessories

Accessories No.Name
1WF10X/ 18 mm with cross graduation of 0.1 mm scale
2Long working distance objective LWDPL 10X
3Long working distance objective LWDPL 20X
4Long working distance phase contrast objective LWDPL 40X
5Fluorescence attachment: B, G wave band, 220 V/ 100 W mercury lamp
6Photograph attachment: Photograph connecting tube, adapter with MD or PK mount, 4X photograph eyepiece
7Electron eyepiece: 1.3 or 3.0 MP, CMOS electronic eyepiece

Inverted Biological Microscope 43-IBM301 - Catalog

Inverted Biological Microscope 43-IBM301 Catalog

Related Inverted Biological Microscope

Lab Expo Inverted Biological Microscopes are structured around inverted optical geometry to enable direct observation of cells and cultures within vessels. A rigid T-base frame minimizes vibration, while long working-distance phase contrast objectives and matched condenser systems support clear imaging of thick samples. Binocular or trinocular viewing options, precision focus control, and stable illumination ensure accurate, repeatable cell analysis for research, clinical, and academic laboratory workflows.
