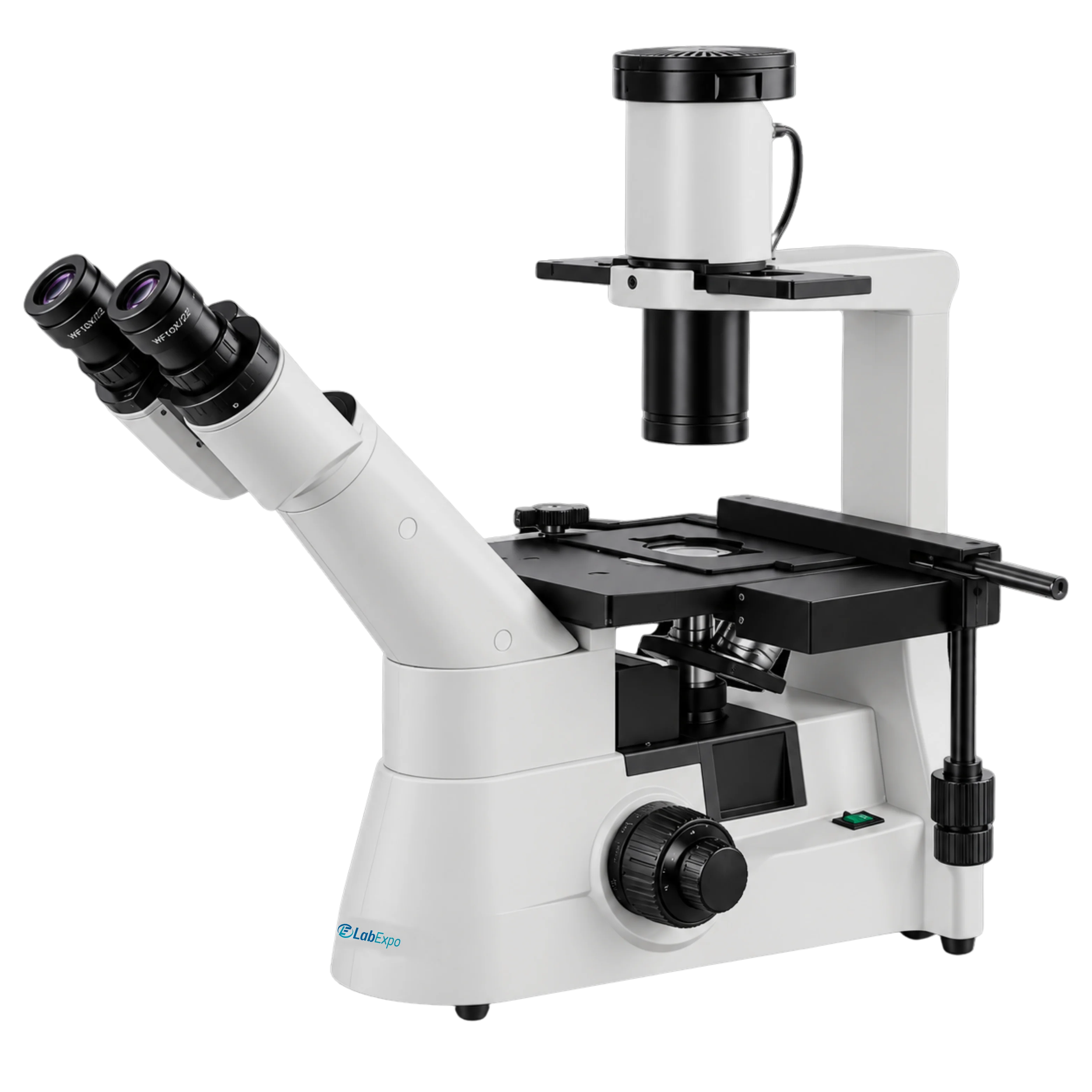

Inverted Biological Microscope 43-IBM303

Inverted Biological Microscope 43-IBM303

Lab Expo Inverted Biological Microscope 43-IBM303 is with compact & sleek design is equipped with stable & reliable ‘T’ type base, phase contrast long working distance objectives. It helps user to configure the cell more clearly thereby provides high quality images of the specimen. This user-friendly inverted microscope is used in many branches of biology.

$4,747.00 $ 3956

Inverted Biological Microscope 43-IBM303 - Specifications

Viewing head Compensation free trinocular head inclined at 45°C, interpupillary distance 50 to 75 mm
Eyepiece WF10X/ 22 mm
Objectives Distance infinity plan objective:
LWDPL 4X/ 0.1 W.D. 29.4 mm
LWDPL 10X/0.25 phase contrast W.D. 16 mm
LWDPL 20X/ 0.4 phase contrast W.D. 10.5 mm
LWDPL 40X/ 0.6 W.D. 5.4 mm
Nosepiece Quintuple Nosepiece
Optical system Infinite optical system
Condenser N.A. 0.3 Abbe condenser W.D. 75 mm
Centering telescope eyepiece 30 mm
Stage dimensions Double layer mechanical stage, stage size: 242×172 mm, central stage : 110 mm, Moving stage: 115×75 mm
Focusing system Coaxial coarse & fine focusing adjustment with rack & pinion mechanism, fine focusing scale value 0.001 mm
Phase contrast sliding plate Adjustable center for phase contrast ring plate
Illumination Halogen bulb 12 V/ 30 W, brightness adjustable
Filter Blue, green, yellow froster glass plate
Dimension 750 × 320 × 475 mm
Gross weight 13 kg

Inverted Biological Microscope 43-IBM303 - Key Features

  • Long working distance plain objective LWDPL 4X/0.1 W.D. 29.4 mm
  • Compensation free trinocular head inclined at 45C interpupillary distance 50 to 75 mm
  • Double layer mechanical stage size 242x172 mm moving stage range 115x75 mm
  • Backward quintuple nosepiece for infinity plan objectives with phase contrast options
  • Adjustable center phase contrast ring plate for centering telescope eyepiece alignment

Inverted Biological Microscope 43-IBM303 - Applications

FunctionImplementation
Cell culture observation242×172 mm stage size supports standard tissue culture flasks
Phase contrast imagingN.A. 0.3 Abbe condenser enables enhanced translucent specimen visualization
Focusing precision0.001 mm fine focusing scale value allows accurate axial adjustments
Objective versatilityQuintuple nosepiece holds multiple infinity-corrected objectives
Illumination control12 V/30 W halogen bulb with adjustable brightness suits variable lighting needs

Inverted Biological Microscope 43-IBM303 - Optional Accessories

Accessories No.Name
1WF10X/ 18 mm with cross graduation of 0.1 mm scale
2Long working distance objective LWDPL 10X
3Long working distance objective LWDPL 20X
4Long working distance phase contrast objective LWDPL 40X
5Fluorescence attachment: B, G wave band, 220 V/ 100 W mercury lamp
6Photograph attachment: Photograph connecting tube, adapter with MD or PK mount, 4X photograph eyepiece
7Electron eyepiece: 1.3 or 3.0 MP, CMOS electronic eyepiece

Inverted Biological Microscope 43-IBM303 - Catalog

Inverted Biological Microscope 43-IBM303 Catalog

Related Inverted Biological Microscope

Lab Expo Inverted Biological Microscopes are structured around inverted optical geometry to enable direct observation of cells and cultures within vessels. A rigid T-base frame minimizes vibration, while long working-distance phase contrast objectives and matched condenser systems support clear imaging of thick samples. Binocular or trinocular viewing options, precision focus control, and stable illumination ensure accurate, repeatable cell analysis for research, clinical, and academic laboratory workflows.
