Kinematics Viscometer LE-KVM100
Product2
Product3

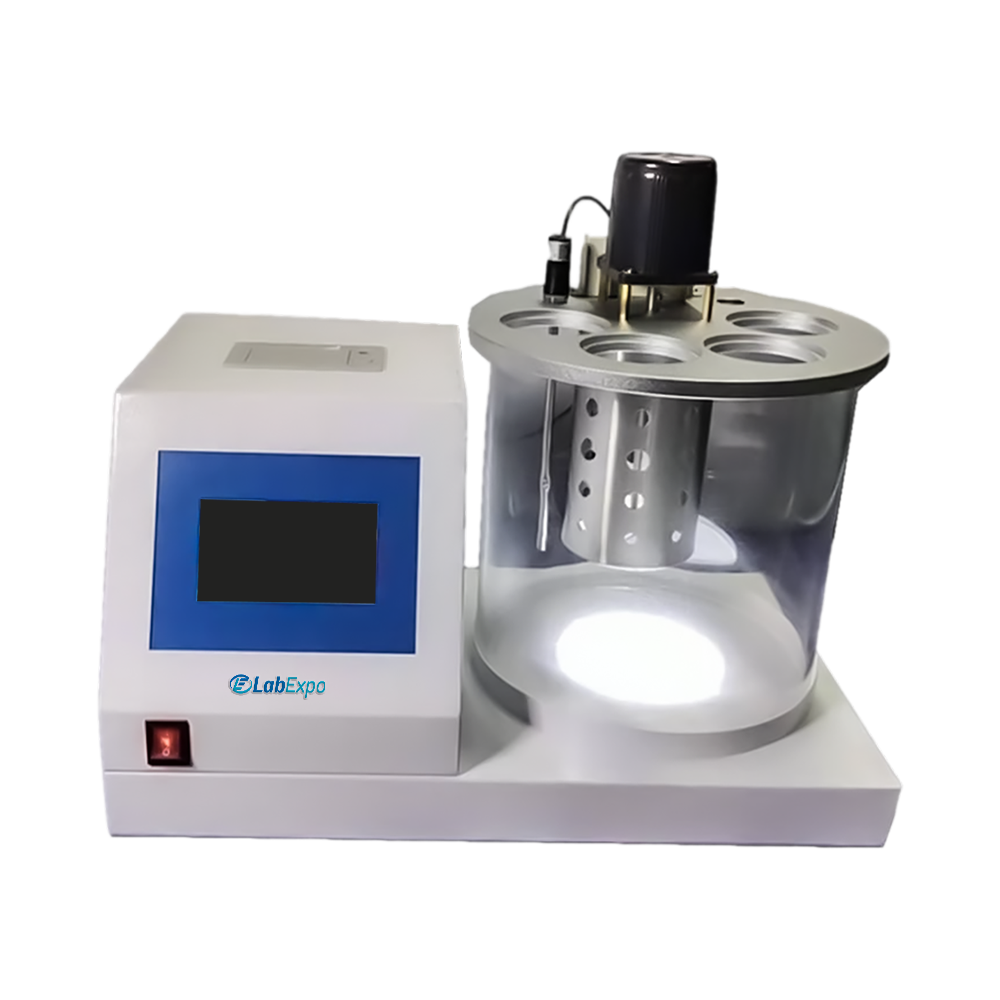

Kinematics Viscometer LE-KVM100

Lab Expo Kinematic Viscometer LE-KVM100 is designed in compliance with ASTM D445 standards for precise viscosity determination. Features intelligent single-chip microcomputer temperature control. Comes with a 5-inch color LCD touchscreen for real-time monitoring. Enables accurate measurement across both low and high viscosity ranges with excellent stability. Calculates viscosity, averages results, and supports data storage and printing for efficient workflows. Our Viscometer is built with a corrosion-resistant stainless steel system and insulated thermostatic bath ensuring durability and uniform temperature control.

$4,589.00 $ 3824

Kinematics Viscometer LE-KVM100 - Specifications

Display Method 5-inch LCD touchscreen
Temperature Control Range Room temperature to 200℃ (immersion cooler required below ambient)
Measurement Range (Kinematic Viscosity) 0.5 – 20000 mm²/s
Measurement Range (Dynamic Viscosity) 0.3 – 40000 mPa·s
Temperature Control Accuracy ±0.1℃ (±0.01℃ optional)
Timing Accuracy ±0.1 s
Timing Range 0.1 – 999.9 seconds
Thermostatic Bath 250 × 250 mm, double-layer
Printer Low-energy thermal printer, 56 mm paper width
Temperature Sensor Imported platinum resistance thermometer
Stirring Speed 1350 rpm
Maximum Power 1200 W
Sample Capacity 4 samples
Operating Environment Temperature: 15 – 35℃; Humidity: < 85%
Power Supply AC 220 V ±10%, 50 Hz
Dimensions 500mm × 310mm × 500mm
Net weight 23 Kg

Kinematics Viscometer LE-KVM100 - Key Features

  • Microprocessor-based PID control with 0.1C resolution
  • Wide viscosity range from 0.5 to 20000 mm²/s
  • Automatic result calculation with ±0.1s timing accuracy
  • Corrosion-resistant construction for long-term durability
  • Parallel sample testing with four-sample capacity
  • Capillary clamping for secure sample handling

Kinematics Viscometer LE-KVM100 - Applications

FunctionImplementation
Quality control labs±0.1℃ accuracy supports repeatable viscosity measurements
Research facilities0.5 – 20000 mm²/s range enables broad fluid analysis
Clinical testing labs4-sample capacity allows parallel specimen processing
Industrial settings1350 rpm stirring ensures uniform bath temperature
Quality assurance workflows56 mm thermal printer outputs hard-copy results

Kinematics Viscometer LE-KVM100 - Catalog

Kinematics Viscometer LE-KVM100 Catalog

Related Kinematic Viscometer

Lab Expo Kinematic Viscometer units are configured for viscosity determination of petroleum products and industrial fluids under controlled thermal conditions. Systems support kinematic viscosity measurement from 0.5 to 20000 mm²/s with temperature control accuracy up to ±0.1 °C across standard and low-temperature testing configurations. Available setups integrate multi-position capillary viscometer baths and constant temperature bath systems with up to 13 capillary positions, supporting repeatable viscosity analysis in refinery, lubricant, and quality control workflows.
