Kjeldahl Analyzer 40-KAZ100

Kjeldahl Analyzer 40-KAZ100

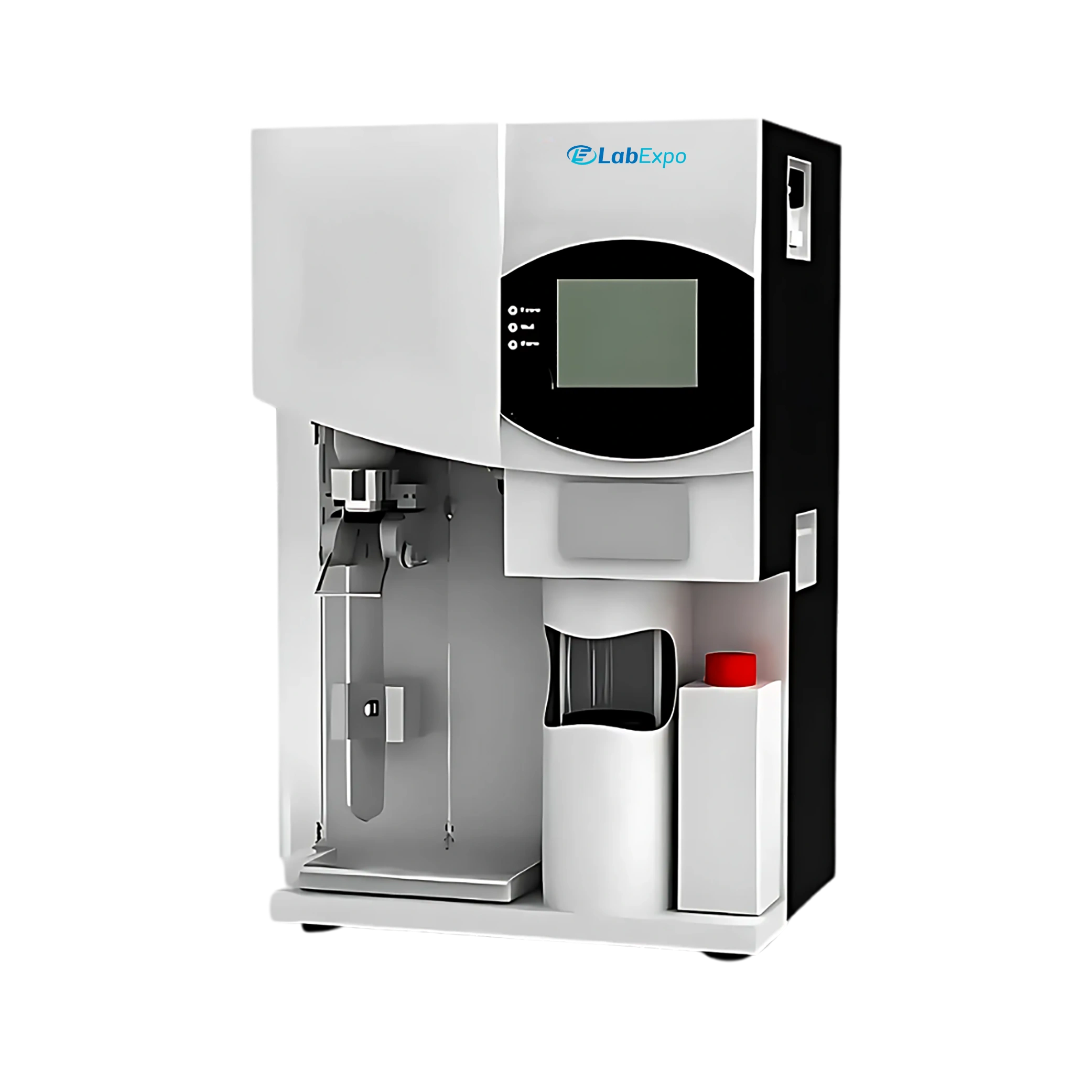

Lab Expo Kjeldahl Analyzer 40-KAZ100 is a complete microcomputer controlled user-friendly automatic device integrating distillation and titration functions. It is compatible with 42 mm digestion tubes and has features such as automatic waste discharge and cleaning of digestion tubes and titration cups, control steam flow and real time detection of distillation temperature. Along with High-accuracy Charging Pump and Titration system, it is also equipped with large LCD touch screen panel, faster ARM system and multiple fluid level detection system to ensure smooth test process.

$18,648.00 $ 15540

Kjeldahl Analyzer 40-KAZ100 - Specifications

Measuring Range 0.1 mg-200 mg N
Analysis Time 5-10 min/sample
Water Consumption in the Distillation Process 1.5 l/min
Sample Capacity Solid : ≤ 5g/sample; Liquid: 20 ml/sample
Burette volume 1.0μl/step
Recovery ≧ 99.5%
Reproducibility Average value relative error ± 0.5%
Data Storage Capacity 1800 groups
Power Supply AC 220 V ± 10%/ 50 Hz
Power 2 kW
Dimension 455 x 391 x 730 mm
Net Weight 38 kg

Kjeldahl Analyzer 40-KAZ100 - Key Features

  • External titration cup design providing operator real-time control entire test process
  • Reagent barrel fluid absence warning ensuring uninterrupted reagent supply during analysis
  • Digestion tube fast drain function protecting operator from thermal exposure hazards
  • Faster ARM system ensuring rapid operational response and reduced cycle times

Kjeldahl Analyzer 40-KAZ100 - Applications

FunctionImplementation
Quality control labs0.1 mg-200 mg N measures nitrogen content in samples
Clinical testing facilities5-10 min/sample enables rapid throughput analysis
Research laboratories99.5% recovery ensures precise analytical results
Industrial process monitoring±0.5% reproducibility supports consistent batch verification
Educational institutions1800 groups data storage allows extended experiment tracking

Kjeldahl Analyzer 40-KAZ100 - Standard Accessories

Accessory NameQuantity
Waste Receiving Tray1 pc
Nylon Cable Ties10 pcs
Glove2 pcs
Silicone Pipe2 pcs
Fuse (15A)5 pcs
Printing paper10 rolls
Digestion Tube Holder1 pc
Digestion Tube 300 ml10 pcs
Power Cord1 pc
Dustproof Cover1 pc
Inlet Water Pipe1 pc
Outlet Water Pipe1 pc
Titration Acid Bottle1 pc
Alkali/ Water/ Acid Tanks with level sensors3 pcs
Touch Pen1 pc

Kjeldahl Analyzer 40-KAZ100 - Optional Accessories

Accessory NameSpecificationQuantity
Digestion Tube280 ml10
Alkali Tank/ Boric Acid Tank/ Water Tank600 ml3
Digestion Tube Holder10 hole1
Titration Acid1L1
Printing PaperL57 x ɸ3310

Kjeldahl Analyzer 40-KAZ100 - Catalog

Kjeldahl Analyzer 40-KAZ100 Catalog

Related Kjeldahl Analyzer

Lab Expo Kjeldahl Analyzer units are designed for automated and semi-automated nitrogen determination in food, agricultural, pharmaceutical, and environmental testing workflows. Systems support measurement ranges from 0.1 mg to 240 mg nitrogen with analysis times between 3 and 10 minutes per sample. Controlled distillation processes with water consumption of 1.5 L/min enable consistent nitrogen and protein analysis, supporting routine quantitative testing and laboratory sample processing applications.
