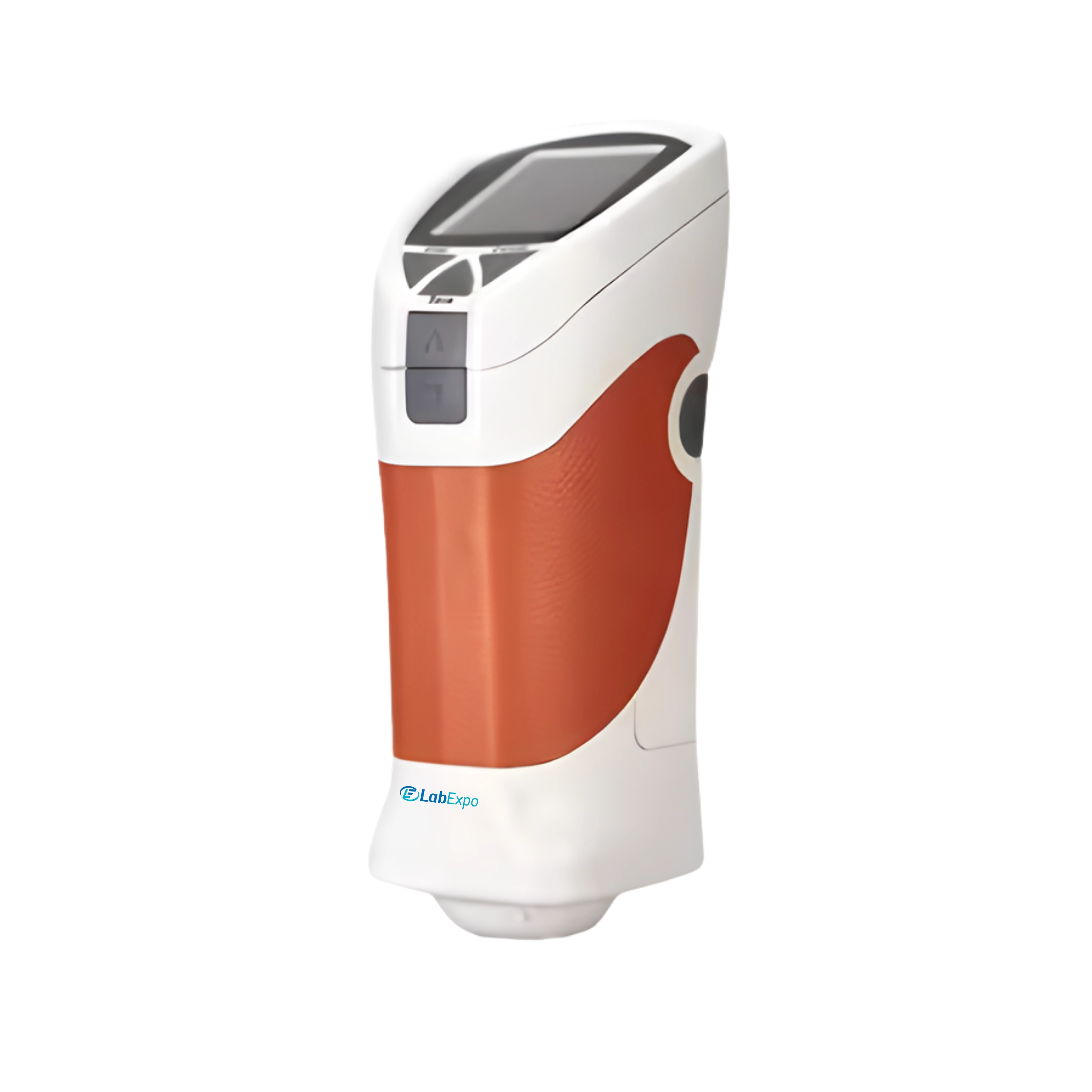

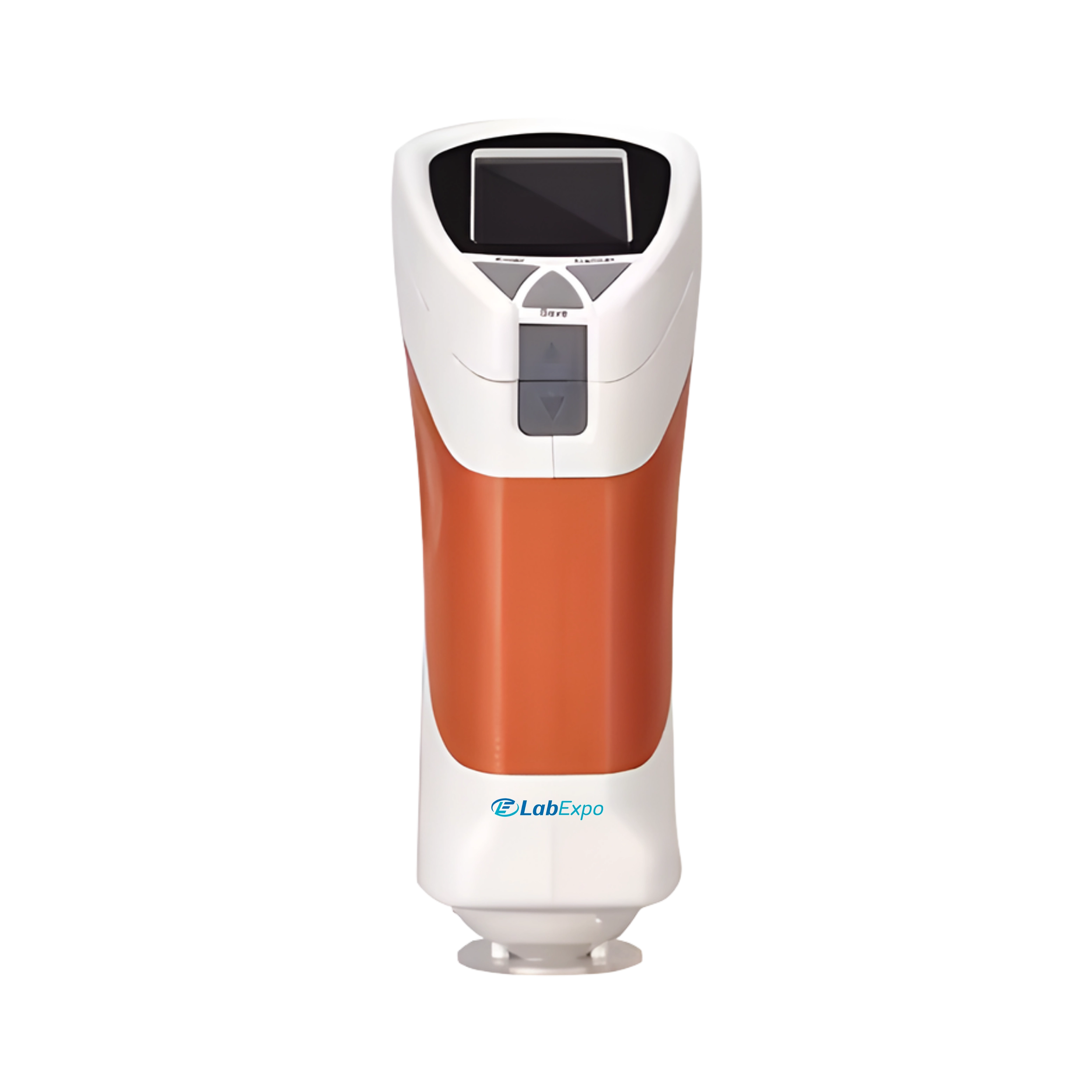

colorimeter offers the specular component excluded SCE measuring condition, specially designed for color measurement of powders, pasty materials, colloids and highly reflective materials. Both the yellowness & whiteness measurement can be done using this colorimeter. This colorimeter gives ultra stable performance throughout the operations.
$2,098.00 $ 1748
Specifications
| Characteristic function | Can precisely test pasty material, powders |
| Illumination system | 8°/d (diffusion illumination), SCE (spectral components excluded) |
| Display mode | Colorimetric values: L × a × b，L × C × h，△E × ab，XYZ，relative RGB values Color difference values: △(L × a × b)，△(L × C × h) Whiteness values: hunter whiteness, Ganz whiteness Yellowness value: YI |
| Display screen | 2.4 inch LCD display screen |
| Measuring calibration | About 8 mm |
| Measuring condition | CIE 10° standard observation / CIE D65 light source |
| Measuring range | L × 1 - 100 |
| Storage | 100 sets of standard samples and 100 data groups for each sample |
| Measuring aperture | 8 mm |
| Repeatability | Standard deviation within △E × ab × < 0.08 (Measuring condition: measuring white calibration board 80 times) |
| Measurement time | 0.5 s |
| Light source | LED halogen lamp |
| Power supply | Four 1.5V AA sized alkaline battery or nickel metal hydride batteries / DC 5 V |

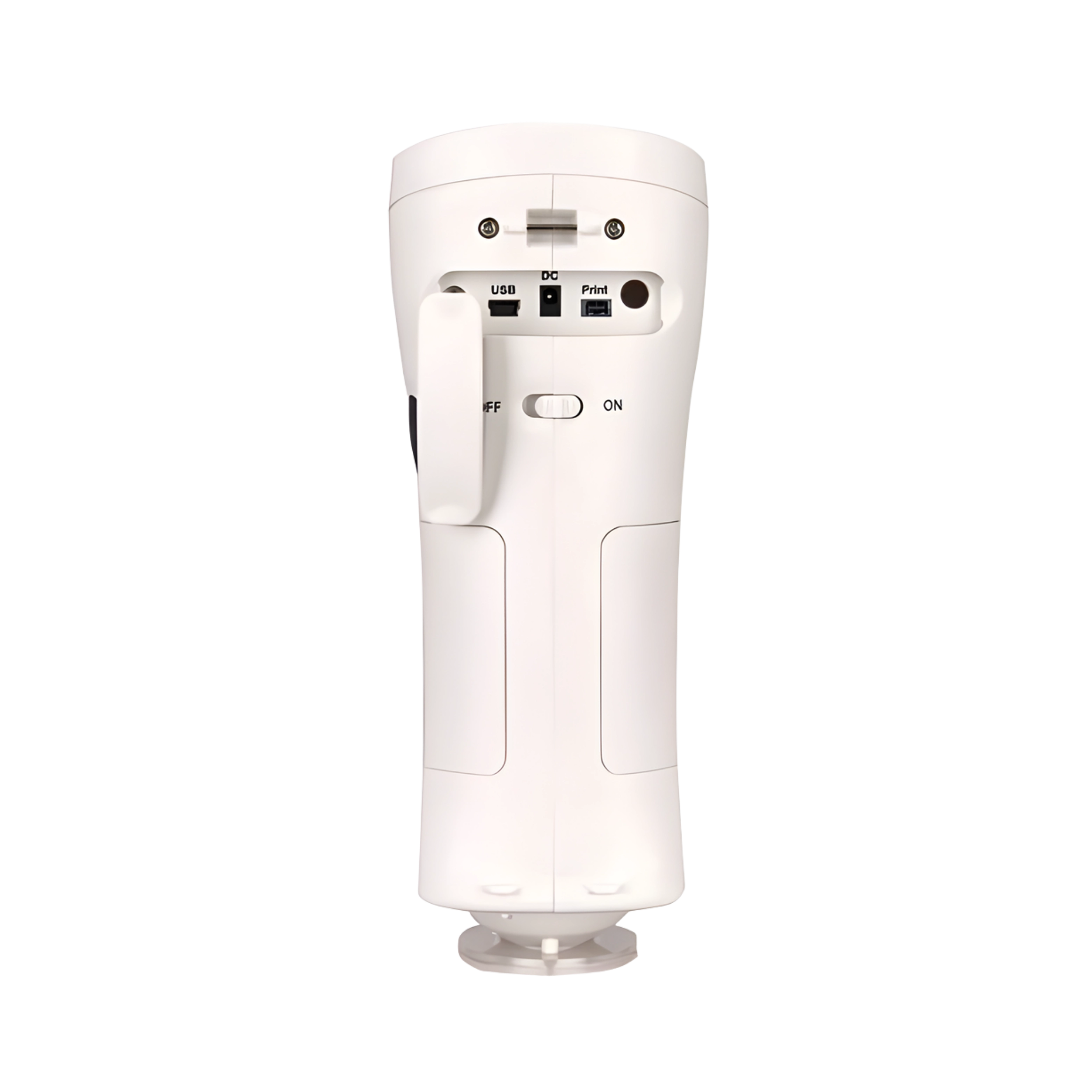

| Interface | USB 2.0, printer |
| Weight | 550 g |
| Dimension (volume) | 77 × 86 × 210 mm |
| Dimension (volume) | 77 × 86 × 210 mm |
Features
Applications
Function Implementation Powder testing labs ±0.08 standard deviation ensures precise measurements Pasty material analysis 0.5 s measurement time streamlines high-throughput processes Colloid characterization 8 mm measuring aperture accommodates diverse sample sizes Highly reflective material inspection SCE measuring condition minimizes spectral interference Material sorting facilities 100 sets of standard samples enable efficient calibration
Lab Expo Laboratory Colorimeter supports precise lab colorimetry workflows where repeatable color measurement and standardized calibration are required for quality control and analysis. The system operates with diffused full-spectrum illumination and white/black calibration to maintain measurement consistency. Digital controls manage averaging and data handling, while LCD monitoring and PC connectivity enable controlled operation, secure data transfer, and repeatable color evaluation for routine laboratory use.
