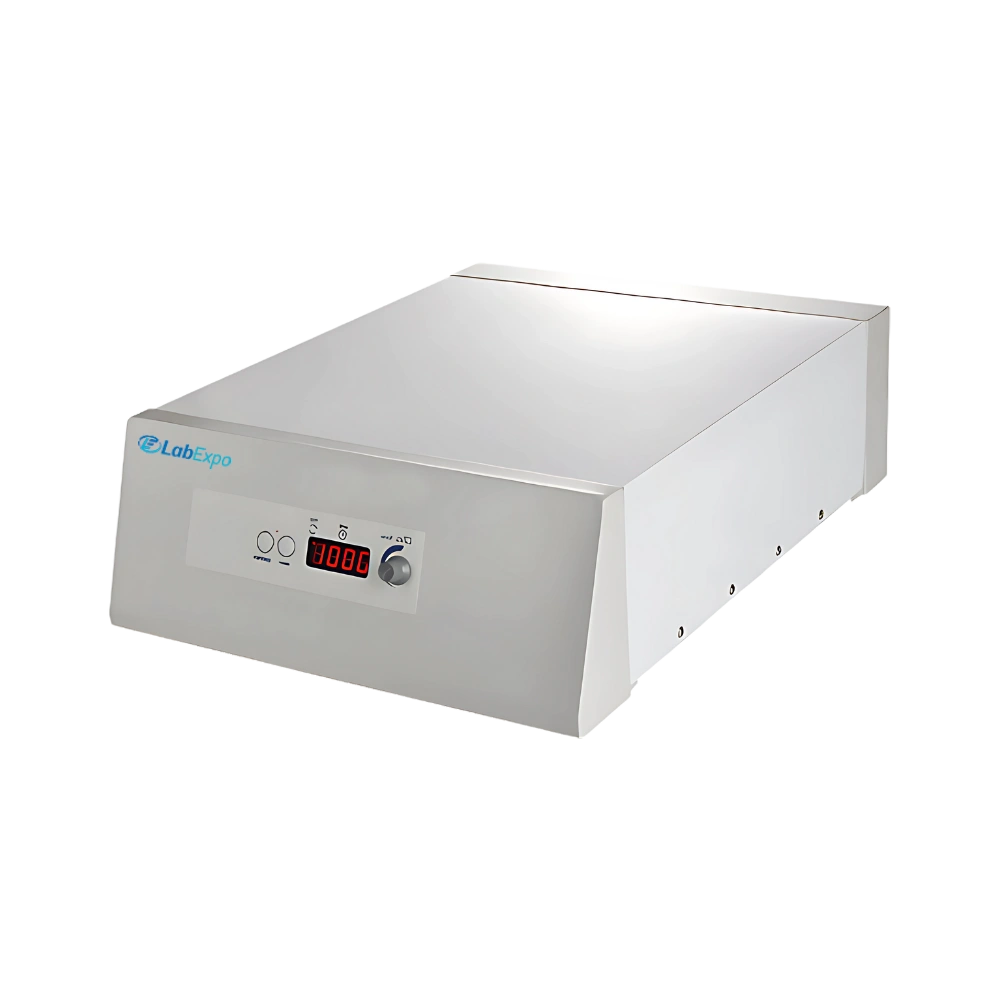

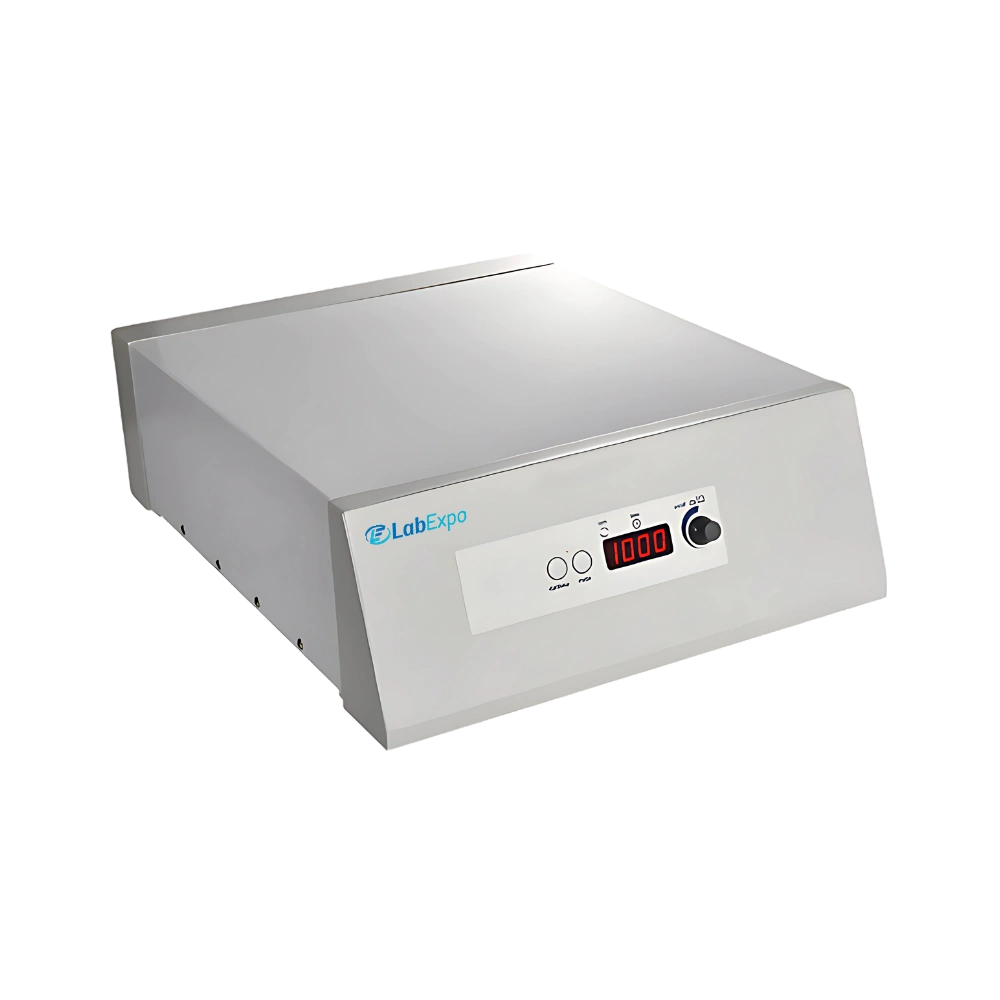

Lab Expo Large Magnetic Stirrer LE-LM201 is designed for high-volume mixing with a maximum capacity of 90 L. It offers a speed range of 50 to 1200 rpm, allowing precise control of stirring intensity. Equipped with a ceramic-coated stainless-steel plate, it ensures durability and resistance to chemicals. Integrated with a brushless DC motor for smooth and efficient performance. Our Large Magnetic Stirrer is suitable for both laboratory and industrial applications.
$2,774.00 $ 2312
| Speed Range | 50 to 1200rpm |
| Maximum Stirring Quantity | 90L (H2O) |
| Number of Stirring Positions | 1 |
| Timer | Up to 9 Hrs |
| Stirring Bar Length | 150 (24 mm D) |
| Motor Type | Brushless DC Motor with Planetary Reducing Speed Gear Box |
| Motor Rating Output | 30W |
| Plate Material | Ceramic Coated Stainless Steel |
| Chemical Resistant | Yes |
| Case Material | Metal |
| Operation Temperature | 5℃ to 40℃ |
| Operation Relative Humidity | 80% |
| Protection Class According to DIN EN 60529 | IP56 |
| Power Supply | 100 to 240V |
| Frequency | 50/60Hz |
| Power Consumption | 80W |
| Fuse | 2x T4A 250V |
| Plate Dimension | 400 × 400 mm |
| Dimensions | 520 × 400 × 160 mm |
| Weight | 11 kg |
Function Implementation High-volume mixing labs 90L (H₂O) maximum stirring quantity enables large-scale solution processing Continuous industrial operations Brushless DC motor with planetary reducing speed gear box supports sustained performance Chemical handling environments Ceramic-coated stainless-steel plate ensures resistance to corrosive substances Extended process monitoring Timer up to 9 Hrs allows unattended operation for lengthy procedures Temperature-controlled facilities Operation temperature range of 5℃ to 40℃ permits use in climate-regulated settings
Lab Expo Large Magnetic Stirrers are configured around high-torque magnetic drive systems to maintain stable agitation under increased fluid loads. This chemical stirrer supports programmable speed control and strong magnetic coupling for uniform mixing of large volumes. Chemical-resistant housing, steady rotational output, and precise control logic enable consistent dissolving, suspension maintenance, and batch preparation in laboratory and industrial workflows.
