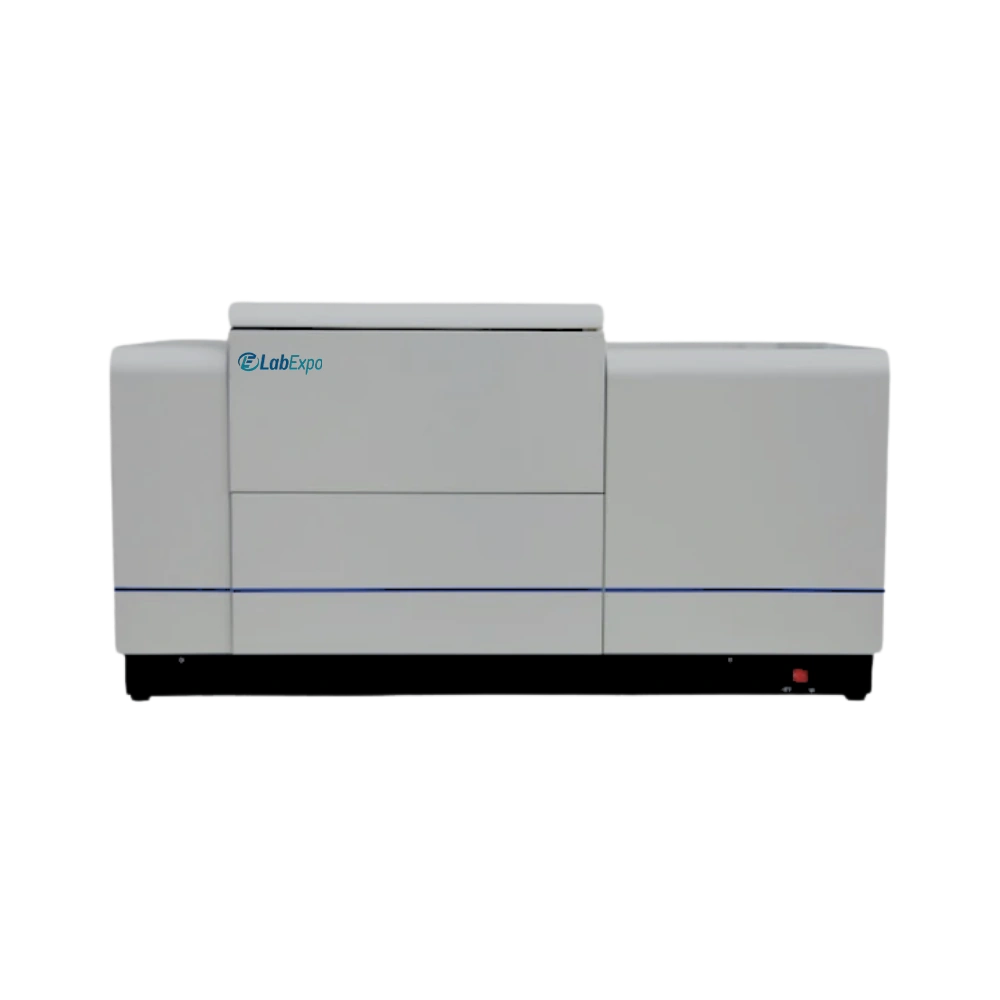

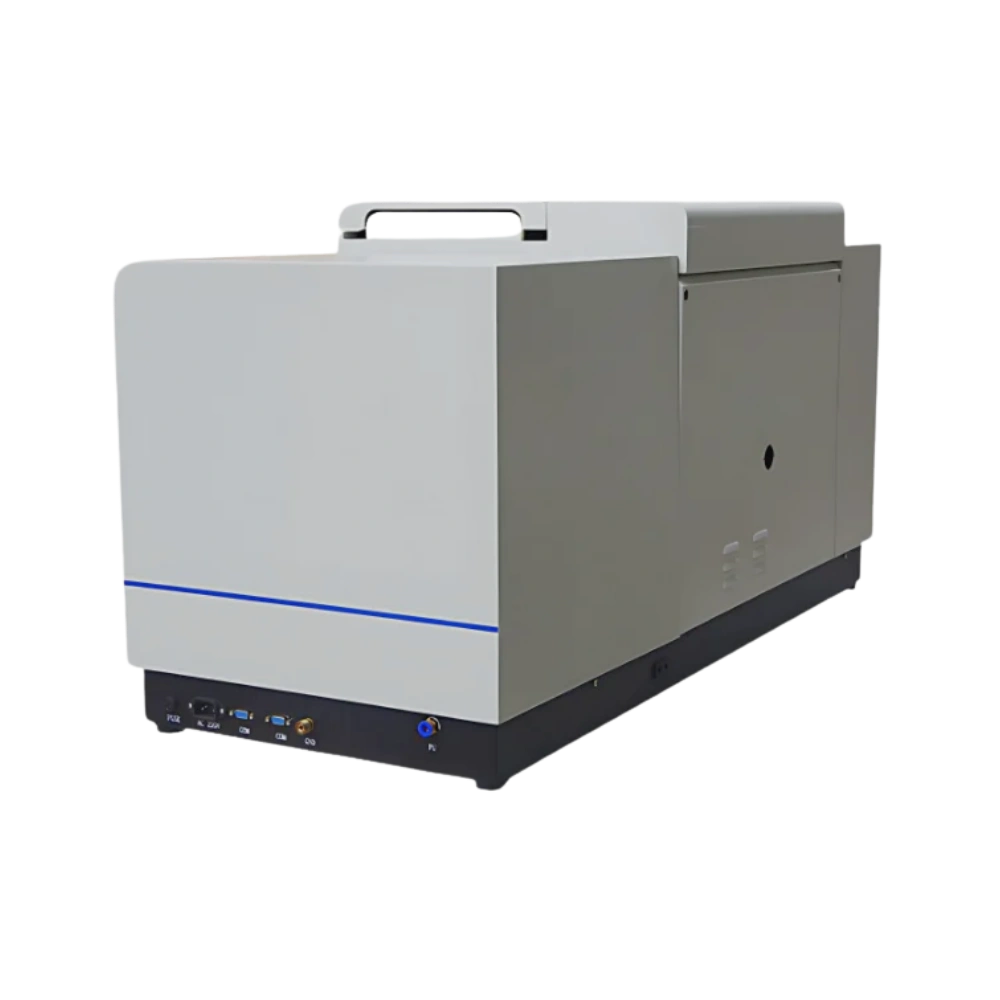

Lab Expo Laser Particle Size Analyzer 50-LPA101 is fully automatic and intelligent particle size analyzer. It uses dual beam and multi-spectral detection system and laser diffraction measurement principle for measuring over the 0.01 μm to 2000 μm particle size range for wet dispersion and offers reliable and repeatable particle size analysis.
$32,515.00 $ 27096
| Measuring range | 0.01 μm - 2000 μm |
| Principle | Laser light scattering |
| Test speed | < 2 min |
| Dispersion type | Wet |
| Executive standard | ISO13320-1:1999 |
| Analysis | Mie & Fraunhofer scattering |
| Sample type | Suspension, emulsion, powders |
| Light source | High performance He-Ne Laser, λ= 632.8 nm |
| Operation mode | Fully automatic/ manual control |
| Detector channels no. | 127 pcs. |
| Built-in ultrasonic function | Frequency: 40 kHz Power: 35 W Time: ≥ 1 s |
| Agitator Revolutions Speed | 0-300 rpm (Adjustable) |
| Circulate rated flow | 8 l/min |
| Circulate rated power | 10 W |
| Light path alignment system | Fully automatic Precision up to 0.1μm |
| Accuracy | < 1% |
| Repeatability | < 1 % |
| Sample tank volume | 350 ml |
| Sample cuvette | 10 ml |
| Software running | Win XP/Win7 |
| Dimension (L x W x H) | 1230 x 640 x 660 mm |
| Weight | 58 kg |
Function Implementation Quality control labs 350 ml sample tank supports batch processing of suspensions Clinical research settings 0.01 μm - 2000 μm range enables nanoscale to macroscopic analysis Industrial testing facilities < 2 min test speed allows rapid throughput screening Pharmaceutical development 127 detector channels ensure high-resolution size distribution data Educational laboratories Fully automatic operation mode simplifies user training and use
Laser Particle Size Analyzer units are designed for particle size distribution analysis using laser diffraction and laser scattering technology in wet and dry dispersion workflows. The range includes laser diffraction particle size analyzer systems with measurement ranges from 0.01 μm to 2000 μm, detector configurations up to 120 channels, and analysis speeds below 2 minutes. Models integrate ultrasonic dispersion, single or double laser light scattering principles, and high-accuracy D50 measurement for powder, chemical, pharmaceutical, and material characterization applications requiring a laser scattering particle size analyzer.
