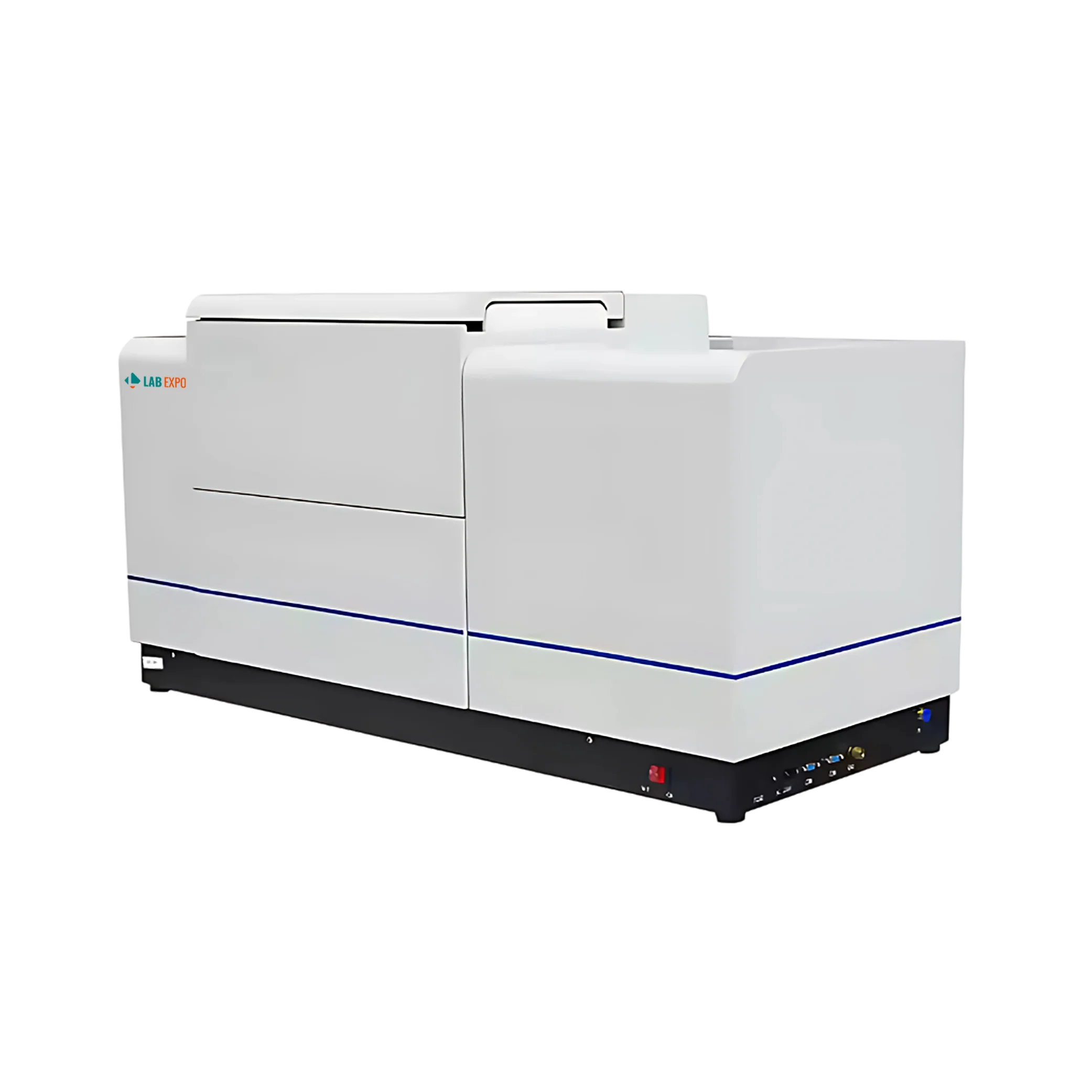

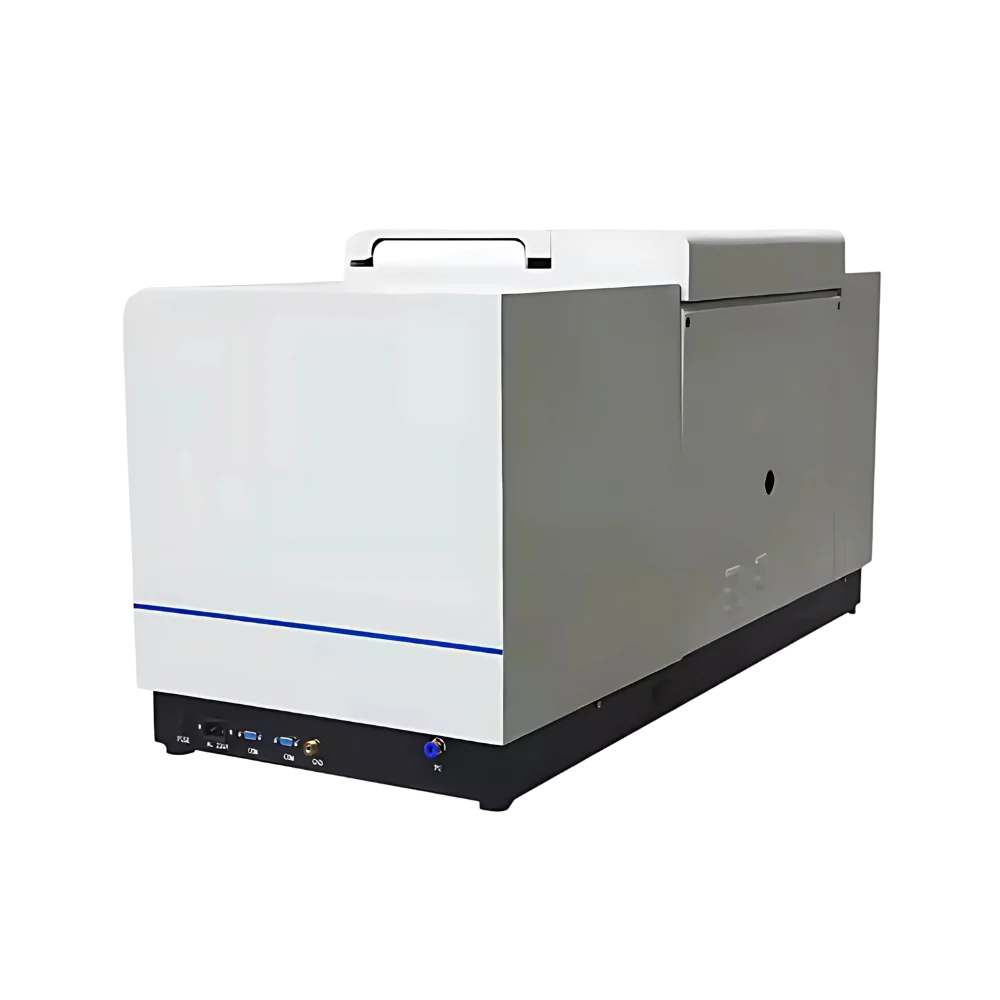

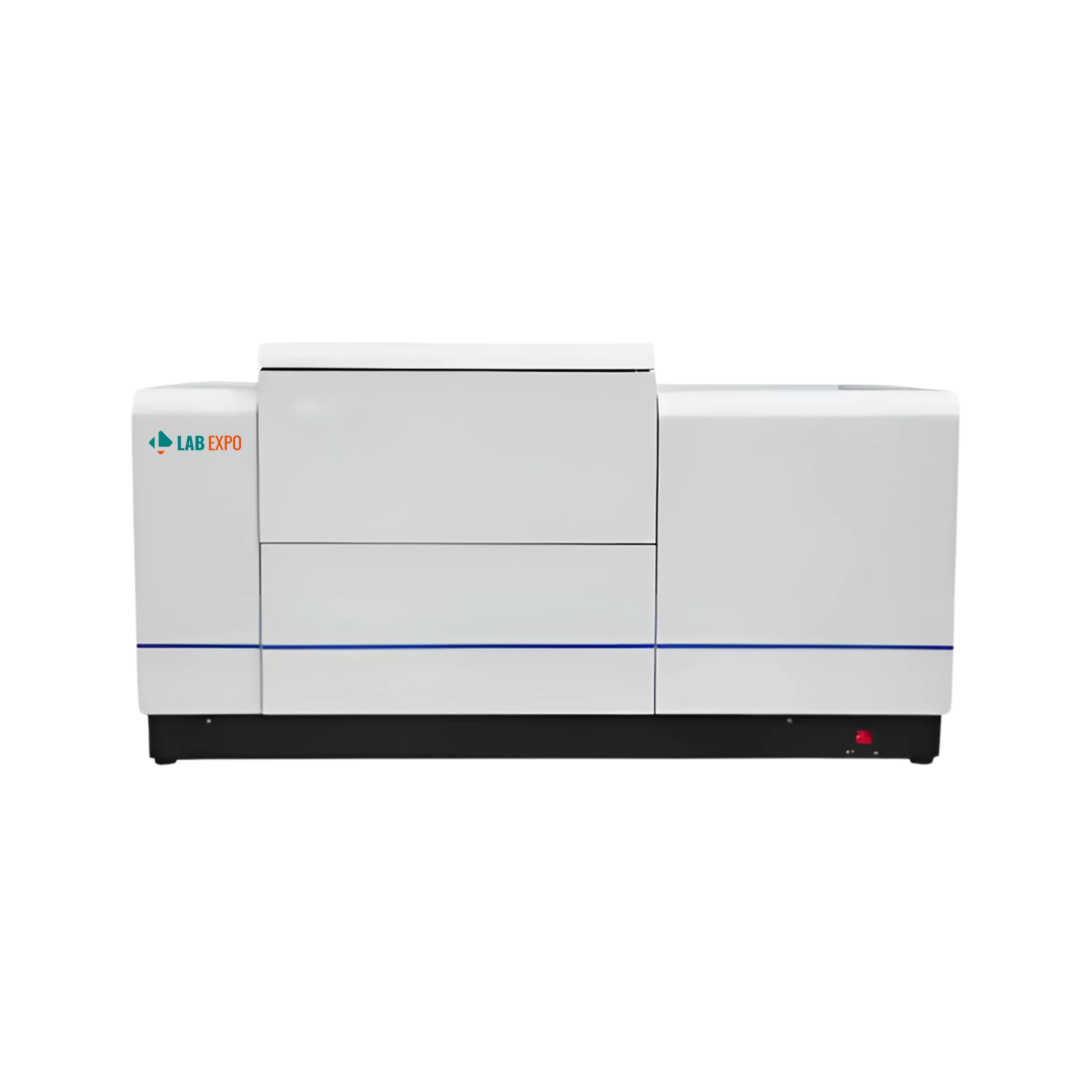

Lab Expo Laser Particle Size Analyzer 50-LPA300 is an intelligent and automatic model integrated with wet and dry dispersion system. It uses laser diffraction measurement principle for measuring over 0.01 - 2000 μm particle size range for both wet and dry dispersion system and is the prior choice for industries and research institutions.
$40,579.00 $ 33816
| Measuring range | wet dispersion: 0.1 μm - 2000 μm; dry dispersion: 0.01 μm - 2000 μm |
| Principle | Laser light scattering |
| Test speed | dry dispersion: < 1 min; wet dispersion: < 2 min |
| Dispersion type | Wet & Dry |
| Executive standard | ISO 13320-1:1999 |
| Sample type | suspension, emulsion, powders |
| Light source | High performance He-Ne Laser, λ= 632.8 nm |
| Operation mode | Full automatic |
| Detector channels no. | dry dispersion: 100 pcs.; wet dispersion: 127 pcs. |
| Optical calibration system | Automatic |
| Accuracy | < 1 % |
| Repeatability | < 1 % |
| Software running | Win XP/Win7 |
| Outer dimension (L x W x H) | 1230 x 640 x 660 mm |
| Net weight | 70 kg |
Function Implementation Quality control labs < 1 % accuracy supports reliable particle size verification Pharmaceutical testing 0.01 μm - 2000 μm range enables analysis of active ingredients Research laboratories Dry dispersion: < 1 min test speed accelerates sample throughput Industrial process monitoring Wet dispersion: < 2 min allows frequent inline checks Academic institutions Automatic optical calibration system reduces operator training time
Laser Particle Size Analyzer units are designed for particle size distribution analysis using laser diffraction and laser scattering technology in wet and dry dispersion workflows. The range includes laser diffraction particle size analyzer systems with measurement ranges from 0.01 μm to 2000 μm, detector configurations up to 120 channels, and analysis speeds below 2 minutes. Models integrate ultrasonic dispersion, single or double laser light scattering principles, and high-accuracy D50 measurement for powder, chemical, pharmaceutical, and material characterization applications requiring a laser scattering particle size analyzer.
