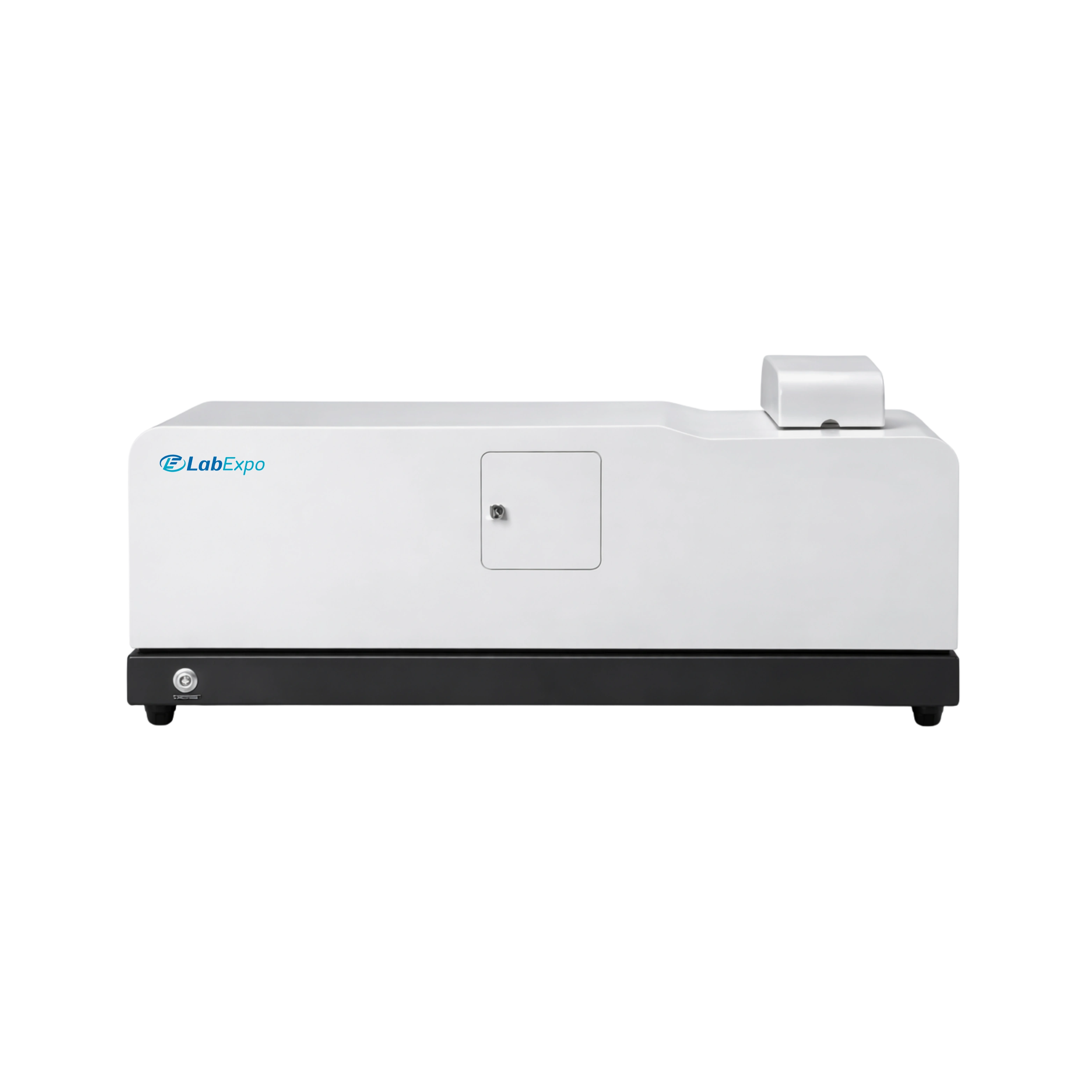

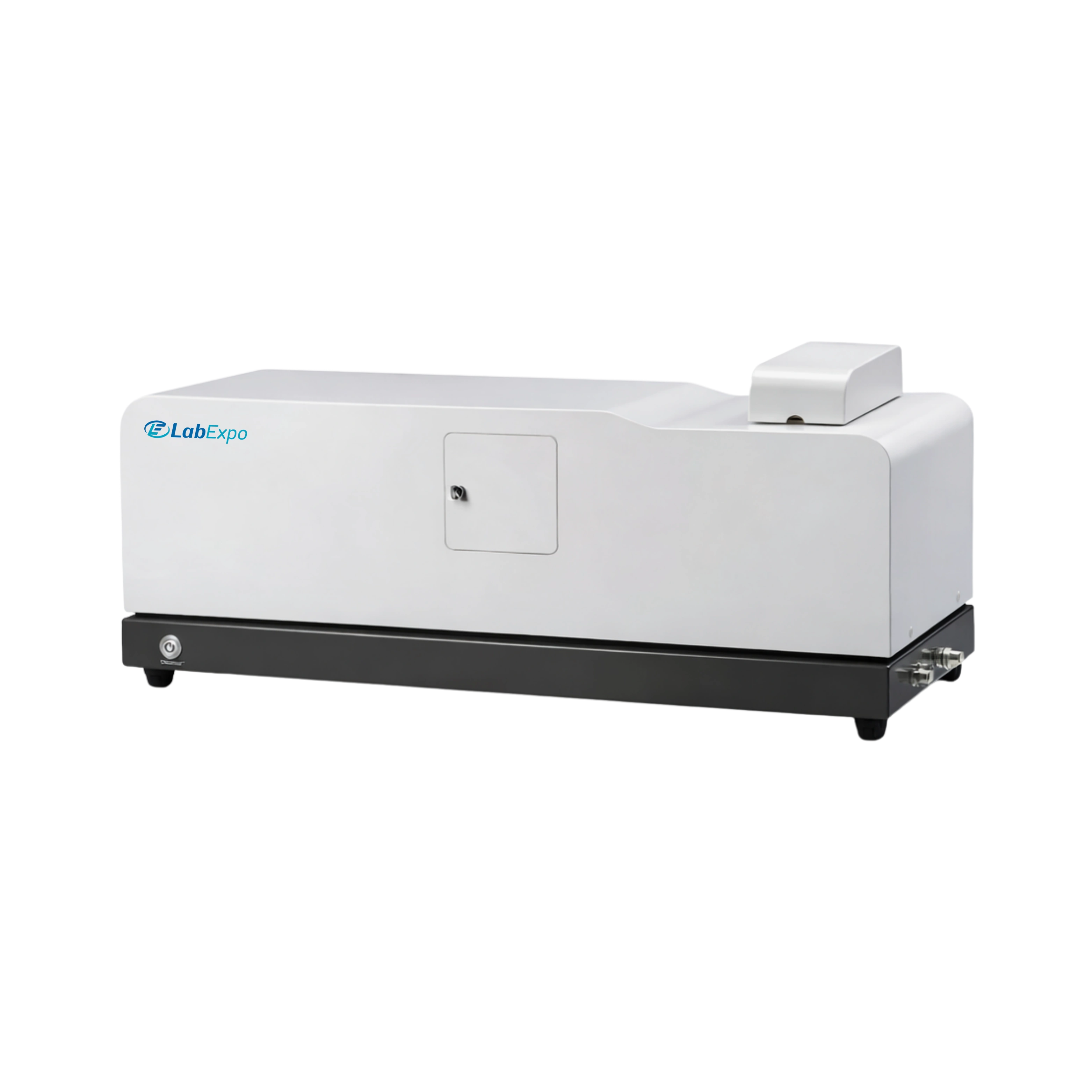

Lab Expo Laser Particle Size Analyzer LE-LPA401 is equipped with a broad measurement range of 0.1 to 800 µm for accurate particle size measurement. It is provided with a 96-channel detector to offer high-resolution data and stability. Integrated with an imported fiber laser for reliable and accurate particle detection. Built with a bubble-free measurement system to ensure reliability. Our Laser Particle Size Analyzer is ideal for pharma research, material analysis, and industrial labs.
$14,544.00 $ 12120
| Measurement Range | 0.1 to 800 µm |
| Detector Channels | 96 |
| Accuracy | Less Than 0.5 % (D50 Value) |
| Repeatability | Less Than 0.5 % (D50 Value) |
| Laser Type | 635 nm Imported Fiber Laser, Greater Than 10 mW |
| Dispersion Methods | Ultrasonic, Circulation, Microinjection (Optional) |
| Sample Volume | 190 to 600 ml |
| Test Time | Less Than 1 Minute |
| Control Mode | Computer-Controlled |
| Interface | Multilingual Software |
| Display & Output | Real-Time Preview, Export to Word, Excel, Bmp, Text |
| Dimensions | 680 × 410 × 450 mm |
| Net Weight | 35 Kg |
| Gross Weight | 45 Kg |
Function Implementation Pharmaceutical research labs 0.1 to 800 µm measures submicron to coarse particles Material analysis facilities 96-channel detector provides high-resolution data Industrial quality control lines Less Than 1 Minute enables rapid batch testing Clinical diagnostics settings Less Than 0.5 % ensures repeatable analytical precision Academic research institutions Computer-Controlled supports automated workflow integration
Laser Particle Size Analyzer units are designed for particle size distribution analysis using laser diffraction and laser scattering technology in wet and dry dispersion workflows. The range includes laser diffraction particle size analyzer systems with measurement ranges from 0.01 μm to 2000 μm, detector configurations up to 120 channels, and analysis speeds below 2 minutes. Models integrate ultrasonic dispersion, single or double laser light scattering principles, and high-accuracy D50 measurement for powder, chemical, pharmaceutical, and material characterization applications requiring a laser scattering particle size analyzer.
