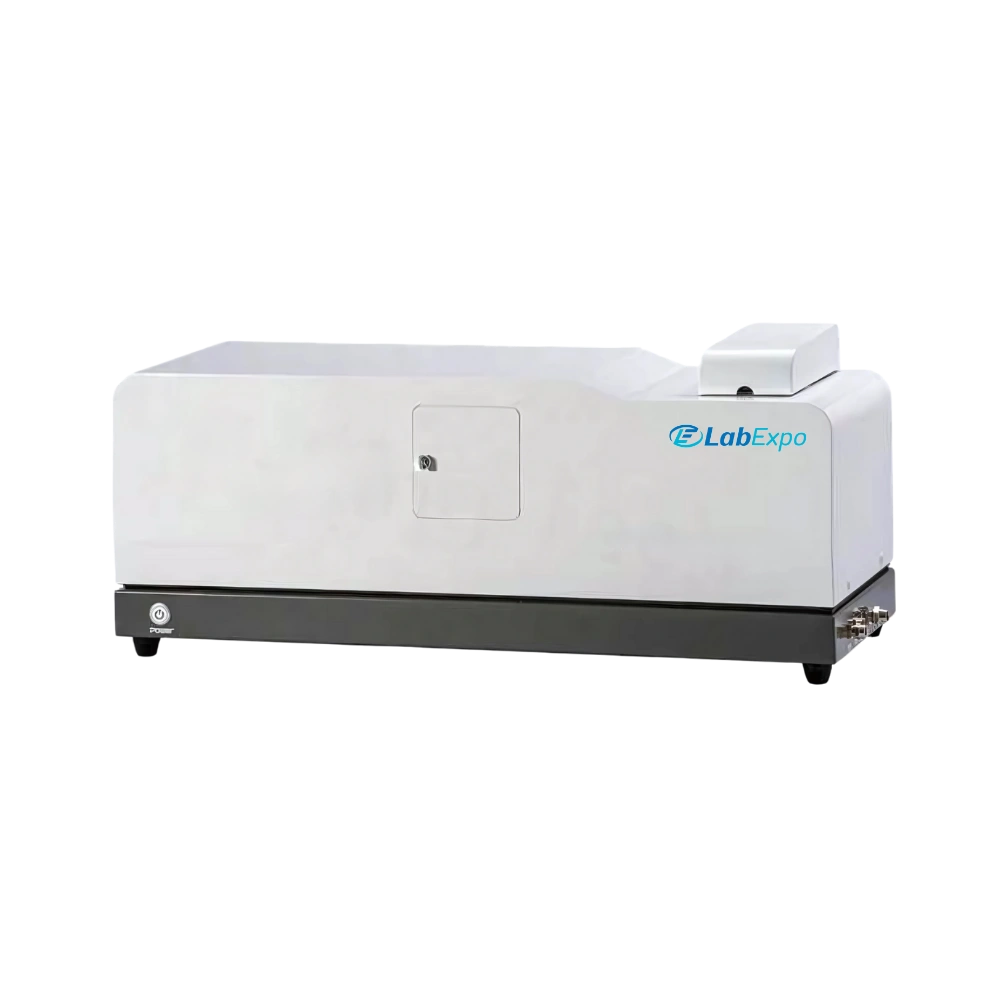

Laser Size Particle Analyzer LE-LPA402

Laser Size Particle Analyzer LE-LPA402

Lab Expo Laser Particle Size Analyzer LE-LPA402 comes with a 635 nm laser to provide stable and clear-cut optical measurements. It provides measurement precision within less than 0.5 % for various testing suspensions. Equipped with ultrasonic and circulation dispersion methods to treat variety of sample types. Integrated with microinjection and boiling sample for minimal sample loss. Our Laser Particle Size Analyzer is ideal for cement, mining, petrochemical, and materials research.

$17,136.00 $ 14280

Laser Size Particle Analyzer LE-LPA402 - Specifications

Measurement Range 0.01 µm to 1000 µm
Accuracy Error ≤ 0.5 % (D50 Value of National Standard Sample)
Repeatability Error Less Than 0.5 % (D50 Value of National Standard Sample)
Misoperation Protection Self-Protection for Misoperation ; No Response to Incorrect Sample Input
Bubble-Free No Bubble Design, Reduces Interference, Improves Accuracy
Dispersion Method Ultrasonic (4 KHz, 100 W), Circulation Pump (100 to 3350 rpm, 25 W)
Sample Cell Boiling-Type Sample Cell With 190 to 600 ml Capacity
Micro Injection Optional Built-In Micro-Injection Sample Feed Device
Laser Parameters Imported Diode Laser, 635 nm, P Greater Than 10 mW
Optical Path Calibration Automatic Calibration
Software Features Analysis Models: R-R Distribution, Lognormal, Etc.
Statistical Methods: D10, D50, D90, Etc.
Comparison: Results Comparison and Evaluation
Self DIY Display Template: Supports Customized Particle Distribution Templates
Test Report Export Word, Excel, BMP, Text Formats
Language Support English Adaptable to Other Languages
Operation Mode Computer Operation
Testing Speed Less Than 1 min / Test (Excluding Dispersion Time)
Dimensions 680 × 410 × 450 mm
Weight 35 kg

Laser Size Particle Analyzer LE-LPA402 - Key Features

  • Laser diode 635nm with power greater than 10mW
  • Measurement range 0.01 to 1000 micrometers
  • Accuracy error less than or equal to 0.5 percent D50 value
  • Sample cell boiling-type with capacity 190 to 600 milliliters
  • Testing speed less than one minute per test excluding dispersion time
  • Ultrasonic dispersion at 4 kilohertz and power of 10 watts

Laser Size Particle Analyzer LE-LPA402 - Catalog

Laser Size Particle Analyzer LE-LPA402 Catalog

Related Laser Particle Size Analyzer

Laser Particle Size Analyzer units are designed for particle size distribution analysis using laser diffraction and laser scattering technology in wet and dry dispersion workflows. The range includes laser diffraction particle size analyzer systems with measurement ranges from 0.01 μm to 2000 μm, detector configurations up to 120 channels, and analysis speeds below 2 minutes. Models integrate ultrasonic dispersion, single or double laser light scattering principles, and high-accuracy D50 measurement for powder, chemical, pharmaceutical, and material characterization applications requiring a laser scattering particle size analyzer.
