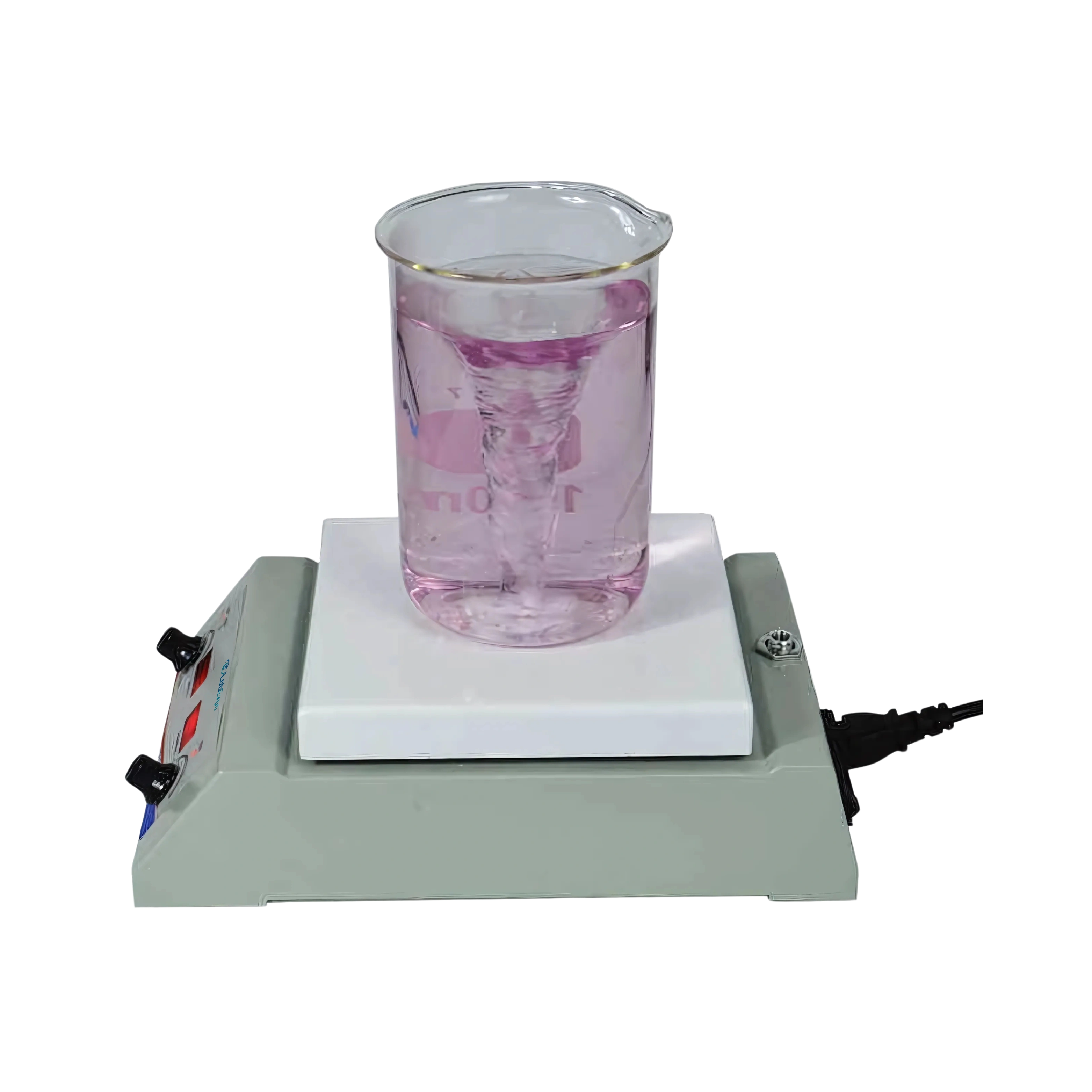

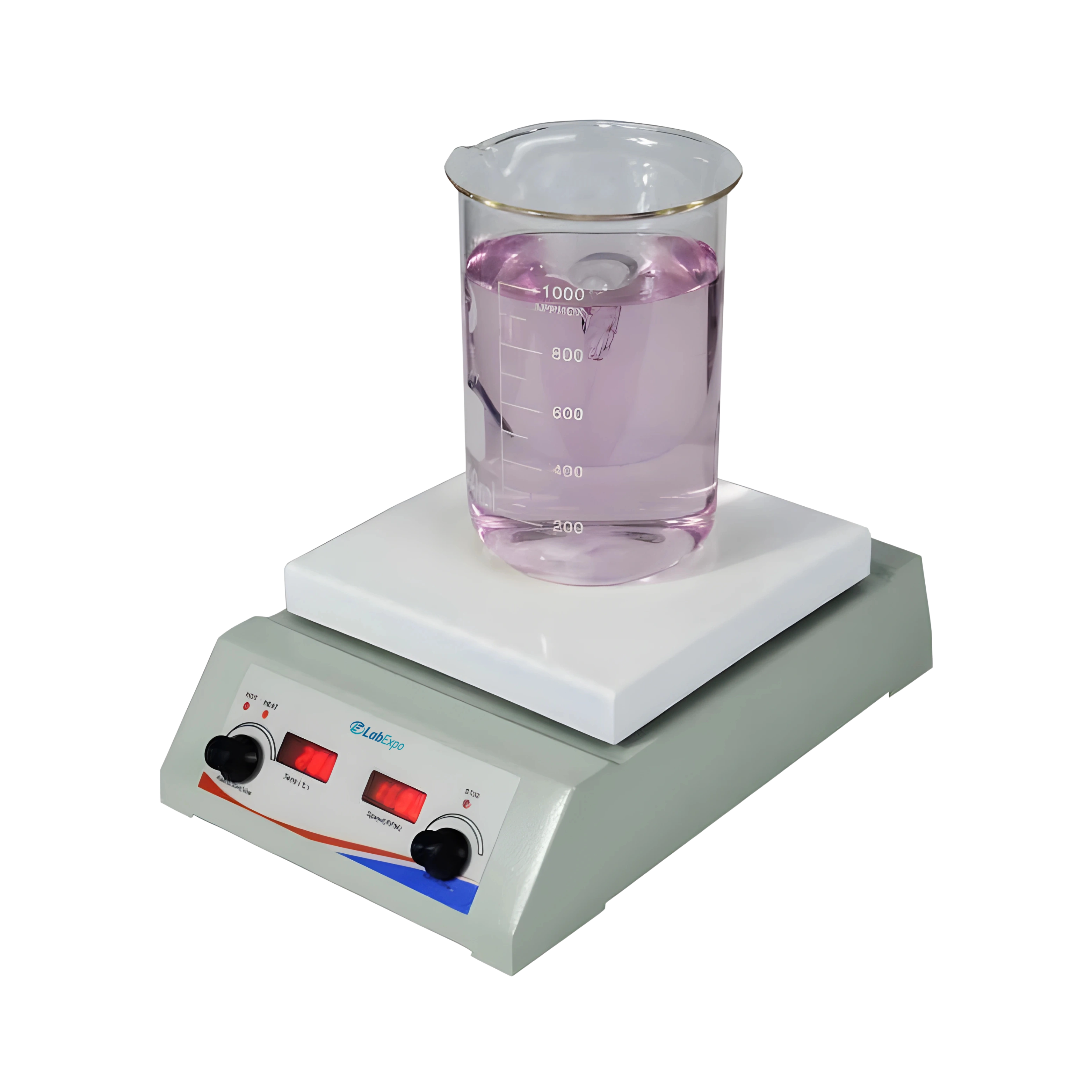

Lab Expo Magnetic Stirrer LE-MGS201 is designed with a single stirring position, ensuring stable and efficient mixing of individual samples. It features digital control for precise and effortless operation. Incorporated with a maximum stirring capacity of 3 L (H₂O) per position for efficient handling of larger sample volumes. Built-in speed control offers a range of 150 to 1600 rpm, ensuring versatile stirring performance. Our Magnetic Stirrer is ideal for chemical studies, biological research, and diverse laboratory applications.
$1,320.00 $ 1100
| Number of Stirring Positions | 1 |
| Maximum Stirring Quantity per Position | 3L (H₂O) |
| Speed Range | 150 to 1600 rpm |
| Temperature Setting Range | 35 to 300°C |
| Heating Range for Plate | 35 to 300°C |
| Heating Range for Solution | 35.0 to 200.0°C |
| Stir Bar Length Range | 26 to 50 mm |
| External Temperature Sensor (Optional) | PT 1000 |
| Temperature Stability | ±0.5 °C |
| Heat Control Accuracy with PT 1000 (500ml H2O in 600ml beaker, 30mm) | ±0.5 °C |
| Heating Setting Resolution of Plate | 1 °C |
| Heating Setting Resolution of Solution | 0.1 °C |
| Display | LED |
| Plate Material | Ceramic coated stainless steel |
| Operation Temperature | 5 to 40 °C |
| Operation Relative Humidity | 80% |
| Protection Class | IP 21 |
| Power Consumption | 500 W |
| Power Supply | 110 to 120V / 220 to 240V |
| Frequency | 50/60 Hz |
| Plate Dimensions | 5.3” (Diameter 135mm) |
| Dimension | 163 × 270 × 100 mm |
| Weight | 2.09 Kg |
Function Implementation Chemical analysis labs 3L maximum stirring quantity per position supports batch sample processing Biological research settings 150 to 1600 rpm speed range enables versatile cell culture mixing Quality control environments ±0.5 °C heat control accuracy ensures precise temperature maintenance Industrial testing facilities Ceramic coated stainless steel plate resists corrosion during extended use Clinical diagnostics workflows LED display provides clear readouts for reproducible experimental conditions
Lab Expo Magnetic Stirrers are built around microprocessor-regulated drive platforms to deliver precise rotational control across a wide speed range. This magnetic stir plate uses stable magnetic coupling for smooth, quiet agitation without mechanical wear. LED speed indication, chemically resistant surfaces, and consistent torque output support accurate mixing, homogenization, and sample preparation for research, pharmaceutical, and quality-control workflows.
