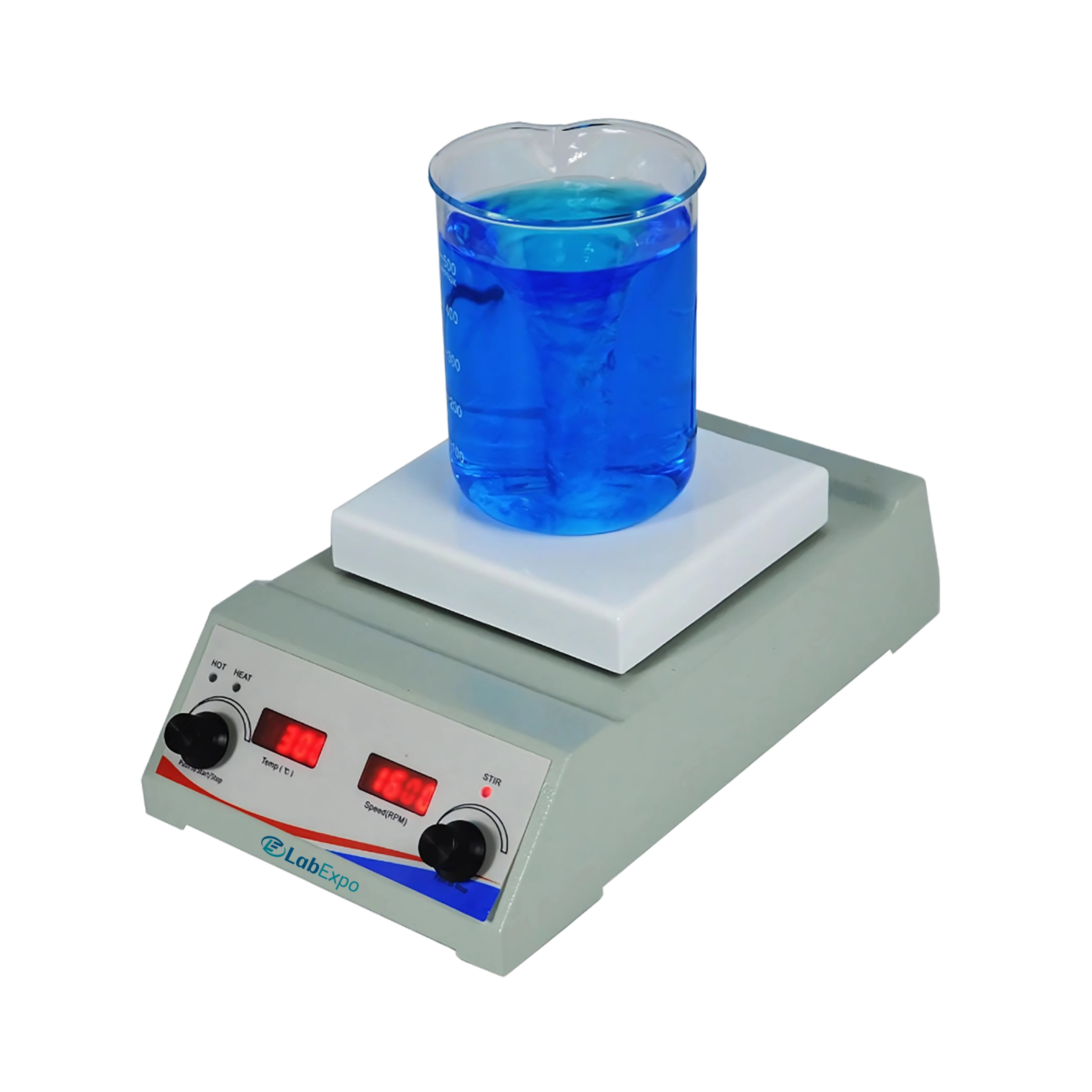

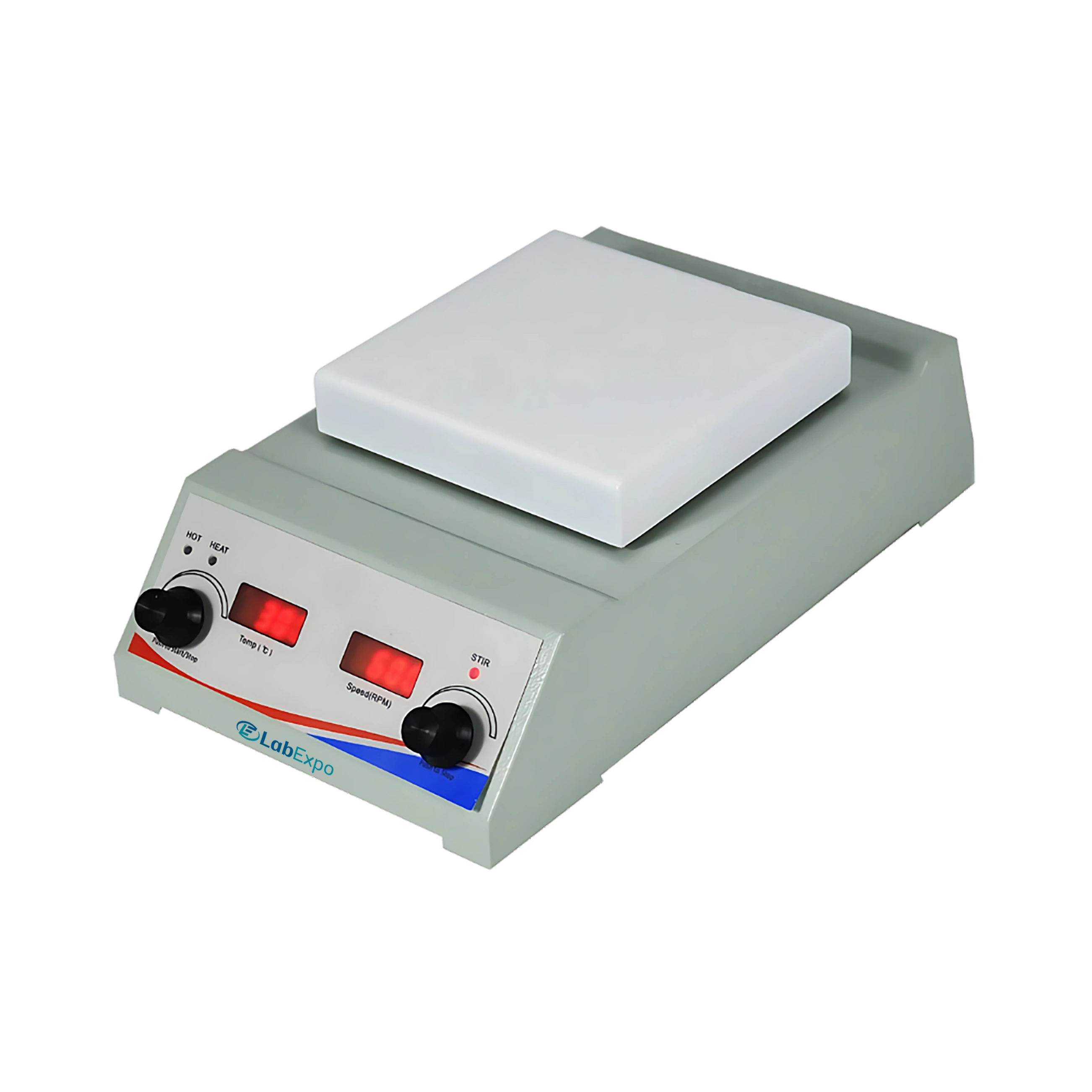

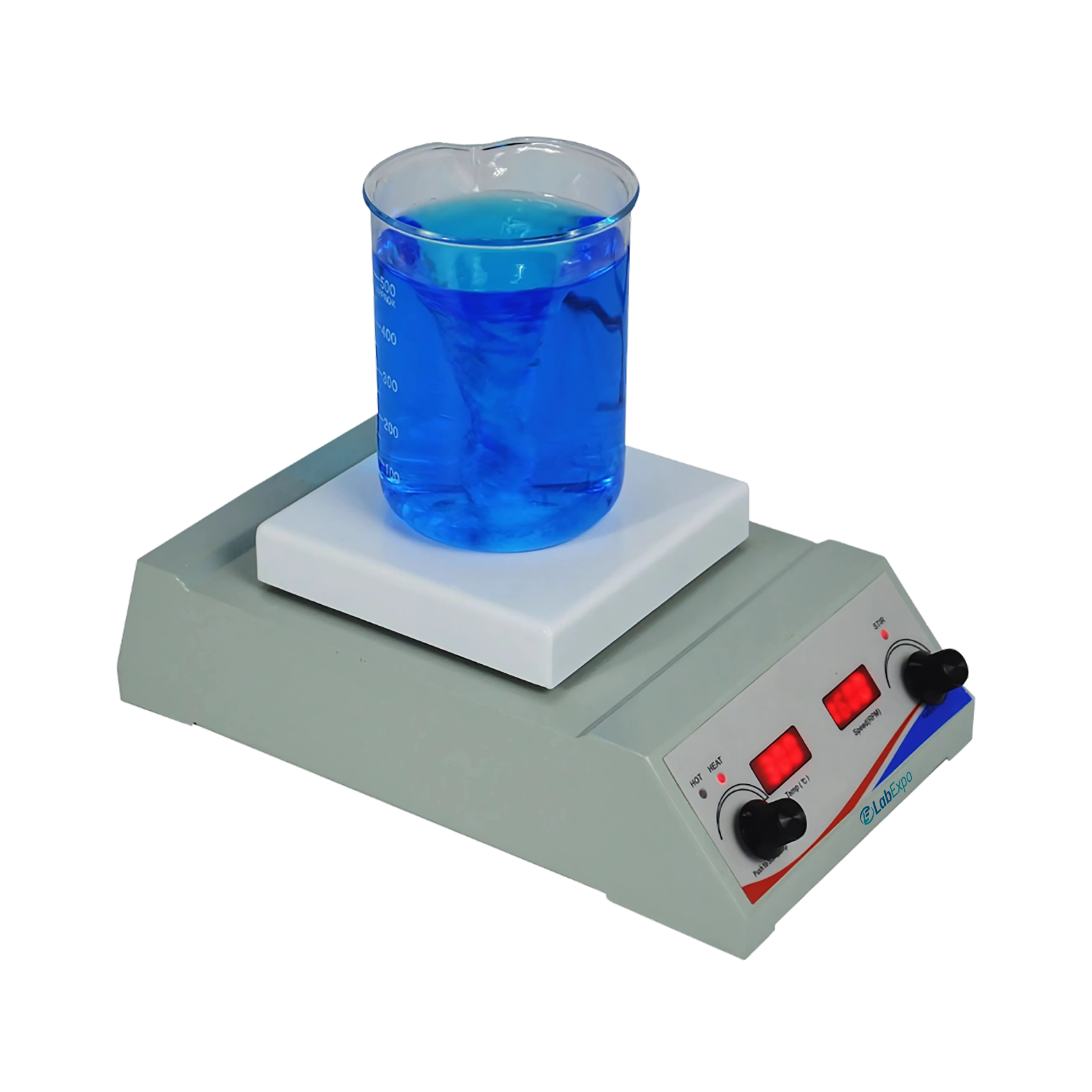

Lab Expo Magnetic Stirrer LE-MGS202 offers a speed range of 150 to 1600 rpm, ensuring flexible and efficient sample mixing. It provides a single stirring position, ensuring stable and controlled sample mixing. Integrated compact design ensures convenient handling and storage. Equipped with a ceramic coated stainless-steel plate, ensuring durability and excellent chemical resistance. Our Magnetic Stirrer is suitable for chemical analysis, biological research, and versatile laboratory applications.
$1,349.00 $ 1124
| Number of Stirring Positions | 1 |
| Maximum Stirring Quantity per Position | 3L (H₂O) |
| Speed Range | 150 to 1600 rpm |
| Temperature Setting Range | 35 to 300°C |
| Heating Range for Plate | 35 to 300°C |
| Heating Range for Solution | 35.0 to 200.0°C |
| Stir Bar Length Range | 26 to 50 mm |
| External Temperature Sensor (Optional) | PT 1000 |
| Temperature Stability | ±0.5 °C |
| Heat Control Accuracy with PT 1000 (500ml H2O in 600ml beaker, 30mm) | ±0.5 °C |
| Heating Setting Resolution of Plate | 1 °C |
| Heating Setting Resolution of Solution | 0.1 °C |
| Display | LED |
| Plate Material | Ceramic coated stainless steel |
| Operation Temperature | 5 to 40 °C |
| Operation Relative Humidity | 80% |
| Protection Class | IP 21 |
| Power Consumption | 500 W |
| Power Supply | 110 to 120V / 220 to 240V |
| Frequency | 50/60 Hz |
| Plate Dimensions | 135 × 135 mm |
| Dimension | 163 × 270 × 100 mm |
| Weight | 2.13 Kg |
Function Implementation Chemical analysis labs 35 to 300°C heating range enables precise temperature control for reactions Biological research ±0.5 °C temperature stability supports consistent sample conditions Quality control testing 150 to 1600 rpm speed range allows adjustable mixing for various viscosities Clinical laboratories Maximum stirring quantity of 3L per position handles standard sample volumes Industrial applications Ceramic coated stainless steel plate resists chemical corrosion during prolonged use
Lab Expo Magnetic Stirrers are built around microprocessor-regulated drive platforms to deliver precise rotational control across a wide speed range. This magnetic stir plate uses stable magnetic coupling for smooth, quiet agitation without mechanical wear. LED speed indication, chemically resistant surfaces, and consistent torque output support accurate mixing, homogenization, and sample preparation for research, pharmaceutical, and quality-control workflows.
