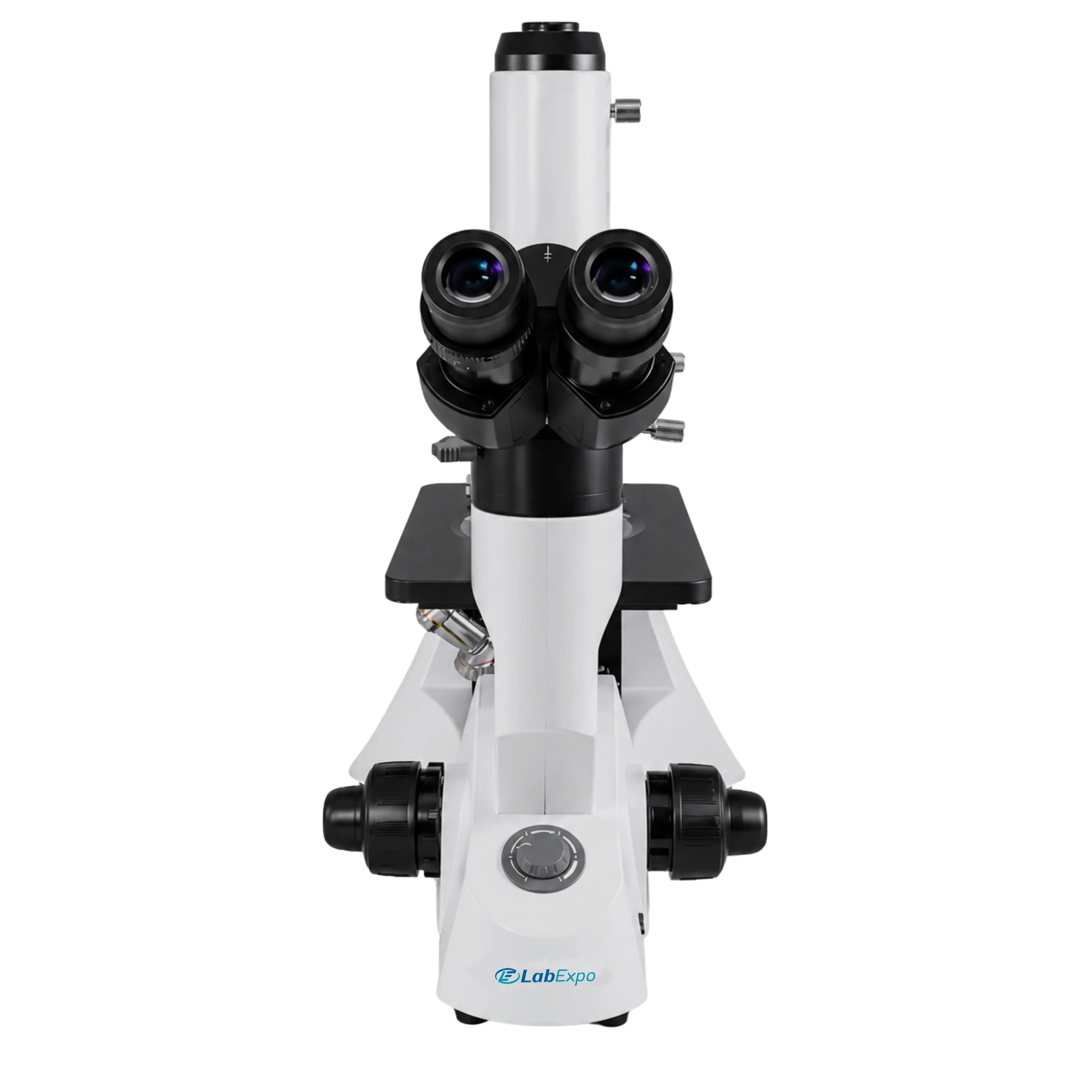

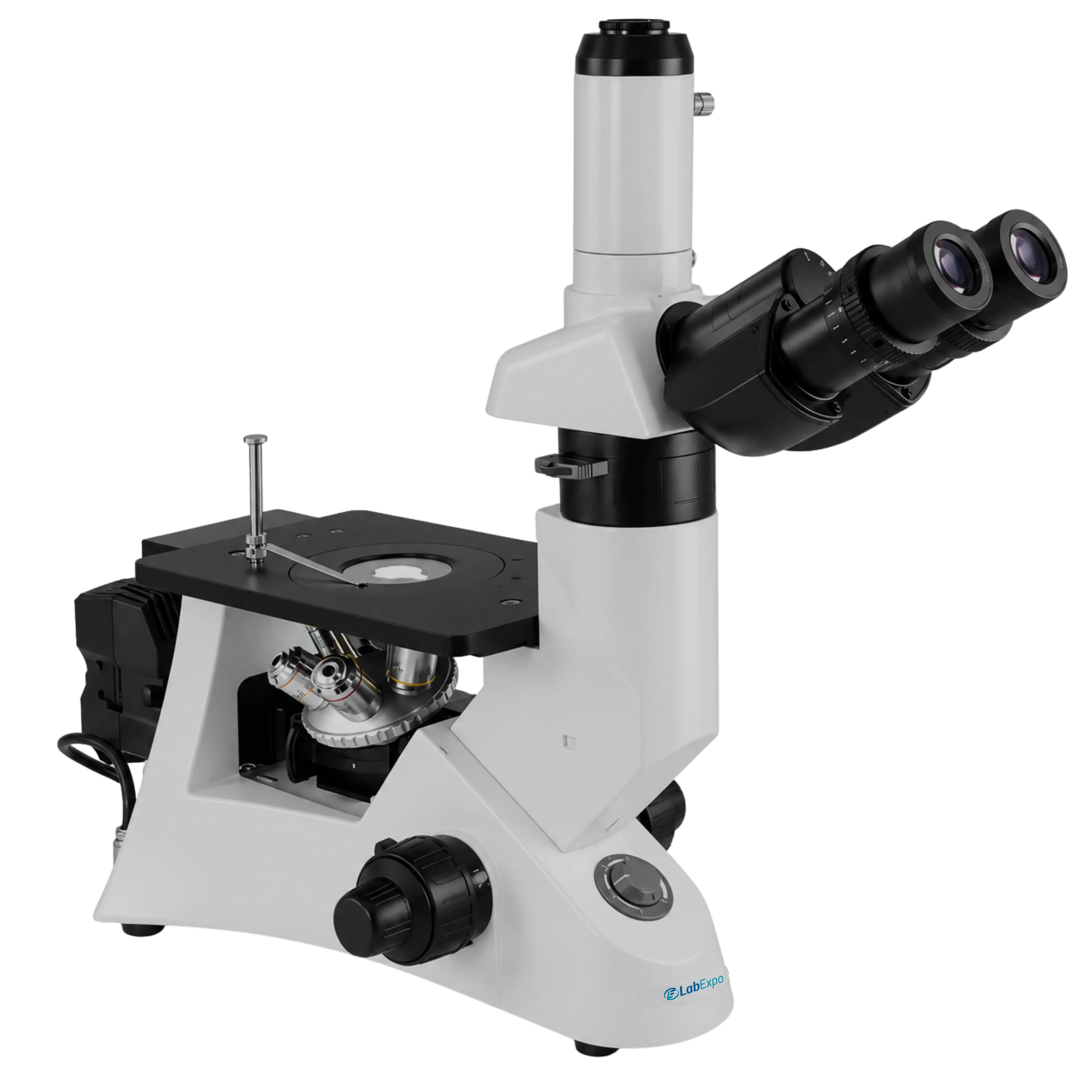

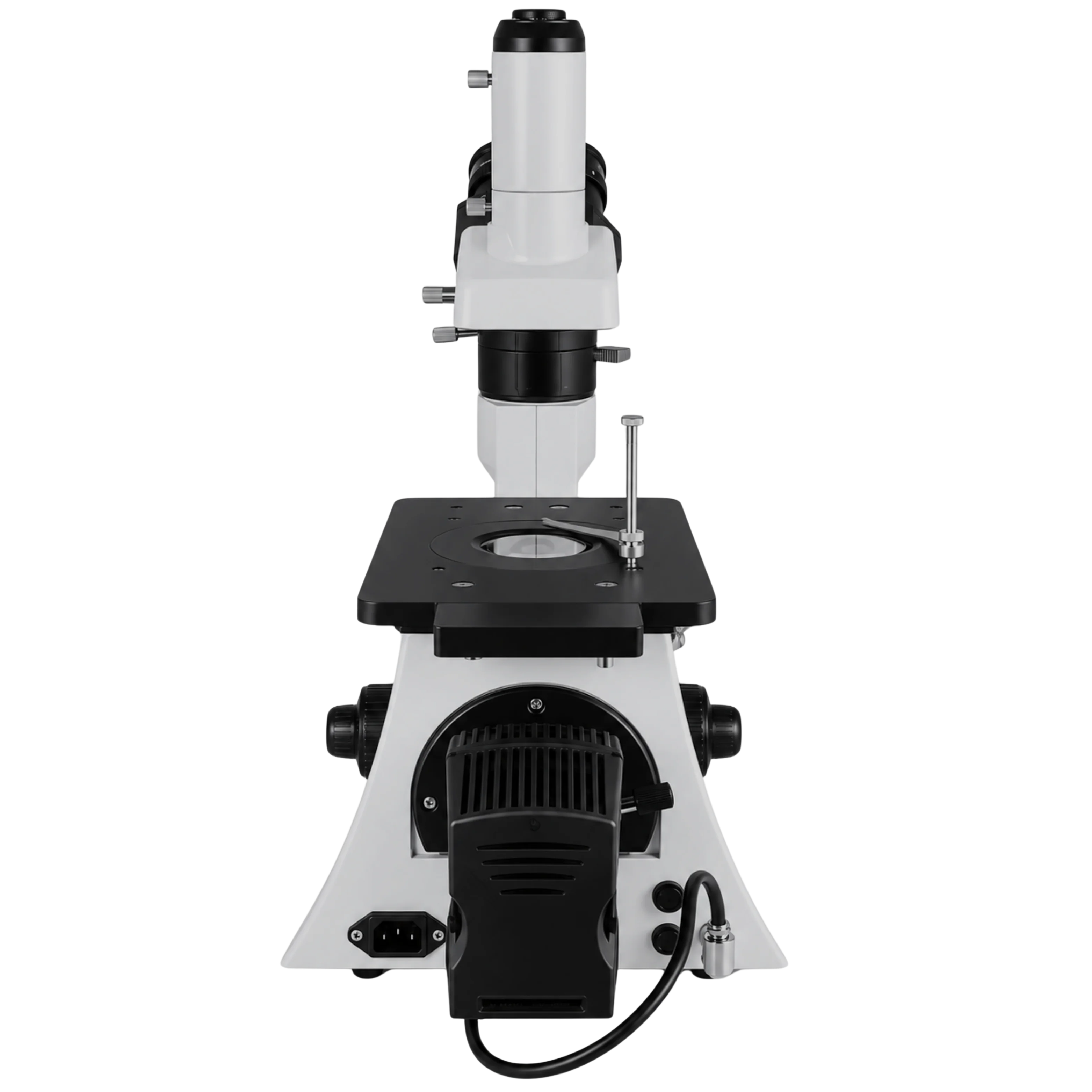

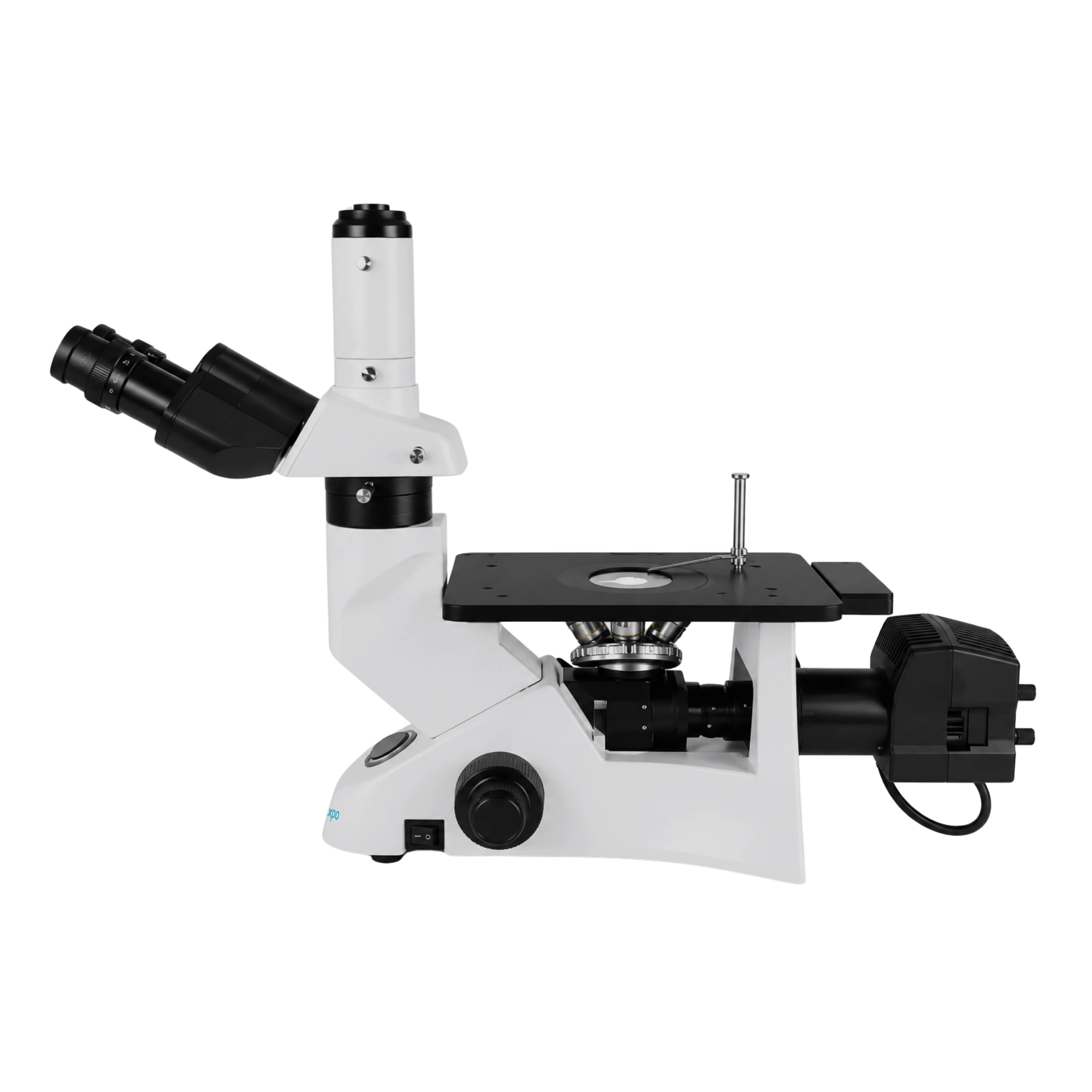

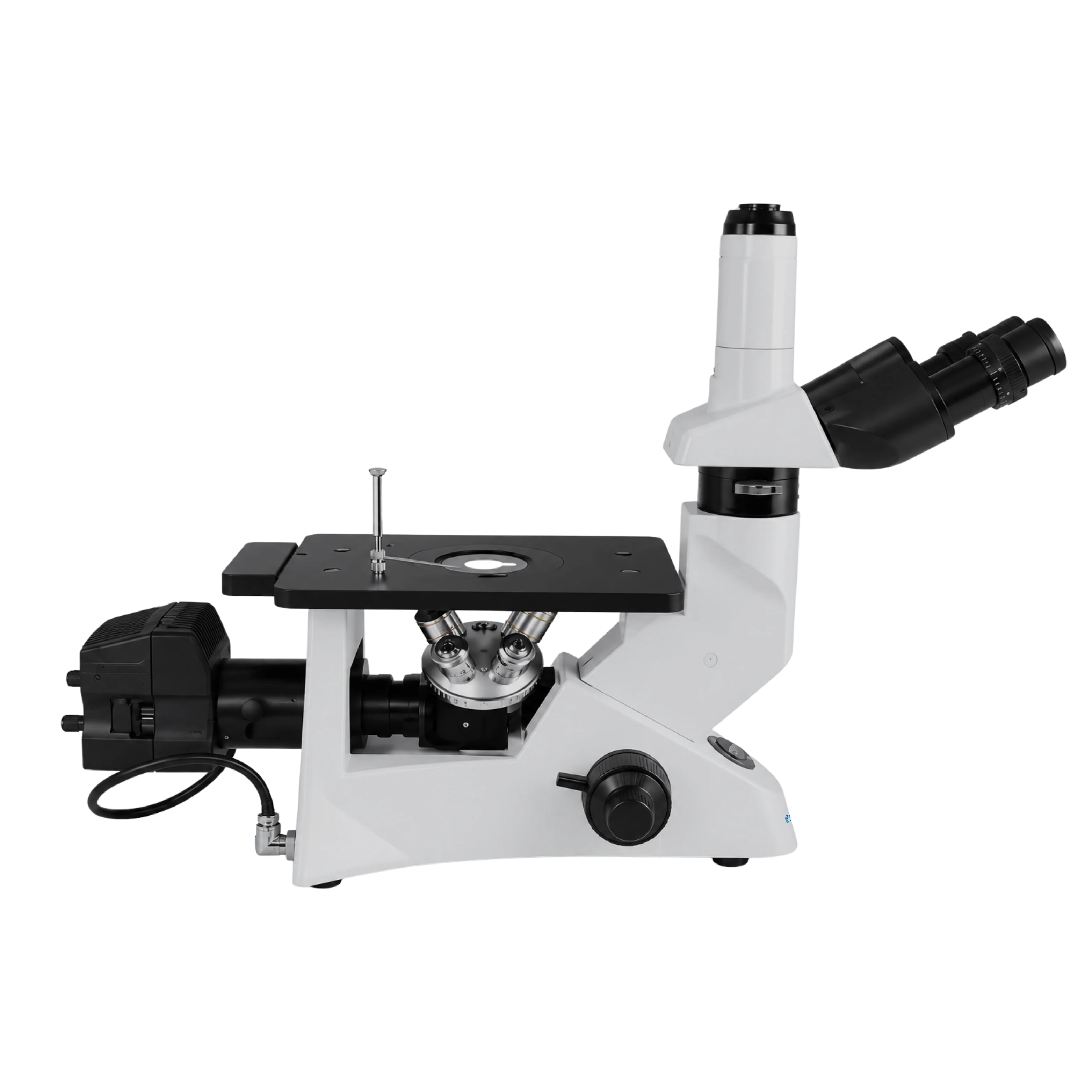

Lab Expo Metallurgical Microscope 43-MMS100 is designed with a trinocular viewing head inclined at 30°, and a wide interpupillary adjustment range of 48 to 75 mm. It is equipped with a high-point, extra wide field EW10X/20 eyepiece to deliver sharp, distortion-free imaging. Its integrated polarization attachment enhances image clarity. Our microscope features Kohler illumination, ensuring uniform and high-contrast lighting for precise metallurgical analysis.
$3,350.00 $ 2792
| Nosepiece | Quintuple nosepiece |
| Stage | Plain stage with slide clips |
| Viewing Head | Trinocular head inclined at 30°, Interpupillary 48-75mm |
| Eyepiece | High-point, Extra wide field eyepiece EW10X/20 |
| Infinite Plan Achromatic Objectives | 2.5X/0.08/∞/- WD 11.7mm (Optional) 2.5X/0.08/∞/- WD 10.7mm (λ slide, Optional) 4X/0.1/∞/- WD 28mm 5X/0.12/∞/- WD 15.4mm (Optional) 10X/0.25/∞/- WD 10mm 20X/0.4/∞/0 WD 5.8mm 40X/0.6/∞/0 WD 2.90mm 50X/0.75/∞/0 WD 0.32mm (Optional) 100X/0.80/∞/0 WD 2mm (Optional) |
| Optional Stages | Attachable mechanical stage, X-Y Coaxial control, Moving range 120X78mm Double layer mechanical stage 226X178mm, Moving range 50X50mm Auxiliary stage (Optional) |
| Focusing | Coaxial coarse & fine adjustment, Vertical objective movement, Coarse stroke: 37.7mm per rotation, Fine stroke: 0.2mm per rotation |
| Illumination | Halogen lamp 6V/30W, Kohler illumination |
| Filter | Blue, Yellow, Green, and ground glass |
| Polarization Attachment | Standard |
| Photo Attachment | Optional |
| Video Adapter | Video adapter with C mount (Optional) |
| Dimension | 460×400×670 mm |
| Net weight | 13 kg |
| Gross weight | 15 kg |
Function Implementation Metallurgical analysis labs 40X/0.6 objective WD 2.90mm enables detailed microstructure inspection Quality control stations Coarse stroke 37.7mm per rotation supports rapid sample focusing Research laboratories Trinocular head inclined at 30° facilitates ergonomic extended observation Clinical pathology units Interpupillary range 48-75mm accommodates diverse user positioning Industrial material testing Moving range 120X78mm allows large specimen manipulation
Objective:
5×0.12/∞/- WD15.4 mm
40×0.6/∞/0 WD2.9 mm
50×0.75/∞/0 WD0.32 mm
80×0.9/∞/0 WD0.2 mm
100×0.8/∞/0 WD2.00 mm
Video adapter C-mount
Photo attachment
Lab Expo Metallurgical Microscopes are structured around reflected-light optical systems for surface-level examination of metals and alloys. This metallographic microscope uses infinity plan achromatic objectives with a quintuple nosepiece to maintain image clarity across magnifications. Coaxial coarse–fine focusing, uniform halogen illumination, and trinocular viewing support precise microstructure analysis, documentation, and inspection in material science and industrial laboratory workflows.
